766 60: 6-Direction Call Display Unit - LEGRAND Mosaic Technical Manual

DEVICE
AND INSTALLATION

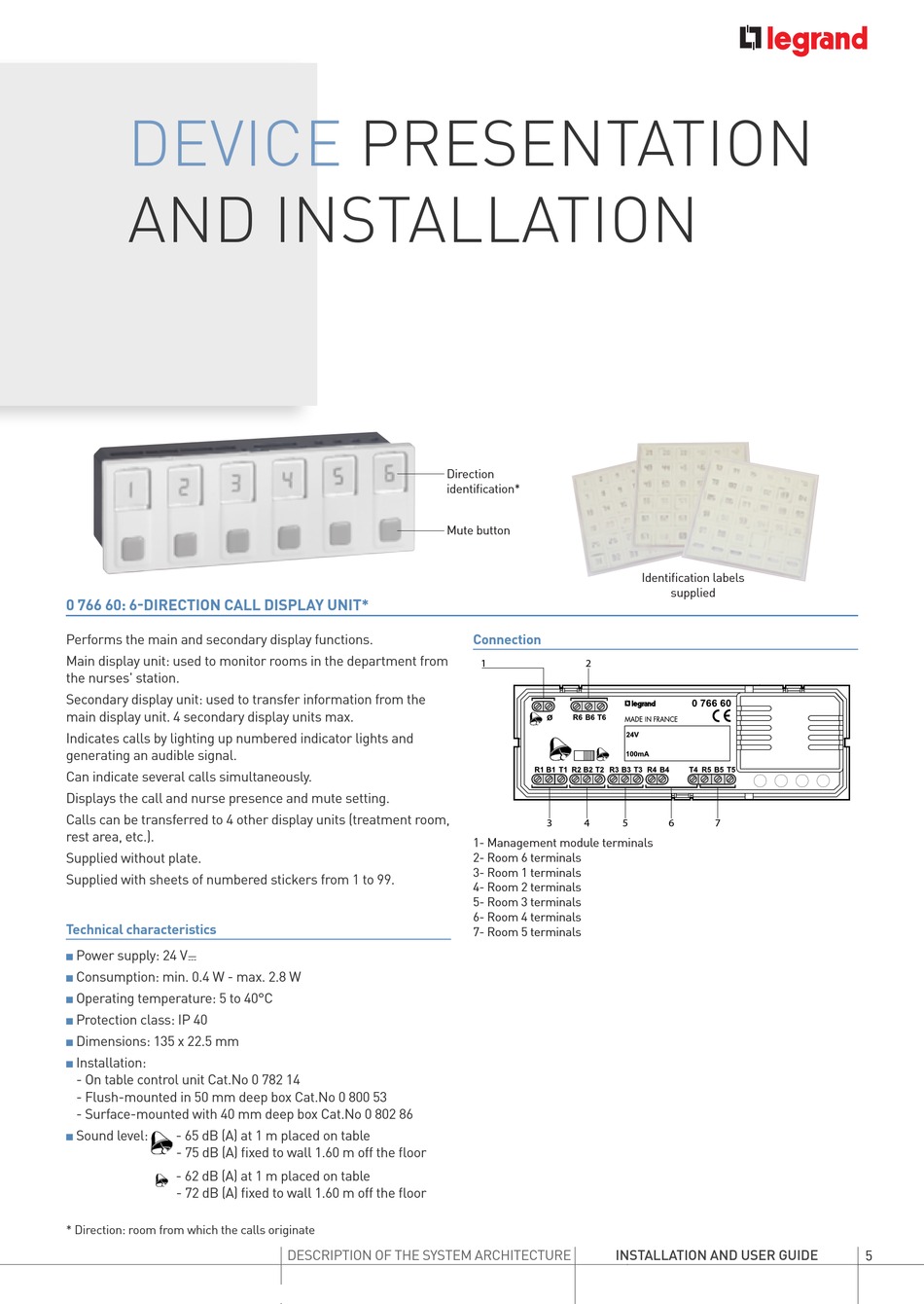

0 766 60: 6-DIRECTION CALL DISPLAY UNIT*

Performs the main and secondary display functions.
Main display unit: used to monitor rooms in the department from
the nurses' station.
Secondary display unit: used to transfer information from the
main display unit. 4 secondary display units max.
Indicates calls by lighting up numbered indicator lights and
generating an audible signal.
Can indicate several calls simultaneously.
Displays the call and nurse presence and mute setting.
Calls can be transferred to 4 other display units (treatment room,
rest area, etc.).
Supplied without plate.
Supplied with sheets of numbered stickers from 1 to 99.
Technical characteristics
Power supply: 24 V=
n
Consumption: min. 0.4 W - max. 2.8 W
n
Operating temperature: 5 to 40°C
n
Protection class: IP 40
n
Dimensions: 135 x 22.5 mm
n
Installation:
n
- On table control unit Cat.No 0 782 14
- Flush-mounted in 50 mm deep box Cat.No 0 800 53
- Surface-mounted with 40 mm deep box Cat.No 0 802 86
Sound level: - 65 dB (A) at 1 m placed on table
n
- 75 dB (A) fixed to wall 1.60 m off the floor
- 62 dB (A) at 1 m placed on table
- 72 dB (A) fixed to wall 1.60 m off the floor
* Direction: room from which the calls originate
PRESENTATION
Direction
identification*
Mute button
DESCRIPTION OF THE SYSTEM ARCHITECTURE
Identification labels
Connection
1 2
3 4 5
1- Management module terminals
2- Room 6 terminals
3- Room 1 terminals
4- Room 2 terminals
5- Room 3 terminals
6- Room 4 terminals
7- Room 5 terminals
INSTALLATION AND USER GUIDE
supplied
0 766 60
6 7
5
