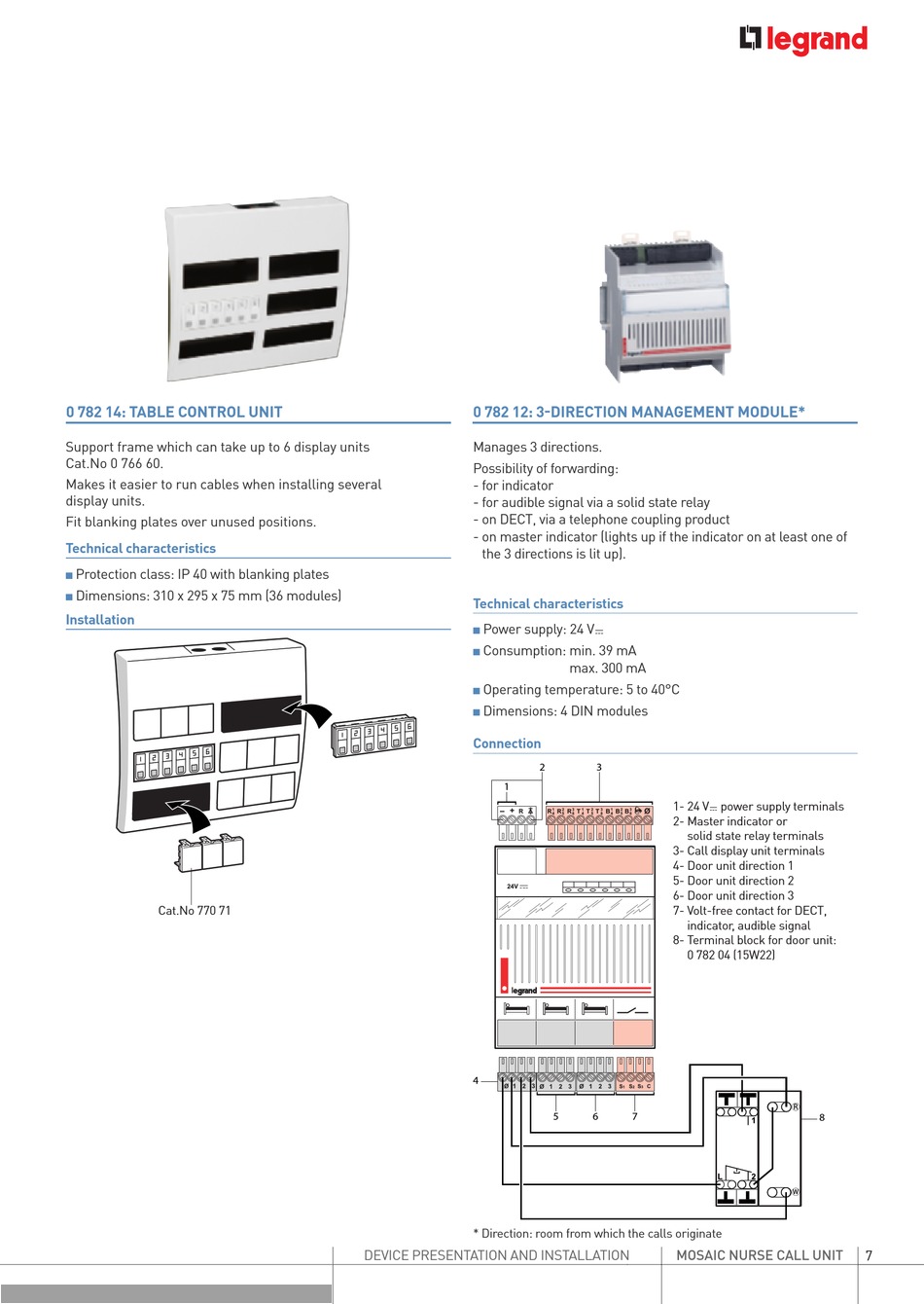

0 782 14: TABLE CONTROL UNIT

Support frame which can take up to 6 display units
Cat.No 0 766 60.
Makes it easier to run cables when installing several
display units.
Fit blanking plates over unused positions.
Technical characteristics
Protection class: IP 40 with blanking plates
n
Dimensions: 310 x 295 x 75 mm (36 modules)
n
Installation
Cat.No 770 71

0 782 12: 3-DIRECTION MANAGEMENT MODULE*

Manages 3 directions.
Possibility of forwarding:
- for indicator
- for audible signal via a solid state relay
- on DECT, via a telephone coupling product
- on master indicator (lights up if the indicator on at least one of
the 3 directions is lit up).
Technical characteristics
Power supply: 24 V=
n
Consumption: min. 39 mA
n
Operating temperature: 5 to 40°C
n
Dimensions: 4 DIN modules
n
Connection
1
4
* Direction: room from which the calls originate
DEVICE PRESENTATION AND INSTALLATION
max. 300 mA
2 3
1- 24 V= power supply terminals
2- Master indicator or
solid state relay terminals
3- Call display unit terminals
4- Door unit direction 1
5- Door unit direction 2
6- Door unit direction 3
7- Volt-free contact for DECT,
indicator, audible signal
8- Terminal block for door unit:
0 782 04 (15W22)
5 6 7
