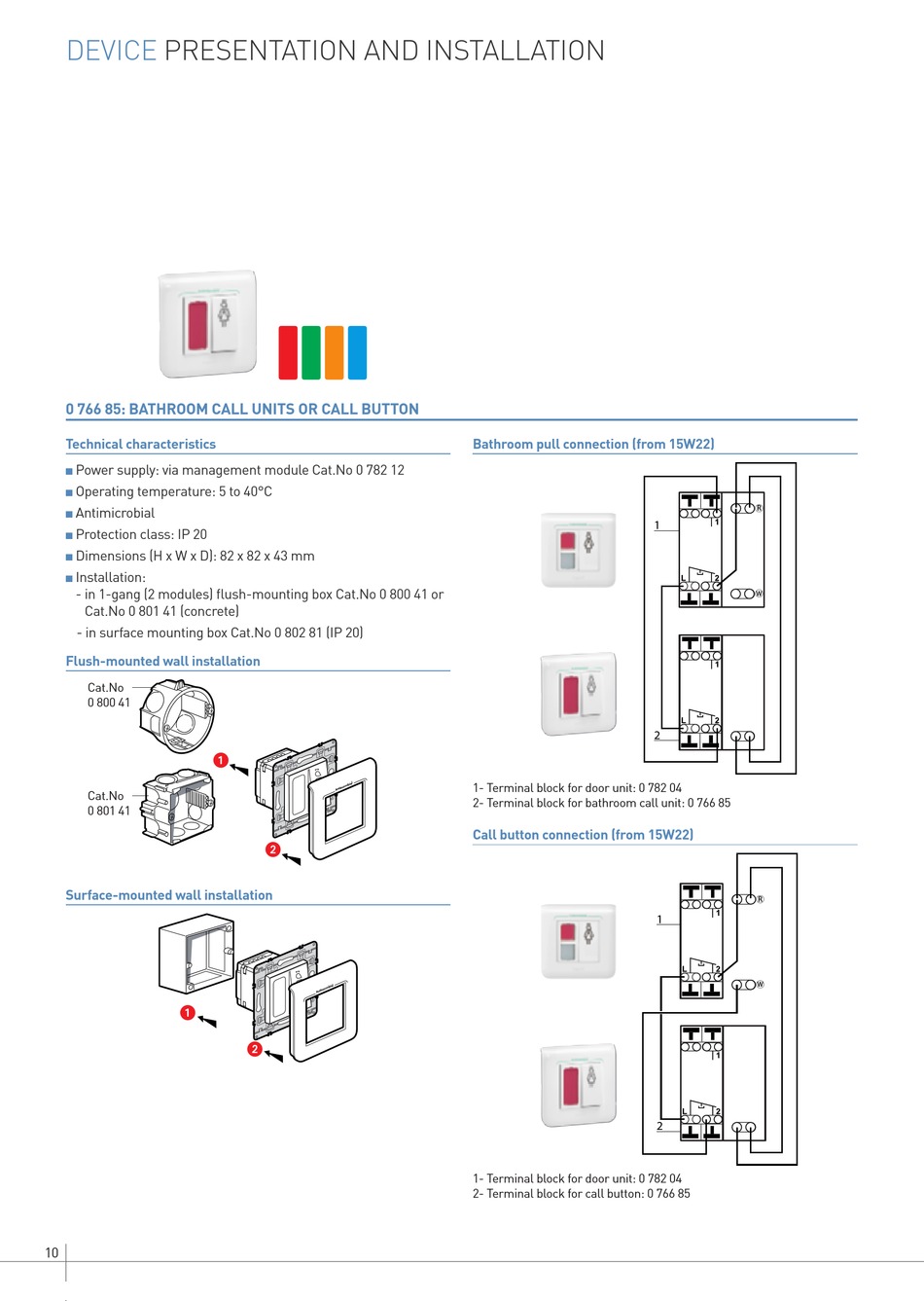

DEVICE PRESENTATION AND INSTALLATION

0 766 85: BATHROOM CALL UNITS OR CALL BUTTON

Technical characteristics
Power supply: via management module Cat.No 0 782 12
n
Operating temperature: 5 to 40°C
n
Antimicrobial
n
Protection class: IP 20
n
Dimensions (H x W x D): 82 x 82 x 43 mm
n
Installation:
n
- in 1-gang (2 modules) flush-mounting box Cat.No 0 800 41 or
Cat.No 0 801 41 (concrete)
- in surface mounting box Cat.No 0 802 81 (IP 20)
Flush-mounted wall installation
Cat.No
0 800 41
Cat.No
0 801 41
Surface-mounted wall installation
10
Bathroom pull connection (from 15W22)
1- Terminal block for door unit: 0 782 04
2- Terminal block for bathroom call unit: 0 766 85
Call button connection (from 15W22)
1- Terminal block for door unit: 0 782 04
2- Terminal block for call button: 0 766 85
R
1
W
2
R
1
W
2
