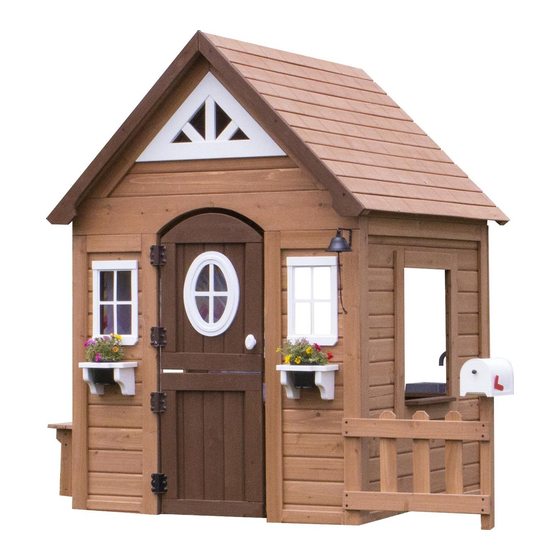

Backyard Discovery ASPEN 6515 Owner's Manual

Playhouse
Hide thumbs Also See for ASPEN 6515:

Advertisement

Quick Links

Download this manual
Backyard Discovery
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
Register your new play house on-line @ www.swingsetsonline.com
Features the
INS-6515-A-ASPEN PLAYHOUSE-ENG 07/22/14
(you will also find any updates on assembly instructions and
information to order replacement parts)
Save this assembly manual for future reference in the event that
you need to order replacement parts.
ASPEN
PLAYHOUSE
Model: #6515
WARNING
Adult Assembly Required.
Not suitable for children under two years,
due to sharp points and small parts .
fastening system.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASPEN 6515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery ASPEN 6515

Summary of Contents for Backyard Discovery ASPEN 6515

  • Page 1 ASPEN PLAYHOUSE Model: #6515 Backyard Discovery 3001 North Rouse Pittsburg, KS 66762 1-800-856-4445 WARNING Adult Assembly Required. Not suitable for children under two years, due to sharp points and small parts . • Owner's Manual • Frequently Asked Questions • Assembly Instructions •...
  • Page 2 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La tienda donde realizó...
  • Page 3 Play House Assembly Manual FAQs: 1. Does the area for the play house need to be level? Yes. Backyard Discovery recommends the play house be positioned on a flat level area for maximum safety and durability. Any stakes provided should be used to secure it firmly to the ground.

  • Page 4: For Your Records

    Owner’s Manual Play House Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 2 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
  • Page 5 Owner’s Manual Play House Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height. Positioning Your Play house 1. The Play house is designed to be installed on a level surface by an Adult with an Adult helper.
  • Page 6 Owner’s Manual Play House The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12"...
  • Page 7 Owner’s Manual Play House all moving parts including swing seats, ropes, cables, and chains for wear, Check • rust, or deterioration. Replace as needed. Check metal parts for rust. If found, sand and repaint using non Lead-based paint • meeting the requirements of Title 16 CRF Part 1303.
  • Page 8 Owner’s Manual Play House Owner’s Manual Play House Disposal Instructions: Disposal Instructions: When the Play house use is no longer desired, it should be disassembled and use is no longer desired, it should be disassembled and use is no longer desired, it should be disassembled and disposed of in such a way that no unreasonable hazards will exist at the time the unit disposed of in such a way that no unreasonable hazards will exist at the time the unit disposed of in such a way that no unreasonable hazards will exist at the time the unit...
  • Page 9 Owner’s Manual Play House APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information:. www.cpsc.gov/cpscpub/pubs/323.html X3. CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.
  • Page 10 Owner’s Manual Play House This information has been extracted from the CPSC publications “Playground Surfacing — Technical Information Guide” and “Handbook for Public Playground Safety.” Copies of these reports can be obtained by sending a postcard to: Office of Public Affairs, U.S. Consumer Product Safety Commission, Washington, D.C., 20207 or call the toll-free hotline: 1- 800-638-2772.

  • Page 11: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Claw Hammer) (Phillips Screw Driver) (Tape Measure) (Rubber Mallet - Optional) (Drill Attachments: (Cordless Drill or Electric Drill) Phillips Head)
  • Page 12 SAFETY AND ASSEMBLY INFORMATION SELECTING THE CORRECT LOCATION FOR YOUR PLAY PRODUCT IS IMPORTANT FOR YOUR CHILDREN’S SAFETY AND THE PRODUCT’S LONGEVITY Dimensions: General Information: • The Aspen Playhouse has one layout option. Your set has been designed and engineered for Layout Ground Dimension Safe Play Area*...

  • Page 13: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) G1 - FRONT HEADER - W4L05074 1"x5 1/4"x45" (24x134x1142) G2 - WALL SUPPORT - W4L05067 1"x5 1/4"x5 7/8" (24x134x150) H1 - LEFT ANGLED HEADER - W4L05071 1"x3 3/8"x44 3/8" (24x86x1127) H2 - RIGHT ANGLED HEADER - W4L05072 1"x3 3/8"x44 3/8"...
  • Page 14 Parts Identification Wood Components (NOT TO SCALE) L1 - CABINET TOP - W4L05076 5/8"x4 3/8"x42 3/4" (16x112x1087) L2 - SERVING SHELF - W4L05287 5/8"x4 3/8"x18 1/2" (16x112x470) M1 - FRONT CABINET TOP - W4L05077 5/8"x3 3/8"x42 3/4" (16x86x1087) M2 - BENCH SEAT - W4L05292 5/8”x3 3/8”x19 1/8”...
  • Page 15 Parts Identification Wood Components (NOT TO SCALE) WP2 - LEFT FRONT WALL ASSEMBLY - W2A01594 WP1 - RIGHT REAR ASSEMBLY - W2A01592 44 3/8"x14"x41 3/4" (1127x355x1061) 44 3/8"x45"x41 3/4" (1127x1143x1061) WP3 - RIGHT FRONT WALL PANEL - W2A01595 WP4 - PICKET FENCE ASSEMBLY - W2A01598 1"x14"x39 3/4"...
  • Page 16 Parts Identification Wood Components (NOT TO SCALE) GP1 - GABLE END ASSEMBLY - W2A01581 RP1 - ROOF PANEL - W2A01582 1"x43 1/8"x21 1/2" (27x1095x547) 1 3/8"x35 3/16"x50" (35x894x1270)
  • Page 17 Parts Identification Hardware SCREW PFH 8x1/2 BLK - H100203 BOLT WH 1/4x1/2 BLK - H100401 SCREW PFH 8x1 BLK - H100385 BOLT WH 1/4x1-1/4 BLK - H100397 SCREW PFH 8x1 1/8 BLK - H100386 (85) SCREW PFH 8x1 1/4 BLK - H100387 NUT BARREL WH 1/4x7/8 BLK - H100399 SCREW PFH 8x1-1/2 BLK - H100200 (48)
  • Page 18 Parts Identification Accessories (NOT TO SCALE) METAL TIE STRAP - A100257 KNOB KIT - A6P00020 FAUCET KIT - A6P00024 SURFACE MOUNT BASIN - A6P00032 STOVE KIT - A6P00025 FLOWER POT HOLDER - A6P00023...
  • Page 19 Parts Identification Accessories (NOT TO SCALE) 90° L-BRACKET - BLK - A4M00555 HINGE (DOOR, NON-SPRING LOADED) - A4M00558 "A" REVISION TAG - A100314 HINGE (DOOR, SPRING LOADED) - A100327 LTP ID TAG (SMALL) WITH AGES - A4M00515 MAILBOX - A6P00017...
  • Page 20 Parts Identification Accessories (NOT TO SCALE) PLASTIC CURTAIN ROD - A6P00057 APPLE ORANGE CURTAIN - A6P00056 WATERMELON STRAWBERRY CORN CARROT PLASTIC KNIFE CUTTING BOARD - OUTDOOR LIGHT FIXTURE -A6P00068 FRUIT BASKET KIT - A6P00069 L BRACKET WHITE 32x51 - A100133 BELL ASSEMBLY - A4M00554...
  • Page 21 90° L-BRACKET - BLK - A4M00555 STEP 1: PLAYHOUSE ASSEMBLY 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK SCREW PWH 8x5/8 BLK (2 PLCS) REAR LEFT FRONT RIGHT 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK (2 PLCS)
  • Page 22 90° L-BRACKET - BLK - A4M00555 STEP 2: 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK SCREW PWH 8x5/8 BLK (2 PLCS) RIGHT FRONT REAR LEFT 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK (2 PLCS)
  • Page 23 H3 - REAR HEADER - W4L05073 H1 - LEFT ANGLED HEADER - W4L05071 1"x3 3/8"x42 7/8" (24x86x1088) 1"x3 3/8"x44 3/8" (24x86x1127) H2 - RIGHT ANGLED HEADER - W4L05072 G1 - FRONT HEADER - W4L05074 1"x3 3/8"x44 3/8" (24x86x1127) - 90° L-BRACKET - A4M00555 1"x5 1/4"x45"...
  • Page 24 N4 - TIE STRAP - W4L05075 5/8”x2”x5 1/8” (16x50x130) METAL TIE STRAP - A100257 STEP 4: SCREW PFH 8x1 1/4 BLK (12 PLCS) 3 1/4" SCREW PWH 8x3/4 BLK SCREW PFH (12) 8x1 1/4 BLK FLUSH LEFT RIGHT SCREW PWH 8x3/4 BLK (8 PLCS) 2"...
  • Page 25 N6 - TIE STRAP - W4L05078 5/8”x2”x5 7/8” (16x50x150) STEP 5: 2" SCREW PFH 8x1 1/4 BLK (6 PLCS) SCREW PFH 8x1 1/4 BLK 1 1/4" LEFT RIGHT...
  • Page 26 J1 - SUPPORT BOARD - W4L05068 G2 - WALL SUPPORT - W4L05067 1"x2 3/8"x6 3/4" (24x60x170) 1"x5 1/4"x5 7/8" (24x134x150) SQ - "A" REVISION TAG - A100314 STEP 6: REAR SCREW PWH 8x5/8 BLK SCREW PFH 8x1 1/4 BLK SCREW PFH 8x1 3/4 BLK "A"...
  • Page 27 L1 - CABINET TOP - W4L05076 5/8"x4 3/8"x42 3/4" (16x112x1087) M1 - FRONT CABINET TOP - W4L05077 5/8"x3 3/8"x42 3/4" (16x86x1087) STEP 7: REAR SCREW PFH 8x1 1/4 BLK SCREW PFH (10) 8x1 1/4 BLK (8 PLCS) LEFT RIGHT FRONT SCREW PFH 8x1 1/4 BLK (2 PLCS) LEFT...
  • Page 28 N3 - LARGE WINDOW SHELF - W4L05065 5/8"x2 3/8"x16 1/8" (16x60x409) STEP 8: REAR FLUSH SCREW PFH 8x1 1/4 BLK RIGHT FRONT SCREW PFH 8x1 1/4 BLK (3 PLCS)
  • Page 29 J2 - SHELF SUPPORT - W4L05288 L2 - SERVING SHELF - W4L05287 1"x2 3/8"x3 1/8" (24x60x80) 5/8"x4 3/8"x18 1/2" (16x112x470) STEP 9: FLUSH SCREW PFH 8x1 1/4 BLK LEFT SCREW PFH 8x1 3/4 BLK SCREW PFH (4 PLCS) 8x1 3/4 BLK SCREW PFH 8x1 1/4 BLK (5 PLCS) REAR...
  • Page 30 FLOWER POT HOLDER - A6P00023 STEP 10: SCREW PFH FLOWER POT HOLDER 8x1 1/4 BLK (2 PLCS) SCREW PFH 8x1 1/4 BLK (8 PLCS) REAR LEFT FRONT...
  • Page 31 FAUCET KIT - A6P00024 STEP 11: REAR RIGHT SCREW PFH 8x1-1/2 BLK SCREW PFH 8x1-1/2 BLK (2 PLCS) LEFT FRONT 1" FAUCET KIT (1 PLC) RIGHT...
  • Page 32 SURFACE MOUNT BASIN - A6P00032 STEP 12: REAR SCREW PWH 8x5/8 BLK RIGHT SURFACE MOUNT BASIN LEFT (1 PLC) FRONT 3/8" SCREW PWH 8x5/8 BLK (2 PLCS) RIGHT...
  • Page 33 STOVE KIT - A6P00025 STEP 13: REAR SCREW PFH 8x1 1/8 BLK RIGHT LEFT SCREW PFH 8x1 1/8 BLK (4 PLCS) FRONT 2 1/2" RIGHT STOVE KIT (1 PLC)
  • Page 34 DP1 - TOP DOOR PANEL - W2A01596 HINGE (DOOR, NON-SPRING LOADED) - A4M00558 1"x15 3/4"x21 7/16" (27x400x544) STEP 14: SCREW PWH 8x3/4 BLK (6 PLCS) HINGE (DOOR, NON-SPRING LOADED) (2 PLCS) SCREW PWH (12) 8x3/4 BLK SCREW PWH 8x3/4 BLK (6 PLCS)
  • Page 35 DP2 - BOTTOM DOOR PANEL - W2A01597 HINGE (DOOR, SPRING LOADED) - A100327 1"x15 3/4"x19 3/4" (27x400x500) STEP 15: SCREW PWH 8x3/4 BLK (6 PLCS) HINGE (DOOR, SPRING LOADED) (2 PLCS) SCREW PWH (12) 8x3/4 BLK SCREW PWH 8x3/4 BLK (6 PLCS)
  • Page 36 N5 - DOOR STOP - W4L05070 5/8"x2 3/8"x3 3/8" (16x60x86) STEP 16: FRONT RIGHT SCREW PFH 8x1 1/4 BLK LEFT REAR SCREW PFH 8x1 1/4 BLK (3 PLCS) 1 3/16" RIGHT 19 1/4"...
  • Page 37 KNOB KIT - A6P00020 STEP 17: FACE PLATE (1 PLC) SCREW PFH 8x3/4 (2 PLCS) INCLUDED IN KIT KNOB KIT LATCH (1 PLC) (1 PLC) SCREW PFH 8x1 (1 PLC) INCLUDED IN KIT FRONT LEFT RIGHT REAR...
  • Page 38 N1 - TIE STRAP - W4L05043 5/8”x2”x3 1/8” (16x50x80) STEP 18: FRONT SCREW PFH 8x1 1/4 BLK LEFT RIGHT REAR SCREW PFH 8x1 1/4 BLK (4 PLCS) 2" 1 5/8" 1 5/8" 2" LEFT RIGHT...
  • Page 39 GP1 - GABLE END ASSEMBLY - W2A01581 1"x43 1/8"x21 1/2" (27x1095x547) STEP 19: FLUSH LEFT SCREW PFH 8x1 1/4 BLK REAR SCREW PFH 8x1 1/4 BLK (4 PLCS) FRONT RIGHT RIGHT FRONT FLUSH SCREW PFH 8x1 1/4 BLK REAR LEFT (4 PLCS)
  • Page 40 - 90° L-BRACKET - BLK - A4M00555 RP1 - ROOF PANEL - W2A01582 1 3/8"x35 3/16"x50" (35x894x1270) STEP 20: SCREW PWH 8x1/2 BLK SCREW PFH (12) 8x1 3/4 BLK REAR SCREW PFH 8x1 3/4 BLK (12 PLCS) LEFT RIGHT FRONT 90°...
  • Page 41 M3 - FASCIA BOARD - W4L05064 5/8"x3 3/8"x35 1/4" (16x86x894) STEP 21: SCREW PFH 8x1 1/4 BLK FLUSH SCREW PFH 8x1 1/4 BLK (6 PLCS) REAR LEFT FRONT RIGHT...
  • Page 42 WP4 - PICKET FENCE ASSEMBLY - W2A01598 2"x19"x21" (52x483x535) STEP 22: SCREW PFH 8x1 1/4 BLK SCREW PFH 8x1 1/4 BLK (4 PLCS)
  • Page 43 (1) MAILBOX KIT - A6P00017 STEP 23: MAILBOX FRAME MAILBOX FRAME SCREW PFH 8x1 BLK MAILBOX FLAG MAILBOX BODY MAILBOX SCREW PFH 8x1 BLK MACHINE SCREW (1 PLC) INCLUDED IN KIT (1 PLC) MAILBOX REAR DOOR MAILBOX HANDLE MAILBOX FRONT DOOR MAILBOX MACHINE SCREW INCLUDED IN KIT (4 PLCS)
  • Page 44 LTP ID TAG (SMALL) WITH AGES - A4M00515 STEP 24: SCREW PFH 8x1/2 BLK REAR LEFT LTP ID TAG (SMALL) WITH AGES RIGHT (1 PLC) FRONT 8" SCREW PFH 8x1/2 BLK (2 PLCS) 5 1/2"...
  • Page 45 (1) BELL ASSEMBLY - A4M00554 STEP 25: SCREW PWH 8x1/2 BLK LEFT REAR FRONT RIGHT DO NOT OVER TIGHTEN BELL ASSEMBLY (1 PLC) SCREW PWH 8x1/2 BLK (2 PLCS)
  • Page 46 (1) FRUIT BASKET - AP600069 STEP 26: SCREW PFH 8x1/2 BLK LEFT FRONT RIGHT REAR SCREW PFH 8x1/2 BLK (6 PLCS) FRUIT BASKET KIT (1 PLC)
  • Page 47 (2) OUTDOOR LIGHT FIXTURE - AP600068 STEP 27: REAR SCREW PFH 8x1 1/4 BLK RIGHT LEFT FRONT OUTDOOR LIGHT FIXTURE (2 PLS) SCREW PFH 8x1 1/4 BLK (4 PLCS)
  • Page 48 - PLASTIC CURTAIN ROD - A6P00057 J5 - INNER CURTAIN ROD HOLDER - W4L05294 1"x2 3/8"x2 3/8" (24x60x60) J4 - OUTER CURTAIN ROD HOLDER - W4L05293 - CURTAIN - A6P00056 1"x2 3/8"x2 3/8" (24x60x60) STEP 28: SCREW PFH 8x1 1/4 BLK SCREW PFH 8x1 3/4 BLK INNER CURTAIN ROD HOLDER...
  • Page 49 J3 - BENCH GROUND BOARD - W4L05291 H5 - BENCH UPRIGHT - W4L05290 1"x2 3/8"x13 1/4" (24x60x335) 1"x3 3/8"x11" (24x86x280) FZ - L BRACKET WHITE 32x51 - A100133 STEP 29 WASHER LOCK EXT 8x15 BLK (2 PLCS) BOLT WH 1/4x1/2 BLK NUT BARREL WH 1/4x7/8 BLK (2 PLCS) WASHER...
  • Page 50 H4 - BENCH SEAT SUPPORT - W4L05289 M2 - BENCH SEAT - W4L05292 1"x3 3/8"x6 1/2" (24x86x166) 5/8”x3 3/8”x19 1/8” (16x86x485) STEP 31 SCREW PFH 8x1 3/4 BLK SCREW PFH (8 PLCS) 8x1 3/4 BLK STEP 32 SCREW PFH 8x1 3/4 BLK (8 PLCS) SCREW PFH 8x1 3/4 BLK...
  • Page 51 (1) BENCH ASSEMBLY STEP 33: BOLT WH 1/4x1-1/4 BLK T-NUT 1/4 RIGHT REAR FRONT LEFT BENCH ASSEMBLY T-NUT 1/4 BLK (1 PLC) (2 PLCS) BOLT WH 1/4x1-1/4 BLK (2 PLCS)
  • Page 52 Limited Warranty This Limited Warranty by Backyard Discovery applies to products manufactured under the Backyard Discovery brand or its other brands including but not limited to Backyard Botanical, Adventure Playsets, and Leisure Time Products. Backyard Discovery warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase.
  • Page 53 Backyard Discovery disclaims all other representations and warranties of any kind, express or implied. This Warranty gives you specific legal rights. You may have other rights as well which vary from state to state or province to province. This warranty excludes all...
