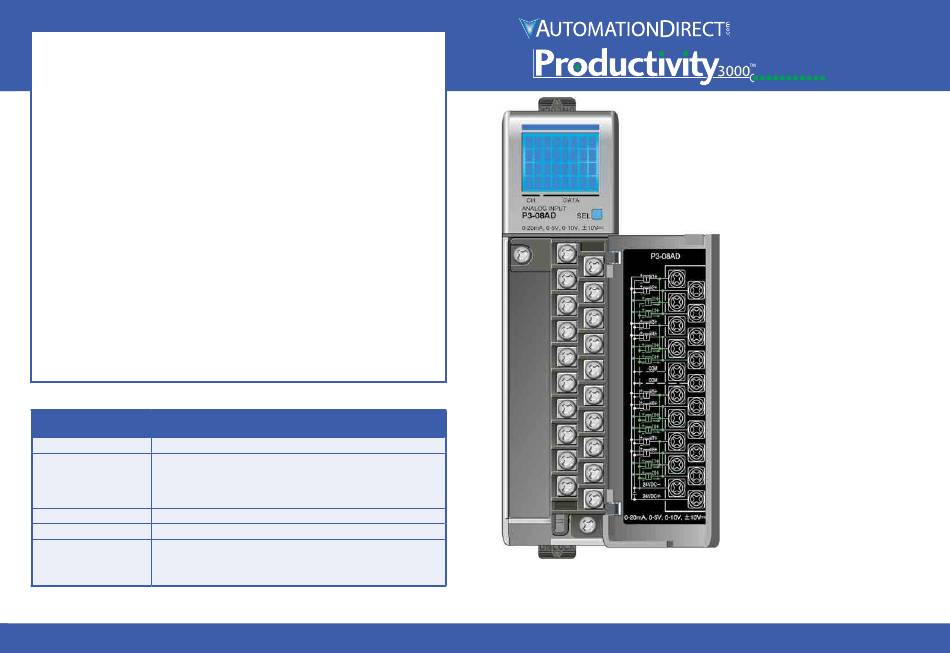

Automationdirect.com Productivity 3000 P3-08AD Quick Start Manual

To minimize the risk of potential safety problems, you should follow
all applicable local and national codes that regulate the installation
and operation of your equipment. These codes vary from area to
area and it is your responsibility to determine which codes should
be followed, and to verify that the equipment, installation, and oper-
ation are in compliance with the latest revision of these codes.
Equipment damage or serious injury to personnel can result
from the failure to follow all applicable codes and standards. We
do not guarantee the products described in this publication are
suitable for your particular application, nor do we assume any
responsibility for your product design, installation, or operation.
If you have any questions concerning the installation or opera-
tion of this equipment, or if you need additional information, please
call Technical Support at 770-844-4200.
This publication is based on information that was available at
the time it was printed. At AutomationDirect.com® we constantly
strive to improve our products and services, so we reserve the right
to make changes to the products and/or publications at any time
without notice and without any obligation. This publication may also
discuss features that may not be available in certain revisions of
the product.

Removable Terminal Block Specifications

Number of Positions 20 screw terminals
Wire Range 22-14 AWG (0.324 to 2.08 sq. mm)
solid / stranded conductor
3/64 in. (1.2 mm) insulation maximum
"USE COPPER CONDUCTORS, 60°C" or equivalent.
Screw Driver Width 1/4 inch (6.5 mm) maximum
Screw Size M3 size
Screw Torque Field terminals - 7 - 9 in./lb (.0.882 - 1.02 Nm)
Self-jacking screws - 2.7 - 3.6 in./lb (0.3 - 0.4 Nm).
Do not overtighten screws when installing terminal block.
Sales 800-633-0405

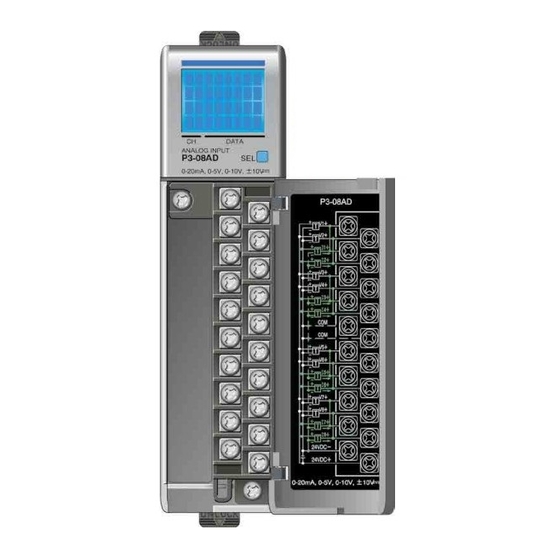

P3-08AD Analog Input
The P3-08AD Voltage/Current Analog Input
Module provides 8 channels for receiving ± 10
VDC, ± 5 VDC, 0 to 5 VDC, 0 to 10 VDC, and 0 to
20mA signals for use with the Productivity3000
Programmable Automation Controller.
Terminal Block sold separately, Terminal Block Cover included
(see wiring options on page 5).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.automationdirect.com/P3000 for details).
www.automationdirect.com/P3000
Safety Information . . . . . . . . . . . . . 1
Removable Terminal Block
Specifications . . . . . . . . . . . . . . 1
General Specifications . . . . . . . . . 2
Input Specifications . . . . . . . . . . . . 2
Schematic and Wiring Diagram . . . 3
Module Installation Procedure . . . . 4
Terminal Block Removal . . . . . . . . 4
Hot Swap Information . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . 5
Linear Scaling . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . 6
LCD Panel Display Menus . . . . . . 7
