3.2.1
ERNI Connector
The ERbic range of fieldbus connectors from ERNI includes a
Profibus-DP connector with a vertical cable outlet (Part No. 103658)
that is suitable for use with the Unidrive Profibus-DP interface. This
connector allows 2 cables to be connected to the same connector, and
does not break the network if disconnected from the Unidrive Profibus-
DP interface. Further details are available from the ERNI web site at
"www.erni.com".

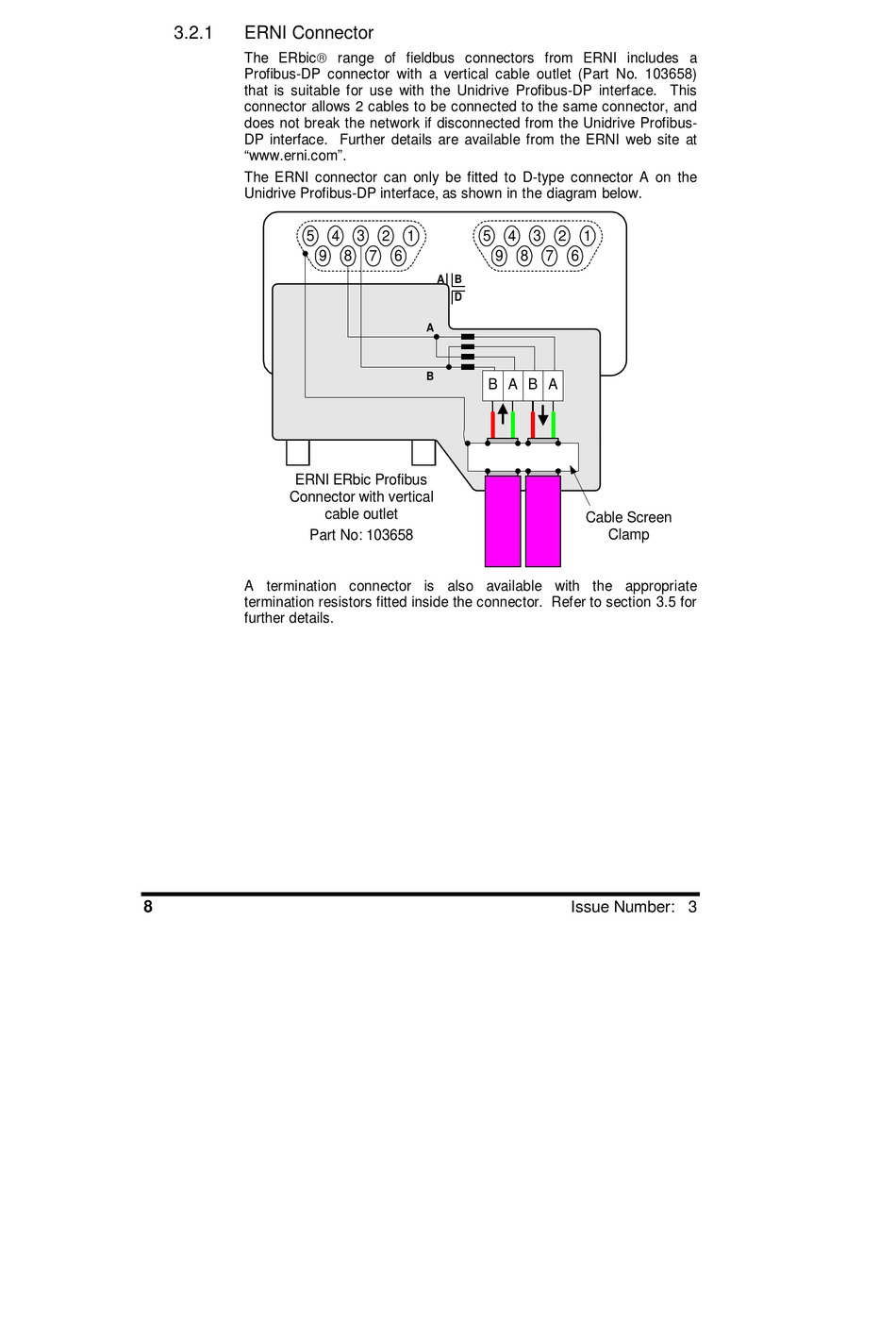

The ERNI connector can only be fitted to D-type connector A on the
Unidrive Profibus-DP interface, as shown in the diagram below.
5
ERNI ERbic Profibus
Connector with vertical
Part No: 103658
A termination connector is also available with the appropriate
termination resistors fitted inside the connector. Refer to section 3.5 for
further details.
8
4
3
2
1
5
9
8
7
6
A B
C
D
A
B
cable outlet
4
3
2
1
9
8
7
6
B
A
B
A
Cable Screen
Clamp
Issue Number: 3
