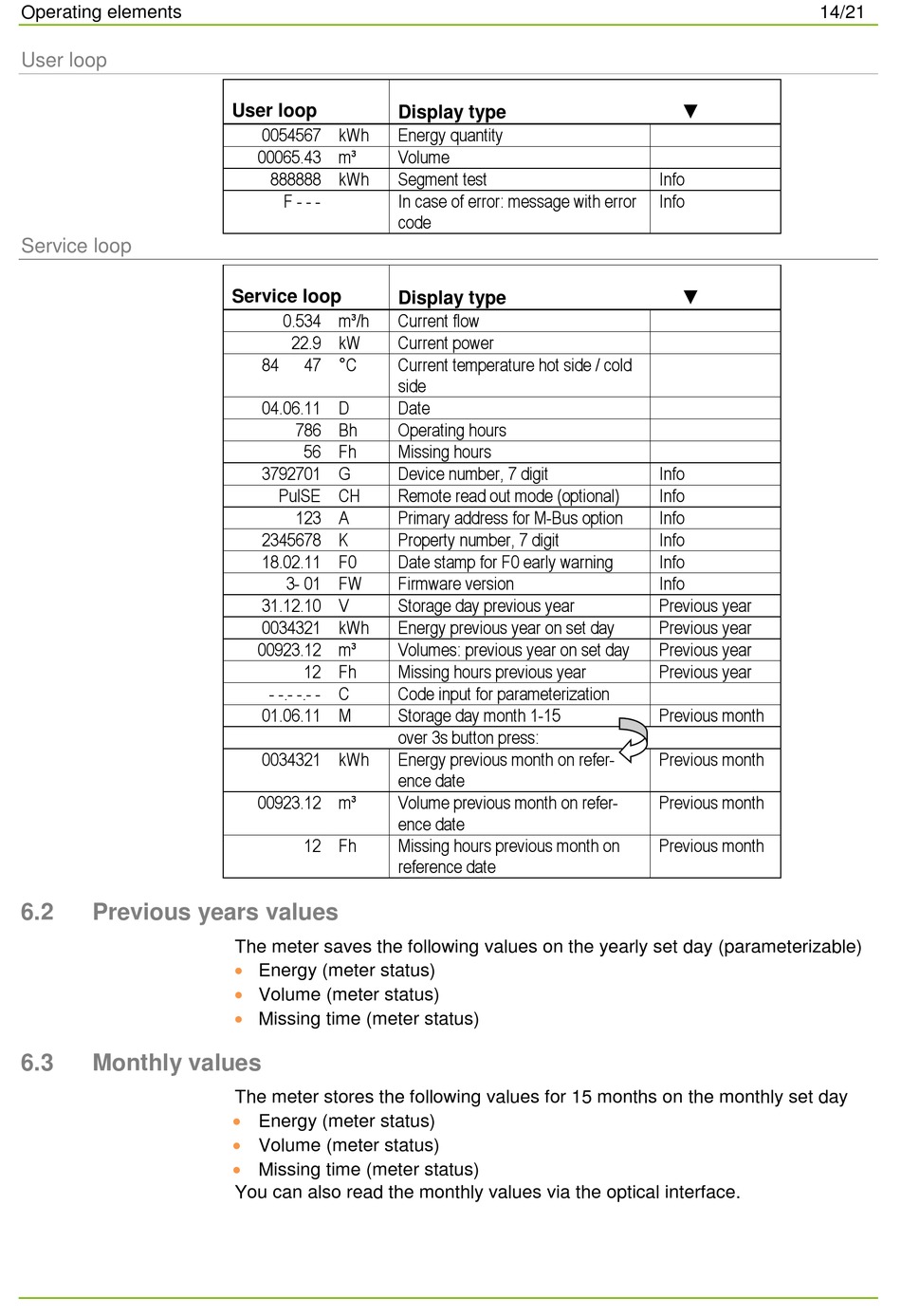

Operating elements

User loop

Service loop

6.2

Previous years values

6.3

Monthly values

User loop
Display type
0054567 kWh Energy quantity
00065.43 m³ Volume
888888 kWh Segment test
F - - - In case of error: message with error
code
Service loop
Display type
0.534 m³/h Current flow
22.9 kW Current power
84 47 °C Current temperature hot side / cold
side
04.06.11 D Date
786 Bh Operating hours
56 Fh Missing hours
3792701 G Device number, 7 digit
PulSE CH Remote read out mode (optional)
123 A Primary address for M-Bus option
2345678 K Property number, 7 digit
18.02.11 F0 Date stamp for F0 early warning
3- 01 FW Firmware version
31.12.10 V Storage day previous year
0034321 kWh Energy previous year on set day
00923.12 m³ Volumes: previous year on set day
12 Fh Missing hours previous year
- -.- -.- - C Code input for parameterization
01.06.11 M Storage day month 1-15
over 3s button press:
0034321 kWh Energy previous month on refer-
ence date
00923.12 m³ Volume previous month on refer-
ence date
12 Fh Missing hours previous month on
reference date
The meter saves the following values on the yearly set day (parameterizable)

Energy (meter status)

Volume (meter status)

Missing time (meter status)
The meter stores the following values for 15 months on the monthly set day

Energy (meter status)

Volume (meter status)

Missing time (meter status)
You can also read the monthly values via the optical interface.
14/21
▼
Info
Info
▼
Info
Info
Info
Info
Info
Info
Previous year
Previous year
Previous year
Previous year
Previous month
Previous month
Previous month
Previous month
