Installation notes for sensor adapter set

Ball valve

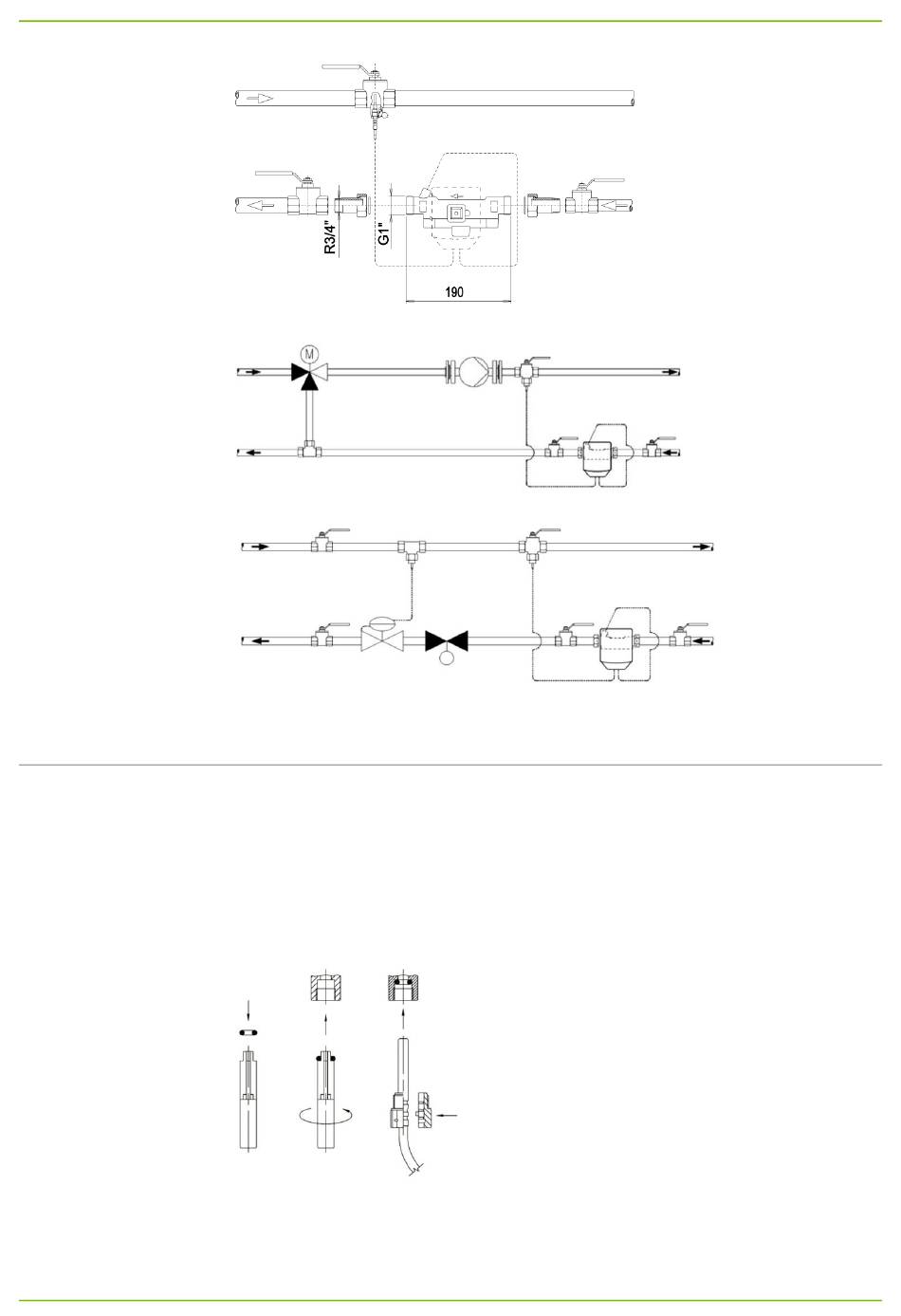

Fig. 5: Example of integration with ball valve and meter with 190 mm fitting
Fig. 6: Installation for circulation with admixing; placement of temperature sensors
Fig. 7: Installation for circulation with throttling configuration (flow sensor in flow direction before control
valve / differential pressure regulating valve)
A mounting set is included for meters with Ø 5.2 × 45 mm temperature sen-
sors. With this you can fit the temperature sensor directly immersed into an in-
sert or a ball valve for example.
1. Install with the O-ring at the point of installation with the fit-up aid / pen pro-
vided.
2. Place both halves of the plastic bolting round the 3 notches of the tempera-
ture sensor.
3. Press the bolting together and screw the bolting hand tight into the point of
installation until it comes to a stop (tightening torque 3 ... 5 Nm).
Fig. 8: Mounting adapter set
