Static Meter T350 (2WR6... / XS)
Operating instructions
These operating instructions have to be handed over to the end user
Note: In the following text the term Meter covers the
Heat Meter as well as the Cold Meter if not men-
tioned otherwise.

Introduction

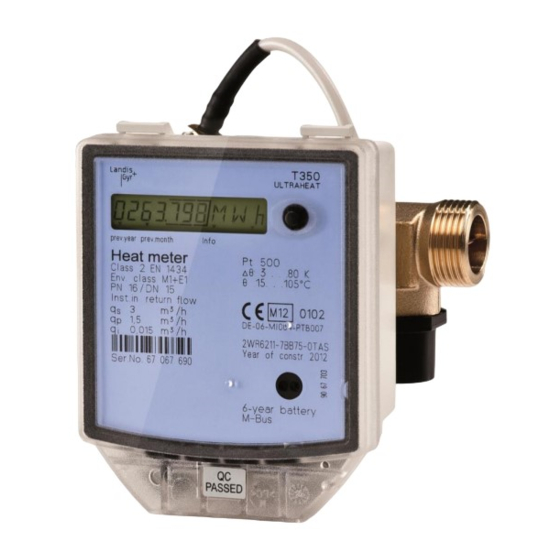

The static meter 2WR6 / XS is a measuring instrument for physi-
cally correct recording of energy consumption. It is required to be
certified by law in Germany and many other countries. The device
consists of a volume measuring unit, two permanently connected
Temperature Sensors, and an electronic unit that calculates the
energy consumption from the volume flow and temperature dif-
ference.
The volume measuring unit is a non-wearing ultrasonic measur-
ing device without mechanically moving parts. The long-life bat-
tery is designed for the calibration validity period. The meter
cannot be opened without breaking the security seal.
The meter must only be operated under the conditions stated in
the manuals and on the dial plate.

Information on the Display

The displays of the meter are structured on several levels and
may deviate from the standard described here. Each short press
of the button switches to the next display of the user loop (level
1).
▼ indicates what sort of display it is.

User Loop

0054567
kWh
Cumulated energy quantity
00065.43
Cumulated volume
Segment test
888888
kWh
Error message on fault with
F - - -
fault number
Pressing the button for 10 seconds switches from the user loop to
the service loop (level 2).
Exiting the service loop by pressing the button for 3s or auto-
matically after 30 minutes.

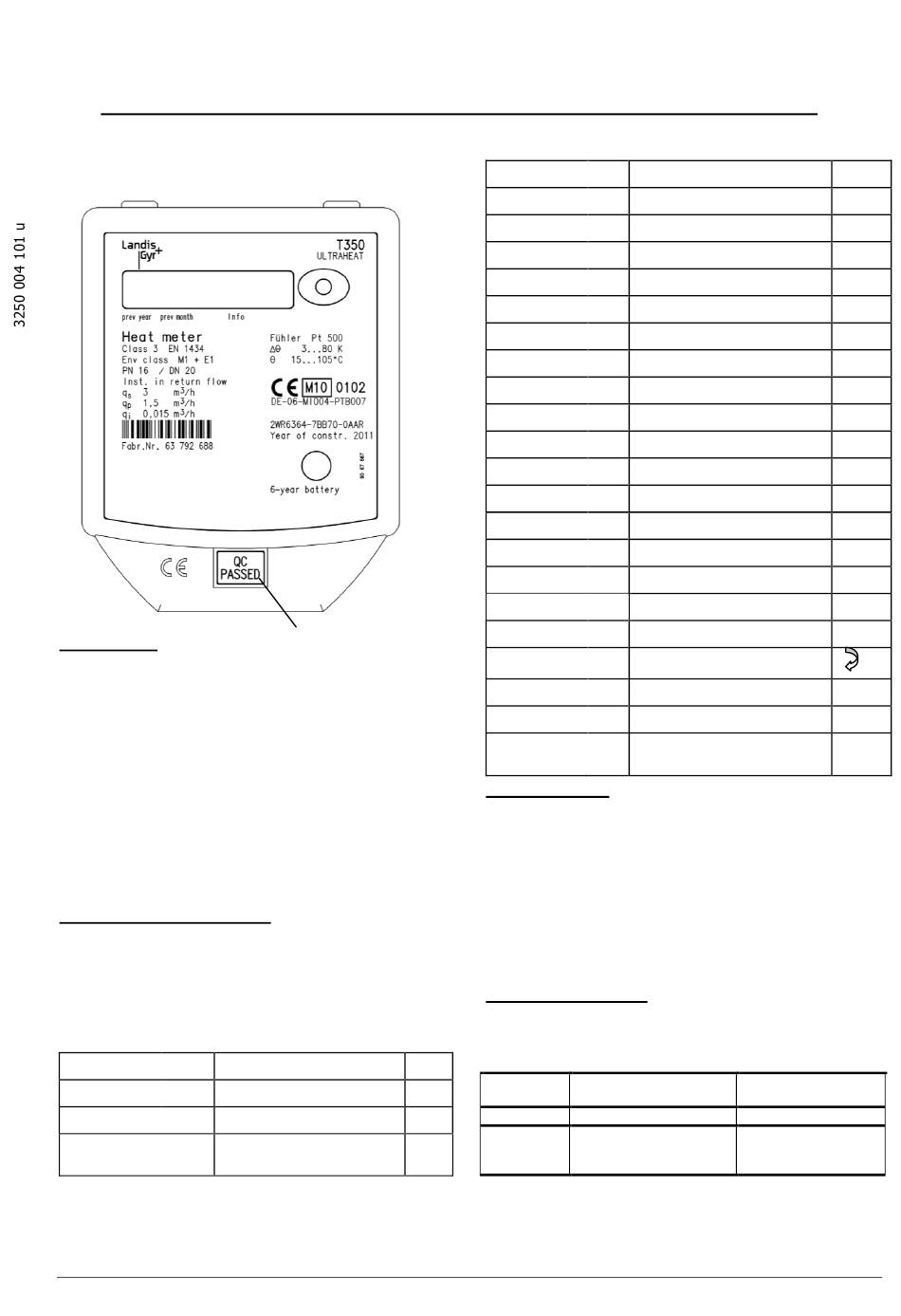

Static Meter 2WR6 / XS
UH304-101u
Security seal
Info
Info
Subject to change without prior notice

Service Loop

0.534 m³/h Current flow rate
Current power
22.9
kW
Current supply-return temperature
84
47
°C
Date
04.06.08
D
Operating hours
786
Bh
Missing hours
56
Fh
Device number, 7-digit
3792701
G
Remote reading option (optional)
PulSE
CH
Primary address when option M-Bus
123
A
Property number, 7-digit
2345678
K
Date stamp for F0 prewarning
18.02.08
F0
Firmware version
3- 01
FW
Previous year's day of storage
31.12.07
V
0034321 kWh Energy previous year on set day
Volume previous year on set day
00923.12
Missing hours previous year
12
Fh
Code entry for parameterization
- -.- -.- -
C
Previous month's 1-15 day of storage
01.06.08
M
After pressing button for 3s:
0034321 kWh Energy previous month on set day
Volume previous month on set day
00923.12
Missing hours previous month on set
12
Fh
day

Monthly Values

The calculator stores the following values for 15 months at each
end of month
- Energy (meter reading)
- Volume (meter reading)
- Missing hours (meter reading)
From the month set day display, press the service button for 3s to
enter the previous month's values.
The month values can also be read out via the optical interface.

Fault Codes and IDs

The meter constantly performs self-diagnosis and can display
various faults.
Fault Code
Fault
FL
nEG
Wrong flow direction
Maybe changing with
Negative temperature
DIFF nEG
difference
Issue 29.10.2012
Info
Info
Info
Info
Info
Info
Prev. year
Prev. year
Prev. year
Prev. year
Info
Prv. month
Prv. month
Prv. month
Prv. month
Measures
Check / correct flow or
mounting direction
Check / exchange
mounting position of
sensors
UH 304 – 101u
1/2
