Technical Information
JS2000 Joystick
Product installation

Connector pin assignments

Mating connector details

© Danfoss | May 2017

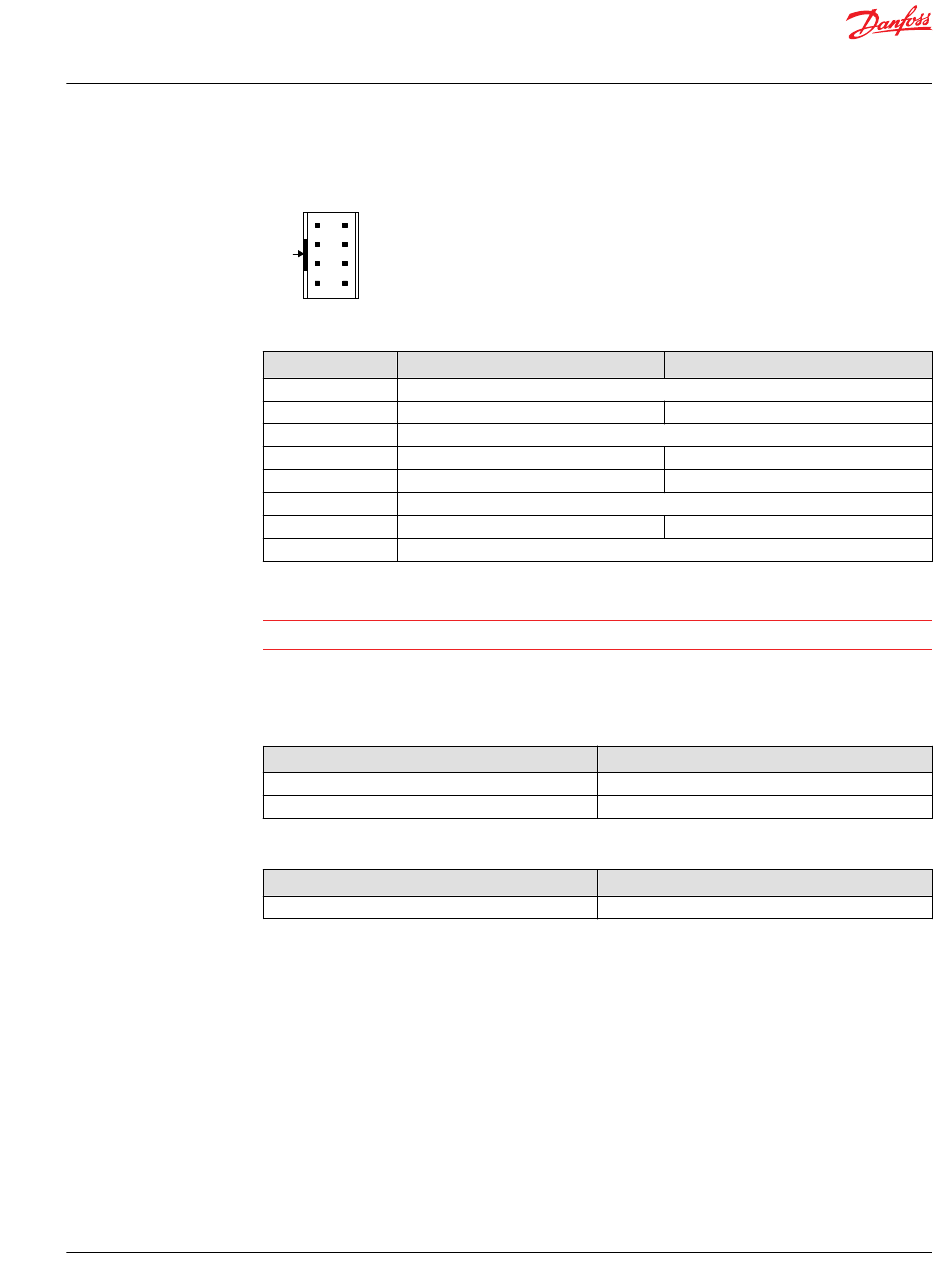

Bottom view of joystick connector
1 2
3 4
Notch
5 6
7 8
kwa1392485263993
Pinout and wiring information
Pin XY Joystick
1 Supply voltage
2 Left/Right output 1
3 Ground
4 Forward/Reverse output 1
5 Forward/Reverse output 2
6 Center tap
7 Left/Right output 2
8 Switch output (NC if no switch)
C
Caution
Red lead on Danfoss mating connector kit is assigned to pin 8.
Mating connector
Connector
8-pin FCI Minitek
8-pin FCI Minitek
Mating connector assembly
Type
Connector with 400 mm [15.75 in] ribbon cable
XYZ Joystick
Left/Right output
Forward/Reverse output
5 V DC
Z axis output
Ordering number
98414-F06-08U shrouded IDC header
89361-708 IDC connector
Danfoss ordering number
10102031
520L0876 | BC00000073en-US0102 | 11
