A S S E M B L Y
O F
D E T E C T O R
The assembly of your detector will only take
you a few seconds.

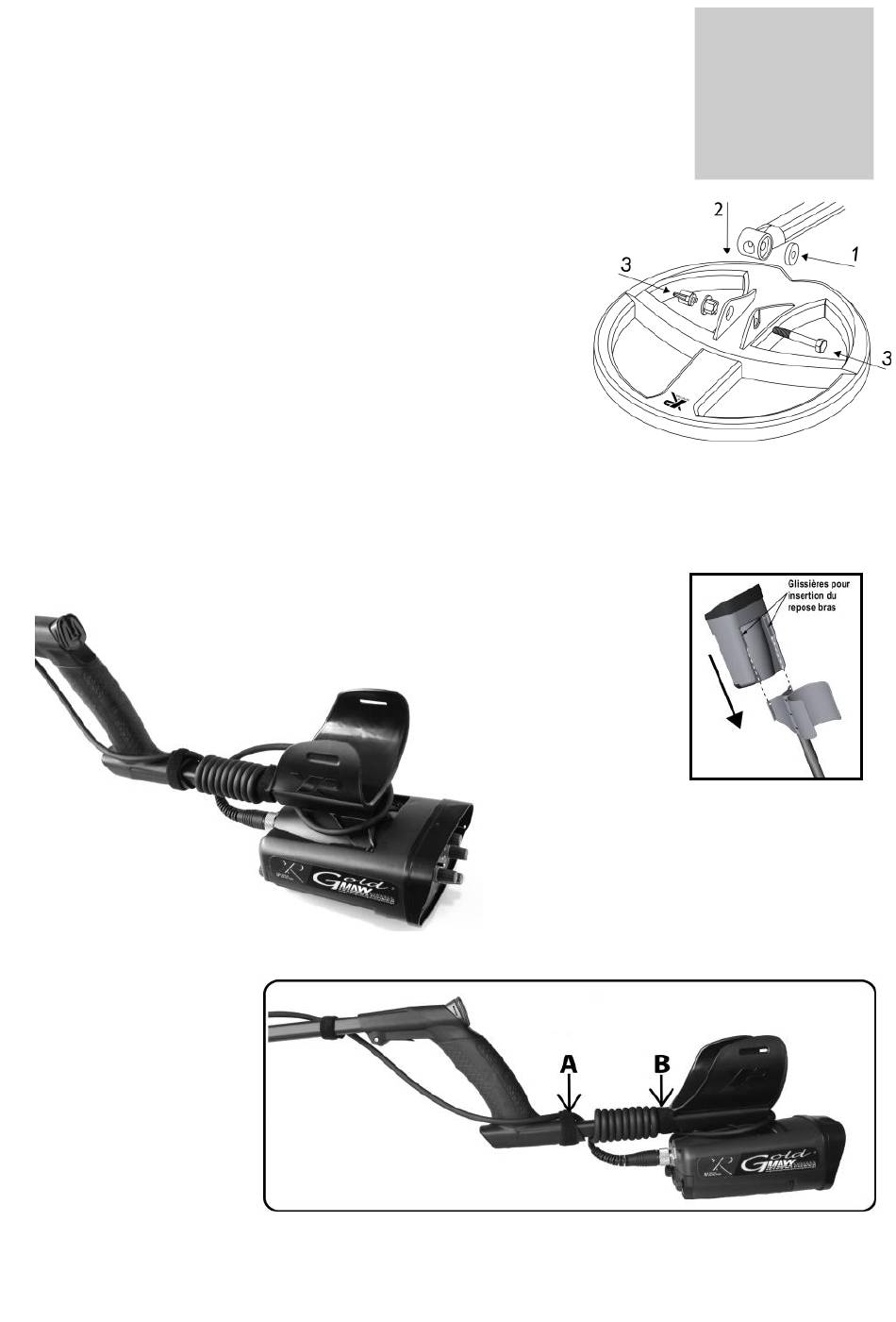

Put the shaft together as shown on the diagram.
Put the rubber washers on the side of the
fibreglass tube (1).
Insert the fibreglass tube on the search head (2).
Insert the new coil fixing parts as shown on the
diagram and screw (3).
The electronic box of your detector can be positioned in 2 different ways:
Option 1 : Under the armrest
To fix it, insert the 2 wings of the armrest in the slides of the electronic control
unit, as indicated on the diagram.
position.
Insert
now
the
connector (female)
in
its
panel
connector
(male),
screw
it,
the
connector is now
watertight.
Once the control
box
in
place
under the armrest, wind the cable
around the telescopic shaft as
indicated on the photo.
Use the 2 pieces of Velcro® (A and
B) to keep the cable in a spiral
6
3
