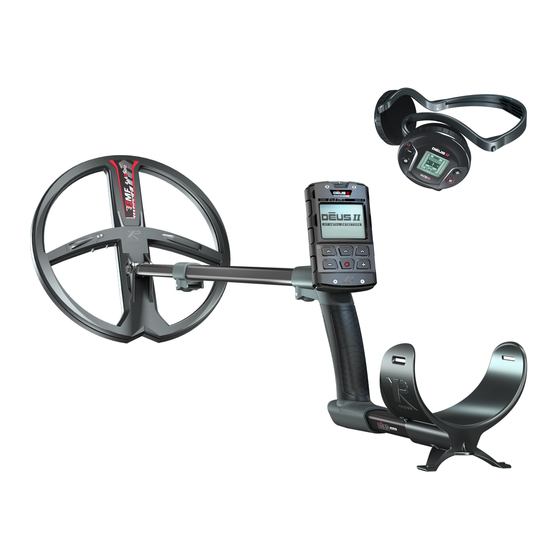

XP Metal Detectors DEUS II Manual
Hide thumbs
Also See for DEUS II:
- Manual (52 pages) ,
- Quick start manual (9 pages) ,
- Quick start manual (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for XP Metal Detectors DEUS II
Summary of Contents for XP Metal Detectors DEUS II
-
Page 3: Introduction
Loud speaker, wireless and wired headphones, bone conduction headphones. • A product designed to last: Five-year warranty parts and labor, USB updates. DEUS II : discover a unique environment • Audio headphones developed and manufactured by XP in France, designed specifically to meet de- tecting requirements: no audio latency, automatic On/Off, sophisticated processor with resonances and equalizer that can be configured by the user from the remote control. -
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION OPTION ... Start auto / manual DEUS II RANGE Pair MI-6 Pinpointer PRACTICAL INFORMATION Delete MI-6 Pinpointer Advice Settings Locating a target Language Ferrous T.ID DEUS II Contrast Box contents Go Terrain Assembly (coil, remote, etc.) -
Page 7: Deus Ii Range
BH-01 Ø9’’ - 22cm Ø11’’ - 28cm Ø13’’x11’’ 34x28cm (optional) From only 815g (RC on the belt and 22cm-9’’ coil). Stem S-TELESCOPIC DEUS II WS6 MASTER WSAII WSAII-XL FX-03 WS6 Master Ø9’’ - 22cm Ø11’’ - 28cm Ø13’’x11’’ 34x28cm (optional) From only 750g (WS6 on backphones and 22cm-9’’... -
Page 8: Practical Information
PRACTICAL INFORMATION Advice Metal detecting is a fascinating hobby that can bring you huge satisfaction. However, some basic learning is necessary to get the most enjoyment out of it. Begin by familiarizing yourself with your equipment and its operation on suitable practise ground. We recommend that you take an assortment of different objects - coins, everyday items, metal rubbish, etc. -
Page 9: Box Contents
LIST OF PARTS / ASSEMBLY Box contents 1 WS6 + Stem support. 1 S-TELESCOPIC Stem + lower stem (depending on version). 1 set of wireless headphones with storage case 1 charging cable for three components. 1 charging cable + update. (depending on version purchased). -
Page 10: Ws6 Configurations
WS6 - CONFIGURATIONS module is not just wireless audio headphones. Without the remote control, it can be a stand alone unit and connect with the coil for an extremely ergonomic and lightweight configuration. The WS6 Module can be unclipped and mounted on the stem to make the most of the control screen, the target display and all the settings. - Page 11 WIRELESS HEADPHONES WS6 MASTER To move the WS6 from slave to master, it has to be re-started with the remote control switched OFF. It will then operate as a master with your paired coil. Dont forget to pair the WS6 module to the coil first. OPTION >...
-
Page 12: Factory Programs
• Thanks to the high precision that the DEUS II carries, coke and humidity can be classified with high- er accuracy than with a mono-frequency metal detector. A very narrow notch zone is thus activated within frequencies 23 to 24 (see Notch >... - Page 13 DEUS MONO works on a single frequency like 1, but combines the advantages of DEUS II, such as its expanded frequency range to 45 kHz, improved performance, audio quality, better EMI rejection, etc. There is more likelihood of connecting with an unstable frequency while using several simultaneous fre- quencies than with just one and the DEUS MONO could help you in these situations.
-
Page 14: Menu
Display T.ID (Target Identification) DEUS II displays deep targets more precisely through its multi-frequency processing that removes a large proportion of the troublesome ground effects. -
Page 15: Tones (Expert)
DISCRIMINATION > EXPERT You can access advanced functions from the DISCRIMINATION menu, press 3 seconds Tones 2 tones - 3 tones - 4 tones - 5 tones TONES Press > DISCRI > (3 sec) to access the TONES screen. 2 TONES Choose: 2 Tones - 3 Tones - 4 Tones - 5 Tones using Use the Multi-tones menu to sort targets into categories according to their conductivity, by assigning a specific volume and audio tone to each category (low, medium, high, etc.). -
Page 16: Offset Ft (Expert)
DISCRIMINATION > EXPERT Full tones - Threshold and volume settings From Full Tones, press (3sec). T.BREAK Customize the sound partitioning of the discrimination range for Full Tones and Adjust volume levels of each tone independently. Press to choose the TONE BREAK (T. BREAK) or the VOLUME (VOL) and set them using + and - . -
Page 17: Silencer (Expert)
DISCRIMINATION > EXPERT / MENU Silencer A few large iron objects or unusual shapes are often more difficult to discriminate. Iron SILENCER objects often generate a few audible remnants of broken or inconsistent signals (crack- ling). Increasing the silencer applies a filter which eliminates the crackling caused by ferrous items. -
Page 18: Frequencies
MENU Frequency offers a wide choice of programs using different frequency configurations : • Eleven simultaneous multi-frequency programs, each with different combinations of frequencies and internal parameter settings (see chapter Programs for the specific features of each one). The maximum frequency used by FMF programs can be configured by the user : 14 kHz - 24kHz or 40 kHz. -
Page 19: Iron Volume
MENU FMF multi frequency programs FREQ. MAX Press to select one of the 3 frequency limits. If you are experiencing too much interference: Press (3 sec) then shift the frequencies and find the quietest band with or start an automatic scan by pressing SCAN Mono-frequency program Press... -
Page 20: Audio Response
MENU Reactivity ... Recommended settings : 0 to 1 Large masses and coins, in ground not contaminated by ferrous items. 2 to 2.5 General use, ground with little iron contamination. 3 to 5 iron-contaminated and/or mineralized ground. E.g. Passing the coil over an iron object close to the surface then over a good metal target (ring). -
Page 21: Ground General
MENU Ground Soil mineralization can affect the detector efficiency. It can be of natural magnetic origin like iron oxides and ferrite, often linked to old human settlements. On the coast, depending on the regions, mineralization can go from magnetic grade (black sands) to elec- trically conductive grade (salt water). -
Page 22: Tracking
MENU Tracking Mode Tracking is an automatic ground correction mode. It questions the ground continuously to determine its average value. This mode can be useful if the ground mineralization is relatively uniform and changes slowly. This mode is not suitable in ground where mineralization has been generated by old human set- tlements due to the discrepancies in the ground effects. -
Page 23: Gold Field & Relic Special Features
MENU Programs no. 8 Gold Field and no. 9 Relic - Special features Targets buried very deep can take on values close to the surrounding ground, to the point that they are most often rejected as the ground itself. The Gold Field and Relic programs allow you to go deeper when searching for native gold in mineralized ground or for large masses at depth, as they only reject the local ground to which you have adjusted precisely by Grabbing. -
Page 24: Audio
As DEUS II can be upgraded, please refer to the online manual for the latest improvements. Audio types may have changed since this manual was printed. -
Page 25: Audio Filter
OPTION / AUDIO & PROGRAMS Audio Type... PWM is the traditional XP sound that you would have known on I or the wired range. It is dynamic and informative through its wealth of harmonics that vary according to the amplitude of the signal and therefore giving the operator a good indication of the depth or size of a target. -
Page 26: Pairing
OPTION/PAIRING coil/wireless headphones/pinpointer Pairing Choose the accessory (coil, wireless headphones, MI-6) using , then press New coil pairing Choose the coil already paired from the list and press to use it or pair a new coil. PAIRING Press choose with then the coil logo with PAIRING press... -
Page 27: Start Auto / Manual
OPTION / PAIRING & SETTINGS Start XP wireless headphones START Press > , with choose the headphone, and select PAIRING START AUTO. Auto : XP wireless headphone paired to the WS6 master switch ON / OFF automatically. Manual: XP wireless headphone paired to the WS6 master switch ON manually with and switch OFF automatically Pairing the MI-6 Pinpointer Press... -
Page 28: Contrast
OPTION / SETTINGS Contrast To improve visibility in all lighting conditions, adjust the contrast. CONTRAST GO TERRAIN The XP GO TERRAIN smartphone app. receives data from DEUS on the type of target in real time. Map a zone detected using the GPS on your smartphone and display all the targets detected the length of your routes, share your routes and findings with those close to you. -
Page 29: Wsa Ii And Wsa Ii Xl
WIRELESS HEADPHONES WSA II and WSA II - XL Foldable and lightweight Foldable and insulating WSA II and WSA II - XL are sophisticated wireless receiver headphones. Manufactured in France by XP specially for our detectors, they function with the remote control or with the WS6 Master, i.e. -
Page 30: Pinpointer
PINPOINTER When connected, the MI-6 pinpointer transmits its audio signal directly to ; a new menu will now be available with extended functions. (refer to the MI-6 Manual) MI-6 active display screen Program N° Battery MI-6 PRG 2 Target zoom screen Access to: SENS - TONE - AUDIO Sensitivity... -
Page 31: Batteries
POWER SUPPLY - BATTERIES Battery life WS6 Headphones Battery life 14 h WSA II/WSA II XL 14 h Battery life Prg. 1, 2, 3, 4, 5, 7, 8, 9, 11, 12 Prg. 6 DEEP HC/Prg. 10 DIVING Coil in Multi-frequency Battery life 12 h Depending frequency... -
Page 32: Charge
Under no circumstances can XPLORER (XP METAL DETECTORS) be held liable for damage or loss generated by using a defective charger or failing to comply with the certification standards in force. -
Page 33: Replacing Batteries
POWER SUPPLY - BATTERIES Replacing batteries The batteries for the wireless headphones (ref batterry : GMB452233 - ref XP : D088WS-A) are easy to replace. Unscrew the rear/lower cap of the headphones / Unclip the battery and change it. Then screw the cap (taking care of the O-rings). -
Page 34: General
PROBLEMS and SOLUTIONS You become aware of abnormal performance, instability, false signals or interference, for no apparent reason CAUSES SOLUTIONS The machine is over sensitive. Lower the sensitivity. You are in a high EMI zone with a great deal of Lower the sensitivity, change or shift frequency. -
Page 35: Specifications
SPECIFICATIONS Radio Link XP Link, Digital wireless Channels 36 automatic channels Radio Frequency specification FREQUENCY POWER Radio link 2.40 to 2.48 GHz <2.11 dBm Detection 3.9 to 135.7 KHz <72dBµA/m at 10m Features/Settings Detection frequencies Simultaneous Multi Frequency (40dBµA/m at 10m) or between the 49 single frequencies from 4 to 45 kHz. -
Page 36: Accessories
ACCESSORIES AND OPTION D2-RC D22FMF D28FMF D34FMF (XPRSW) (FMF22) (FMF28) (FMF3428) WSA II WSA II-XL FX-03 BH-01 (XPWS6) (XPWSA2) (XPWSA2XL) CLIP HOLSTER MI-6 MI-4 LANYARD PINPOINTER PINPOINTER (XPMI61) (XPMI61) HIPMOUNTDE- CLIP JACK RC JACK US II SUPPORT Wrist-Band ADAPTOR ADAPTOR S-TELESCOPIC STEM S-TELESCOPIC LITE STEM S-TELESCOPIC DIVE STEM... -
Page 37: Spare Parts
10 * D05B-A COIL COVER LOWER STEM COIL D041 D06/DO6BLACK * D042 D0894 D038D (coil fitting kit) D061 D072 DEUS II WS6-TOP WS6-BACK WS6-PCBLCD (without battery) D088WS-WTUBE (battery) WS AUDIO II WSAII-TOP WSAII-PCB (without battery WSAII-BACK D088WS-WTUBE (battery) MI-6/MI-4 PPCAP VIS2.2*9.5TF... -
Page 38: Factory Programs Spec
FACTORY PROGRAMS SPEC Prg 1 Prg 2 Prg 3 Prg 4 Prg 5 Prg 6 Prg 7 Prg 8 Prg 9 Prg 10 Prg 11 Prg 12 MENU -6.4 to Discri 1 tone 202/7 202/7 100/7 202/7 202/7 150/7 202/7 202/7 100 to 2 tones... -
Page 39: Recommendation/Law
RECOMMENDATIONS/LAW Detecting is an activity that, like most leisure activities, requires a few general guidelines. These recom- mendations will allow everyone to enjoy their hobby to the full while respecting laws, locations, environ- ment and people. Respect the law! - Find out about existing metal detecting laws in your country. -
Page 40: Radio Waves Safety
SAFETY/RECYCLING/PRECAUTIONS Safety relating to electromagnetic radio waves This product complies with standards for user safety with regard to electromagnetic waves. The strength of the radio signals used is considerably weaker and on a much smaller scale than those emitted by mo- bile telephones (2,000 to 4,000 times weaker). -
Page 41: Xp Warranty
WARRANTY XP DEUS II - 5 YEARS LIMITED W ARRANTY In addition to the legal warranty resulting from Articles 1641 et seq. of the Civil Code and Articles L. 211-1 et seq. of the Consumer Code, due in any case on defects and hidden faults, XP provides this contractual... - Page 44 www.xpmetaldetectors.com AI0DBC...
