A S S E M B L Y
The assembly of your detector will only take you a few seconds.

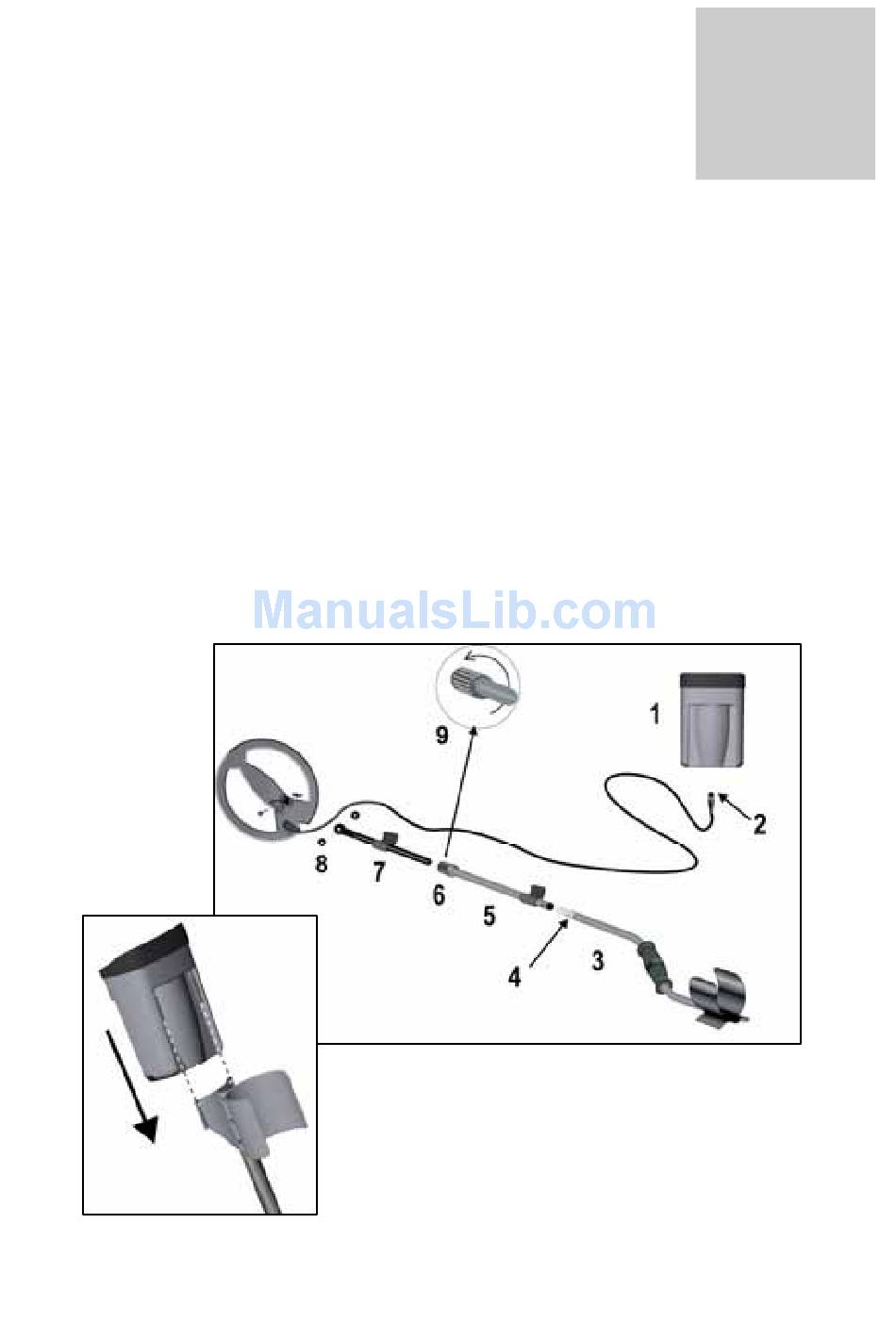

Put the shaft together as shown on the diagram.
1. Press the 2 shafts (3) and (5) one towards the other to help the
spring clips (4) locate themselves.
2. The twist lock (6) is used to stop the movement of the
fiberglass tube (7) inside the aluminium shaft (5). Release it
before inserting the fiberglass tube and then lock it without
forcing too much as shown on the diagram 9 once it is inserted
to the right length.
3. Put the 2 rubber washers on each side of the plastic end (8).
To facilitate the insertion you can dampen the rubber washers.
Insert the plastic end on the search head an screw the nylon
bolt through the hole, lastly attaching the nylon nut.
4. Wind the cable around the shaft.
5. Le boîtier (1) se porte sous le repose-
bras. Pour le fixer, il suffit d'insérer les 2
ailettes du repose-bras dans les glissières du
boîtier prévues à cet effet (schéma ci-
contre).
