Summary of Contents for XP Metal Detectors GMAXX II
-
Page 2: Table Of Contents
Contents pages Introduction ............2 Description ............5 Assembly ............6 Alkaline or Rechargeable Batteries, Battery Life, Battery Low Alert ......8 Controls ............10 Start I/0, Sensitivity ............. 10 Iron Threshold ............. 11 Ground ..............12 Silencer ..............13 FREQ. -
Page 3: Introduction
GMAXX II is a powerful and versatile detector for coins and artefacts in various types of ground. The development of the GMAXX, the GMAXX II has led to the inclusion of a new circuit board with specially optimised specifications. This new powerful circuit board combining performance and choice –... - Page 4 LCD display. LCD displays cannot respond in real time and do not capture weak signals that are too brief or too close to other signals GMAXX II sound signalling provides real-time output of the most imperceptible signal.
- Page 5 Because a metal detector is generally used in extreme conditions, we have given full attention to the most sensitive parts. GMAXX II is been developed and manufactured with quality components and material, thus ensuring your XP detector a maximum useful life.
-
Page 6: Description

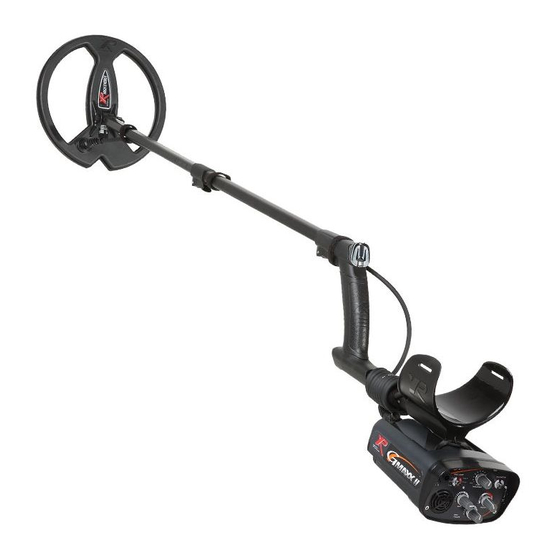

D E S C R I P T I O N 1 – Full telescopic stem, includes a fibreglass impregnated lower stem. 2 – Robust, waterproof search coil. Diam.9” (22.5 cm), provided with coil cover. 3 - ABS electronics box 4 –... -
Page 7: Assembly
A S S E M B L Y D E T E C T O R The assembly of your detector will only take you a few seconds. Put the shaft together as shown on the diagram. • Put the rubber washers on the side of the fibreglass tube (1). - Page 8 A S S E M B L Y D E T E C T O R To hold the cable along the telescopic stem you can use Velcro® strip as shown on the photo below(C & D). Option 2 : Electronic box hipmounted Insert the control box into the hipmount bag.
-
Page 9: Alkaline Or Rechargeable Batteries
B A T T E R Y L O W A L E R T ALKALINE BATTERIES____________________________ GMAXX II powered with 12 volts from 8 AA Alkaline battery using 2 battery holders, 4 batteries in each. Pay close attention to the battery ± polarity before inserting the batteries holders in the electronic box. - Page 10 A L K A L I N E R E C H A R G E A B L E B A T T E R Y , B A T T E R Y L I F E , B A T T E R Y L O W A L E R T...
-
Page 11: Controls
It can be adjusted to suit the environment so as not to be plagued with false signals. Please note that this new detector has a more advanced SENSITIVITY setting compared to previous GMAXX II model, enabling you to make gradual adjustments to help alleviate false signals. -
Page 12: Iron Threshold
C O N T R O L S IRON THRESHOLD _______________________________ The GMAXX II is still a "multi-tone" detector, but users can now adjust the iron level setting by using the IRON THRESHOLD potentiometer. This potentiometer can be seen as a discrimination setting with a range only covering iron. -
Page 13: Ground
C O N T R O L S GROUND______________________________ ______ With this control you can correct ground effects and more accurately reject ferrous minerals or any pottery containing iron oxides. If you are prospecting on grounds loaded with magnetic stones, it might be a good idea to keep a sample of these rocks on you to adjust your detector before detecting this type of ground. -
Page 14: Silencer
The silencer can limit false signals caused by iron. Use position I or II if you desire a quieter search. Silencer in position II will allow to get used to GMAXX II faster and will improve iron rejection. 0 : Silencer OFF... -
Page 15: Freq. Shift
C O N T R O L S FREQ. SHIFT._____________________________ The FREQ. SHIFT switch eliminates interference which would otherwise be caused between two XP detectors used within close proximity of each other. It can act on two settings simultaneously: the working frequency of your detector: ✓... -
Page 16: Iron Volume
C O N T R O L S If you are working WITH A PARTNER without an XP wireless headphones: you can use FREQ. SHIFT. ✓ on the middle setting: DETECT Freq1 / WS1 OFF position on YOUR device. ✓ on a high setting: DETECT Freq 2 / WS1 CH1 position on your partner's device, even if they are not using an XP wireless headset. -
Page 17: Multi Tones Information
Everybody will find a use for it. On certain types of ground, especially those contaminated by copper shot gun cartridges or little pieces of aluminum foil, GMAXX II will can signal the presence of debris by means of a medium-pitched tone, whereas as decent targets will trigger a high-pitched sound. - Page 18 M U L T I - T O N E I N F O R M A T I O N In addition to these three basic tones, GMAXX II has another advantageous feature: it can produce several different tones simultaneously for targets in intermediate categories.
-
Page 19: Detecting Techniques
D E T E C T I N G T E C H N I Q U E S GMAXX II is a motion detector, which means that target detection can be carried out only when the search coil is moving. -
Page 20: Care Instructions
C A R E I N S T R U C T I O N S Our detectors are designed to be as robust as possible, however, like any electronic precision instrument, they require some care. The XP search coil cable has been designed so as to resist long term movement. - Page 21 C A R E I N S T R U C T I O N S Not adhering to these precautions will lead to long term damage of the cable and void the warranty due to user negligence. If you are not using the detector for more than a month, remove the alkaline batteries from the detector.
-
Page 22: Trouble Shooting Problems
T R O U B L E S H O O T I N G P R O B L E M S ROBLEMES AUSES OLUTIONS Low batteries. Change the batteries. You hear a Check if you have correctly inserted series of beeps the batteries in each pack. -
Page 23: Advice To Detectorists
A D V I C E D E T E C T O R I S T S Detecting is an activity, which like other leisure activities requires some guiding principles. These few recommendations will allow you to fully enjoy it while respecting laws, environment and other people. -
Page 24: Specifications
S P E C I F I C A T I O N S ATTERIES 8 AA Alkaline batteries. Rechargeable batteries NiMh 2300 mA can be used instead of Alkaline batteries. LECTRONIC BOX ABS electronic box with joint seal. It can be worn under the armrest, or hip-mounted. -
Page 25: Xp Accessories
A C C E S S O R I E S Provided by all our distributors Standard Search coil DD 9” (22.5 cm) provided with coil cover Search coil DD High Energy 11” (27 cm) provided with coil cover Elliptical Search coil 5”... - Page 26 A C C E S S O R I E S Provided by all our distributors XP transport bag Batteries charger Wireless Headphone WS2 2 Channels Specially designed for XP Metal Detectors. Wireless Headphone WS3 Specially designed for XP Metal Detectors.
-
Page 27: Warranty Conditions
W A R R A N T Y C O N D I T I O N S GMAXXII – 5 YEARS LIMITED WARRANTY XPLORER ensures a contractual warranty from the date of purchase : • 5 years on the electronic box, the search coil, detector shaft and its components (armrest, twist lock…) and on the battery charger. - Page 28 Declaration of conformity for UE This declaration is made under the responsibility of the manufacturer: XPLORER SARL - 8 rue du Développement – F-31320 CASTANET-TOLOSAN We, XPLORER, hereby certify that this detector complies with the essential requirements of European Directives RED 2014/53/EU which aims to harmonise legislation in member states on the use of the radio spectrum, electromagnetic compatibility and electrical safety.
