ATTENTION:
Do not use regular wire cutters
to cut through the steel cable. Ordinary wire
cutters may be damaged when attempting to cut
through the steel cable. You must use a suitable
cable cutter to cut the steel cable.
ATTENTION :
N'utilisez pas de cisaille standard
pour couper le câble en acier. Ce type de cisaille
peut être endommagé lors de la coupe du câble
en acier. Vous devez utiliser une pince coupe-
câble adaptée à ce type de câble.

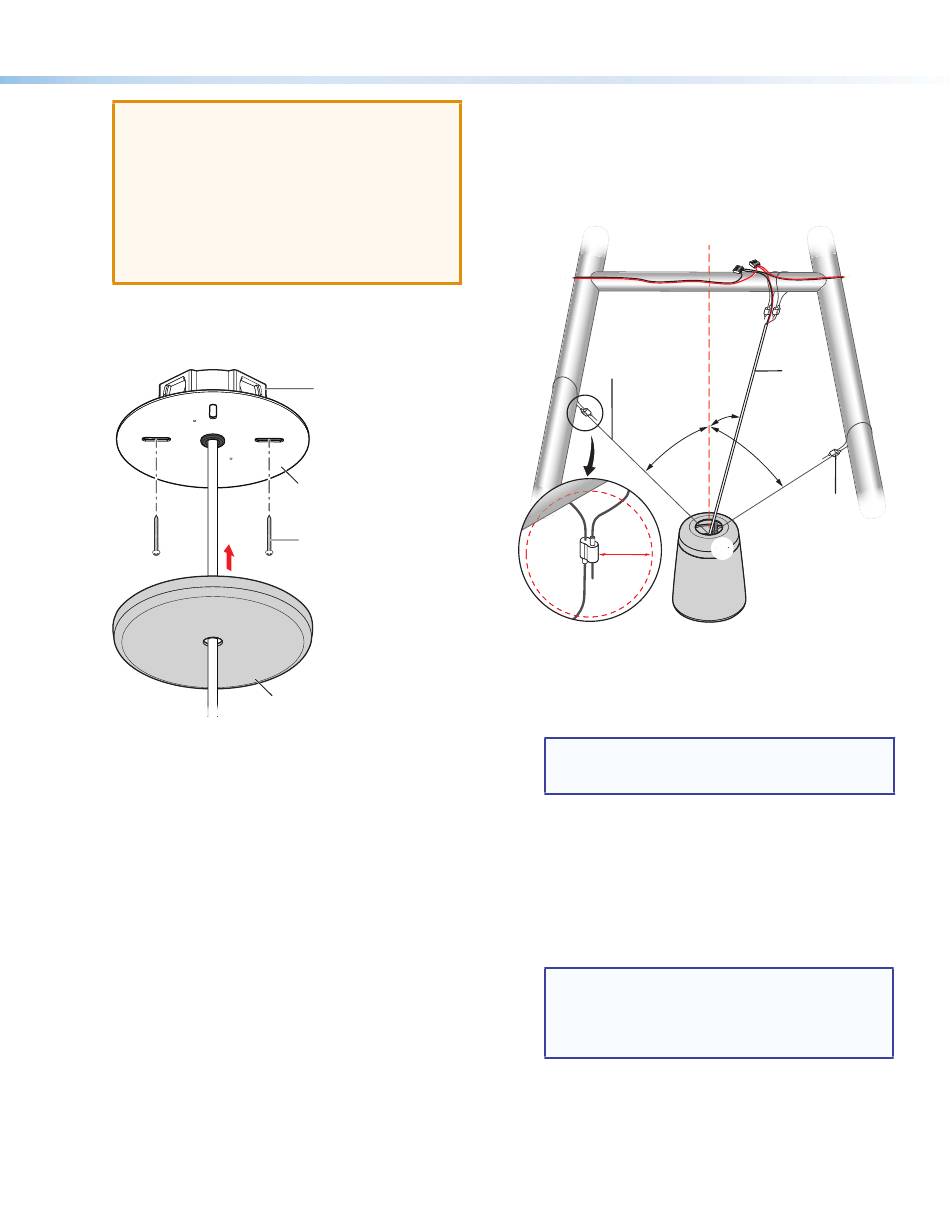

5. Attach the ceiling bracket to the junction box using two
screws with the splicing connectors inserted into the
junction box.
6. Attach the ceiling bracket cover onto the ceiling
bracket. Two small magnets secure the cover plate in
place.
Junction Box
Ceiling Bracket
Screw
Ceiling Bracket
Cover Plate
Optional 2-Cable Installation Kit
The optional Extron SMK A 2C 2-aircraft cable installation
kit allows the SF 26PT speaker to be suspended from 3
overhead points such as a pipe or eye bolt using the 2
included PCC-2 steel cables and the 2 additional cables
from the kit.
Steel
Cables (2)
2 2
45°
2" min.
Three Mounting Points
1. Route the cut end of both PCC-2 steel cables to an
overhead anchor point
secure the cables in place.
NOTE: The angle between those PCC-2 steel
cables and the 0° vertical position directly above
the speaker is 45°.
2. Route the two cables from the kit to overhead mounting
locations such that angle between those cables
the 0° vertical position directly above the speaker is
45°.
3. The angle between each of the 3 cables and its
adjacent cable is 120°.
4. Use cable locks to secure both cables from the kit to
the mounting locations
NOTE: In order to ensure that the cable lock is not
unintentionally unlocked, keep the area within
2 inches of all cable lock in any direction free
of any other objects. See the Warning at the
beginning of this guide.
5. Connect the 4 swaged steel cable ends (2 from the
PCC-2 cable and 2 from the kit) through the speaker
cap and to the hook
Product Category
0° Vertical
4 4
1 1
PCC-2
45°
3 3
45°
Cable Lock
5 5
using the cable locks to
1
2
.
3
.
5
and
