Fireye YZ300 Manual

Interlock annunciator for use with the burnerlogix control
Hide thumbs
Table of Contents

Advertisement

Quick Links

DESCRIPTION
The FIREYE YZ300 (YZ320) Interlock Annunciator Module provides increased interlock
supervision capability of the BurnerLogix System. The Interlock Annunciator Module connects
to any YB110 (YB230) or ZB110 (ZB230) BurnerLogix chassis/amplifier by means of a cable, (
P/N ED580-2, ED580-4, ED580-8).
By wiring any of twenty interlock switches into the Interlock Annunciator Module, the BurnerLogix
display automatically acts as a "first-out" annunciator for these interlocks. In addition, a fuel selec-
tion circuit providing full annunciation even if two fuels are fired simultaneously is standard. The
YZ300 (YZ320) is shipped with default messages associated with each set of terminals. The user has
the ability to modify these lockout messages in one of two ways:
1.
Use the BLV512 or BLL510 display module to select a lockout alarm message for the individual
terminals of the YZ300 (YZ320) from a library of available messages. Refer to Bulletins
BL-1001 and/or BLZ-1001 for information regarding the operation of these controls.
2.
Program a customized message (up to 40 characters in length) for the individual terminals of the
YZ300 (YZ320) using a compatible PC with the Windows based YZ300P Programming soft-
ware, available from Fireye and the appropriate hardware. Note: The YZ300 (YZ320) Interlock
Annunciator does not need to be connected to a BurnerLogix system to be custom programmed.
Note: Proper operation of the YZ300 (YZ320) requires a BurnerLogix YB110 (YB230) with an
Engineering code of 3 or later or any ZB110 (ZB230) chassis/amplifier (Engineering codes
are found after the date code, e.g. 0636-03).
The Interlock Annunciator Module does not interfere with the normal operation of the BurnerLogix
System. It expands the message and diagnostic capability.
The wiring bases for the YZ300 (YZ320) measure 4 in. wide by 7 in. tall, consuming a minimum
amount of cabinet space. The wiring bases contain a 24 position terminal block, each position clearly
numbered and each terminal utilizing a clamping mechanism to assure a good mechanical connec-
tion.
The YZ300 (YZ320) Interlock Annunciator module provides operational information and reduces
troubleshooting time and expense. It expands the standard display messages of the BurnerLogix to
identify the specific limit in the operating control circuit (L1-3) or running interlock circuit (3-P)
which caused the burner shutdown or lockout. For a detailed description of the BurnerLogix System,
see Bulletins BL-1001 or BLZ-1001.

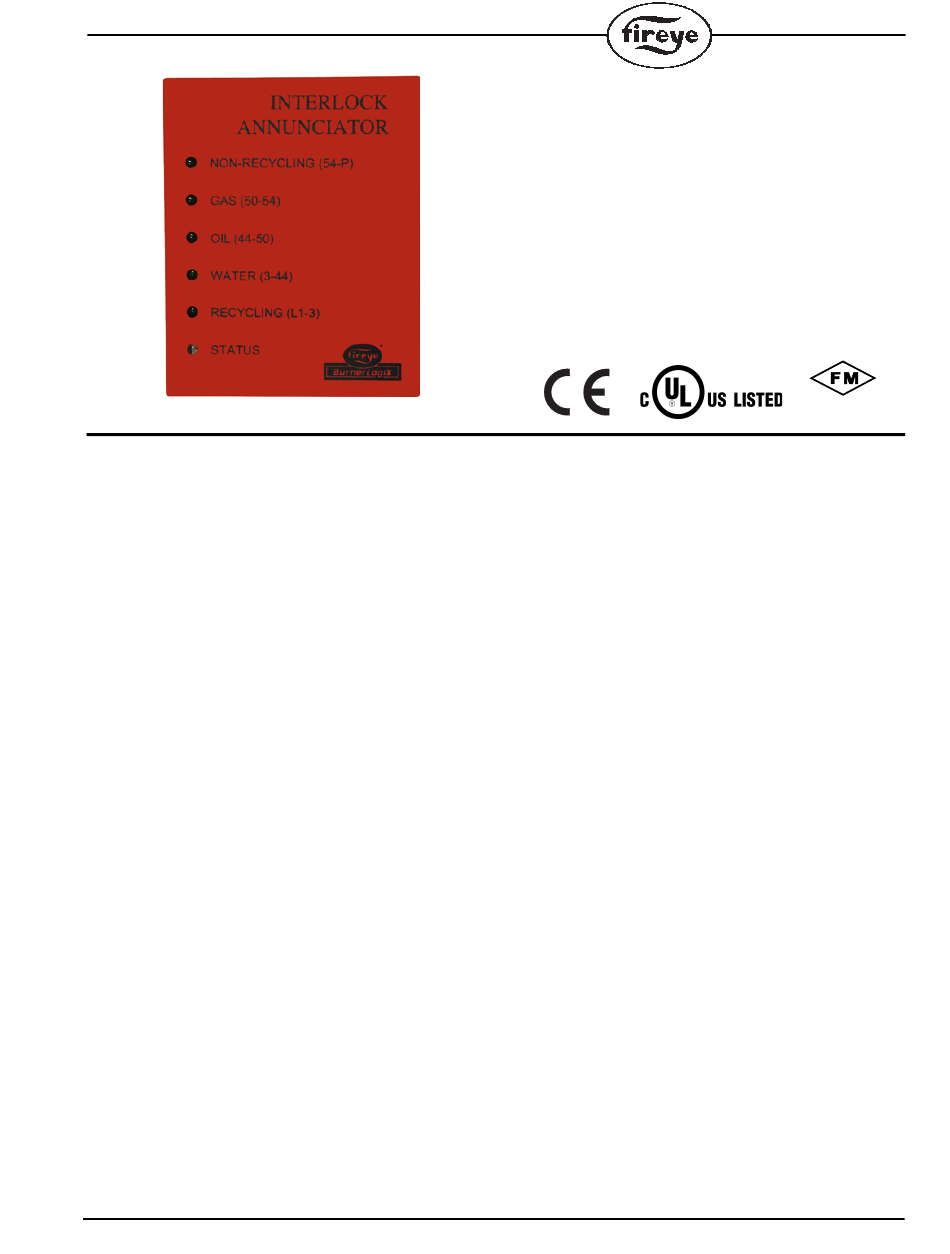

FIREYE
YZ300 and YZ320
INTERLOCK
ANNUNCIATOR
For use with the Fireye
BurnerLogix™ Control
APPROVED
YZEM-3001
June 2, 2017
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YZ300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fireye YZ300

Summary of Contents for Fireye YZ300

  • Page 1 System. It expands the message and diagnostic capability. The wiring bases for the YZ300 (YZ320) measure 4 in. wide by 7 in. tall, consuming a minimum amount of cabinet space. The wiring bases contain a 24 position terminal block, each position clearly numbered and each terminal utilizing a clamping mechanism to assure a good mechanical connec- tion.

  • Page 2: Agency Approvals

    YZ320 X = CERTIFICATION IN HAND SPECIFICATIONS Supply Voltage: YZ300 - 120VAC (+ 10% - 15%), 50 / 60 Hz YZ320 - 230VAC (+ 10% - 15%), 50 / 60 Hz Power Consumption: 10 VA Protection Category: NEMA1 (IP01) Ambient Temperature Levels: -40F to +140F (-40C to +60C) Response Time: 66 milliseconds Purge / 32 milliseconds Run Weight: 1.1 lb.

  • Page 3: Ordering Information

    USB to RS485 converter with USB cable. Required to customize YZ300 messages ED512-2, 4, -8 Cable with RJ12 connectors on each end. Required to customize YZ300 lockout alarm messages OPERATION The YZ300 (YZ320) Interlock Annunciator Module is designed to expand the capability of the BurnerLogix System by allowing the operator to individually track the operation of four (4) recy- cling interlocks and sixteen (16) running interlocks (non-recycling).

  • Page 4: Special Notes On Operation

    Any interlock in the 3-P or in the L1-3 circuit that opens for at least 33-50 ms while the burner is ON, or for at least 66 ms while the unit is in PURGE will cause the YZ300 (YZ320) and the BurnerLogix control to respond with the proper message.

  • Page 5: Led Indicators

     LED INDICATORS The YZ300 (YZ320) contains 6 LED's that provide information that can be useful in determining the current state of the interlocks wired between terminals L1 and P of the BurnerLogix control. STATUS – indicates red when the ED580 connection to th e BurnerLogix is interrupted, green when connection is established.

  • Page 6: Installation And Wiring

    For any interlock of the YZ300 (YZ320) that is not used, a jumper must be placed between those two terminals. For example, if AUX LIMIT #7 is not used, a jumper must be placed from terminal 59 to terminal 60.
  • Page 7 Remove the RJ485 plug from the EXP port located on the underside of the BurnerLogix control. Plug end of ED580 cable with ferrite core into EXP port of the BurnerLogix control. Plug the other end of the ED580 cable into the EXP port located on the underside of the YZ300 (YZ320) Interlock Annunciator.
  • Page 8  FIGURE 2. WIRING DIAGRAM FOR DEFAULT MESSAGES...
  • Page 9 For example, the low water cutoff had to be wired between terminals 43 and 44 of the YZ300 (YZ320). The YZEM MSG SELECT option now allows the user to select from a library of messages and program each interlock terminal as required. The messages associated with the YZ300 (YZ320) are divided into four (4) groups: Recycle, Non-recycle, Gas Select, and Oil Select.
  • Page 10 Module from the menu selection via the BLL510 or BLV512 display, the user can also pro- gram any message (up to 40 characters in length) for the individual terminals of the YZ300 (YZ320). Fireye provides a Windows based program YZ300P to facilitate this process.
  • Page 11 COMMS port Plug one end of the ED512-2, -4 or -8 cable into the RJ12 jack on the UC485 and the other end into either of the RJ12 jacks located on the underside of the YZ300 (YZ320) Interlock Annunci- ator.
  • Page 12 (Library selected messages will not be displayed on the YZ300P). • Write - the YZ300P will upload or write all messages to the YZ300 (YZ320). If the message displayed on the YZ300P screen is a default message then no writing of that message location will take place.
  • Page 13 Open - The YZ300P allows the user to open an existing file that can be used to upload to a new YZ300 (YZ320). Clicking Open will open a dialog box showing all files with the '.sav' exten- sion in the folder displayed. Click on the desired file and then Open. The file will be read into the program and the screen will be populated with the messages from the file.
  • Page 14 Fireye warranty, as stated in its General Terms and Conditions of Sale, pertains only to the Fireye products and not to any other equipment or to the combined system or its overall per- formance.
