DESCRIPTION

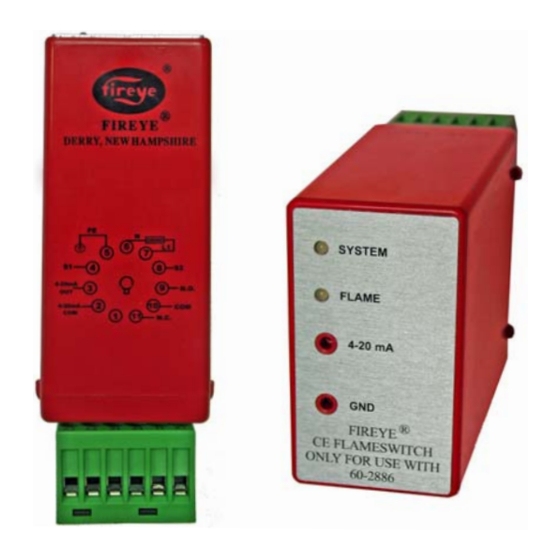

The MBCE-110/230FR modules provide visual indication and electrical outputs that
signal the user regarding flame presence in a combustion chamber. The module uses
Fireye flame rods to sense flame presence independently or as components in a
burner management system. Many operational characteristics are provided including:
CE approved
•
Self-contained: 110 VAC, 50/60 Hz: MBCE-110FR-1, MBCE-110FR-3
•
Flame Rod compatible
•
Flame ON/OFF LED indicator
•
4-20mA permits direct reading of flame signal strength
•
Uses CE approved 11-pin relay base
•
Panel surface or DIN-rail mounting
•
Self-check
•
The unit provides a cost effective, self-checking method of monitoring flames using
the ionization principle.
Check with Fireye for more details by contacting your local distributor or by check-
ing the Fireye home page at www.fireye.com.
NOTE: When the MBCE-110/230FR modules are used, additional means must be furnished to provide
those functions usually provided by flame safeguard control systems to meet local regulations (i.e.:
safe start check, valve closure, starting and running interlocks, safety timings, etc.).
WARNING: The Equipment described in this manual is capable of causing property damage,
severe injury, or death. It is the responsibility of the owner or operator to ensure that the equip-
ment described is installed, operated and commissioned in compliance with the requirements of
all national and local legislation, which may prevail. Installation, commissioning, or adjustment
of this product MUST be carried out by suitably trained engineer or personnel qualified by
training or experience.
NOTICE: When Fireye products are combined with equipment manufactured by others and/
or integrated into systems designed or manufactured by others, the Fireye warranty, as stated
in its General Terms and Conditions of Sale, pertains only to the Fireye products and not to any
other equipment or to the combined system or its overall performance.
230 VAC, 50/60 Hz: MBCE-230FR-1, MBCE-230FR-3

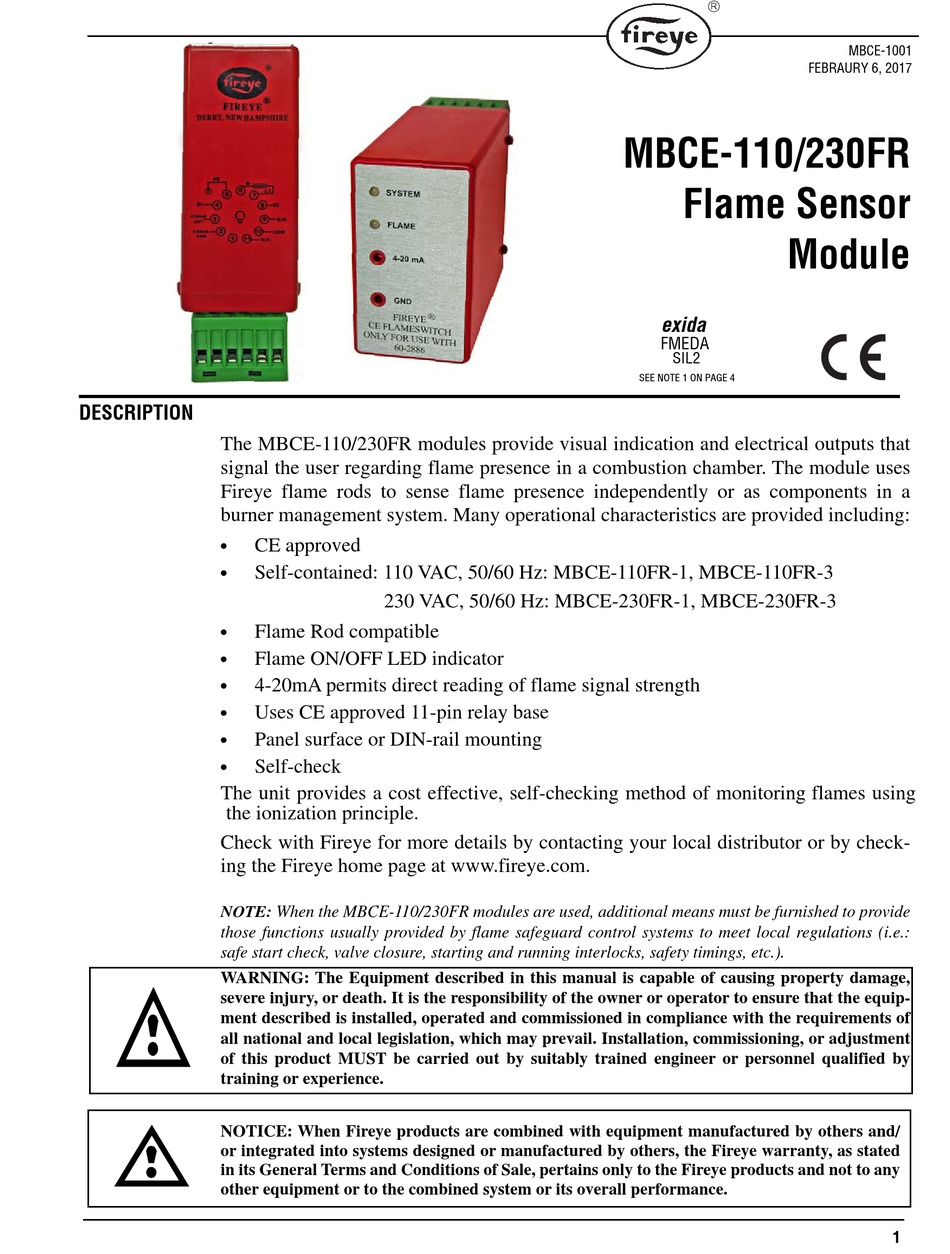

MBCE-110/230FR
Flame Sensor
Module
exida
FMEDA
SIL2
SEE NOTE 1 ON PAGE 4
MBCE-1001
FEBRAURY 6, 2017
1
