Steris 5085 SRT Operator's Manual

Surgical table
Hide thumbs Also See for 5085 SRT:
Table of Contents

Advertisement

Quick Links

Download this manual
413724247
en
Revision AB

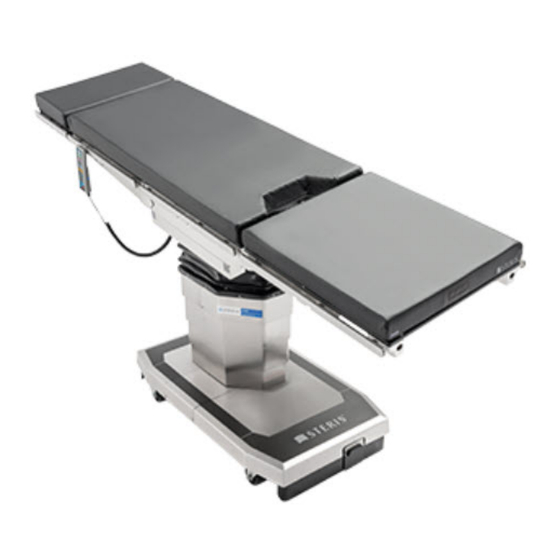

STERIS 5085 SRT
Surgical Table
Operator Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5085 SRT and is the answer not in the manual?

Questions and answers

Related Manuals for Steris 5085 SRT

Summary of Contents for Steris 5085 SRT

  • Page 1 STERIS 5085 SRT Surgical Table Operator Manual 413724247 Revision AB...
  • Page 2 © 2024 STERIS. All rights reserved. Published: 2024-1-17 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 3: Indications For Use

    Complete instructions for uncrating have been furnished. If missing, contact STERIS for a replacement copy, giving the serial and model numbers of the table. STERIS carries a complete line of accessories for use with this table. Contact STERIS for more information.

  • Page 4: Waste Disposal

    Comprehensive instructions for monthly, quarterly and semi-annual preventive maintenance can be found in the Maintenance Manual (available from STERIS). Only STERIS-trained personnel should attempt to perform maintenance on the table, to avoid personal injury, improper equipment performance, invalidation of the equipment warranty or other costly damage. Contact STERIS for additional information on available training programs for biomedical staff.

  • Page 5: Contact Information

    Manufactured by: STERIS Corporation 2720 Gunter Park East Montgomery, AL 36109 USA TEL: 334 277 6660 8004449009 www.steris.com Class 1 Equipment Type B Equipment Splash-Proof Equipment (enclosed equipment protected against splashing water, IPX4) 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 6 Suitable for intermittent operation 3 min/hr. The base language of this document is ENGLISH. Any translations must be made from the base language document. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 7: Table Of Contents

    Level Table Function..................... 69 Record (Memory) Modes....................70 Troubleshooting..........................72 Introduction........................72 2 Red Control Icons and Beeps — ALM ..............73 ALS Alarm When Raising Back Section - nonALM ............. 73 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 8 Table Does Not Function on Facility Power But Does on Battery Power - nonALM ......................... 84 6.44 Table Does Not Raise/Lower Using Hand Control — nonALM......... 84 6.45 Table Does Not Tilt Using Hand Control — nonALM..........85 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 9 Wrong Use — ALM ...................... 95 Routine Maintenance ........................96 Read Before Performing Routine Maintenance ............96 Cleaning Table....................... 97 Bi-Weekly Maintenance .....................101 Monthly Maintenance ....................101 Battery Charging......................101 ALS Check........................103 LEVEL Check........................103 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 10 Backup Hand Control Check..................104 Replacement Parts .....................104 Appendix A - EMC Compliance .....................106 Introduction.........................106 EMC COMPLIANCE TECHNICAL DATA...............106 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 11: Safety Precautions And Pinch Points

    Any maintenance performed on this Surgical Table, other than described in the manual (unless by authorized representatives of STERIS), shall be at the risk of invalidating the table warranty. NOTE: Disregarding the presented safety information is considered ABNORMAL USE of this product.
  • Page 12 Figure 1-1. Pinch Points (Illustration 1 of 2) Pinch points: 1. Between Head Rest and Floor 2. Between Leg Section and Floor 3. Between Leg Section and Column Cover 4. Between Leg Section and Base Cover 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 13 3. C — Side Rail Lock 4. D — Between Back Section and Seat Section 5. E — Between Head Rest and Back Section 6. F — Between Head Board and Head Rest Base (If Equipped) 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 14: Warning Tipping Hazard

    Surgical Table must not be used in the presence of flammable anesthetics. 1.5 Warning — Tripping Hazard WARNING TRIPPING HAZARD Route the power cord to the receptacle to minimize being tripped over by personnel in the area. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 15: Warning - Personal Injury Hazard

    When cleaning/disinfecting this Surgical Table, do not use phenolics which may cause patient skin burns if inadequately rinsed off, or alcohol, which does not have sufficient cleaning/disinfecting properties. Do not exceed 350 lb (159 kg) on the leg section. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 16 If Hand Control LCD warns of sensor failure (red wrench 12, 13, 14 or 17), table movement collision can occur. For 5085 SRT Surgical Tables, ensure patient safety barrier bars are raised and locked and table is unplugged before attempting patient transport.

  • Page 17: Warning Instability Hazard

    Possible patient or user injury, as well as Surgical Table or accessory failure, may result from using STERIS table accessories for other than their stated purpose - or from using accessories manufactured and sold by other companies for use on STERIS surgical tables.
  • Page 18 Hand Control must be attached to Surgical Table all times to enable safety stop and all modes of operation. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 19 Reverse Trendelenburg. Table performance is validated as a system including components defined by STERIS in the Operator and Service Manuals. Substitution of unauthorized components can potentially lead to personal injury, damage or premature failure of the product and result in a unit configuration that is inconsistent with the validated product.
  • Page 20 ● 600 lb (272 kg) SRT with the ability to rotate, all patient posturing, transport feature (normal orientation only), and tabletop slide. For 5085 SRT Surgical Tables, attempting Manual Rotating Mode while table is in Drive Limits increases the possibility of unwanted table Transport movement.

  • Page 21: Warning Infection Hazard

    To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth. Unplug Surgical Table from Facility electrical supply and remove battery fuse before servicing. Always follow electrical safety-oriented work practice standards. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 22: Caution - Possible Equipment Damage

    Route the hand control cord clear of any pinch points where cord could be damaged. Use of incorrect hydraulic oil may severely damage the Surgical Table and/or cause malfunction. Contact STERIS for proper hydraulic oil. After performing cleaning procedures, ensure pads, tabletop, and X-Ray tops are completely dry before reinstalling.
  • Page 23 Static electricity can damage microprocessor controls. Indiscriminate probing of circuits or improper connections may result in immediate or delayed electrical failure. If the electronics are to accessed, use a personal grounding device. Exercise care in all activities involving the electronic circuitry. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 24 Use of heat in vicinity of control and hydraulics is a concern. A piece of sheet metal should be used to shield these components from excess heat. For 5085 SRT Surgical Tables, do not use any headrest other than the 5085 SRT Headrest on this Surgical Table. Use of any unapproved accessory damages table electronics.

  • Page 25: Glossary

    Side Rail - Stainless-Steel rail attached to both sides of Surgical Table Tabletop. Surgical Table - STERIS 5085 SRT, STERIS 5085 and 5085 Harmony General, and 5095 General Surgical Tables. Table Base - Painted welded steel covered by stainless-steel enclosure. Base contains casters, drive wheel (SRT units only), floor locks, power assembly, master computer, Backup Hand Control, and hydraulic fluid.

  • Page 26: Definition Of Symbols On Surgical Table

    CHARGE BATTERY BATTERY INTELLI POWER INTELLI POWER (Battery Charge/Discharge Status) Powered By Battery BATTERY CHARGE BATTERY INTELLI POWER BATTERY Powered By Battery Powered By Battery BATTERY 413724247_AB Powered By Battery STERIS 5085 SRT Surgical Table Operator Manual BATTERY BATTERY BATTERY...
  • Page 27 Table 1: Labels and Location Location On Table 5085/5085 SRT Number Part Location On Table 5085/5085 SRT Label, Table Identification (STERIS 5085 SRT Surgical Table Shown) Number 413724-347 (5085 SRT Model Only) 413724-347 Patient Right side and Patient Left side – shroud cover.

  • Page 28: Definition Of Symbols On Hand Control

    Rest Part Location On Table 5085/5085 SRT Number MENU Label, SRT Enable (STERIS 5085 SRT Surgical Table Only) — Located On STERIS 5085 SRT 413724-341 Headrest (5085 SRT Model Only) Front Right Side – Head Rest FLOOR Model Only) Front Left Side...
  • Page 29 HEIGHT DN LOCK LEVEL STOP TREND REVERSE TILT LEFT TILT RIGHT TREND NORMAL REVERSE HEIGHT UP HEIGHT DN LEVEL NORMAL STOP REVERSE TILT RIGHT TILT LEFT LEVEL STOP NORMAL REVERSE 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table LEVEL STOP...
  • Page 30 2 — Glossary Table 2-2. Definition of Hand Control LCD Displays Symbol Definition Start Screen (STERIS 5085 SRT Surgical Table Screen Shown) Normal Orientation Screen (Slide Function Chosen) Reverse Orientation Screen (Slide Function Chosen) Level Screen Trendelenburg Screen Reverse Trendelenburg Screen...
  • Page 31 Transport Mode Setup Screen Shown MEM Functions (i.e., Rotate, Transport, Beach Chair, MEM1, MEM2) Rotate Mode Setup Screen Shown Kidney Up Screen Kidney Down Screen Leg Select Screen Slide to Foot Screen Flex Screen 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 32 Table Powered by Battery Power. Green = Battery Fully Charged; Gold = Battery Medium; Red = Battery Low (Table Hydraulics Power is OFF). Floor Locks Engaged (Green). Floor Locks Released (Gold). Beach Chair Attached. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 33 POWER: Table is running with a discharged battery Green FLOOR LOCK STATUS: Floor locks are engaged Orange FLOOR LOCK STATUS: Floor locks are not engaged Orange MAINTENANCE: Surgical table has detected a condition requiring Service 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 34 Blue INCHES: Indicates slide position readout is displayed in inches Blue CENTIMETER: Indicates slide position readout is displayed in centimeters Blue POINTER: Indicates button user needs to push when selecting compatibility mode 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 35: Important User Information

    • powered by either internal battery or facility electric through use of the patent-pending INTELLIPOWER® dual power system. • The STERIS 5085 SRT Surgical Table also offers a patient transport feature designed to safely move patients on hard level surfaces within the surgical suite (from pre-operative to operating room and from operating room to post operative recovery).

  • Page 36: Technical Specifications

    (Not Shown) 12. Column 18. Foot Pump (Hydraulic) Pedal (Not Shown) *Headrest, Dual-Articulating, Drive Head Section for 5085 SRT Units † Connections for Universal Hand Control, Backup (Override), and Optional Foot Pedal Control 3.3 Technical Specifications This section includes the following:...
  • Page 37 This situation can be corrected by removing source of interference and power cycling Surgical Table if necessary. Overall Size (W x L x H) 20 x 81 x 22.8 to 42.5" (508 x 2057 x 581 to 1080 mm) — STERIS 5095 General, 5085 General, and 5085 Harmony Surgical Tables 20 x 83 x 22.8 to 42.5"...
  • Page 38 100 or 120, 220, or 230-240 Vac, One-Phase, 50/60 Hz, 4.0 Amp Each table is shipped from the factory configured to the electrical requirement specified on the factory order. If this electrical configuration needs to be changed in the field, consult STERIS for the needed procedure and required materials.
  • Page 39 Head Motion (Manual): 90° ±1° Head Motion (SRT, Manual): UP: 60° ±2°; DOWN: 90° ±2° (in 10° ±1° increments) NOTE: Refer to specific Tech Data (refer to Associated Publications Section) for exact Range of Motion. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 40 WARNING PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD Use of accessories, transducers or cables with this Surgical Table, other than those specified, may result in increased emissions or decreased immunity of the table. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 41 • Medical Electrical Equipment needs special precautions regarding high frequency interference. Equipment needs installed and put into service according to facility regulations and procedures. • Potential hazards from the interfering high-frequency device could be patient burns and/or electrical shock of patient and operator. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 42: Tabletop Articulation And Patient Positioning

    • Potential explosion hazards caused by the interfering high-frequency device because this Surgical Table is not suitable for use in the presence of a flammable anesthetic mixture with air or oxygen or nitrous oxide. Patient Transport (STERIS 5085 SRT Surgical Table) Table Speed: Forward ≤1.9 mph (≤3 km/h); Reverse ≤1.2 mph (≤2 km/ h) Table Weight Capacity: 600 lb (272 kg) Maximum Incline Angle: 5°...
  • Page 43 50 ft-lb (67 N•m) maximum. Exceeding these limits could result in injury or possible equipment damage. 9. For 5085 SRT Tables, if transporting a patient on the Table, ensure patient barriers are installed before transporting. IMPORTANT: All patients must be restrained for proper safety regardless of the length or type of procedure.
  • Page 44 WARNING PERSONAL INJURY HAZARD For 5085 SRT Surgical Tables, ensure patient safety barrier bars are raised and locked and table is unplugged before attempting patient transport. For 5085 SRT Surgical Tables, do NOT transport patient on anything but level floor.

  • Page 45: Before Using The Table

    Introduction WARNING PERSONAL INJURY HAZARD ● Any alteration of the Surgical Table not authorized or performed by STERIS which could affect its operation voids the warranty, could adversely affect operator safety, and could violate national, state, or local regulations. ● Keep hands and feet clear of the unloading platform and the Table base when unloading the Table.
  • Page 46 POSSIBLE EQUIPMENT DAMAGE For 5085 SRT Surgical Tables, when moving the Surgical Table to or from point of use, roll or power it carefully at moderate speed and only over smooth floors. Maximum floor clearance is 1/4" (6.4 mm). Use supplied bridge (provided as part of original packaging) for door and elevator jambs (or any obstructions) greater than 1/4"...
  • Page 47 4. Pry cartridge out with a small screwdriver to access fuses. 5. Remove blown fuse(s) and replace. 6. Push cartridge back into connected position. 7. Remove battery fuse at foot-end of Table base. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 48 Required line power for Surgical Table is 100-240 Vac, single-phase, 50/60 Hz, 4.0 Amp. Each Table is shipped from the factory configured to the electrical requirement specified on the factory order. If this electrical configuration needs to be changed in the field, consult STERIS for the needed procedure and required materials.
  • Page 49 Figure 4-4. Connecting Primary Hand Control For the following steps, refer to Figure 4-4 and as needed. 1. Remove Primary Hand Control from package. 2. Lift hinged plastic protective cover for handle connection socket. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 50 Installing Drive Head Section CAUTION POSSIBLE EQUIPMENT DAMAGE For 5085 SRT Surgical Tables, do not use any headrest other than the 5085 SRT Headrest on this Surgical Table. Use of any unapproved accessory damages table electronics. Install Drive Head Section as follows: 1.
  • Page 51 1. Using Primary Hand Control, position table top seat section to horizontal by pressing LEVEL button or Leg Up screen on LCD Display. 2. While holding leg frame, squeeze both handles and simultaneously pull backward (see Figure 4-7). 3. Safely store leg section to prevent damage 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 52 3. Align red mark (or arrow) on foot control plug with red mark on associated connection socket. 4. Push foot control plug into Table socket until a "click" is heard. 5. Place foot control where it cannot be damaged. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 53 To install a table pad, place pad in position and firmly press associated fasteners together. To remove a table pad, gently peel or lift the pad, as applicable, to free it from the tabletop. Figure 4-9. Tabletop Pads 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 54 Accessories/Side Rails The standard STERIS permanently attached 3/8" wide x 1-1/8" tall (9.5 x 28.6 mm) side rails allow for the use of many standard surgery table attachments and accessories. The rails consist of one rail mounted to each side of each tabletop main section.

  • Page 55: Primary Hand Control

    Possible patient or user injury, as well as Surgical Table or accessory failure, may result from using STERIS table accessories for other than their stated purpose or from using accessories manufactured and sold by other companies on STERIS surgical tables.
  • Page 56 ANY button but STOP. The STERIS 5085 SRT Surgical Table is equipped with a Primary Hand Control (see ). This Hand Control contains easy- to-read icons and illuminates the key pad for easy articulation identification when room is dark. For the Hand Control function buttons to be operational: 1.
  • Page 57 4 — Before Using the Table Figure 4-12. STERIS 5085 SRT Surgical Table Primary Hand Control LCD Display: Liquid Crystal Display. Refer to Section 2.3, Definition of Symbols on Hand Control. FLOOR LOCK: When LED is ON floor locks are engaged.
  • Page 58 LCD Display includes menus and indicator descriptions (see Figure 4-13) as follows: NOTE: Simply release the Hand Control soft key or touch pad when desired Surgical Table position has been reached and Table automatically stops and locks in position. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 59 NOTE: When operating in REVERSE ORIENTATION, LEVEL function does NOT operate. TREND: When primary hand control touch pad is depressed, the LCD Display pictorials and values change accordingly. Tabletop angle from 0 to 30°. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 60 Troubleshooting section, for more information. NOTE: The Hand Control automatically deactivates after 30 minutes of nonuse (when unlocked) and 10 hours of nonuse (when locked). The Hand Control is reactivated by depressing ANY button but STOP. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 61: Reverse Patient Orientation

    4. When operating in REVERSE ORIENTATION, LEVEL function does NOT operate. 5. The Hand Control automatically deactivates after 30 minutes of nonuse (when unlocked) and 10 hours of nonuse (when locked). The Hand Control is reactivated by depressing ANY button but STOP. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 62: Optional Foot Control Operation

    2. Pull drawer out and remove backup hand control. 3. Return drawer to Table. 4. To operate Table functions, pump pedal while pressing desired function button on backup hand control (see ). 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 63 The backup hand control touch pad descriptions are as follows (): NOTE: Simply release the backup hand control touch pad when desired Tabletop position has been reached and Table automatically stops and locks in position. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 64 KIDNEY DN: When depressed and pumping, the tabletop KIDNEY Elevator Mechanism lowers. FLOOR LOCK: When depressed and pumping simultaneously, floor locks are slowly lowered. To ensure Table is correctly secured to the floor, gently push on Table. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 65: Drive Head Section

    PERSONAL INJURY HAZARD ● Ensure patient safety barrier bars are raised and locked and Surgical Table is unplugged before attempting patient transport. ● Do NOT transport patient on anything but level floor. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 66 Direction Button in forward position and release ENABLE TRANSPORT button. Surgical Table uses drive wheel as a dynamic brake to help slow Table in less than two feet (0.6 meters). 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 67 • Height less than or equal to 35” (889 mm). • Trendelenburg/Reverse Trendelenburg range ± 10° from level. • Tilt range ± 10° from level. • Slide ± 1” (25 mm) from center. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 68 • Patient Orientation = Reverse (automatically changed). • Floor Locks engaged. When in Beach Chair Mode, the following Table section ranges are possible: • Tilt = full range. • Trendelenburg/Reverse Trendelenburg range = full range. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 69 When floor locks are disengaged, all motions are full range except slide which is limited to 2.5” (64 mm) travel toward short end of Surgical Table base. Floor locks cannot be disengaged unless slide is less than 2.5” (64 mm) toward short end of Table base. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 70: Surgical Table Operation

    NOTE: Uses other than as specified and described in this section are not recommended and may not be safe. This Surgical Table is to be operated only by users who have successfully completed an Operator Training Course. For specific set-ups, refer to the Set-Up Guide. Please contact STERIS for appropriate guidance, in-service, and training.
  • Page 71 ● 1000 lb (454 kg) with the ability to rotate and all patient posturing but without tabletop slide. ● 600 lb (272 kg) with the ability to rotate, all patient posturing, transport feature (normal orientation only) and tabletop slide. Prepare this Surgical Table for operation as follows: 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 72 CAUTION POSSIBLE EQUIPMENT DAMAGE Do not use any headrest other than the 5085 SRT Headrest on this Surgical Table. Use of any unapproved accessory damages Table electronics. NOTE: If the Primary Hand Control AND physician-controlled foot control are installed, Primary Hand Control has priority.

  • Page 73: Patient Transport Mode

    (except SLIDE) is within -2 (degrees/inches/cm) of the limits set for MEM MODE. NOTE: A patient grounding post/potential equalization terminal (male connector, DIN 42801) is provided. The mating female connector for patient grounding is not furnished by STERIS. 5.3 Patient Transport Mode...
  • Page 74 Table Part(s) Selected Cannot Move as Directed NOTE: When in Automatic Transport Mode (MEM TRANSPORT MODE), press right dot (EXIT) key to exit mode. Basic movement keys are now active. Figure 5-1. Patient Transport, Automatic Mode 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 75 5 — Surgical Table Operation Figure 5-2. Patient Transport, Manual Mode (Part 1 of 2) 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 76: Rotate Mode

    1. Ensure Drive Head Section is properly installed (refer to Section 4.2, Installation). 2. Unplug Surgical Table from Facility power. 3. Verify Table batteries are charged and Table is ON. 4. Patient is properly positioned and restrained. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 77 5. Hand Control is attached to the Drive Head Section center rail. 6. Rotate patient or table as shown in Figure 5-4 (Automatic Mode) or Figure 5-5 (Manual Mode). Figure 5-4. Table Rotate Function, Automatic Mode 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 78: Beach Chair Mode

    2. Unplug Surgical Table from Facility power. 3. Verify Table batteries are charged and Table is ON. 4. Ensure Amsco® Beach Chair (or Shoulder Chair) is installed per Operator Manual (refer to P150832310). 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 79: Level Table Function

    5. Hand Control is attached to a Table side rail within easy reach of the operator. 6. Pressing LEVEL button on Primary Hand Control orients Surgical Table in level orientation as shown in Figure 5- 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 80: Record (Memory) Modes

    6. Pressing MEM button then Back Arrow button on Primary Hand Control until MEM1 or MEM2 Select Screen appears as shown in Figure 5-8. NOTE: If recorded position doesn’t exist, move Table into wanted position and press Right Dot (REC). Beeper sounds when recording is complete. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...
  • Page 81 5 — Surgical Table Operation Figure 5-8. Record Function (Typical) 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 82: Troubleshooting

    WARNING PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD ● Repairs and adjustments to this equipment must be made only by STERIS or STERIS- trained service personnel. Maintenance performed by unqualified personnel or installation of unauthorized parts could cause personal injury, result in improper equipment performance, invalidate the warranty or result in costly damage.

  • Page 83: Red Control Icons And Beeps - Alm

    STERIS to arrange for a trained service technician to promptly place your equipment in proper working order. Contacting STERIS: First, try to define the situation and determine whether you can solve it yourself using the supplied information in this section. If you cannot solve the situation, call STERIS and give the following information for the table: serial number, model number, date of purchase.

  • Page 84: Bad Version - Alm

    LED is ON when power cord is plugged into appropriate Facility power and is ON. General Troubleshooting Additional Information Line fuses (F6/F7) faulty. 1. Replace line fuses (F6/F7). 2. If problem persists contact STERIS. 6.7 Battery Fuse — ALM Condition Message appears on Hand Control — Battery Fuse. General Troubleshooting Additional Information Missing or blown fuse.

  • Page 85: Battery Mode - Alm

    Additional Information Fuse F2 may be blown. 1. Check F2 fuse. Replace as necessary. 2. If the problem persists, contact STERIS. 6.9 Cannot Read Hand Control Display — nonALM Condition With Surgical Table plugged into facility power, hand control display cannot be read.

  • Page 86: Connect Ac Power Or Plug Mains - Alm

    Battery voltage is below 19V. 1. Plug table into Facility power. 2. Ensure switch is ON. 3. Ensure green AC LED is ON. 4. If the problem persists, contact STERIS. 6.13 Dual Command — ALM Condition Message appears on hand control — Dual Command.

  • Page 87: Hand Control Display Goes Blank During Master Control Program Download - Nonalm

    1. Correctly plug Hand Control into Table. Faulty Hand Control. 1. Replace Hand Control. 2. If the problem persists, contact STERIS. NOTE: Use optional foot control/auxiliary control system until HC is replaced. 6.18 Hydraulic Pump Does Not Operate But Tabletop Slide Function Does - nonALM Condition Surgical Table hydraulic pump does not operate but tabletop slide function does if the floor locks are engaged.

  • Page 88: Intellipower Off, Hand Control On, Power Switch Led On - Nonalm

    INTELLIPOWER Display bar graph is ON, Battery Status Indicator is ON, and AC Power Plug is OFF. General Troubleshooting Additional Information Battery charger fuse (F1) is faulty. 1. Replace battery charger fuse (F1). 2. If the problem persists, contact STERIS. Faulty batteries. 1. Contact STERIS. 6.22 Lock Again — ALM Condition Message appears on Hand Control —...

  • Page 89: Loss Of Table Function But Battery Fuse (F8) Ok - Nonalm

    1. Isolate primary hand control and check operation with backup hand control. 2. Check both hand control cables. 3. Replace primary hand control. 4. If the problem persists, contact STERIS. Overcharging of batteries. 1. Contact STERIS. 6.25 Main Power Switch Green LED Off — nonALM Condition Surgical Table is not operating and there is no green light illuminated on the Main Power Switch.

  • Page 90: Motor Defect - Alm

    1. Press any button on Hand Control (except STOP). minutes of non-use. Faulty Hand Control. 1. Replace Hand Control. 2. If the problem persists, contact STERIS. NOTE: Use foot/auxiliary control. If Table functions correctly, HC is faulty. Battery fuse (F8) is faulty.

  • Page 91: No Tabletop Slide And Floor Lock Operation - Nonalm

    Transformer too hot. Surgical Table still operates on 1. Wait for transformer to cool (30-60 minutes). battery power. 2. Try function again. 3. If problem persists, contact STERIS. 6.33 Pump Defect — ALM Condition Message appears on Hand Control — Pump Defect.

  • Page 92: Pump Fail - Alm

    1. Contact STERIS. 6.37 Sensor Defect — ALM Condition Message appears on Hand Control — Sensor Defect. Level function is disabled. General Troubleshooting Additional Information An internal sensor requires inspection. 1. Contact STERIS. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 93: Sensor Fail - Alm

    SLIDE is continuously operating or SLIDE is inoperative. 1. Contact STERIS. 6.41 Table Articulation Drifts — nonALM Condition Surgical Table articulation drifts or is spongy. General Troubleshooting Additional Information Hydraulic system issue. 1. Contact STERIS. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 94 The sensors needed for the leveling function are faulty. 1. Manually level tabletop using the other hand control function buttons. 2. If the problem persists, contact STERIS. Faulty hand control. 1. Replace hand control. 2. If the problem persists, contact STERIS.
  • Page 95 1. Press any button on hand control (except STOP). Faulty hand control. 1. Replace hand control. 2. If the problem persists, contact STERIS. 6.46 Table Does Not Trendelenburg/Reverse Trendelenburg Using Hand Control — nonALM Condition Surgical Table does not Trendelenburg or Reverse Trendelenburg using the hand control.

  • Page 96: Unanticipated Table Movement - Nonalm

    Damaged or stuck keypad on Hand Control. 1. Isolate primary hand control and check operation with backup hand control. 2. Replace primary hand control. 3. If the problem persists, contact STERIS. Fluid ingress into one/both hand controls. 1. Replace faulty hand control. Bad backup hand control.

  • Page 97: Valve Fail - Alm

    Additional Information Surgical Table SLIDE operating blocked. 1. Press STOP. 2. Something is obstructing the tabletop producing an overvoltage situation. Remove obstruction. 3. Repeat desired operation. 4. If problem persists, contact STERIS. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 98: Wrench 9 - Alm

    Additional Information Surgical Table batteries depleted. 1. Plug table into facility power. 2. Recharge batteries when able. 3. If the problem persists, contact STERIS. 6.58 Wrench 10 — ALM Condition Wrench 10 Alarm ICON appears on the hand control. General Troubleshooting Additional Information Floor lock require inspection.

  • Page 99: Wrench 12 - Alm

    Wrench 15 Alarm ICON appears on the hand control. General Troubleshooting Additional Information LEG sensor requires inspection. NOTE: * = SRT Models Only Combination movements (MEM, Rotate*, Transport*, 1. Contact STERIS. Level, Flex, and Reflex) are not allowed. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 100: Wrench 17 - Alm

    Level, Flex, and Reflex) are not allowed. 6.67 Wrench 21 — ALM Condition Wrench 21 Alarm ICON appears on the hand control. General Troubleshooting Additional Information Battery fuse and battery require inspection. 1. Contact STERIS. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 101: Wrench 22 - Alm

    Additional Information Hydraulics failure. 1. Contact STERIS. 6.72 Wrench 26 — ALM Condition Wrench 26 Alarm ICON appears on the hand control. General Troubleshooting Additional Information Hydraulics failure. Inspection required. 1. Contact STERIS. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 102: Wrench 27 - Alm

    2. Test table with a known working hand control from another table. Replace faulty hand control if this corrects alarm. 3. If the problem persists, contact STERIS. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 103: Wrench 31 - Alm

    2. Test table with a known working hand control from another table. Replace faulty hand control if this corrects alarm. 3. If the problem persists, contact STERIS. Master control board inspection required. 1. Contact STERIS. 413724247_AB...

  • Page 104: Wrench 38 - Alm

    2. Restart Surgical Table by pressing the STOP button followed by any command button. 3. Test table with known working hand control from another table. Replace faulty hand control if this corrects alarm. 4. If the problem persists, contact STERIS. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 105: Wrong Use - Alm

    Additional Information Control senses hand control pushbutton is pressed and 1. Release button and retry desired function. held for longer than one minute. 2. Defective button on hand control. Replace hand control. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 106: Routine Maintenance

    WARNING PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD ● Repairs and adjustments to this equipment must be made only by STERIS or STERIS- trained service personnel. Maintenance performed by unqualified personnel or installation of unauthorized parts could cause personal injury, result in improper equipment performance, invalidate the warranty, or result in costly damage.

  • Page 107: Cleaning Table

    Hang the hand control from side rail of the Surgical Table when not in use to avoid possible damage to the control. 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 108 • H2O2 (Hydrogen Peroxide) • Neutral Cleaners 2. The use of H2O2 + PAA (Hydrogen Peroxide + Peracetic Acid) is strongly discouraged for use on all STERIS products. 3. Always follow manufacturer instructions for concentrations and use of cleaning products.
  • Page 109 10. Some procedures performed on table mattresses or pads may involve excessive fluid exposure. Be sure to drape accordingly. STERIS also recommends the following precautions for mattresses and pads: 1. Do not pull, tear, rip, or cut Vent flap tag as it is an integral mattress part.
  • Page 110 Wipe cleaned surfaces again with a clean, damp, lint-free cloth to remove any remaining residue. 4. Turn hand control OFF when finished with cleaning procedure. 5. Perform Step 5 of After Each Usage. 413724247_AB STERIS 5085 SRT Surgical Table Operator Manual...

  • Page 111: Bi-Weekly Maintenance

    Table batteries, always connect ac power cord to Table base and plug into an appropriate ac receptacle as often as possible, and as long as possible, with the Main Power Switch set to ON. If this is not always possible, recharge batteries at the following times: 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...
  • Page 112 WARNING PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD Repairs and adjustments to this equipment must be made only by STERIS or STERIS-trained service personnel. Maintenance performed by unqualified personnel or installation of unauthorized parts could cause personal injury, result in improper equipment performance, invalidate the warranty, or result in costly damage.

  • Page 113: Als Check

    4. Select LEG function until ALS Warning turns pictorial red and tabletop motion stops. If system doesn't engage, stop tabletop movement before collision and contact STERIS. NOTE: The ALS System does not compensate for Table accessories and so if accessories are attached to the Table, collision with Table or floor can occur without warning.

  • Page 114: Replacement Parts

    3. Send your order directly to STERIS. NOTE: For Replacement Parts, note the following: a. Use only STERIS authorized parts on the equipment. Use of unauthorized parts will void the warranty. b. This Table uses lead-acid batteries. Lead-acid batteries normally are subject to self-discharge and battery-life deterioration in long-term storage.
  • Page 115 7 — Routine Maintenance Table 7-1. Replacement Parts (continued) DESCRIPTION PART NUMBER RECOMMENDED SPARES Pad, Drive Head Section 413724463 Pad, Back/Seat Section 413724464 Pad, Leg Section 413724465 413724247_AB Operator Manual STERIS 5085 SRT Surgical Table...

  • Page 116: Appendix A - Emc Compliance

    Table 8-1. Requirements Applicable to All ME Equipment and ME Systems (per IEC 60601-1-2, Clause 5.2.2.1) The STERIS 5085 SRT Surgical Table and related components are intended for use in the electromagnetic environment specified below. The Customer or the user should ensure this STERIS 5085 SRT Surgical Table is used in such an environment.
  • Page 117 IEC 60601-1-2, Clause 5.2.2.1) The STERIS 5085 SRT Surgical Table and related components are intended for use in the electromagnetic environment specified below. The Customer or the user should ensure this STERIS 5085 SRT Surgical Table is used in such an environment.
  • Page 118 Are Not Life-Supporting (per IEC 60601-1-2, Clause 5.2.2.1) The STERIS 5085 SRT Surgical Table and related components are intended for use in the electromagnetic environment specified below. The Customer or the user should ensure this STERIS 5085 SRT Surgical Table is used in such an environment.
  • Page 119 Equipment and the Equipment or System – For Equipment and Systems Equipment and the Equipment or System – For Equipment and Systems The STERIS 5085 SRT Surgical Table and related components are intended for use in the electromagnetic that are not Life-Supporting (per IEC 60601- 2, 6.8.3.201 b Table 206) that are not Life-Supporting (per IEC 60601- 2, 6.8.3.201 b Table 206)
  • Page 120 Recommendation regarding use of high frequency (HF) surgical equipment (per IEC 60601-2-46): 1. The STERIS 5085 SRT Surgical Table is intended for use with high frequency surgical equipment. 2. If degradation of performance is noted the HF surgical equipment leads and return plates must be re-oriented to a more favorable position.
