Feedback types

The IC Actuator can supply the user's control system with one of several types of feedback listed below,
depending on model:

PWM:

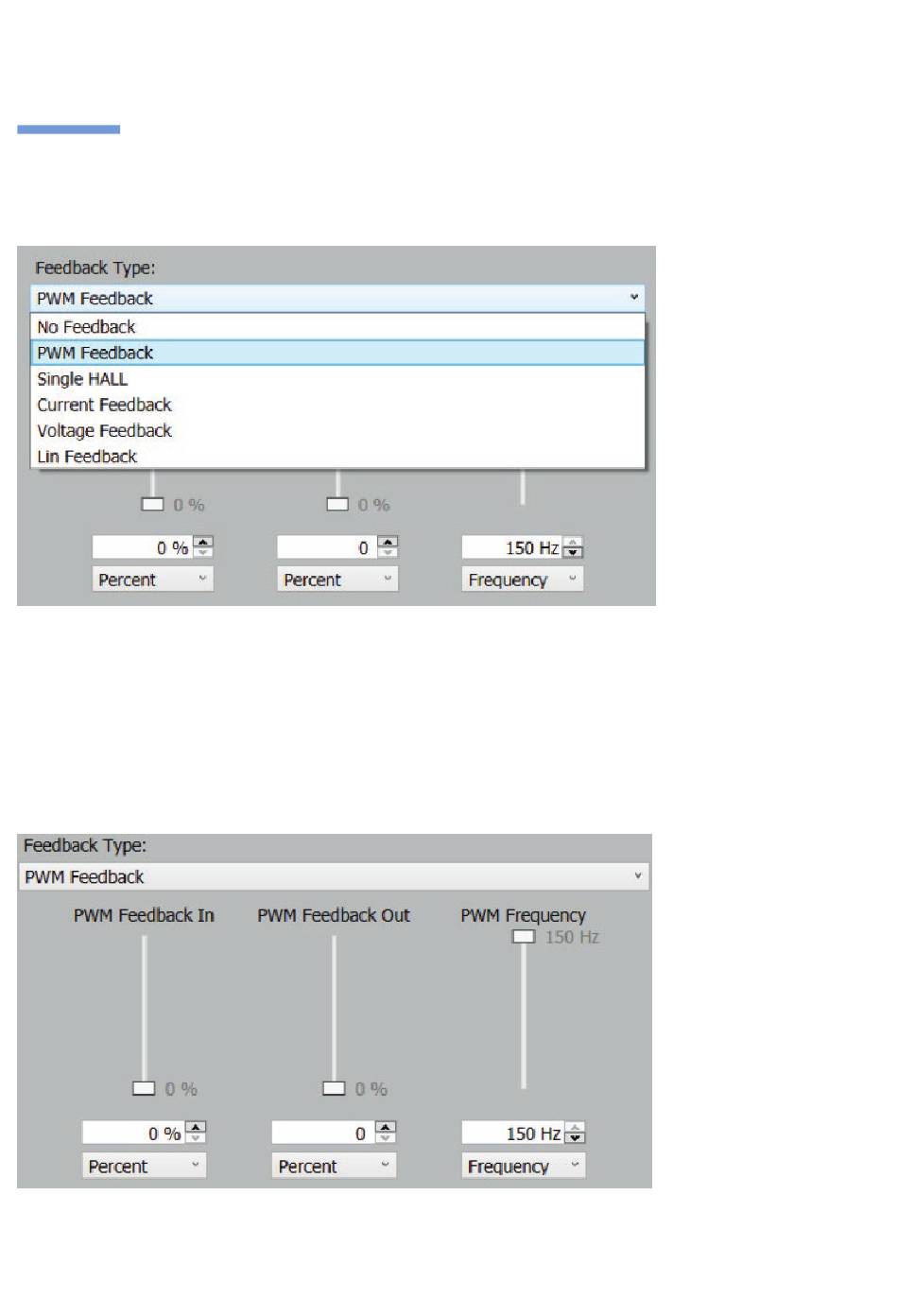

The pulse width modulation (PWM) type is configurable with three parameters:
"PWM Feedback In" sets the percentage of the pulse for the IN "End of Stroke" (EOS) postion.
The "PWM Feedback Out" sets the percentage pulse for the outermost position. Typical settings are 10% IN
and 90% OUT. The feedback resolution is improved by having a wider pulse percentage range. The available
base frequency range for PWM is 75-150 Hz.

Single Hall:

Single hall can be selected but there are no changeable user modifiable parameters.
