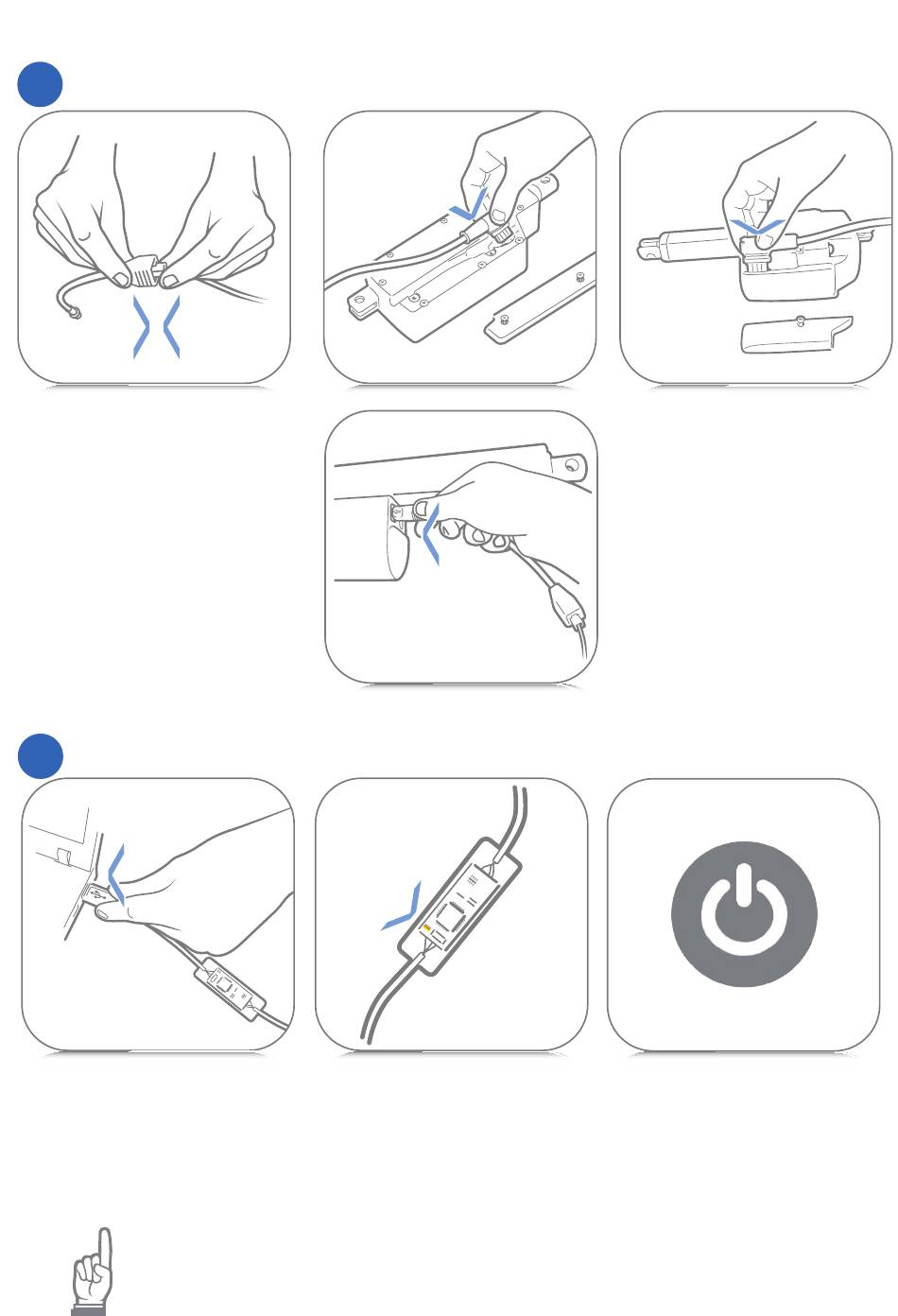

Cable connection
In order to connect your actuator
to the PC tool you will need two
separate cables:
1 USB2LIN cable.
1 interface cable.
Start by connecting the two cables.
Please note that the cables must
be purchased separately from the
actuator.
3
Power supply
... and plug in the USB2LIN
cable to your computer or
laptop. Afterwards, please open
the BusLink program on your
computer.
When changing the actuator's signal cable with the BusLink cable, it is important that this is done carefully in order to protect
the plugs and pins. Please make sure that the plug is in the right place and fully pressed in before mounting the cable lid.
4
LA14
LA33/LA36/LA37
The green diode on the
USB2LIN will now flash, but
please be aware that the BusLink
program is still in a disconnected
mode.
LA25
Before connecting the power
supply:
Connect the interface cable to the
actuator...
12V or 24V
Finally, connect your power
supply to the actuator.
A few seconds will pass before
the connection to BusLink is
established and the actuator is
ready for configuration.
