Summary of Contents for Linak LA18 IC Advanced

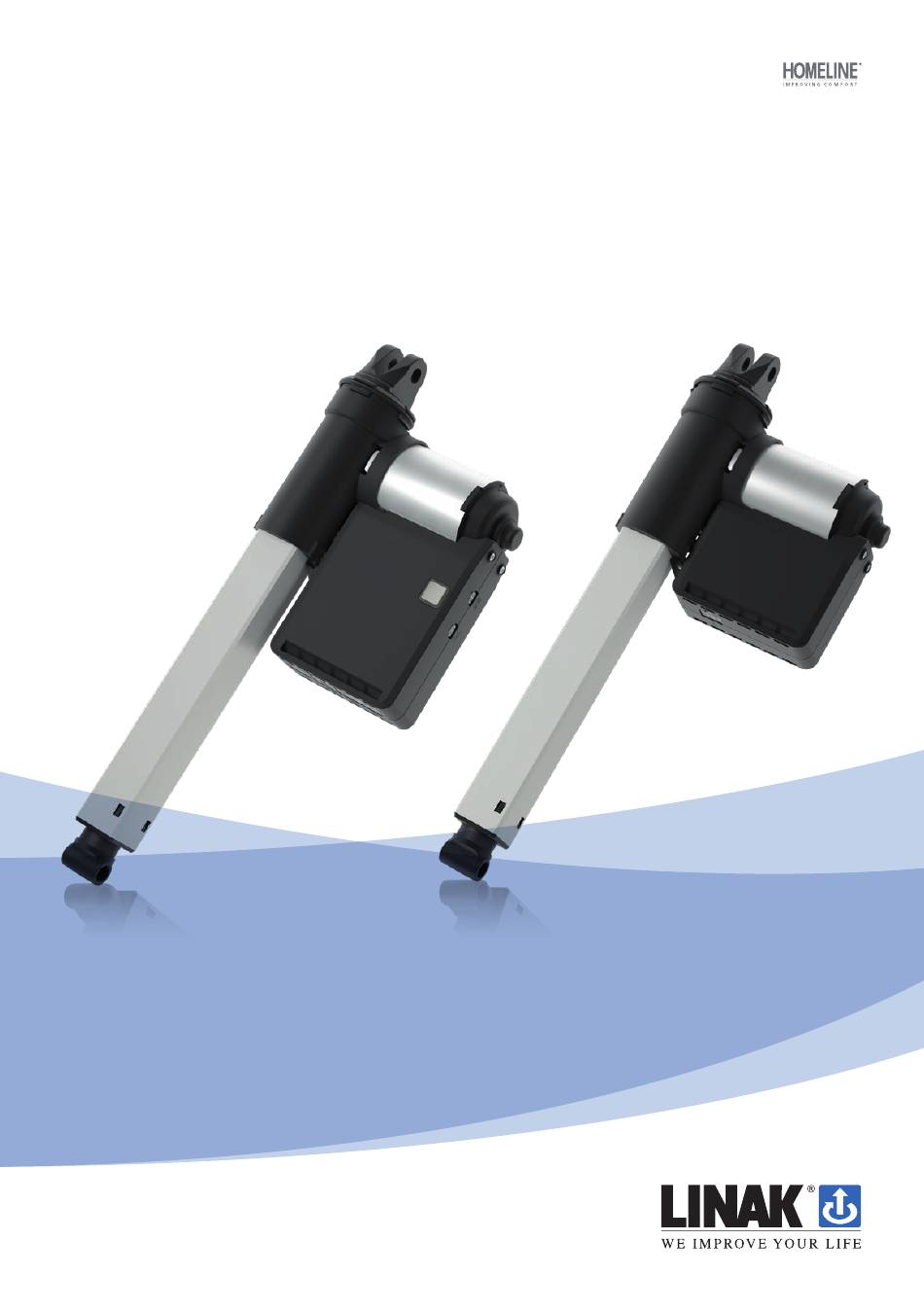

- Page 1 Actuator LA18 IC Advanced User manual LINAK.COM/HOMELINE Page 1 of 27...
-
Page 2: Table Of Contents
Maintenance..........................10 ETL-marking .............................11 System overviews ..........................12 Bluetooth communication ......................13 ® How to mount the locking device ....................14 Disposal of LINAK’s products .......................15 Main groups of disposal ........................15 Disposal of batteries ........................15 Labels..............................16 Drawings ............................17 Addresses ............................24 Page 2 of 27... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Actuators: LA18 IC Advanced Master and a LA18 IC Advanced Follower Power supply: SMPS001, SMPS002 or SMPS006 Controls: HC20 Wireless, HC30 Wireless or HC40 Advanced... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Safety Issues
Assure free space for movement of application in both directions to avoid blockade. The appliance is only to be used with the power supply unit provided with the appliance. Safety issues The builder of the equipment shall ensure that the use of the component complies with relevant standards –... -
Page 7: Before Installation, Re-Installation Or Troubleshooting
• Make sure that the voltage of the actuator system/SMPS is correct before the system is connected to the mains. • System connection. The individual parts must be connected before the actuator system/SMPS is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation •... -
Page 8: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on LINAK HOMELINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the HOMELINE products are opened, there will be a risk of subsequent malfunction. - Page 10 Use the LA18 in an environment with temperature between -10 to +40 °C. Otherwise, the LA18 may be damaged. It can be operated at altitudes up to 2000 m. Hereby, LINAK A/S declares that the radio equipment type LA18 is compliant with Directive 2014/53/EU. Operating Frequency Range...
-
Page 11: Misc. On The Homeline ® System
® Warranty This HOMELINE product is subject to warranty pursuant to the terms of LINAK HOMELINE Warranty Paper, available on the LINAK website www.linak.com/warranty Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect for damage and breaks. -
Page 12: Etl-Marking
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 13: System Overviews
System overviews The LA18 IC Advanced system consists of an LA18 IC Advanced Master and an LA18 IC Advanced Follower. The system is connected to the mains via an SMPS001/002/006 and controlled by a Bluetooth hand control (HC20 Wireless, HC30 Wireless ®... - Page 14 How to pair The system features Bluetooth Low Energy technology, which makes it capable of being controlled via the wireless LINAK hand ® ® controls. Furthermore, it makes it possible to control the bed via the Bed Control App. However, it can only receive commands from one device at a time, so the user must wait 5 seconds without pushing a button before it is possible to use another control/mobile device.
-
Page 15: How To Mount The Locking Device
How to mount the locking device (0705889) To ensure optimal cable relief on the SMPS001/002 a locking device (0705889) should be used. Follow the guide below on how to fix the locking device on the SMPS. 1. Take the SMPS 2. -
Page 16: Disposal Of Linak's Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped, we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 17: Labels
Labels Label for LA18 IC Advanced Master Label for LA18 IC Advanced Follower Label for SMPS001 Label for SMPS002 Label for SMPS006 Label for LED Light Rail Page 17 of 27... - Page 18 Label for HC20 Wireless Label for HC30 Wireless Label for HC40 FRAME Advanced Label for HC40 TWIST Advanced Page 18 of 27...
- Page 19 DRAWING APPENDIX LA18 IC Advanced Master Advanced Master Drawing No.: 1026W4015 SCALE : 3:10 54.5 202.2 BID = 170 + Stroke LA18 IC Advanced Follower (B5) Created By Torben Iversen 2018-04-29 Modified By Cory Revert 2019-09-26 Page 19 of 27...
- Page 20 LA18 IC Advanced Master Click-on back fixture LA18 IC Advanced Follower Click-on back fixture (B5) Page 20 of 27...
- Page 21 SMPS001 SMPS002 Page 21 of 27...
- Page 22 SMPS006 Page 22 of 27...
- Page 23 HC20 Wireless HC30 Wireless Page 23 of 27...
- Page 24 HC40 FRAME Advanced HC40 TWIST Advanced Page 24 of 27...
- Page 25 LEDLIGHTRAIL001 LEDLIGHTRAIL002 1212±20 Page 25 of 27 Material: Approved by:...
- Page 26 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
- Page 27 ® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
