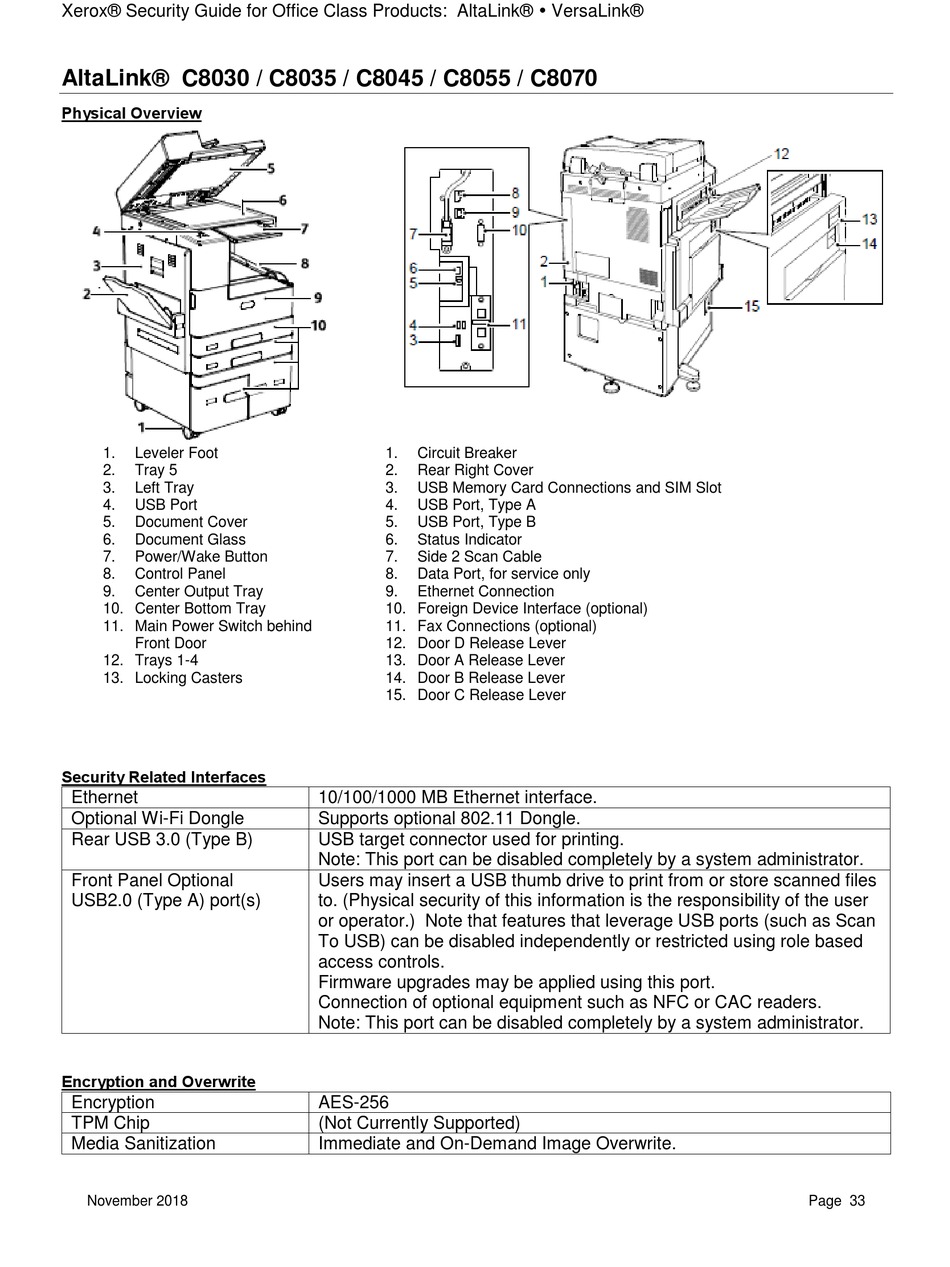

Xerox® Security Guide for Office Class Products: AltaLink®  VersaLink®
AltaLink® C8030 / C8035 / C8045 / C8055 / C8070
Physical Overview
1.
Leveler Foot
2.
Tray 5
3.
Left Tray
4.
USB Port
5.
Document Cover
6.
Document Glass
7.
Power/Wake Button
8.
Control Panel
9.
Center Output Tray
10. Center Bottom Tray
11. Main Power Switch behind
Front Door
12. Trays 1-4
13. Locking Casters
Security Related Interfaces
Ethernet
Optional Wi-Fi Dongle
Rear USB 3.0 (Type B)
Front Panel Optional
USB2.0 (Type A) port(s)
Encryption and Overwrite
Encryption
TPM Chip
Media Sanitization
November 2018
1.
Circuit Breaker
2.
Rear Right Cover
3.
USB Memory Card Connections and SIM Slot
4.
USB Port, Type A
5.
USB Port, Type B
6.
Status Indicator
7.
Side 2 Scan Cable
8.
Data Port, for service only
9.
Ethernet Connection
10. Foreign Device Interface (optional)
11. Fax Connections (optional)
12. Door D Release Lever
13. Door A Release Lever
14. Door B Release Lever
15. Door C Release Lever
10/100/1000 MB Ethernet interface.
Supports optional 802.11 Dongle.
USB target connector used for printing.
Note: This port can be disabled completely by a system administrator.
Users may insert a USB thumb drive to print from or store scanned files
to. (Physical security of this information is the responsibility of the user
or operator.) Note that features that leverage USB ports (such as Scan
To USB) can be disabled independently or restricted using role based
access controls.
Firmware upgrades may be applied using this port.
Connection of optional equipment such as NFC or CAC readers.
Note: This port can be disabled completely by a system administrator.
AES-256
(Not Currently Supported)
Immediate and On-Demand Image Overwrite.
Page 33
