ETC
®
G e n e r a l i n f o r m a t i o n
Source Four LED is the merging of the Source four® and Desire®
product lines. it offers the high quality optics and control of a Source
four with the grace and powerful colour control of Desire.
Source Four LED Lustr+ luminaires are based on the x7 Color
System
utilizing six colours plus high-intensity white to achieve true,
™
usable broad-spectrum colour. rich vibrant colours as well as subtle
theatrical tints are all possible with this colour changing fixture.
explore new opportunities by pairing with classic incandescent light
from the legendary Source four line of fixtures to provide maximum
flexibility and range.
Source Four LED Daylight provides high-output non-variable white
light with a 5600K colour temperature.
Source Four LED Tungsten provides non-variable white light with a
3000K colour temperature.
lustr+, Daylight, and tungsten light engines work with all Source
four lens tubes to deliver a high quality controllable beam of leD
light. for the best results it is highly recommended that eDlt versions
are used. note: a special leD only version of the 50° eDlt lens tube
is available.

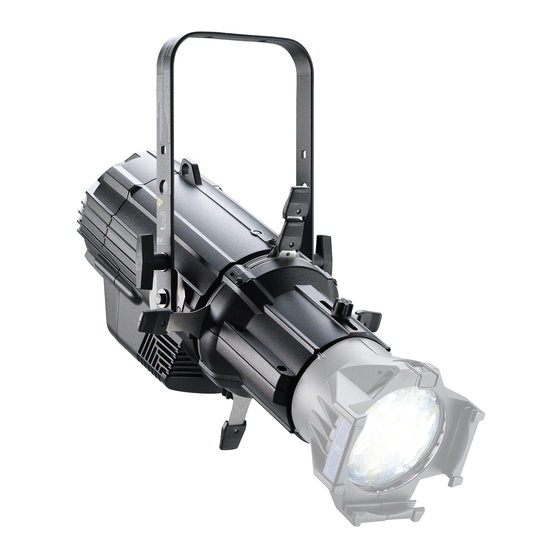

Source Four CE LED
Profile Spotlight Series
o r D e r i n G i n f o r m a t i o n
Source Four CE LED Light Engine with Shutter Barrel
(for use with fixed field lens tubes only)
PART no.
DESCRiPTion
7460a1251
Source four leD lustr+ w. shutter barrel, black
7460a1261
Source four leD tungsten w. shutter barrel, black
7460a1271
Source four leD Daylight w. shutter barrel, black
Source Four CE LED Light Engine - Body only
(for use with zoom lens tubes and retrofit of existing tungsten fixtures)
PART no.
DESCRiPTion
7460a1250
Source four leD lustr+ - body only, black
7460a1260
Source four leD tungsten - body only, black
7460a1270
Source four leD Daylight - body only, black
Colour options: -1 = White, -5 = Silver Grey /Custom Colours
fixture ships with 1.5m PowerCon to bare ends power input lead and soft focus
diffuser in gobo holder.
Please note: Lens tubes to be ordered separately.
1 of 5
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ETC Profile Spotlight Series
Summary of Contents for ETC Profile Spotlight Series
- Page 1 Source Four CE LED ® Profile Spotlight Series G e n e r a l i n f o r m a t i o n o r D e r i n G i n f o r m a t i o n Source Four LED is the merging of the Source four®...
- Page 2 • Best performance using etC’s eDlt lens tubes 159mm Colour frames (19-26-36-50 lens tubes) • Can use all etC Source four interchangeable lens tubes: 5°, S4 leD - Smooth Wash Diffuser media for use in 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles as well...
- Page 3 7060a2000-K 5° lens tube, Black colour shift over time. leD output will vary with thermal conditions. Based on the leD manufacturer’s B50 l70 specification, an etC leD 7060a2000-K1 5° lens tube, White luminaire will achieve ~70% of its initial output after 50,000 hours of Zoom Lens Tube Assemblies typical usage.
-
Page 4: Quick Setups
Source Four CE LED ® ® Profile Spotlight Series C o n t r o l o P t i o n S C o n t r o l o P t i o n S User settings on Source four leD fixtures allow multiple operational... -
Page 5: Shipping Weight
® Source Four CE LED ® Profile Spotlight Series C o n t r o l o P t i o n S Studio Daylight and Studio Tungsten (only) Quick Set-Ups DmX input Channel Profiles Setting title Profile Description typical features...
