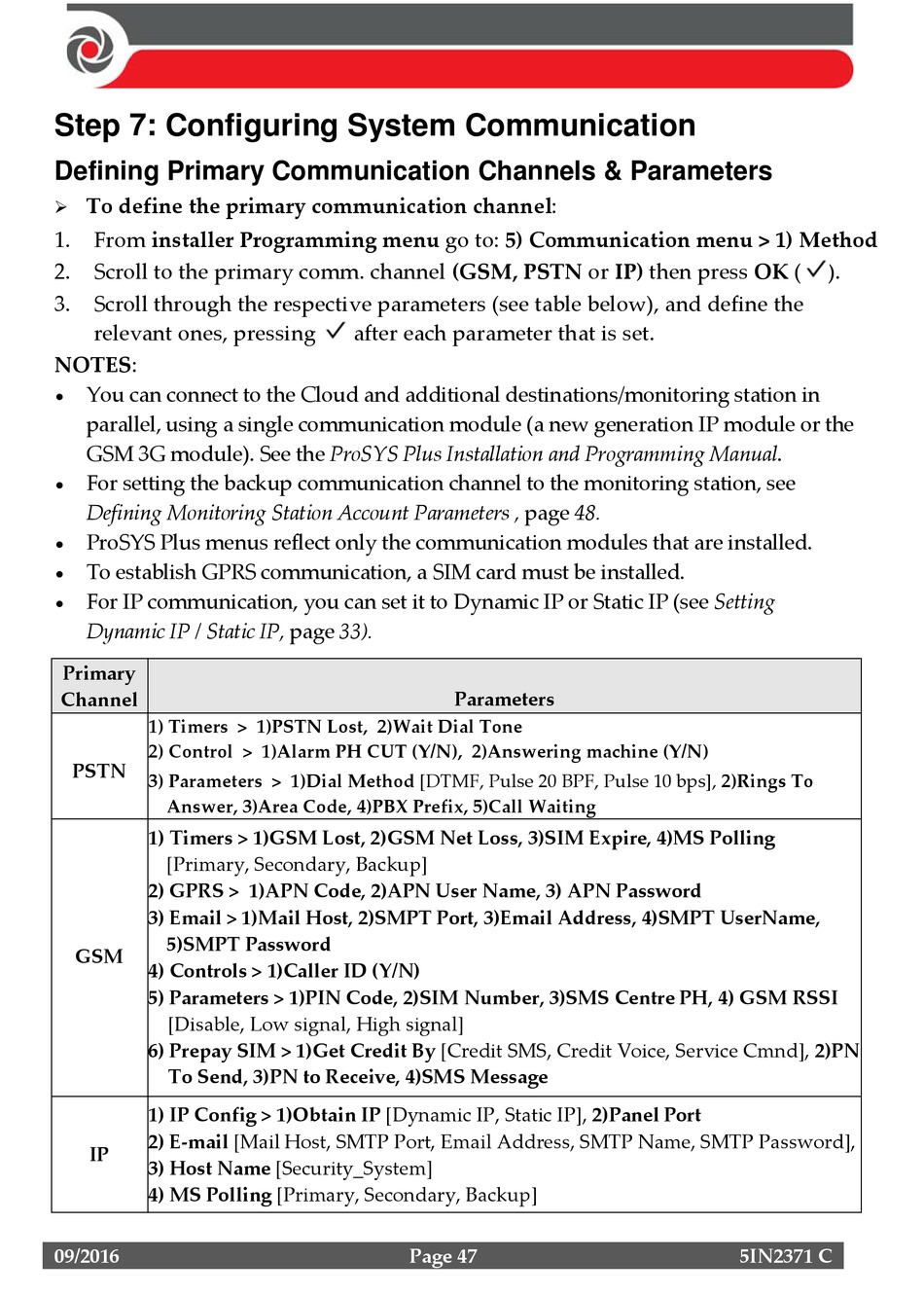

Step 7: Configuring System Communication

Defining Primary Communication Channels & Parameters
 To define the primary communication channel:
1. From installer Programming menu go to: 5) Communication menu > 1) Method
2. Scroll to the primary comm. channel (GSM, PSTN or IP) then press OK (
3. Scroll through the respective parameters (see table below), and define the
relevant ones, pressing
NOTES:

You can connect to the Cloud and additional destinations/monitoring station in
parallel, using a single communication module (a new generation IP module or the
GSM 3G module). See the ProSYS Plus Installation and Programming Manual.

For setting the backup communication channel to the monitoring station, see
Defining Monitoring Station Account Parameters , page 48.

ProSYS Plus menus reflect only the communication modules that are installed.

To establish GPRS communication, a SIM card must be installed.

For IP communication, you can set it to Dynamic IP or Static IP (see Setting
Dynamic IP / Static IP, page 33).
Primary
Channel
1) Timers > 1)PSTN Lost, 2)Wait Dial Tone
2) Control > 1)Alarm PH CUT (Y/N), 2)Answering machine (Y/N)
PSTN
3) Parameters > 1)Dial Method [DTMF, Pulse 20 BPF, Pulse 10 bps], 2)Rings To
Answer, 3)Area Code, 4)PBX Prefix, 5)Call Waiting
1) Timers > 1)GSM Lost, 2)GSM Net Loss, 3)SIM Expire, 4)MS Polling
[Primary, Secondary, Backup]
2) GPRS > 1)APN Code, 2)APN User Name, 3) APN Password
3) Email > 1)Mail Host, 2)SMPT Port, 3)Email Address, 4)SMPT UserName,
5)SMPT Password
GSM
4) Controls > 1)Caller ID (Y/N)
5) Parameters > 1)PIN Code, 2)SIM Number, 3)SMS Centre PH, 4) GSM RSSI
[Disable, Low signal, High signal]
6) Prepay SIM > 1)Get Credit By [Credit SMS, Credit Voice, Service Cmnd], 2)PN
To Send, 3)PN to Receive, 4)SMS Message
1) IP Config > 1)Obtain IP [Dynamic IP, Static IP], 2)Panel Port
2) E-mail [Mail Host, SMTP Port, Email Address, SMTP Name, SMTP Password],
IP
3) Host Name [Security_System]
4) MS Polling [Primary, Secondary, Backup]
09/2016
after each parameter that is set.
