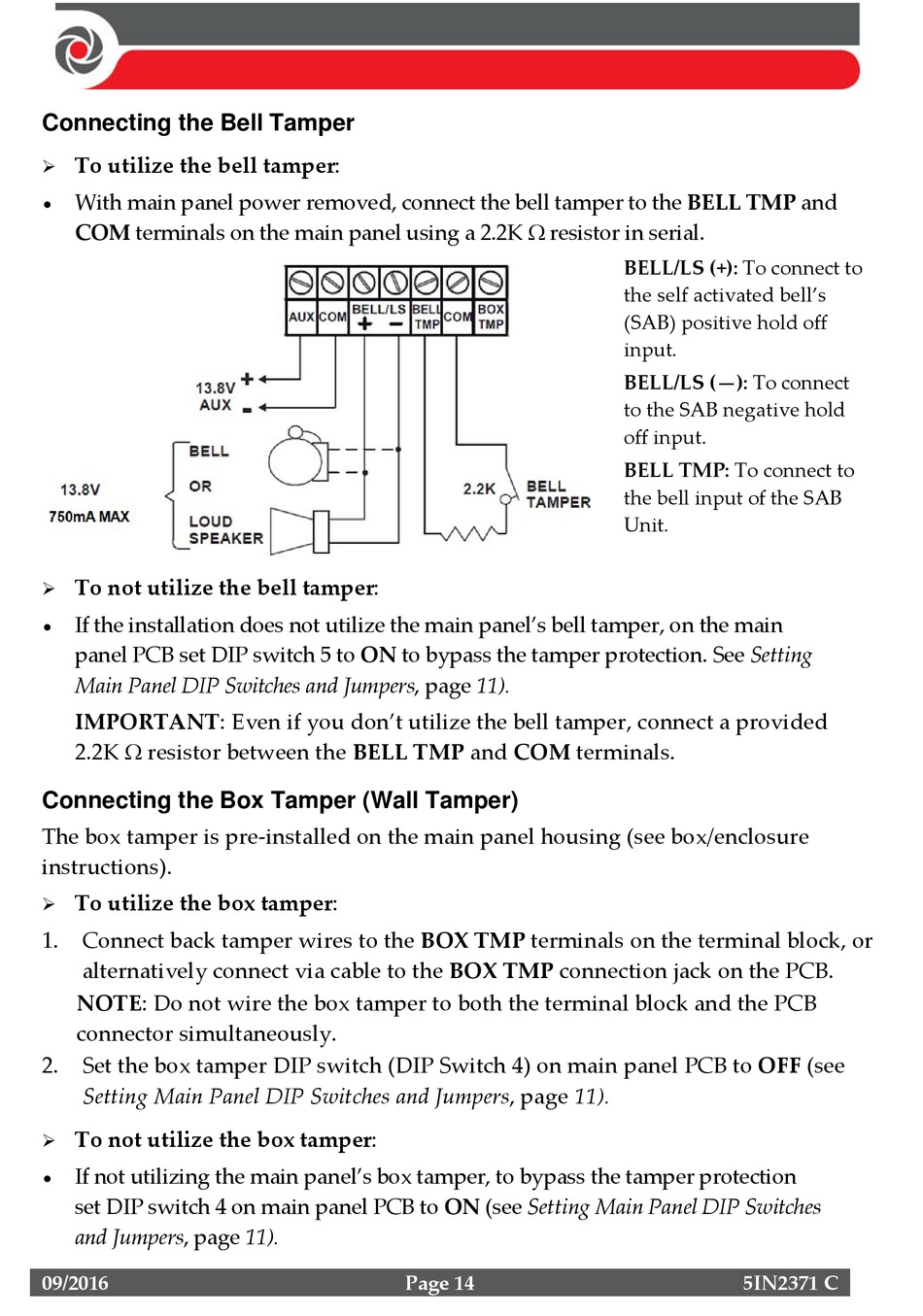

Connecting the Bell Tamper

To utilize the bell tamper:
With main panel power removed, connect the bell tamper to the BELL TMP and
COM terminals on the main panel using a 2.2K  resistor in serial.
To not utilize the bell tamper:
If the installation does not utilize the main panel's bell tamper, on the main
panel PCB set DIP switch 5 to ON to bypass the tamper protection. See Setting
Main Panel DIP Switches and Jumpers, page 11).
IMPORTANT: Even if you don't utilize the bell tamper, connect a provided
2.2K  resistor between the BELL TMP and COM terminals.

Connecting the Box Tamper (Wall Tamper)

The box tamper is pre-installed on the main panel housing (see box/enclosure
instructions).
To utilize the box tamper:
1.
Connect back tamper wires to the BOX TMP terminals on the terminal block, or
alternatively connect via cable to the BOX TMP connection jack on the PCB.
NOTE: Do not wire the box tamper to both the terminal block and the PCB
connector simultaneously.
2.
Set the box tamper DIP switch (DIP Switch 4) on main panel PCB to OFF (see
Setting Main Panel DIP Switches and Jumpers, page 11).
To not utilize the box tamper:
If not utilizing the main panel's box tamper, to bypass the tamper protection
set DIP switch 4 on main panel PCB to ON (see Setting Main Panel DIP Switches
and Jumpers, page 11).
09/2016
Page 14
BELL/LS (+): To connect to
the self activated bell's
(SAB) positive hold off
input.
BELL/LS (—): To connect
to the SAB negative hold
off input.
BELL TMP: To connect to
the bell input of the SAB
Unit.
5IN2371 C
