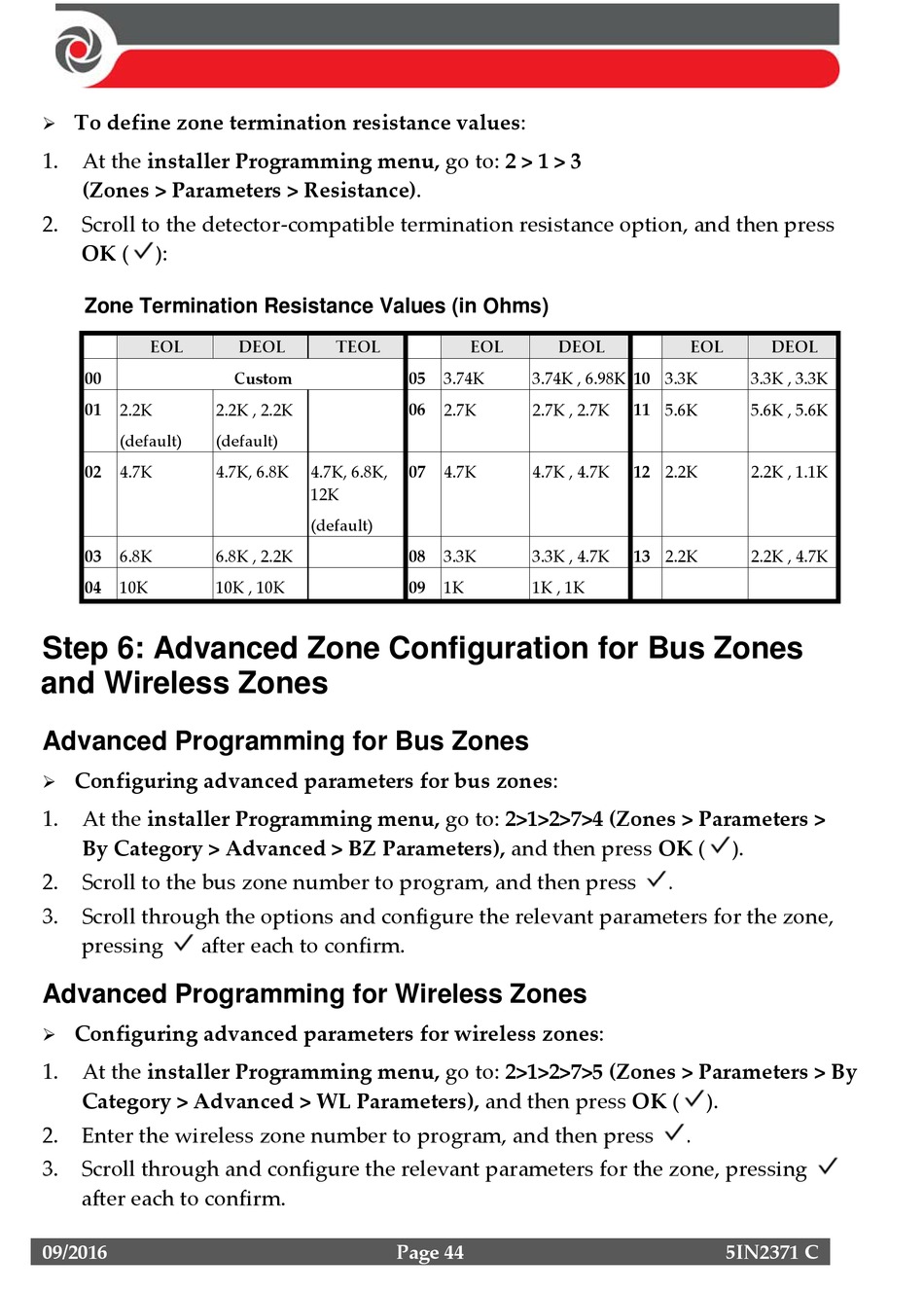

To define zone termination resistance values:
1.
At the installer Programming menu, go to: 2 > 1 > 3
(Zones > Parameters > Resistance).
2. Scroll to the detector-compatible termination resistance option, and then press
OK (
):
Zone Termination Resistance Values (in Ohms)
EOL
00
01
2.2K
(default)
02
4.7K
03
6.8K
04
10K
Step 6: Advanced Zone Configuration for Bus Zones
and Wireless Zones
Advanced Programming for Bus Zones
Configuring advanced parameters for bus zones:
1.
At the installer Programming menu, go to: 2>1>2>7>4 (Zones > Parameters >
By Category > Advanced > BZ Parameters), and then press OK (
2.
Scroll to the bus zone number to program, and then press
3.
Scroll through the options and configure the relevant parameters for the zone,
pressing
after each to confirm.
Advanced Programming for Wireless Zones
Configuring advanced parameters for wireless zones:
1.
At the installer Programming menu, go to: 2>1>2>7>5 (Zones > Parameters > By
Category > Advanced > WL Parameters), and then press OK (
2. Enter the wireless zone number to program, and then press
3. Scroll through and configure the relevant parameters for the zone, pressing
after each to confirm.
09/2016
DEOL
TEOL
Custom
2.2K , 2.2K
(default)
4.7K, 6.8K
4.7K, 6.8K,
12K
(default)
6.8K , 2.2K
10K , 10K
EOL
DEOL
05
3.74K
3.74K , 6.98K 10 3.3K
06
2.7K
2.7K , 2.7K
07
4.7K
4.7K , 4.7K
08
3.3K
3.3K , 4.7K
09
1K
1K , 1K
Page 44
EOL
DEOL
3.3K , 3.3K
11 5.6K
5.6K , 5.6K
12 2.2K
2.2K , 1.1K
13 2.2K
2.2K , 4.7K
).
.
).
.
5IN2371 C
