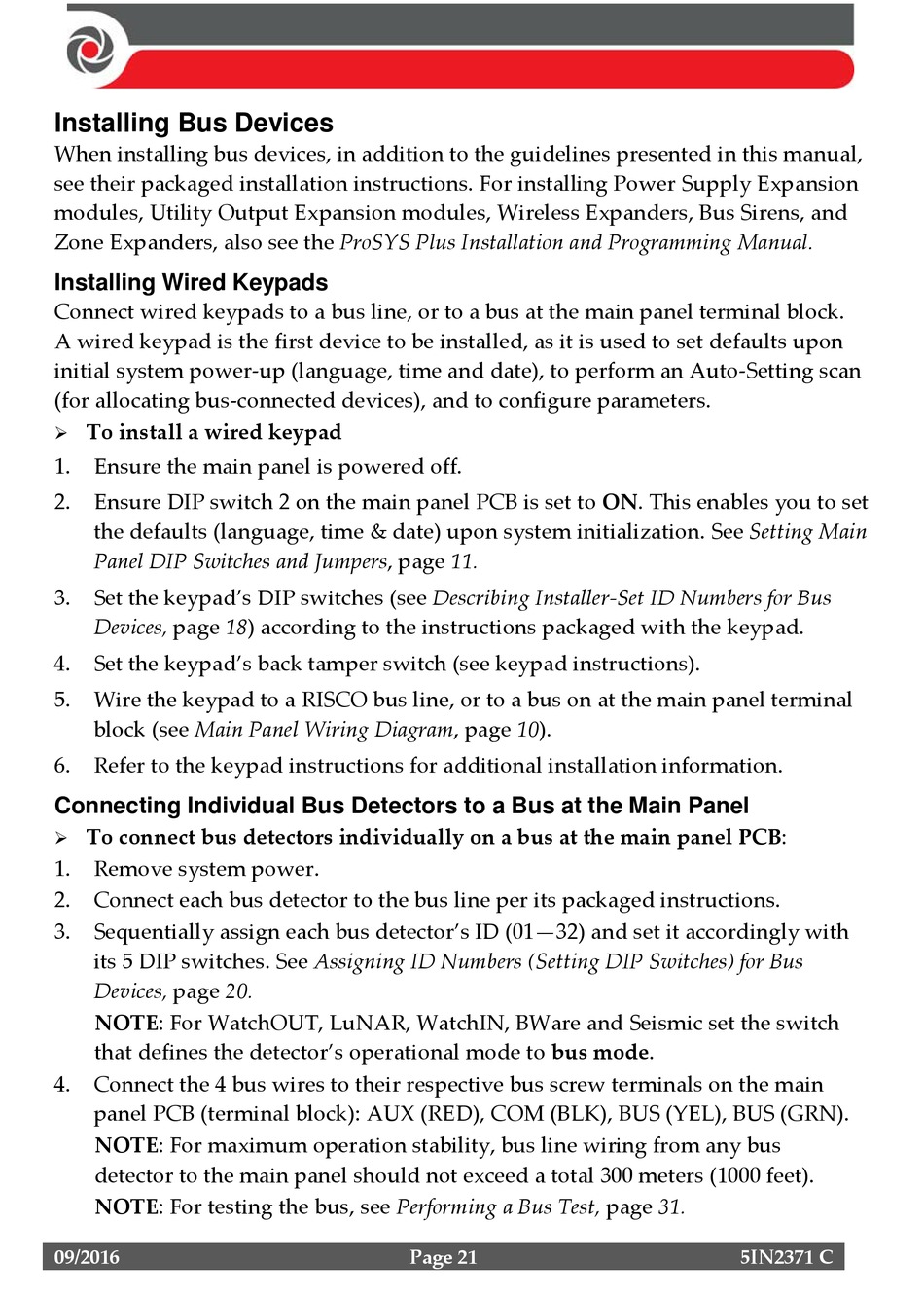

Installing Bus Devices

When installing bus devices, in addition to the guidelines presented in this manual,
see their packaged installation instructions. For installing Power Supply Expansion
modules, Utility Output Expansion modules, Wireless Expanders, Bus Sirens, and
Zone Expanders, also see the ProSYS Plus Installation and Programming Manual.

Installing Wired Keypads

Connect wired keypads to a bus line, or to a bus at the main panel terminal block.
A wired keypad is the first device to be installed, as it is used to set defaults upon
initial system power-up (language, time and date), to perform an Auto-Setting scan
(for allocating bus-connected devices), and to configure parameters.
 To install a wired keypad
1. Ensure the main panel is powered off.
2. Ensure DIP switch 2 on the main panel PCB is set to ON. This enables you to set
the defaults (language, time & date) upon system initialization. See Setting Main
Panel DIP Switches and Jumpers, page 11.
3. Set the keypad's DIP switches (see Describing Installer-Set ID Numbers for Bus
Devices, page 18) according to the instructions packaged with the keypad.
4. Set the keypad's back tamper switch (see keypad instructions).
5. Wire the keypad to a RISCO bus line, or to a bus on at the main panel terminal
block (see Main Panel Wiring Diagram, page 10).
6. Refer to the keypad instructions for additional installation information.

Connecting Individual Bus Detectors to a Bus at the Main Panel

 To connect bus detectors individually on a bus at the main panel PCB:
1. Remove system power.
2. Connect each bus detector to the bus line per its packaged instructions.
3. Sequentially assign each bus detector's ID (01—32) and set it accordingly with
its 5 DIP switches. See Assigning ID Numbers (Setting DIP Switches) for Bus
Devices, page 20.
NOTE: For WatchOUT, LuNAR, WatchIN, BWare and Seismic set the switch
that defines the detector's operational mode to bus mode.
4. Connect the 4 bus wires to their respective bus screw terminals on the main
panel PCB (terminal block): AUX (RED), COM (BLK), BUS (YEL), BUS (GRN).
NOTE: For maximum operation stability, bus line wiring from any bus
detector to the main panel should not exceed a total 300 meters (1000 feet).
NOTE: For testing the bus, see Performing a Bus Test, page 31.
09/2016 Page 21 5IN2371 C
