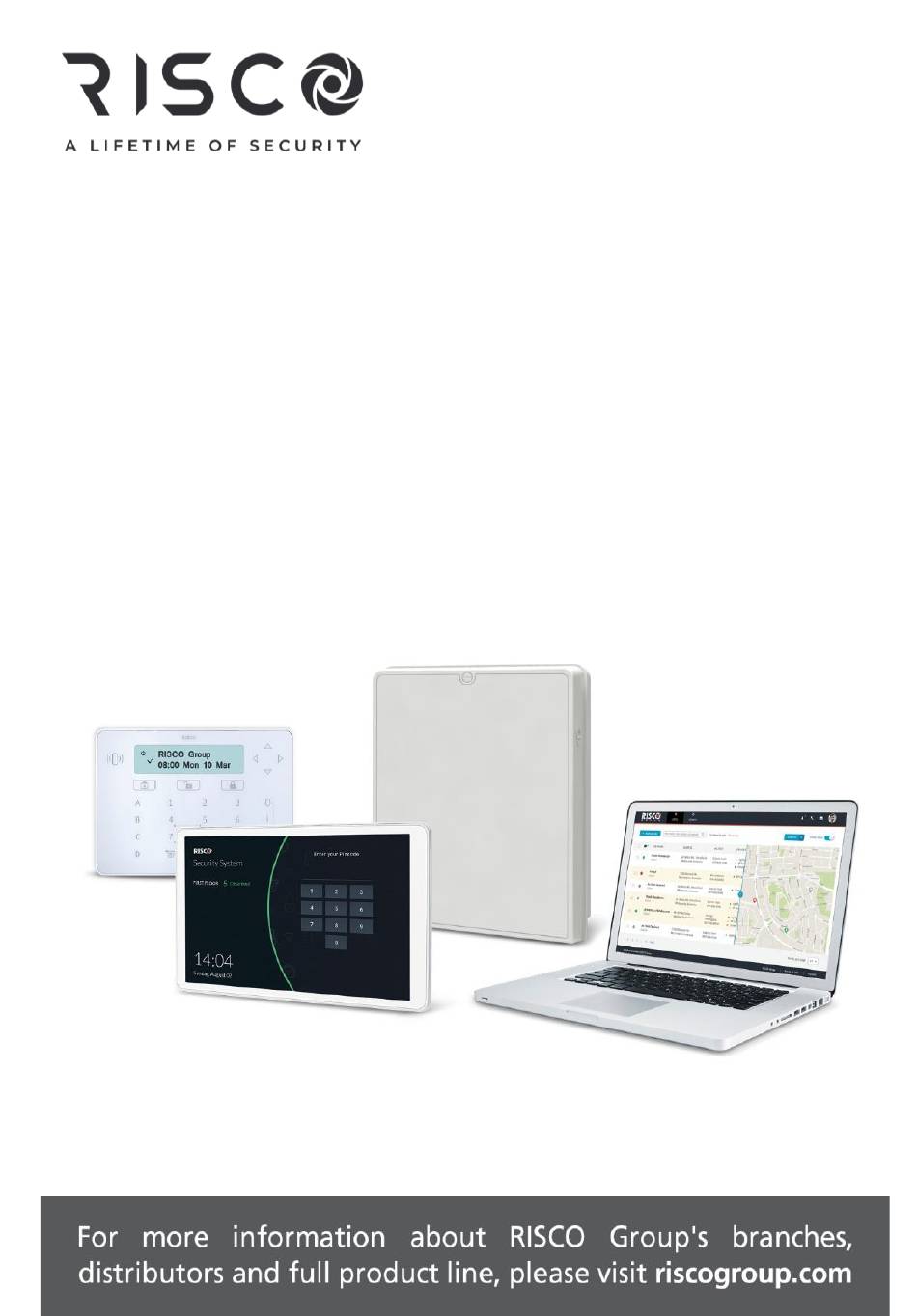

Page 1 LightSYS Plus Installation and Programming Manual...
Page 2: Important Notice
Information in this document is subject to change without notice. Corporate and individual names and data used in examples herein belong to their respective owners. © RISCO Group 2022. All rights reserved. No part of this document may be reproduced in any form without prior written permission from the publisher.
Page 3: Table Of Contents
Advanced Communication Modules ................16 Multiple Reporting Destinations.................. 16 Cloud Communication ....................16 Monitoring, Notification, Operation and Control via the RISCO Cloud ...... 17 Enhanced Capabilities of Multi-Socket Communication Modules ....... 18 Parallel Communication ....................19 Backup Communication ....................19 RISCO Bus Configurations ..................
Page 4 Bus Line Wiring ......................36 Describing Bus Devices ....................36 Describing Bus Detectors and their Connection Options ..........36 Typical Wired Expansion Modules Installed on RISCO Bus Lines ......37 Describing Installer-Set ID Numbers for Bus Devices ..........38 ID Number Formats ......................39 Assigning ID Numbers (Setting DIP Switches) for Bus Devices ........
Page 5 SYSTEM INITIALIZATION, DEVICE ALLOCATIONS & GENERAL SYSTEM CONFIGURATION ....................49 1: D ....... 49 ESCRIBING EYPAD ONTROLS AND NSTALLER ENUS Describing Dynamic Keypad Menus ................49 Table of Keypad Buttons ..................... 49 Designating Labels ....................... 50 Entering the Installer Programming Menu at Initial System Setup......50 ..........
Page 6 Defining Monitoring Station Account Parameters ............72 8: C .............. 73 ONFIGURING LOUD ONNECTIVITY Enabling / Disabling Cloud Communication ............... 73 Defining RISCO Cloud Connectivity ................73 ..........74 9: C ONFIGURING OMMON YSTEM ARAMETERS Defining System Users ....................74 Defining User Codes ......................
Page 7  Settings ........................101  Automatic Clock ......................104  Service Information ....................104  Firmware Update ....................... 104  Zones ........................105  Parameters ........................106 One-By-One ........................106 By Category ........................106 Bus Zone: OPR12 (WatchOUT PIR) ..............121 Bus Zone: iWISE DT Grade 2 ................
Page 8  Monitoring Station ....................169  Configuration SW ....................... 184  Follow Me ........................186  Cloud ........................... 192  Audio ........................195  Messages ........................195  Local Announcements ....................197  Install ........................198  Bus Devices......................... 198 ...
Page 9 APPENDIX F: MONITORING STATION REPORT CODES ......240 APPENDIX G: REMOTE SOFTWARE UPGRADE ..........245 APPENDIX H: COMPLIANCE ................247 APPENDIX I: LIGHTSYS PLUS ACCESSORIES ..........249 APPENDIX J: INSTALLER PROGRAMMING MAPS ......... 254 03/2022 Page 9 5IN2932 C...
Page 10: Introduction
512 zones – using various combinations of wired, bus, and wireless detectors and accessories. LightSYS Plus offers the following: ✓ Various system connectivity options, including via the RISCO Cloud – for user control, operation and notification via RISCO's Smartphone and Web user...
Page 11: System Architecture
System Architecture System Capabilities 03/2022 Page 11 5IN2932 C...
Page 12 Partitions & groups • Up to 4 groups per partition 3 (each independent of the others). Bus line 1 has a RISCO bus lines dedicated quick connector option on main panel PCB. Each (RS485) bus supports up to 32 bus devices (128 total) Option for fast bus •...
Page 13: Compliance Statement
Automatic program scheduling Compliance Statement Hereby, RISCO Group declares that the LightSYS Plus is designed to comply with: • EN50131-1 • EN50131-3 Grade 3, Environmental Class II for Housing RP512B and RP432BP3, EN50131-3 for Housing RP512B and RP432BP3, EN50131-3 Grade 2, Environmental Class II for Housing RP432BP •...
Page 14 • GSM primary and IP/ Wi-Fi secondary (DP4), • IP/ Wi-Fi primary and GSM secondary (DP4) EN50136 Compliance: • RISCO has designed the LightSYS Plus IP And GSM communication modules to be in compliance with the information security and substitution security requirements of EN50136.
Page 15: Main Features
Download the iRISCO app from the Apple Store for iOS devices and the Play Store for Android devices. For more information contact your RISCO distributor or go to: www.riscogroup.com 03/2022...
Page 16: Flexible Communication Options
• Monitoring Station: Events are reported to monitoring station(s) directly or via the RISCO Cloud, in any of the supported channels. LightSYS Plus supports all major monitoring station reporting formats and protocols - including direct connection to the monitoring station using SIA IP, or via the Cloud with the RISCO IP Receiver installed at the monitoring station.
Page 17: Monitoring, Notification, Operation And Control Via The Risco Cloud
Monitoring, Notification, Operation and Control via the RISCO Cloud Self-Monitoring for System Users via Smartphone & Web Applications Powered by the RISCO Cloud, the iRISCO Smartphone app and Web User Interface empower system users with self-monitoring, notification, control, and operation of their systems remotely – anywhere, anytime, with or without a monitoring station.
Page 18: Enhanced Capabilities Of Multi-Socket Communication Modules
– directly, or via the Cloud. Multi-socket module services and reporting abilities include: • iRISCO Smartphone app & Web user interface: Connected via RISCO Cloud • Monitoring Station: Direct connection using SIA-IP, or with the RISCO IP Receiver installed at the monitoring station •...
Page 19: Parallel Communication
RISCO Cloud – for example, one channel reporting to the user via the Cloud, while the other channel simultaneously reporting directly to the monitoring station.
Page 20: Risco Bus Configurations
RISCO Bus Configurations The LightSYS Plus provides 3 independent RISCO Bus lines (RS485) for communicating and powering bus-connected devices (expansion modules, detectors, sounders, and other peripheral devices). The RISCO bus configurations can be in any combination of daisy chain, spur or star topologies.
Page 21: Event Logging
Soak test by zone • Pulse count by zone • Transmission delay • Arm/disarm bell squawk • Double verification of fire alarms • Sequential alarm confirmation Home Automation LightSYS Plus supports RISCO’s Cloud-based Home Automation services. 03/2022 Page 21 5IN2932 C...
Page 22: Safety Warnings And Precautions
Safety Warnings and Precautions WARNING: Installation or usage of this product that is not in accordance with the intended use and manufacturer instructions can result in damage, injury or death. The system is NOT meant to be installed or serviced by those other than professional security alarm system installers.
Page 23: Installation
Installation Main Tasks for Initial System Setup Installing and setting up the system should be performed by a professional alarm system installer. Presented here is a typical order of performing these tasks: System Installation Step 1: Creating a Plan for Mounting the System Step 2: Wiring, Settings, and Module Installations at the Main Panel Step 3: Bus Line Installations Step 4: Connecting Relay Detectors...
Page 24: Step 1: Creating A Plan For Mounting The System
Step 1: Creating a Plan for Mounting the System Before you mount the main panel and peripheral system components, make a plan for obtaining the most optimal location. Depending on the configuration requirements, the main panel should typically be: • Centrally located for minimizing lengthy bus line/expansion module wire runs •...
Page 25: Rf Signal Loss Due To Common Building Materials
RF Signal Loss Due to Common Building Materials Heavy concrete and Wallboard and wood Light concrete or brick steel reinforcement 0%—10% loss of signal 5%—35% loss of signal 70%—90% loss of signal Central Mounting Location – Wireless Systems Entrance Main Panel Attic Basement 03/2022...
Page 26: Step 2: Wiring, Settings, And Module Installations At The Main Panel
Step 2: Wiring, Settings, and Module Installations at the Main Panel NOTE: Not applicable to Australia and New Zealand. IMPORTANT: • Electrical AC wiring should be performed by a certified electrician, and in compliance with applicable electrical code, laws and regulation. Refer to the box/enclosure instructions.
Page 27 IMPORTANT: Clamp power cable wires to the box/enclosure housing using plastic ties, and thread them through the arched tie-down brackets on the base of the box/enclosure housing (see box/enclosure instructions). IMPORTANT: For safety reasons use the fire enclosure, see the LightSYS Plus Plastic Box Installation Instructions For all system grounding requirements, see the LightSYS Plus Installation and Programming...
Page 28: Main Panel Wiring Diagram
Main Panel Wiring Diagram 03/2022 Page 28 5IN2932 C...
Page 29: Replacing The Main Panel Pcb
Replacing the Main Panel PCB If replacing the main panel PCB, in order to prevent bus sirens from sounding, before you power-off the main panel first enter the installer Programming mode. Then you can power-off the main panel and replace the PCB assembly. Main Panel Initial Settings Operation Status...
Page 30: Describing Connectors & Ports On The Main Panel Pcb
For connecting to the Voice Module (use supplied 3-pin serial cable) USB port to connect to the Configuration Software computer/laptop (USB–C to USB–A cable required, not supplied) For the RISCO-supplied and certified AC— DC adaptor. DC JACK NOTE: Alternatively input DC can also be wired at the (–) and (+) terminals on the terminal block (next to DC JACK).
Page 31: Connecting To Ip
A Long-Range (Radio) Transmitter module (LRT) can be installed on a bus line. ➢ To install an LRT module: Ensure the main panel is powered off. Install the LRT module on a RISCO bus and configure it according to the manufacturer’s installation instructions. 03/2022...
Page 32: Installing The Voice Module
Installing the Voice Module Installed inside the main panel box/enclosure and connected to the main panel PCB, the Voice module provides audible system status. The Voice Module requires a GSM (G2, G3 or G4) module installed. Upon a system event (such as an alarm activation), the Voice module calls the user and plays a pre-recorded event announcement.
Page 33: Installing The Listen-In & Speak Unit
(language, time and date), to perform an Auto-Setting scan for allocating all bus-connected devices, and configure parameters. Wired keypads can be connected directly at the main panel terminal block, or onto a RISCO bus line. See Step 3: Bus Line Installations, page 36.
Page 34: Connecting The Bell / Loudspeaker
• To prevent a possible drop in voltage due to current requirements and distances involved, make sure to use the appropriate wire gauge (refer to the table of gauge sizes for AUX devices). See Appendix B: Wiring, page 225. Connecting the Bell / Loudspeaker The Bell &...
Page 35: Connecting 4-Wire Smoke Detectors
Connecting 4-Wire Smoke Detectors LightSYS Plus supports 4-wire smoke detectors. Refer to the detector’s packaged installation instructions. • To connect a 4-wire smoke detector or device that requires resetting after an alarm condition, connect the auxiliary power and output terminals. Use a power supervision relay to supervise the 4-wire smoke detectors.
Page 36: Step 3: Bus Line Installations
RISCO bus lines will continue operating normally. Bus Line Wiring On the main panel PCB, the 4 wires of each RISCO bus line (red, black, yellow, green) connect to the respective screw terminals on the terminal block as follows:...
Page 37: Typical Wired Expansion Modules Installed On Risco Bus Lines
Typical Wired Expansion Modules Installed on RISCO Bus Lines The following shows different types of wired expansion modules typically installed on a RISCO bus line (all are bus devices). Note that wireless expanders can also be wired to a RISCO bus line.
Page 38: Describing Installer-Set Id Numbers For Bus Devices
Describing Installer-Set ID Numbers for Bus Devices For each bus device category (see the table below), each of its respective bus devices gets a sequentially-assigned, installer-set “physical” ID number that the installer physically sets with the device’s DIP switches before powering up the device.
Page 39: Id Number Formats
Keypads, sirens, as well as expansion modules (bus zone expanders, zone expanders, wireless expansion modules, utility output modules, power-supply expansion modules) that are connected via a RISCO bus line display on the keypad as per this example: 02(1:01) T=NZE08 EXPLANATION: •...
Page 40: Assigning Id Numbers (Setting Dip Switches) For Bus Devices
Assigning ID Numbers (Setting DIP Switches) for Bus Devices When installing each bus device, you must set its DIP switches to match its sequentially-assigned physical ID number before the device is powered up. NOTE: If after power-up a device’s DIP switch(s) are changed, it will be necessary to shut down the device’s power and then power it up again.
Page 41: Installing Bus Devices
Installing Wired Keypads Connected either to a RISCO bus line, or to a bus at the terminal block on the main panel PCB, a wired keypad is the first system component to be installed, as it is used to set the initialization defaults upon system power-up (language, time and date) and view total zone information.
Page 42: Installing Bus Zone Expanders
NOTE: For maximum operation stability, it is best that the bus line wiring from any bus detector to the main panel should not exceed a total 300 meters (1000 feet). For a distance of more than 300 meters, contact RISCO Customer Support.
Page 43: Installing Power Supply Expansion Modules
(1000 feet) of wiring from any BZE to the main panel, and not to exceed 300 meters (1000 feet) of wiring from any BZE to the farthest detector it supports. For a distance greater than 300 meters (1000 feet) contact RISCO Customer Support.
Page 44: Installing Utility Output Expansion Modules
Installing Wireless Expanders A Wireless Expander module can be installed in the box/enclosure housing, as well as on RISCO bus lines. NOTE: When adding a wireless expander, define the wireless expander’s “Bypass Box Tamper” as YES if the wireless expander is mounted inside the LightSYS Plus box / enclosure housing and not in its own.
Page 45: Step 4: Connecting Relay Detectors
Connect multiple relay detectors onto 8-Zone Expanders (see the illustration below) • Connect relay detector(s) onto RISCO bus lines, each using a dedicated Single Zone Expander (see the illustration below) • Connect a single relay detector directly onto bus devices which support an input zone.
Page 46: Installing Zone Expanders
Bus Zone Expander that are marked TO DEVICE LightSYS Plus provides selectable, variable EOL (end-of-line) zone termination resistance options, compatible for RISCO relay detectors, as well as those of other manufacturers (for example, if performing a retrofit installation). Termination resistance is defined for each single-zone, 8-zone expander used in the system (as well as for each relay detector they support).
Page 47: Wiring Resistors For Zone Termination Resistance
Wiring Resistors for Zone Termination Resistance ➢ To wire termination resistors: • For RISCO EOL (end-of-line) and DEOL (double-end-of-line) detectors without built-in termination resistance, install a 2.2K Ω end-of-line resistor at the detector-side of each hard-wired zone • For a detector with a tamper switch, you can use DEOL termination to save additional main panel connections •...
Page 48: Step 5: Connecting The Backup Battery And Mounting The Main Panel
Step 5: Connecting the Backup Battery and Mounting the Main Panel Install the backup battery and then mount the main panel on the wall. Connecting the Backup Battery The main panel’s backup battery is not supplied with the system. You will need to install a rechargeable battery (12 V, 21Ah), which is automatically utilized as a backup in case of power failure.
Page 49: System Initialization, Device Allocations & General System Configuration
System Initialization, Device Allocations & General System Configuration For installer programming using the Configuration Software, see its documentation. Step 1: Describing Keypad Controls and Installer Menus Describing Dynamic Keypad Menus The LightSYS Plus installer menus are dynamic, in that they display menu items according to the devices connected in the system.
Page 50: Designating Labels
Designating Labels The following table describes all the available characters at the Elegant/Panda keypad that can be used for labels (names/descriptions). Key Character Options Key Character Options 1 . , ‘ ? ! \ “ — < > @ / : _ + * # 7 7 P Q R S 2 A B C 8 T U V...
Page 51: Defining Partitions
NOTES: • During regular system operation (after initial system power-up & settings) the language can be subsequently changed by pressing Exit ( ) + 9 simultaneously. • If powering up subsequently (after initial power-up and system initialization), language, time & date settings will not automatically appear. Instead, you will be prompted to enter the installer code to access the Installer menus for programming.
Page 52: Step 3: Allocating And Configuring Installed Components
Step 3: Allocating and Configuring Installed Components Perform an Auto-Setting scan to locate, allocate, and configure all installed communication modules & bus devices. NOTE: The automatic setting/un-setting function is not in compliance with EN50131-3. Auto-Setting Scan for Communication Modules & Bus Devices Performing an Auto-Setting scan finds all installed communication modules and bus devices connected in the system.
Page 53: Describing Auto-Setting Results
Describing Auto-Setting Results At the keypad, the results of an Auto-Setting scan first show the connected communication modules. The next results displayed are for connected keypads, expansion/voice modules and bus detectors. Results display as per this example: (3:02:01) T=LCD EXPLANATION: NOTE: Dashes (“—“) appear instead of digits when a parameter is not relevant, for example, for communication modules as they are on-board (on the PCB), and not on a bus line.
Page 54: Manually Allocating & Configuring Communication Modules
Manually Allocating & Configuring Communication Modules If you didn’t yet run an Auto-Setting scan to allocate (“enable”) each installed communication module, you can do so manually from the installer Programming menu, as well as configure its relevant parameters. IMPORTANT: If an allocated communication module is no longer to be utilized, you must disable it (cancel its prior allocation) via this manual process.
Page 55: Defining Apn Automatically And Manually
Defining APN Automatically and Manually After the SIM card is installed and upon establishing GSM/GPRS/3G/4G communication, the system’s auto-APN feature will automatically configure the APN definitions. However, there may be cases where you will need to manually define the APN by entering the APN (Access Point Name) code supplied from the cellular provider, username, and password.
Page 56: Manually Allocating & Configuring Other Modules And Bus Devices
Manually Allocating & Configuring other Modules and Bus Devices If you didn’t yet run an Auto-Setting scan to allocate (“enable”) all the installed non-communication modules (for example, expansion modules) or other bus devices – or if you are adding new ones and don’t want to perform an Auto-Setting scan of the entire system, instead you can allocate them manually from the installer’s Programming menu.
Page 57: Zone Expanders
Scroll to Control parameters and press to enable/disable (Y/N) as needed: • 1)Emergency: to operate the emergency quick keys at the keypad. • 2)Multi View: to view from this keypad the status of all masked partitions (select Y) or only the partitions (select N). Press OK to go to the next keypad and repeat this procedure from step 2.
Page 58: Power Supply Modules
Power Supply Modules From the installer Programming menu, select 7→ 1→ 2, scroll to 04)Power Supply, and then press OK ( Scroll to, and then edit the power supply module’s physical ID number to match its DIP switch settings (see Describing Installer-Set ID Numbers for Bus Devices, page 38).
Page 59: Wireless Security Modules
Wireless Security Modules From the installer Programming menu, select 7→ 1→ 2, scroll to 05)WL Expander, and then press OK ( Scroll to, and then edit the WL expander’s physical ID number to match its DIP switch settings (see Describing Installer-Set ID Numbers for Bus Devices, page 38). Toggle to WSM (wireless security module) or select NONE to cancel its allocation and then press OK.
Page 60: Sounders (Sirens)
Sounders (Sirens) From the installer Programming menu, select 7→ 1→ 2, scroll to 08)Sounder, and then press OK ( Scroll to, and then edit the sounder’s physical ID number to match its DIP switch settings (see Describing Installer-Set ID Numbers for Bus Devices, page 38). Toggle to the type (or select NONE to cancel its allocation), and then press OK.
Page 61: Bus Zone Expanders
Multiple 1-way and 2-way wireless detectors and accessories are connected to the system via wireless expansion modules – each of which supports multiple wireless zones and is connected to a RISCO bus line or at the main panel PCB. NOTE: To set additional parameters, see Installer Programming, page 78.
Page 62: Allocating Wireless Devices
Allocating Wireless Devices Allocate each wireless transmitting device via keypad or CS – either by sending an RF transmission or enter the device’s 11-digit code (see sticker on device for code). Allocating Wireless Devices via RF Transmission ➢ To allocate a wireless device via RF transmission: From the installer Programming menu, go to 7 →...
Page 63: Wireless Device Rf Transmissions
Wireless Device RF Transmissions Wireless Device To send an RF transmission: (1-way and 2-way) Detectors: • WatchOUT • BWare • iWave • iWise Insert battery. Press and hold the tamper switch for • Door-Window Contacts at least 3 seconds. (Dual Channel, Pulse Count, Universal) •...
Page 64: Allocating Wireless Devices Via Code
Wireless Device To send an RF transmission: (1-way and 2-way) Press and hold both buttons ( ) for at least 2-Way WL Slim Keypad 2 seconds. Press and hold both buttons ( ) for at least 2-Way Panda Keypad 2 seconds. Repeat from step 3 for each additional wireless transmitting device to be allocated for this wireless expander.
Page 65: Step 5: Basic Zone Configuration For All Zone Types
Z=125 (1:E03:06): EXPLANATION: • Z=125 is the zone’s index number (up to 512 zones possible) • 1 is the RISCO bus line number (1—4) • E03 is the expansion module ID (shows as E00 if wired at the terminal block) •...
Page 66: Defining Zone Parameters Using The "One-By-One" Option
Defining Zone Parameters using the “One-By-One” Option This option lets you to define all zone parameters, for one zone at a time. ➢ To define zone parameters using the One-By-One option: From the installer Programming menu go to: 2 →1 → 1 (Zones → Parameters →...
Page 67: Defining Zone Parameters Using The "By Category" Option
TEOL detector to the zone expander in the future), you will need to set the zone expander’s termination resistance values to TEOL – the “highest” level. Default termination resistance values for RISCO relay detectors are: • EOL (end-of-line): 2.2K Ω...
Page 68: Step 6: Advanced Zone Configuration For Bus Zones And Wireless Zones
Zone Termination Resistance Values (in Ohms) DEOL TEOL DEOL DEOL Custom 3.74K 6.98K 3.3K 3.3K 2.2K 2.2K, 2.7K 2.7K 5.6K 5.6K (default) 2.2K (default) 4.7K 6.8K 4.7K, 4.7K 4.7K 2.2K 1.1K 6.8K, 12K, (default) 6.8K 2.2K 3.3K 3.3K 2.2K 4.7K Step 6: Advanced Zone Configuration for Bus Zones and Wireless Zones NOTE: To set additional parameters, see Installer Programming, page 78.
Page 69: Measuring Background Noise Level And Defining The Threshold Limit
Measuring Background Noise Level and Defining the Threshold Limit If the system uses wireless devices, you can measure (“calibrate”) the background noise that the main panel detects, and also define the acceptable threshold value. Background noise (RF interference) is typically generated by other non-system devices operating in close proximity to the system, and high amounts may interfere with the system, causing “jamming.”...
Page 70: Performing A Wireless Comm. Test For Measuring Signal Strength
➢ To define the noise level threshold value: From the installer Programming menu, select 7→2→1 (Install→WL Device→RX Calibration); CHOOSE RECEIVER (wireless expander) displays. Scroll to select the wireless expander module, and then press OK ( ); the most recently measured result (“THOLD”) for that Wireless Expander module displays.
Page 71: Step 7: Configuring System Communication
Step 7: Configuring System Communication NOTE: To set additional parameters, see Installer Programming, page 78. Defining Primary Communication Channels & Parameters ➢ To define the primary communication channel: From Installer Programming menu go to: 5) Communication menu→1) Method. Scroll to the primary communication channel: (GSM, IP), then press OK. Scroll through the respective parameters (see the table below), and define the relevant ones, pressing OK after each parameter that is set.
Page 72: Defining Communication With The Monitoring Station
Defining Communication with the Monitoring Station You enable and define communication settings for monitoring station account(s), along with the backup communication channel and other associated parameters that define the nature of communication, event reporting and confirmation between the system and the monitoring station. Monitoring station link-up options are via TCP/IP, and GSM/GPRS/3G/4G.
Page 73: Step 8: Configuring Cloud Connectivity
Step 8: Configuring Cloud Connectivity The RISCO Cloud is RISCO’s application server that handles all communication between the system, monitoring station, as well as system users (for the Smartphone and Web apps). Cloud communication enables remote monitoring and control of the system, sending event notifications, and viewing real-time video verification via RISCO’s VUpoint IP cameras.
Page 74: Step 9: Configuring Common System Parameters
Step 9: Configuring Common System Parameters NOTE: In addition to defining these common system parameters, see Installer Programming, page 78 for programming all other parameters in the Installer Programming menu, as well as in the other installer menus. Defining System Users As the installer, you must set up the user codes for all the system users (up to 500 codes total, which includes 499 users including the Grand Master, plus the installer).
Page 75: Changing The Default Installer Code
Restart the panel. Press + 8 simultaneously on the keypad; a unique 15-digit number displays. Obtain the required reset key (8 digits) from the HandyApp, RISCO Cloud or RISCO Customer Support. Enter the reset key in the keypad. The Installer/Sub-Installer/Grand Master Code will be set to the default code.
Page 76: Defining Follow Me Destinations
Defining Follow Me Destinations You can enable and define up to 64 Follow-Me destinations. NOTE: The actual telephone numbers and email addresses for FM destinations are defined by the Grand Master in the User menu. Enabling Follow Me ➢ To enable using Follow Me destinations: •...
Page 77 • To restore the system’s factory defaults, see Restoring Manufacturer's Programming Defaults, page 214. 03/2022 Page 77 5IN2932 C...
Page 78: Installer Programming
Installer Programming LightSYS Plus can be programmed by the installer using the following: • Wired keypad • Configuration Software (locally or remotely connected – see the CS documentation). When performing installer programming in the various installer menus, some of the parameters display dynamically, meaning that the keypad will only display the parameters for the respective modules/hardware that are installed.
Page 79: System
 System The System sub-menu contains the following programmable parameters: • Timers • Controls • Labels • Sounds • Settings • Automatic Clock • Service Information • Firmware update  Timers The Timers parameters specify the time duration of an operation. System →...
Page 80 Quick Parameter Default Range keys  00 minutes/seconds 00—90 Bell Delay minutes/seconds The time delay before the keypad sounder and the external sounder operate after the onset of an alarm.  10 seconds 00—90 seconds Switch Aux Break The time that the power supplied to the system's smoke detectors through the programmable output is interrupted during a user-initiated smoke detector reset, typically performed after a fire alarm or automatically when Double Verification...
Page 81 Quick Parameter Default Range keys The time period that all tampers (main unit and accessories) can be opened for purposes of battery replacement without triggering a tamper alarm.  AC Off Delay 000–255 minutes In the case of a loss of AC power, this parameter specifies the delay period before reporting the event or operating the programmable output.
Page 82: Service Timer
Quick Parameter Default Range keys  0—255 seconds Status Timer Defines if the system status will be displayed while the system is armed. When the time is defined as 0, the system status will be displayed during the arming period. When the time is not 0, the system status will be displayed only during this interval after the arming period starts.
Page 83: Quick Arm
• Communication • EN 50131 • PD6662 • CP-01 • Device System → Controls → Basic Quick keys Parameter Default Range  Basic Programming This section refers to the most common controls in the system.   Yes/No Quick Arm YES: Eliminates the need for a user code when arming (full or partial).
Page 84: Bell Squawk
Quick keys Parameter Default Range   Yes/No False Code Trouble YES: A false code report is sent to the monitoring station after three successive attempts at arming or disarming in which an incorrect user code is entered. No alarm sounds at the premises, but a trouble indication appears on the wired keypads.
Page 85 Quick keys Parameter Default Range   Yes/No Enable Jamming YES: Enables jamming alarm in system. NO: Disables jamming alarm in system.   Yes/No Audible Jamming YES: Once the specified 30 seconds time is reached, the main panel activates any internal sounders and sends a report code to the monitoring station.
Page 86 Quick keys Parameter Default Range   Yes/No Arm Pre-Warning Related to auto arm/disarm operation. YES: For any partition(s) set up for auto arming, an audible exit delay (warning) countdown will commence 4:15 minutes prior to the automatic arming. During this period, exit delay beeps will be heard. You can enter a valid user code at any time during the countdown to delay the partition’s automatic arming by 45 minutes.
Page 87 System → Controls → Advanced Quick keys Parameter Default Range  Advanced This section refers to the advanced controls in the system.   Yes/No Double Verification of Fire Alarms YES: Implemented on detection of smoke or fire for verification. Power to the smoke detector(s) in the affected zone is cut off and restored after the Switch Aux Break time defined in the Switch Aux Break delay (...
Page 88: Hour Bypass
Quick keys Parameter Default Range   Global Follower Yes/No YES: Specifies that all zones (that are programmed to follow an Exit/Entry delay time) will follow the Exit/Entry delay time of any armed partition. NO: Specifies that all zones (that are programmed to follow an entry delay time) will follow the entry delay time of only the partitions to which they are assigned.
Page 89 Quick keys Parameter Default Range   Installer Tamper Yes/No For above Grade 2, the system control bit “INSTALLER TAMPER” shall be defined as YES. YES: A Tamper event causes a lockout condition which can only be reset by the installer code or by anti-code. NO: A Tamper event does not cause a lockout condition ...
Page 90 Quick keys Parameter Default Range   Yes/No Disable Incoming Calls This parameter is used to disable all incoming calls trying to come in through the voice channel (GSM). YES: Incoming calls from voice channel are disabled. NO: Incoming calls from voice channel are enabled. Note Incoming data call via the GSM data channel is still enabled ...
Page 91 Quick keys Parameter Default Range YES: A confirmed alarm triggers the external bell. Note A confirmed alarm actually eliminates the bell delay time, causing the external alarm to start immediately. NO: The external bell will trigger normally (at the end of bell delay time). ...
Page 92: Blank Display
Quick keys Parameter Default Range →Strobe Trigger) at the end of the exit delay time. NO: For partial (Stay) arming or group arming, no indication will be made by the strobe at the end of the exit delay time.   Yes/No Blank display YES: Two minutes after the last keypad operation, the display will appear...
Page 93 Quick keys Parameter Default Range   Follow Me Enable Yes/No YES: Enables Follow-Me communication. If both the monitoring station report and the FM report are defined, the system will first call the monitoring station phones and then the FM destinations.
Page 94 System → Controls → EN 50131 Quick keys Parameter Default Range  EN 50131 This section refers to controls that apply to EN 50131 approvals.   Yes/No Authorize Installer This option limits the installer and sub-installer authorization to access the programming menu.
Page 95 Quick keys Parameter Default Range  Restore Troubles Yes/No For above Grade 2, the system control bit “Restore Troubles” shall be defined as YES YES: A System Trouble condition must be acknowledged by the user. NO: A System Trouble condition will reset automatically when clear. ...
Page 96 System → Controls → PD6662 Quick keys Parameter Default Range  PD6662 If the PD6662 standard has been selected (see procedure on page 102), then the configurable controls for this standard (listed below) can be set as needed. NOTE: For the non-configurable "Hold-Up Alarm Confirmation" parameter, see page 102.
Page 97: Exit Restart
Quick keys Parameter Default Range   Yes/No Key Switch Lock YES: Only a latched key switch zone can arm or disarm the system. Note When the system has more than 1 zone defined as latch key switch the arm / disarm operation will occur only after all these zones are armed or disarmed NO: Any means can be used to arm or disarm the system (keypad, remote...
Page 98 Quick keys Parameter Default Range YES: If no exit/entry zone is tripped during exit time the system will be armed in partial (Stay) arming mode. NO: If no exit/entry zone is tripped during exit time the system will be armed in full (Away) arming mode. System →...
Page 99: Labels
Quick keys Parameter Default Range   Yes/No Siren Pre-Alarm Specifies if the system will send a pre-alarm message to the siren while an entry delay starts. YES: The system sends a pre-alarm signal to the siren at the beginning of the entry delay.
Page 100: Sounds
 Sounds Define the following system sound parameters: • Tamper • Speaker Volume System → Sounds → Tamper Quick keys Parameter Default Range  Tamper Sound Sets the sound(s) produced by a tamper violation of a keypad and/or an expansion module, as follows: ...
Page 101: Settings
Quick keys Parameter Default Range   0—9 Exit/Entry Determines the volume of the beeps sounded from the internal sounder during the Exit/Entry times.   0—9 Alarm Determines the volume of the beeps sounded from the internal sounder during an alarm. ...
Page 102 Quick keys Parameter Default Range   Standard Sets the panel programming options in compliance with the selected standard.    EN 50131 (G2) For EN 50131 (G2), see page 94.    PD6662 By selecting this standard: •...
Page 103 Quick keys Parameter Default Range    CP01 For CP01, see page 97    EN 50131 (G3) For EN 50131 (G3), see page 94   Customer Sets the panel programming options in compliance with the selected customer code.
Page 104: Automatic Clock
 Automatic Clock Set the Automatic Clock parameters to retrieve automatic time updates (NTP or Daytime) through IP or GPRS/3G/4G. System → Automatic Clock Quick keys Parameter Default Range  Daytime Server Select the internet time protocol:  NTP (Network Time Protocol) ...
Page 105: Download File
System → Firmware Update Quick keys Parameter Default Range  Server IP firmware.riscogroup.com Enter the IP address of the router/gateway where the upgrade file is located.  Server Port Enter the port on the router/gateway where the upgrade file is located ...
Page 106: Parameters
 Parameters Configure the basic parameters for all zone types by the following method(s): • One-By-One: Define all the relevant parameters for one zone at a time • By Category: Define a specific parameter accordingly for multiple zones (as you go from one zone to another, scrolling through all zones in the system) •...
Page 107 Zones → Parameters → By Category → Label Quick keys Parameter Default Range   Label The label identifies the zone in the system. Up to 16 characters. Type a descriptive label over the default “ZONE” Zones → Parameters → By Category → Zone Partition (and Group) Quick keys Parameter Default...
Page 108 Zones → Parameters → By Category → Type Quick keys Parameter Default Range   Type The Zone Type menu contains parameters that enable you to program the zone type for any zone. 1) Select the zone (ZZZ) and then press OK. 2) Then scroll to select the zone type (35 types –...
Page 109 Quick keys Parameter Default Range  Exit (OP)/Entry 2  Same as above, except that the Exit (Op)/Entry 2 time period applies.  Entry Follower  Usually assigned to motion detectors and to interior doors protecting the area between the entry door and the keypad. This zone(s) causes an immediate intrusion alarm when violated unless an Exit/Entry zone was violated first.
Page 110 Quick keys Parameter Default Range  I + Exit(OP)/Entry 1  Interior + Exit(OP)/Entry 1) Used for an exit/entry door that, for convenience, may be kept open when the system is being armed, as follows: • In full (Away) arming mode behaves as an Exit (Op)/Entry 1 zone ZZZ...
Page 111 Quick keys Parameter Default Range   Usually assigned to an infrequently used door, such as an emergency door or a movable skylight. Used to alert the system user if a violation occurs during the unset period (fault by day; Intruder at night), as follows: •...
Page 112: Key Switch
Quick keys Parameter Default Range  Special  For external auxiliary emergency alert buttons and wireless auxiliary emergency transmitters. If violated, an immediate auxiliary emergency alarm is sounded, regardless of the system’s state and a report is sent to the monitoring station.
Page 113 Quick keys Parameter Default Range  Entry Follower + Stay  Assigned to motion detectors and to interior doors protecting the area between the entry door and the keypad, as follows: • In partial (Stay) arming mode, a zone(s) given this designation behaves like an Exit/Entry zone and is subject to the Entry and Exit Delay time periods specified under Exit/Entry Delay 1.
Page 114: High Temperature
Quick keys Parameter Default Range  Water  For flood or other types of water detectors. This zone operates the same as 24 hours zone, but it has a special flood report code.   For Gas (natural gas) leak detector. This zone operates the same as 24 hours zone, but it has a special gas report code.
Page 115 Quick keys Parameter Default Range (usually the auxiliary contact of a door) to an external key box and the tamper wiring to the housing switch.  Key Switch Arm  This zone is used by financial institutions such as cash distribution centers and banks to control the arming of the vault door or treasury department entrance.
Page 116 Quick keys Parameter Default Range Set the sound produced when a system's zone triggers an alarm while the system is fully (Away) armed.   At Stay Set the sound produced when a system's zone triggers an alarm while the system is partially (Stay) armed.
Page 117 Quick keys Parameter Default Range  TEOL Uses normally-closed (NC) contacts in a zone terminated by Triple End- of-Line Resistance to distinguish between alarm, tamper and anti-mask conditions on the same zone. Zones → Parameters → By Category → Loop Response Quick keys Parameter Default...
Page 118: Pulse Counter
Zones → Parameters → By Category → Advanced The following Advanced zone parameters are available for configuration: • Advanced • Bus Zone Parameters • Wireless Zone Configuration Quick keys Parameter Default Range  Advanced  Forced arming This option enables or disables the use of forced arming for each of the system's zones, as follows: •...
Page 119 2. Scroll to select from the available BZ parameters to configure (parameters are device-specific – see device list below). 3. Set parameters for the following RISCO bus detectors (see the following sections as well as the packaged instructions for details), and when finished, press OK.
Page 120  Enable or  Disable sending a push notification to the end-user. Notes • The Presence push notifications option must also be selected in the RISCO Cloud for the notifications to be sent to the end-user’s smartphone. • The Presence zone can also be muted via the RISCO Cloud.
Page 121: Bus Zone: Opr12 (Watchout Pir)
Bus Zone: OPR12 (WatchOUT PIR) Quick keys Parameter Default Range   3 LEDS LEDS Defines the LEDS operation mode.  OFF - Disables the LEDS operation.  RED ONLY - Only the Red LED will operate. This option is highly recommended to avoid the possibility that a burglar will “learn”...
Page 122: Bus Zone: Iwise Dt Grade 2
Bus Zone: iWISE DT Grade 2 Quick Keys Parameter Default Range   LEDS Defines the LEDS operation mode.  OFF - Disables the LEDS operation.  ON – Enables the LEDS operation.   MW (Microwave) Trimmer Range Defines the microwave channel range. ...
Page 123: Bus Zone: (Industrial) Lunar /Bware/Iwise Dt Grade 3
Quick Keys Parameter Default Range checks that the detector’s channels are functioning properly. Bus Zone: (Industrial) Lunar /BWare/iWISE DT Grade 3 Quick Keys Parameter Default Range   LEDS Defines the LEDS operation mode.  OFF - Disables the LEDS operation. ...
Page 124: Bus Zone: Iwise Quad Grade 2
Quick Keys Parameter Default Range  DISABLE  ENABLE and behaves according to the settings defined in quick ZZZ keys   Arm/Disarm Defines the operation of the anti-masking detection while the detector is armed or disarmed.  NO – While armed or disarmed, anti-mask behaves according to ZZZ...
Page 125: Bus Zone: Iwise/Bware Quad Grade 3
Quick Keys Parameter Default Range  REMOTE (Manual) - The remote self-test is performed by the system when a user manually selects the Diagnostics option from the Maintenance menu via the LightSYS Plus User Functions menu  LOCAL (automatic) - Once an hour, the detector automatically checks that the detector’s channels are functioning properly Bus Zone: iWISE/BWare QUAD Grade 3 Quick Keys...
Page 126: Bus Zone: Odt15 (Watchout Dt)
Quick Keys Parameter Default Range system when a user manually selects the Diagnostics option from the Maintenance menu via the LightSYS Plus User Functions menu  LOCAL (automatic) - Once an hour, the detector automatically checks that the detector’s channels are functioning properly. Bus Zone: ODT15 (WatchOUT DT) Quick Keys Parameter...
Page 127: Bus Zone: Watchin Dt Grade 3
Quick Keys Parameter Default Range LEDs behave according to the LEDs parameter definition.  YES – Active IR AM and Proximity AM (anti-masking) is disabled LEDs are disabled.   Enable Prox Anti-mask Defines the operation of proximity anti-masking detection. ...
Page 128: Bus Zone: Seismic
Quick Keys Parameter Default Range  WIDE ANGLE  BARRIER / LONG RANGE   Enable Anti-Mask Defines the operation of anti-masking detection.  DISABLE  ENABLE   Arm/Disarm Defines the operation of the LEDs and anti-masking detections while the detector is armed.
Page 129: Temperature Sensitivity
Quick Keys Parameter Default Range Defines the moving window of time in which the vibration signal is accumulated (integrated). Detection is triggered when the accumulated signal reaches a threshold value. Longer time causes higher detection sensitivity.  Explosion  Sensitivity Defines the explosion sensitivity of the detector.
Page 130: Wireless Zones: 1-Way And 2-Way Smoke
Quick Keys Parameter Default Range and two Microwave (MW) channels. • 2-Way Magnet: Contact detector (x73) – models include shutter and universal • 2-Way IR Beams • 1 & 2-Way Smoke detector • 2-Way PIR • Also Shock, Flood, Gas, CO, and Curtain detectors Use the instructions below to set parameters for the relevant wireless zone detector.
Page 131: Wireless Zones: 2-Way Magnetic Contact Detector (X73)
Quick Keys Parameter Default Range Determines if this zone will be supervised by the system expander according to the time defined under the timer RX Supervision RX Supervise (see , page 80). ZZZ LED Enable Yes/No Defines whether or not the LEDS operation mode is enabled ZZZ...
Page 132 Defines whether or not the LEDS operation mode is enabled ZZZ (M&F Univ only) Yes/No Magnet Enable   Yes (Enable) or No (disable) the transmitter’s magnet. ZZZ Alarm Hold On On/Off Use this parameter to define the minimum period between alarm broadcasts.
Page 133: Presence
Disable sending a push notification to the end-user. Notes • The Presence push notifications option must also be selected in the RISCO Cloud for the notifications to be sent to the end-user’s smartphone. • The Presence zone can also be muted via the RISCO Cloud.
Page 134: Resistance
Resistance Define termination resistance for the wired zones. See Defining Zone Termination Resistance, page 46 and also the Resistance parameters below: Zones → Parameters → Resistance Quick keys Parameter Default Range  Resistance You can define separately the end-of-line termination resistance of relay zones and zone expanders.
Page 135: Testing
 Testing The Testing sub-menu has the following system tests. Also see Testing the System, page 221. • Self Test • Soak Test Zones → Testing → Self Test Quick keys Parameter Default Range  Self Test This feature provides an automated self-test for a selected group of localized intrusion sensors (for example, glass break detectors, sound discriminators and shock sensors) which respond to an artificial source of noise and/or vibration.
Page 136: Cross Zones
Zones → Testing → Soak Test Quick keys Parameter Default Range  Soak Test The Soak Test feature is designed to allow false alarms for predefined detectors to be bypassed from the system, while any alarms generated are displayed to the user for reporting to the monitoring station. This is especially useful to prevent unnecessary police response and when a particular zone is causing unidentified problems.
Page 137 Zones → Cross Zones Quick keys Parameter Default Range  Cross Zones None  From the installer Programming menu, press . The following appears: ZONES CROSSING: 01) 001 S 001 You are at the first set of zone links(01) – or scroll to go to the next set of zone links (50 sets maximum) ;...
Page 138: Alarm Confirm
 Alarm Confirm The Alarm Confirm sub-menu enables you to define the following that can be used for alarm verification: • Confirm Partition • Confirm Zones Zones → Alarm Confirm → Confirm Partition Quick keys Parameter Default Range  Confirm partition Defines which partitions are to be defined for alarm sequential confirmation (relevant for intrusion alarms, not HU Confirmation alarms).
Page 139: Outputs
 Outputs The Utility Output menu provides access to the following submenus and their related programming parameters that enable you to choose among the following event types that will trigger a selected Utility Output, as well as the manner in which the output will be applied: •...
Page 140: System
 System Define parameters that follow system events. Note When selecting output utility output number (1—10), if the UO number appears with a 0 first (for example 0xx, whereas xx is the UO number) that indicates the UO is connected directly to the terminal block and not assigned to an output expander.
Page 141 Quick keys Parameter    AC Loss Follow Activates when the source of the main panel’s AC power is interrupted. This activation will follow the delay time defined in the system control AC Off Delay times and the AC Off Delay Time parameter (see page 81).
Page 142 Quick keys Parameter • GSM network fault    Bell Test Activates the output when the “Bell Test” option is selected and deactivates when the “Bell Test” option is finished.    Installation Activates the output following the system installation status. It activates when the system is in installer programming mode and deactivates when exiting installer’s mode.
Page 143: Partition
Quick keys Parameter  xx   24 Hour Activates the output (Pulsed only) following any 24 Hour zone activation in the system. The maximum number of times an output can be activated from the same zone is defined according to the Swinger Limit Timer ).
Page 144  xx   Burglary Follow Activates the output when an intruder (intrusion) alarm occurs in the selected partition(s).  xx   Fire Follow Activates the utility output when a fire alarm is triggered in the selected partition(s) from the keypads or a zone defined as Fire ...
Page 145  xx   Stay Follow Activates the utility output when the selected partition(s) is armed in the partial (Stay) arming mode.  xx   Tamper Follow A latched output activated when a tamper occurs in the selected partition(s) and follows any type of tamper. The output deactivates at tamper reset.
Page 146  xx   Confirm Alarm The output activates when a confirmed alarm occurs in a partition and deactivates at the restore of the alarm confirmation. RISCO recommends using this output for the Red-Care STU Confirmed Alarm channel.  xx  ...
Page 147: Zone
 xx   STU Panic A DIGICOM output to connect the Personal Attack trigger for the connection to a Red-Care STU or similar device.  xx   STU Fire A DIGICOM output to connect the Fire trigger for the connection to a Red-Care STU or similar device.
Page 148 Outputs → Zone Parameter Quick keys  xx   Zone Follow Activates the utility output when the selected zone is tripped. The tripped zone need not be armed to trigger the utility output.  xx   Alarm Follow Activates the utility output when the selected zone causes an alarm.
Page 149: Code
 Code Outputs → Code Define parameters for enabling codes (for system users) to activate / deactivate utility outputs. Notes • The utility output is activated by entering a user code only if the Quick UO parameter under System Control is defined as Disabled. When the Quick UO is defined as Enabled, no user code is required.
Page 150: Pattern Of Operation For Utility Outputs
Pattern of Operation for Utility Outputs The Pattern of Operation enables you to set activation/deactivation options for utility outputs. When the UO is following more than one partition, zone, or user you can choose the logic of the UO activation or deactivation, as follows: Latch N/O &...
Page 151: Stu Testing
Latch N/O The utility output is always deactivated (N/O) before it is triggered (pulled up). When triggered, it activates (is pulled down) and remains activated (latched) until the operation is restored. Toggle to select ALL or ANY to set the activation, and then press OK ( Toggle to select ALL or ANY to set the deactivation, and then press OK.
Page 152: Authority Level
Codes → User Quick keys Parameter Default Range  YYY Partition Specify the partition(s) for which the designated user can have access by using. Press a number to assign, or press the same number again to clear it.  YYY Authority Level Assign the authority level of each user (for each user code).
Page 153: Grand Master
Quick keys Parameter Default Range • Maid: The maid code is a temporary code, which is automatically and immediately deleted from the system as soon as it is used to arm. This code is typically used for maids, home attendants, and repairmen who must enter the premises before the owner(s) arrive.
Page 154: Installer
 Installer Codes → Installer Default = 1111. The Installer code provides access to the installer Programming menu as well as all other installer menus, allowing modification of system parameters. The installer can change the installer code.  Sub Installer Codes →...
Page 155: Communication
 Communication Define the following parameters for establishing system communication: • Method • Monitoring Station • Configuration Software • Follow Me • Cloud  Method Define communication channel parameters for the following methods: • PSTN • • • Communication → Method → PSTN Quick keys Parameter Default...
Page 156 Quick keys Parameter Default Range  Control   Yes/No Alarm Phone Line Cut YES: Activates the external sirens if the land line, connected to the LightSYS Plus panel is cut or the telephone service is interrupted for the time defined in the PSTN Lost time parameter.
Page 157 Quick keys Parameter Default Range   PBX Prefix A number dialed to access an outgoing line when the system is connected to a Private Branch Exchange (PBX) and not directly to a PSTN line. This number will be added automatically by the system while trying to call from a PSTN line.
Page 158  0 months SIM Expire — 36 months A pre-paid SIM card has a defined life length defined by the provider. After each charging of the SIM, the user will have to manually reset the expiration time of the SIM card. Thirty days before the expiring date, a notification will be displayed on the keypad’s LCD.
Page 159 Backup 2 Primary If (MS 1 is Secondary else (MS#1 Fails) Backup If (MS#1 is Backup 2 Primary If (MS#2 is OK) Secondary Secondary else (MS#2 Fails) else (MS#1 Backup Fails) Backup If (MS#1 is OK) Backup 3 Call Primary Primary Secondary else (MS#1 Fails)
Page 160  GPRS Allows programming parameters that relate for the communication over the GPRS/3G/4G network.  APN Code To establish a connection to the GPRS/3G/4G network an APN (Access Point Name) code is required. The APN code differs from country to country and from one provider to another (the APN code is provided by your cellular provider).
Page 161: Sim Number
  SMTP User Name A name identifying the user to the SMTP mail server The user name field can include up to 10 alphanumeric characters and symbols (!, &, ? etc.).   SMTP Password The password authenticating the user to the SMTP mail server The password can include up to ten alphanumeric characters and symbols (!, &, ? etc.).
Page 162  Disabled/Low/High GSM RSSI Set the minimum acceptable network signal level (RSSI level). Options: Disabled (No troubles for low signal reception) / Low signal / High signal  Prepay SIM Allows programming parameters that will be used when a prepaid SIM card is used in the system.
Page 163 Communication → Method → IP Quick Keys Parameter Default Range  The IP menu contains parameters for the communication of the system over the IP network.  IP Config The IP menu contains parameters for the communication of the system over the IP network ...
Page 164  WiFi Scan Scans for Wi-Fi Network  Add WiFi Net Add Wi-Fi Network  Name Add Wi-Fi Network Name  Security type Add Wi-Fi Security type  Connect Connect to the Wi-Fi  WPS Button Press the WPS button on the router to establish a connection. A “Successfully Connected”...
Page 165  MS Polling (Keep Alive) The time period that the system will establish automatic communication (polling) with the monitoring station over the IP network, in order to check the connection. Three polling times can be defined: primary, secondary and backup. For each time period, define the number of units between 1– 65535.
Page 166 In a normal state: Polling through the IP network using the IP will occur every 30 seconds according to the primary time interval to MS 1 and every 3600 seconds (1 hour) according to the secondary time interval to MS 2. When communication to MS 1 fails, polling occurs every 30 seconds according to the backup interval to MS 2.
Page 167 Communication → Method → Radio (LRT) Quick Keys Parameter Default Range  LRT (Long-Range Radio Transmission) The LRT menu contains parameters for setting a system long-range radio communication network, using the Location Aided Routing (LARS) protocol (LARS, LARS1, or LARS2) or E-LINE protocol to facilitate detailed event transmission to monitoring stations.
Page 168 Quick Keys Parameter Default Range  No. Comm. Parameter — Specify the timeout threshold for establishing communication between the LRT and bus, which upon being reached, triggers an event report to the monitoring station.  Control — Control parameters  Disable Low Battery Yes/No YES: [For use when LRT is housed in the main LightSYS Plus box] LRT low...
Page 169: Monitoring Station
 Monitoring Station Define the following, which enable the system to establish communication with up to three monitoring station accounts: • Report Type • Accounts • Communications Format • Controls • Parameters • MS Timers • Report Split • Report Codes Communication →...
Page 170 Encrypted events are sent to the monitoring station over the IP or GPRS/3G/4G network using TCP/IP protocol. 128 BIT AES encryption is used. RISCO Group’s IP/GSM Receiver Software located at the MS site receives the messages and translates them to standard protocols used by monitoring station applications (For example;...
Page 171 The IP Receiver translates the SMS messages to standard protocols used by the monitoring station applications (For example; contact ID). This channel requires that RISCO Group’s IP/GSM receiver has to be used at the MS side.  03/2022...
Page 172 Quick Keys Parameter The LRT menu contains parameters for setting a system long-range radio communication network, using the Location Aided Routing (LARS) protocol (LARS, LARS1, or LARS2) or E-LINE protocol to facilitate detailed event transmission to monitoring stations.   SIA IP ...
Page 173 Quick Keys Parameter • In Contact ID you can place digits and letters A–F. The A character is always sent as 0 for example: Account number that was defined as 00C2AB will be sent as C20B. Notes for Account Number in SIA Communication Format: •...
Page 174: Communications Format
Communication → Monitoring Station → Communications Format Quick Keys Parameter  Communications Format Enables the system to communicate to the monitoring station. Note See Appendix E: Library Voice Messages, page 239.  Contact ID: The system allocates Report Codes supporting Contact (Point) ID ...
Page 175 Quick Keys Parameter Default Range  Yes/No Audible Kissoff YES: There is an audible sound emitted from the keypad when the dialer receives the kissoff signal from the monitoring station’s receiver. NO: There is no audible sound on receipt of the kissoff signal. ...
Page 176: Encryption Key
Communication → Monitoring Station → Parameters Quick Keys Parameter Default Range  Parameters Programmable parameters related to operation with the MS  MS Retries 01—15 The number of times the LightSYS Plus redials the monitoring station after failing to establish communication. NOTE: If there is a communication fault with the monitoring station the panel will not be ready to arm.
Page 177 Quick Keys Parameter Default Range supplied from the monitoring station. A unique key can be defined for each of up to three monitoring stations. Communication → Monitoring Station → MS Timers Quick Keys Parameter Default Range  MS Times Allows programming timers related to operation with the monitoring station.
Page 178 Quick Keys Parameter Default Range  15 secs Abort Alarm 00-255 seconds Defines the time delay before reporting an alarm to the monitoring station. If the alarm system is disarmed within the abort window, no alarm transmission shall be sent to the monitoring station. ...
Page 179 Quick Keys Parameter Default Range  Confirm Time — 60 minutes (Confirmation Time Window) Specifies a time period that starts when an intrusion alarm is triggered for the first time. If a second intrusion alarm is triggered before the end of the time period (the "confirmation time window"), the system will then send a "confirmed"...
Page 180 Quick Keys Parameter Default Range  1st backup 2nd MS Urgent Reports urgent (alarm) events to the monitoring station (MS):  Do not call (no report)  Call 1st: Reports Openings and Closings to MS 1.  Call 2nd: Reports Openings and Closings to MS 2. ...
Page 181: Edit Codes
Communication → Monitoring Station → Report Codes Quick Keys Parameter Default Range  Report Codes Enables you to view or program the codes transmitted by the system to report events (for example, alarms, troubles, restores, supervisory tests, and so on) to the monitoring station. The codes specified for each type of event transmission are a function of the central station’s own policies.
Page 182 Quick Keys Parameter Default Range  Bell  Phone trouble  AC Loss   Clk Not Set  Bus Trouble  False Code  GSM Trouble  IP Net Trbl  MS 1 Trouble  MS 2 Trouble  MS 3 Trouble ...
Page 183 Quick Keys Parameter Default Range  Soak Fail  Self Test  Accessories Edit parameters for system peripheral devices/accessories.  Keypad  Zone Expander  Util. Output  Power supply  Keyfob  Voice Module  WL Expander  Bus Expander ...
Page 184: Configuration Sw
Quick Keys Parameter Default Range  Fail Cloud  Entry Service Mode  Exit Service Mode  Delete All Clears all codes (reverts to factory defaults)  Configuration SW Configure the following parameters for communication between the Configuration Software and the system: •...
Page 185 Quick Keys Parameter Default Range  0001 Remote ID Defines an ID code that serves as an extension of the access code. In order to enable communication between the alarm company and the installation, the same remote ID code must be entered into the account profile in the Configuration Software.
Page 186: Follow Me
Communication → Configuration SW → Gateway Quick Keys Parameter Default Range  IP Gateway The IP and port address of the configuration’s software PC. If you have a router connected to the PC of the Configuration Software, then you should enter the IP of the router.
Page 187 Quick Keys Parameter Default Range  Report Type Defines the type of reporting events to a Follow Me destination.  NOTE: = FM number  Voice Report to follow me will be done by voice message thorough the GSM network. Enter the telephone number including area code or special letters for Follow Me defined as SMS or Voice.
Page 188 Quick Keys Parameter Default Range  Partition Assign the partitions from which events will be reported to the Follow Me number.  Events Each Follow Me destination can be assigned with its own set of events. Choose the events that will be reported to each Follow Me Event Description Default...
Page 189 Quick Keys Parameter Default Range  Low battery indication from any sounder in Siren low the system Battery  PSTN Trouble PSTN lost event. If PSTN Loss Delay time period is defined, the message will be sent after the delay time ...
Page 190 Quick Keys Parameter Default Range  Remote System is in remote installation mode programming Quick Keys Parameter Default Range  Restore Events Choose the restore events that will be reported to each Follow Me destination. Event Description Default  Alarms ...
Page 191 Quick Keys Parameter Default Range  Technical Alert restored Technical Quick Keys Parameter Default Range  Yes/No Remote Control  Yes/No Remote Listen Enables the user of the Follow Me phone to perform remote listen and talk operation with the premises. ...
Page 192: Cloud
IP Address www.riscocloud.com The IP address or server name. If the LightSYS Plus system is connected to the RISCO Cloud for self-monitoring, then use: riscocloud.com. Otherwise enter the IP address or name where the private Cloud server is located. ...
Page 193 Quick Keys Parameter Default Range  Up to 6 Password AAAAAA characters (case sensitive) Specify the password for server access. This password should be identical to the CP Password defined in the server under the Control Panel Page definition.  Channel Communication with the Cloud can be established through an IP or GSM channel, depending on your system installed hardware.
Page 194 Quick Keys Parameter Default Range  01–05 Controls The LightSYS Plus supports parallel channel reporting (via IP, GPRS, GSM, SMS, or voice) to both the monitoring station and FM when connected in Cloud mode. Use this setting to decide if the panel reports events to the monitoring station or Follow-Me in parallel to the report to the Cloud or only as a backup when the communication between the LightSYS Plus and the Cloud is not functioning.
Page 195: Audio
 Audio The following Audio menus are used to define voice message parameters: • Messages • Local Announcements Note This menu will be displayed only if a Voice module had been assigned to the system  Messages Audio → Messages Quick Keys Parameter Default...
Page 196 Note The first five descriptors allow for customized words specific for the client’s  needs. The customized words are the Library message on option After recording or assigning a message you can verify messages by selecting [1] Play option in each category. ...
Page 197: Local Announcements
 Local Announcements Audio → Local Announcements Quick keys Parameter Default Range  Local Announcement Upon event occurrence, the system can announce the security situation to occupants of the premises by sounding a local announcement message from the add-on Listen-In & Speak unit. This announcement message can be enabled or disabled (by toggling to Y or N) per event.
Page 198: Install
 Install The following enable adding, removing or testing accessories in the system: • Bus Devices • Wireless Device  Bus Devices The Bus Device sub-menu provides access to the following: • Automatic • Manual • Testing • Bus speed Install →...
Page 199 Install → Bus Devices → Manual Quick Keys Parameter Default Range  Manual Use this option to manually add or remove bus devices and set parameters. Notes • Make sure that the bus device’s physical ID number has been ʺdip switch"...
Page 200 Quick Keys Parameter Default Range Sounders (Sirens), page 60.   BUS Zones Bus zones (bus detectors) can be wired to the main bus or to a Bus Zone Expander (BZE). See Manually Allocating & Configuring other Modules and Bus Devices → Bus Zones (Bus Detectors), page 60.
Page 201 Install → Bus Devices → Testing Quick Keys Parameter Default Range  Testing The Testing menu enables performing a bus scan and a manual “Auto Setting” bus scan of the system.  Bus Test A Bus Test checks each installed bus device and communication module to ensure adequate connectivity quality.
Page 202 Quick Keys Parameter Default Range Press OK again to advance to the next communication module/bus device found, and again enable/configure for all the remaining ones found. When BUS Device 1) Automatic displays again at the keypad and the panel beeps, it indicates you’ve finished going through all the recognized modules/devices.
Page 203: Wireless Devices
 Wireless Devices The following parameters can be defined for wireless devices: • RX Calibration • Allocation • Delete Note Allocation of wireless devices can be performed only if a wireless expander module has been defined in the system. Install → Wireless Devices → RX Calibration Quick Keys Parameter Default...
Page 204: Devices
 Devices Manually configure and modify installed system devices: • Keypad • Keyfob • Sounder • Proximity Key Reader • Power Supply  Keypad Devices → Keypad Quick keys Parameter Default Range  Keypad  NOTE: = keypad number Select a keypad, press OK. The following can be defined for each keypad: ...
Page 205: Keyfob
Quick keys Parameter Default Range  Function Key (2-way)  Disable – Disables the keypad’s function key for Utility Output:  – Panic Uses the keypad’s function key to send a panic alarm  MS Listen & Talk – Uses the keypad’s function key to establish 2-way “Listen &...
Page 206: Sounder
Quick keys Parameter Default Range  UO: The button is used to operate a single utility output  Panic: The button is used to send a panic alarm. Note Stay (partial) arming or Away (full) arming can be defined as instant or delayed (Exit Delay).
Page 207 Quick Keys Parameter Default Range Select a sounder and press OK. Device → Sounder → Parameter → Bus Sounders Quick Keys Parameter Default Range  Label As assign the sounder a label (description)  Masking Use this menu to define parameters relating to masking ...
Page 208 Quick Keys Parameter Default Range  FOLLOW ARM — The status LED2 is activated when any of the siren selected partition is armed (Away or Stay mode).  FOLLOW ALARM - The status LED 2 is activated after any alarm condition.
Page 209: Alarm Sound
Quick Keys Parameter Default Range  SAB—Power supply for the sounder will be drawn from the control panel.  SCB—Power supply for the sounder will be drawn from the sounder’s rechargeable battery.  Siren Current Standard Standard/Low (Only for Lumin8) Set the sounder current mode.
Page 210 Quick Keys Parameter Default Range  FOLLOW ALARM — The strobe is activated when an alarm occurs in the selected siren’s partitions.  Blink Defines the number of times that the strobe will blink in a minute.  20 [Times/Min] ...
Page 211: Proximity Key Reader
Quick Keys Parameter Default Range  Lamp Stop - Specify here the stop time for the sounder lamp to be deactivated.  Proximity Key Reader Define or modify parameters of a Proximity Key Reader that can be connected to the LightSYS Plus as a bus accessory. Up to 64 PKR's can be connected to the system Note Access to this sub-menu requires that a Proximity Key reader device is installed.
Page 212 (1.5A or 3A) can be connected to the system (maximum 8 per bus line). Devices → Power Supply Quick Keys Parameter Default Range  Masking To designate which partition will or will not be operated at the keypad: Press OK ( ), scroll to select the power supply index number, and then press OK.
Page 213: Exit
 Exit When exiting installer Programming menu, go to 0) Exit and then press OK ( Note that if exiting after programming in the installer Programming menu the very first time (at initial system configuration), perform the following procedure: Exiting Installer Programming Menu Exiting Installer Programming Menu after Initial System Programming IMPORTANT: After you have finished programming all relevant parameters in...
Page 214: Restoring Manufacturer's Programming Defaults
Restoring Manufacturer's Programming Defaults You can revert to manufacture defaults for all system parameters. ➢ To restore the main panel to the manufacturer's defaults: → → → → From the installer Programming menu, select 1 2 (System Setting Default Panel). To restore the system labels to the manufacturer defaults (delete all labels), toggle to Y (yes) and then press OK ( ) to confirm.
Page 215: Defining Parameters - Additional Installer Menus
Defining Parameters – Additional Installer Menus You can program additional system parameters in installer menus (other than the Programming menu): Activities Menu Activities parameters Keypad Sound Chime Keypad Chime—Use the scroll buttons to turn the keypad's internal sounder ON or OFF for any function utilizing the chime.
Page 216: Follow Me Menu
Follow Me Menu Follow Me parameters Define – Press OK, and then scroll to a FM destination number (up to 64) to define For the selected FM destination number, enter the Follow Me destination information, according to its type (voice message, SMS or E-mail), and then press OK. For more information, see Follow Me, page 186.
Page 217: Clock Menu
Clock Menu Clock parameters Time & Date – To set the system time and date, scroll to each space and enter/re-enter the time and date definitions (required for all Scheduler programming – see below). Scheduler NOTE: For complete Scheduler and Vacation procedures, see the LightSYS Plus User Manual.
Page 218: Event Log Menu
Event Log Menu Event Log parameters View of up to 2000 system events. Each event displays with the date and time. Scroll to an event number, and then press OK to view its details. Notes • The events memory cannot be erased •...
Page 219 ❖ Version – Displays information regarding the GSM module version ❖ IMEI – Displays the IMEI number of the GSM module. This number is used for identification of the LightSYS Plus at the RISCO IP Receiver when using GSM or GPRS/3G/4G communication •...
Page 220: Macro Menu
Macro Menu Macro parameters Test a selected macro, if it has been pre-programmed. Scroll to select the respective macro (A—D), and then press OK. For more information on programming macros, see the LightSYS Plus User Manual. Stand Alone Keyfob Menu Stand Alone Keyfob parameters Standalone keyfobs are used for gate control (with a dedicated wireless expander module).
Page 221: Testing The System
Testing the System It is important to fully test the system. Here are typical, recommended system tests that should be performed at system installation, and subsequently as needed: ✓ Bus Test: To test bus communication quality. See Performing a Bus Test, page 53. ✓...
Page 222: Installer Responsibilities For Assisting The Client
✓ Advise client to change the default Grand Master code to one that is confidential. ✓ For RISCO Cloud-enabled communication, instruct users with Smartphones to download the iRISCO app from the Apple App store or Android Play Store, and ensure that a connection between the app and the system is established.
Page 223: Appendix A: Technical Specification
Appendix A: Technical Specification Main Panel Technical Information Input Power: AC/DC Adaptor 100-240 V, 50/60Hz, 14.4V (+/-5%) —2.5A/4.5A PS Current Consumption: 110 mA, typical, 180 mA, maximum Rechargeable Standby Battery: 12 V, 21Ah (Amp-hours) for RP512B and RP432BP3 housing 12 V, 7Ah (Amp-hours) for RP432BP housing Output Voltage Range 11V—13.8V (ripple 200 mV) 1.
Page 224 Proximity LCD Keypad 13.8 V +/-10%, 62 mA typical, 130 mA maximum (RP432KPP) Panda wired LCD Keypad, 13.8 V DC +/-10%; 130 mA typical/180 mA max. Proximity (RP432KPP2) Panda wired LCD Keypad 13.8 V DC +/-10%; 130 mA typical/180 mA max. (RP432KP02) WL Panda Keypad for LightSYS, 868 9µA mA standby current, 150 mA maximum...
Page 225: Appendix B: Wiring
Appendix B: Wiring The proper use of wire and cable is necessary for the successful installation and operation of the LightSYS Plus system. It is important to select wire of the correct attributes to minimize power loss and ensure reliable system operation. Take into account both the installation's current requirements (for this you can utilize the HandyApp calculator feature) and the wiring distances involved.
Page 226 For maximum system stability, it is best not to exceed a total of 300 meters (1000 feet) of wire when wiring the bus. • For a distance of more than 300 meters, refer to RISCO Group Technical Support services for detailed information. Total Auxiliary Power...
Page 227: Appendix C: Installer Event Log Messages
Appendix C: Installer Event Log Messages Event Message Description AC Low PS=y Loss of AC power from power supply ID=y AC RST PS=y AC power restore on power supply ID=y Activate UO=xx UO XX activation Actv UO=xx KF=zz UO XX is activated from remote control ZZ AL.ReinstateP=Y Alarm reinstatement on partition Y Alarm Z=xx...
Page 228 Event Message Description Byp Trbl C=xx System troubles were bypassed by user XX Bypass Zn=xx Zone no. XX is bypassed Charge Curr S=y Battery charging trouble in siren ID=Y Chng code=xx Changing user code XX Change FM=yy Changing Follow-Me number YY Charge Current RS Battery charging trouble restore in siren ID=Y Clk not set...
Page 229 Event Message Description Day c:p=y Arm by scheduler of group C on partition Y Day d:p=y Arm by scheduler of group D on partition Y Day dis:P=y Daily disarm on partition Y Day hom:P=y Daily Stay or Group arming in partition Y DC Restore Z=XX DC trouble restore in Bus zone XX DC Trouble Z=XX...
Page 230 Event Message Description GSM:Mdl comm.OK Communication between the GSM/GPRS/3G/4G Module and the LightSYS Plus is OK GSM: Module comm. Internal GSM/GPRS/3G/4G bus module trouble GSM:MS OK GPRS/3G/4G communication to the MS is OK GSM:MS trouble GPRS/3G/4G communication failure to the MS GSM:NET avail.
Page 231 Event Message Description IP: upgrade err The IP upgrade generated an error IP: upgrade OK The IP upgrade was OK IR restore Z=xx Trouble restore in the IR channel of bus zone XX IR trouble Z=xx Trouble in the IR channel of bus zone XXX JAMM.
Page 232 Event Message Description LRT:SYSTEM OK The long range transmitter system status is OK Main Bell RS Bell trouble restore in Main Panel Main:AC Rstr AC power restore on main panel Main Aux Rst Restore of Aux power on Main Panel Main: Bat Rst Low battery trouble restore from the main panel Main: Low AC...
Page 233 Event Message Description No comm. GSM No communication between the GSM/GPRS/3G/4G Module and the LightSYS Plus No comm. LRT No communication between long range transmitter and system No fault z=xx Trouble restore in zone XX (TEOL zone or Bus zone input TEOL) No jam wme=y Jamming restore on wireless module expander ID=Y No mask z=xx...
Page 234 Event Message Description Siren=$ Lost Rs The LightSYS Plus received a signal from siren after it has been regarded as lost Soak fail Z=xx Zone XX has failed in the soak test Spec. KP=y Special alarm from the from wireless keypad Y Spk Trbl RS S=y Speaker low battery restore from siren Y Spkr Trbl Sir=y...
Page 235 Event Message Description UO REST ZN=xx A zone defined as “UO Trigger” has been deactivated UO TRIG ZN=xx A zone defined as “UO Trigger” has been activated VOC:COMM OK Bus communication OK with Voice Module VOC:NO COMM Bus communication failure with the Voice Module Water Alrm Zn=xx Flood alarm from zone no.
Page 236: Appendix D: Troubleshooting
(see Testing the System, page 221) and with the Configuration Software. Additional information is available through RISCO University. For additional assistance, contact RISCO Group Technical Support. LED Indicators – Main Panel PCB, Communication Modules Main Panel PCB LEDs...
Page 237 LED/Function Color State Status (If connected to hub/switch that supports only 10Mb/s) Uplink IP RJ45 Green Downlink Link status Blink TX/RX active 03/2022 Page 237 5IN2932 C...
Page 238 GSM Module LEDs Note After 15 minutes all LEDs will turn off. LED/Function State Status (not in use) Module is ON Module is OFF Communicating with the main panel PCB No communication with the main panel PCB Voice call: Connected to remote party. -OR- Data call: Connected to remote party or exchange of parameters while setting up or disconnecting a call.
Page 239: Appendix E: Library Voice Messages
Appendix E: Library Voice Messages (Custom) Store (Custom) East Macro Student room (Custom) Elevator Magnet Study (Custom) Emergency Main (Custom) Entrance Master Technical Entry Middle Temperature Executive Motion Third Above Exit Air conditioner External Near Family North Apartment Fence Nursery Under Area Fire...
Page 240: Appendix F: Monitoring Station Report Codes
Appendix F: Monitoring Station Report Codes Parameter Contact ID Report Category Alarms Panic alarm Urgent Panic alarm restore Urgent Fire alarm Urgent Fire alarm restore Urgent Medical alarm Urgent Medical alarm restore Urgent Duress alarm Urgent Duress alarm restore Urgent Box tamper Urgent Box tamper restore...
Page 241 Parameter Contact ID Report Category Main phone trouble Non-urgent Main phone trouble restore Non-urgent RF Jamming Non-urgent RF Jamming restore Non-urgent GSM trouble Non-urgent GSM trouble restore Non-urgent GSM Pre-Alarm Non- urgent IP Network trouble Non-urgent IP Network trouble restore Non-urgent Arm/Disarm User Arm...
Page 242 Parameter Contact ID Report Category 24 Hour alarm Urgent 24 Hour alarm restore Urgent Entry/Exit Urgent Entry/Exit restore Urgent Water (Flood) alarm Urgent Water (Flood) alarm restore Urgent Gas alarm Urgent Gas alarm restore Urgent Carbon Monoxide alarm Urgent Carbon Monoxide alarm Urgent restore Low Temperature (Freeze...
Page 243 Parameter Contact ID Report Category Zone Alarm Urgent Zone Alarm restore Urgent Zone confirm alarm Urgent Zone confirm alarm restore Urgent No activity Urgent No activity restore Urgent Wireless Keypad Tamper Urgent Tamper restore Urgent Keypad lost Urgent Keypad lost restore Urgent Keypad low battery Non-urgent...
Page 244 Parameter Contact ID Report Category AC loss Non-urgent AC restore Non-urgent Auxiliary failure Non-urgent Auxiliary restore Non-urgent Overload Non-urgent Overload restore Non-urgent PS tamper Urgent PS tamper restore Urgent Miscellaneous Enter programming (local) Arm/Disarm Exit programming (Local) LS (LX ) Arm/Disarm Enter programming (Remote) Arm/Disarm...
Page 245: Appendix G: Remote Software Upgrade
Notes 1. The file name is case sensitive. 2. Please contact RISCO Group Customer Support services for the file name parameters. Step 3: Activate the Remote Upgrade from the keypad Go to: 1 → 8 → 4 (installer Programming menu → System → Firmware Update →...
Page 246 Notes Each option appears only if the relevant module (IP or GPRS/3G/4G module) is installed in the system. If your panel is equipped with an IP or GSM module you can start the download file procedure by sending an SMS command to the panel in the following format: (If address and port are configured and updated) a.
Page 247: Appendix H: Compliance
Appendix H: Compliance Possible logical key calculations • Logical codes are codes punched in the wireless keypad to allow Level 2 (users) and Level 3 (installer) access. • All codes - 6 digits structure: xxxxxx • 0-9 can be used for each digit. •...
Page 248 Setting the LightSYS Plus to comply with EN 50131 Requirements Access the Installer programming mode. From the  System menu select  to access the Settings menu. From the Settings menu select  to access the Standard option. Select EN 50131. Once selected, the following changes will occur in the LightSYS Plus software: Feature EN 50131 Compliance...
Page 249: Appendix I: Lightsys Plus Accessories
Appendix I: LightSYS Plus Accessories Part number Description Comments Main Panel RP432MP0000A LightSYS Plus Main Board Enclosures RP432BP2000A LightSYS+,Small Plastic Box+TMP RP432BP3000A LightSYS+,Base+Metal Cover+TMP RP432BP4000A LightSYS+,Large Plastic Box+TMP Communication Modules RP432G200GLA 2G for LightSYS Plus+Ant,GL Multi-Socket 2G with Antenna for Plastic Box Multi-Socket 4G with RP432G400USA LightSYS Plus,4G Module+Ant,US...
Page 250 Part number Description Comments RP128EPS000A Switched Mode Power Supply -3A RP128PSPSEUA 3A_SMPS+LargeBox+TRS+TMP RP432EV0001C LightSYS Voice Multi-language RP432EV00ITB Voice Module, IT,DE RW132EVL000A Voice Listening Wired Bus Detectors & Sirens RK515DTBGL0A BWare Bus DT Grade 2, 15m RK515DTBG30A BWare Bus DT AM Grade 3, 15m RK500QBG300A BWare Bus QUAD AM Grade 3 RK500QB0000A...
Page 251 Part number Description Comments Black Proximity keypad RW132KL1P00A 2-Way Black Ext. WL Slim KP+Prox 868 MHz White Proximity keypad RW132KL2P00A 2-Way White Int. WL Slim KP+Prox 868 MHz 2-Way White Int. WL Slim KP, Black Proximity keypad RW132KL2P00H 433 MHz 433 MHz 2-Way Black Ext.
Page 252 Part number Description Comments 2 Way WL Piccolo PET 433MHz RWX96P40200A 2 Way WL Piccolo PIR 433MHz RWX96C40200A RWX96086800B 1&2 Way WL Piccolo PIR 868 MHz RWX96080200A 2 Way WL Piccolo PIR 868MHz RWX96C80200A 2 Way WL Piccolo PIR 868MHz 1&2 Way WL Piccolo Pet 868 MHz RWX96P86800A RWX96P80200A...
Page 253 Part number Description Comments RWX35S00800C WL Smoke & Heat, 868 MHz RWT6GS41100A WL GAS Detector 433 MHz, 110V RWT6FW86800B WL Flood Detector 868 MHz RWT6FW43300B WL Flood Detector 433 MHz-White 2-Way WL Remote Control, RWX132KF800A 868 MHz RWX332KF800B Panda 2Way KeyFob 868MHz RWX332KF400A Panda 2Way KeyFob 433MHz RWT52P86800A...
Page 254: Appendix J: Installer Programming Maps
Appendix J: Installer Programming Maps Installer Programming Menu 1) System 1) Timers 01) Ex/En Delay 1 02) Ex/En Delay 2 03) Bell Timeout 04) Bell Delay 05) Switch Aux Break 06) Wireless 07) AC Off Delay 08) Guard Delay 09) Swinger Limit 10) Redial Wait 11) Last Exit Sound 12) Buzzer at Stay...
Page 255 09) Technician Reset 10) Engineer Tamper 11) Low battery Arming 12) Bell 30/10 13) Fire Temporal Pattern 14) IMQ Install 15) Disable Incoming Calls 16)Disable. Keypad Auto Arming 17) Buzzer Delay 18) Speaker=Buzzer 19) Confirm Speaker 20) Bell Confirmation 21) Error Speaker Time On 22) AC Trouble 23) Strobe Arm 24) Final Night...
Page 256 Tamper 3) Audible Proximity Tamper 4) Siren Aux = Tamp 5) Siren Pre-Alarm 6) RF wake-up 7) KF Instant Arm 8) KF Instant Stay 9) KF Dis+Code 3) Labels 1) System 2) Partitions (1—32) 4) Sounds 1) Tamper Sound 1) During Disarm 1) Silent 2) Bell only 3) Buzzer (main) only...
Page 257 10) 0RU 11) 0NL 12) 0FR 13) 0CN 14) 0DK 15) 0CZ 16) 0AU 17 0TH 18) 0DE 19) 0IE 20) 0GT 6) Language 1) Text 2) Voice (language selection) 7) Partition Quantity 8) Bypass Tamper 6) Automatic Clock 1) Server 1) NTP 2) DAYTIME 2) Host...
Page 258 06) Instant 07) I+ Exit/Entry 1 08) I+ Exit/Entry 2 09) I+Exit(OP)/Entry1 10) I+Exit (OP)/Entry2 11) I + Entry Follow 12) I+ Instant 13) UO Trigger 14) Day Zone 15) 24 Hours 16) Fire 17) Panic 18) Special 19) Key switch 20) Final Exit 21) Latch Keyswitch 22) EN.Foll + Stay...
Page 259 2) EOL 3) DEOL 4) N/O 5) TEOL Response 1) Normal, 400ms 2) Long, 1 sec. 3) Fast, 10ms 4) Extra fast, 1ms 5) 0.5 HOURS 6) 1 HOURS 7) 1.5 HOURS 8) 2 HOURS 9) 2.5 HOURS 10) 3 HOURS 11) 3.5 HOURS 12) 4 HOURS 2) By Category...
Page 260 29) CO 30) Exit Term 31) High temp 32) Low temp. 33) Key box 34) Keyswitch Arm 35) Keyswitch Delayed Arm 4) Sound 1) At Arm 1) Silent 2) Bell only 3) Buzzer only 4) Bell+buzzer 5) Door chime 2) At Stay 1) Silent 2) Bell only 3) Buzzer only...
Page 261 3) Abort Alarm 1) Enable 2) Disable 4) Bus Zone Parameters 5) Wireless Zone Parameters 6) Presence 3) Resistance 00) Custom 01) 2.2K, 2.2K 02) 4.7K, 6.8K, 12K 03) 6.8K, 2.2K 04) 10K, 10K 05) 3.74K, 6.98K 06) 2.7K, 2.7K 07) 4.7K, 4.7K 08) 3.3K, 4.7K 09) 1K, 1K...
Page 262 10) Scheduler 11) Switched Aux 12) GSM Error 13) Bell Test 14) Installation 15) Walk Test 16) Burglary 17) Panic 18) Fire 19) Special 20) 24 Hour 2) Follows Partition 01) Ready follow 02) Alarm follow 03) Arm follow 04) Burglary follow 05) Fire follow 06) Panic follow 07) Special follow...
Page 263 000) Grand 001) User 4) Codes 1) User 1) Partition 2) Authority 2) Grand Master 3) Installer 4) Sub Installer 5) Code Length 1) 4 digits 2) 6 digits 5)Communication 1) Method 1) PSTN 1) Timers 1) PSTN Lost Delay 2) Wait for Dial Tone 2) Controls 1) Alarm Line Cut...
Page 264 4) Controls 1) Caller ID 2) LED Enable 5) Parameters 1) PIN Code 2) SIM Number 3) SMS Center Phone 4) GSM RSSI 1) Disable 2) Low Signal 3) High Signal 6) Prepay SIM 1) Get Credit by 1) Credit SMS 2) Credit Voice 3) Service Cmnd 2) Phone To Send...
Page 265 4) No Comm Parm 5) Control 1) Disable Low Battery 2) Monitoring Station 0) MS Mode 1) Report Type 1) MS 1 2) MS 2 3) MS 3 1) Voice 1) PSTN/GSM (N/A) 2) GSM/PSTN (N/A) 3) PSTN Only (N/A) 4) GSM Only 2) IP 1) IP/GPRS...
Page 266 3) MS 3 1) Encryption Key 2) Receiver Number 6) MS Times 1) Periodic Test 2) Abort Alarm 3) Cancel Delay 4) Listen In 5) Confirmation 1) Confirm Start 2) Confirm Time 7) Report Split 1) MS Arm/Disarm 1) Do Not Call 2) Call 1st 3) Call 2nd 4) Call 3rd...
Page 267 6) Box Tamper 7) Bell Tamper 8) Recent Close 9) HU Confirm. 2) Main Troubles 01) Low Battery 02) Bell 03) Phone trbl 04) AC Loss 05) Aux 06) Clk not set 07) Bus trouble 08) False code 09) GSM trouble 10) IP net trbl.
Page 268 4) Power supply 1) Tamper 2) Low bat 3) Bell 4) AC 5) AUX 6) Overld 5) Keyfob 1) Arm/Dis 2) Low bat 6) Voice module 1) Tamper 7) Sounder 1) Tamper 2) Low bat 3) Bell 4) Aux 5) Lost 8) WL Expander 1) Tamper...
Page 269 4) IP Gateway 1) IP Address 2) IP Port 4) Follow Me 0) FM Mode 1) Define FM (Select FM 01—64) 1) Report Type 1) Voice 1) PSTN/GSM 2) GSM/PSTN 3) PSTN only 4) GSM only 2) Email 1) IP/GPRS 2) GPRS/IP 3) IP only 4) GPRS only...
Page 270 3) CO alert 4) High temp. 5) Low temp 6) Technical 6) Miscellaneous 1) Zone bypass 2) Periodic test 3)Remote programming 4) Restore Events 1)Alarms 1) Intruder alarm 2) Tamper alarm 2) Troubles 01) Main low battery 02) WL low battery 03) Jamming 04) WL lost 05) AC off...
Page 271 2) GSM Only 3) IP/GSM 4) GSM/IP 5) Controls 1)MS Call All 2)FM Call All 3)App Arm 4)App Disarm 5)App Exit Delay 6) Encryption 6) Audio 1) Messages 1) Common message 1) Play 2) Record 2) Zone 1) Play 2) Assign message 3) Partition 1) Play 2) Assign message...
Page 272 1) Bus Device 1)Automatic (bus scan) 2)Manual 01) Keypad (number/type, delete) Assign to partition(s) Masking Emergency 02) Zone Expander (number/type, delete) Resistance 03) Utility Output (number/type, delete) 04) Power Supply (number/type, delete) Partition(s) 1) Bell/Loudspeaker 05) Wireless Expander (number/type, delete) Box tamper 06) Prox.
Page 273 2) Wireless Device 1) RX Calibration Choose receiver Re-calibrate? 2) Allocation 1) By RF 1) Zone 2) Keyfob 3) Keypad 4) Sounder 2) By code 1) Zone 2) Keyfob 3) Keypad 4) Sounder 3) Delete 8) Devices 1) Keypad 1) Label Assign to partition Masking 1) Emergency...
Page 274 8) UO Key 2 9) UO Key 3 2) Keyfob (1-Way) Button 1—4 options: 0) None 1) Arm 2) Disarm 3) Stay 4) Group 5) UO 6) Panic 2) Keyfob (2-Way) Button 1—8: 1) Label 5) Serial No. 6) Masking 7) Controls→Panic 8) PIN Code 9–11) UO Key (1–3)
Page 275 09) Power Source 1) SAB 2) SCB 10) Siren Current 1) Low 2) Standard 11) Alarm Sound (1-4) 12) Serial Number 13) Supervision 2) Lamp Times 1) Lamp Start 2) Lamp Stop 4) Proximity Reader 1) Masking 2) Controls 1) Instant arm 2) Show Ready 3) Show Arm 4) Show Stay...
Page 276 Additional Installer Menus Activities Menu Keypad Sound Chime Keypad Chime Partition Chime Buzzer On/Off Advanced… Service Mode MS Test Wi-Fi… Wi-Fi Scan Wi-Fi WPS Button Follow Me Menu Define View Menu Trouble Alarm Memory All Partitions Disarmed Partition Status (zone number) Zone Status (zone number) Service Info...
Page 277 3) Wednesday Arm/Disarm times 4) Thursday Arm/Disarm times 5) Friday Arm/Disarm times 6) Saturday Arm/Disarm times 7) Sunday Arm/Disarm times 8) All Arm/Disarm times 5) Label Schedule label 6) Inactive Inactive Timer OFF/ON 2) UO ON/OFF 1) ON/OFF Schedule(s) ON/OFF 2) Utility Outputs Utility Outputs Y/N 3) Day/Time...
Page 278 3) Wednesday Start/Stop times 4) Thursday Start/Stop times 5) Friday Start/Stop times 6) Saturday Start/Stop times 7) Sunday Start/Stop times 8) All Start/Stop times 4) Label Schedule label One Time Next Arm Next Arm partition/s Next Arm Time Next Disarm Next disarm partition/s Next disarm time Vacation...
Page 279 2) Siren 2 Zone Resistance Bus Zones Zone Expander Select Zone Expander Zone Exp. Diagnostics Aux (VDC) Power Supply Siren Select Siren Siren Diagnostics Battery voltage [VDC] Battery load [VDC] Aux voltage [VDC] Bell current [A] Charge current [mA] Lamp current [mA] Siren Version Siren Calibration New threshold...
Page 280 UO Buttons 03/2022 Page 280 5IN2932 C...
Page 281 RISCO, for a period of (i) 24 months from the date of delivery of the Product ( the “Warranty Period”). This Limited Warranty covers the Product only within the country where the Product was originally purchased and only covers Products purchased as new.
Page 282 Software and applications distributed or made available by RISCO in conjunction with the Product (with or without the RISCO brand), including, but not limited to system software, as well as P2P services or any other service made available by RISCO in relation to the Product, are not covered under this Limited Warranty.
Page 283 PROBLEMS INHERENT IN THE USE OF SUCH MEANS OF COMMUNICATIONS. RISCO IS NOT RESPONSIBLE FOR ANY DELAYS, DELIVERY FAILURES, OR OTHER DAMAGE RESULTING FROM SUCH PROBLEMS. RISCO WARRANTS THAT ITS PRODUCTS DO NOT, TO THE BEST OF ITS KNOWLEDGE, INFRINGE UPON ANY PATENT, COPYRIGHT, TRADEMARK, TRADE SECRET...
Page 284: Installer Notes
Installer Notes 03/2022 Page 284 5IN2932 C...
Page 285: Contacting Risco Group
Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website (www.riscogroup.com) or at the following RISCO branches: Belgium (Benelux) Israel United Kingdom Tel: +32-2522-7622 Tel: +972-3-963-7777 Tel: +44-(0)-161-655-5500 support-be@riscogroup.com support@riscogroup.com support-uk@riscogroup.com...

This manual is also suitable for:

Lightsys plus Risco-lsp-kit2

Risco -LSP-KIT3 Installation And Programming Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Risco RISCO-LSP-KIT3

Summary of Contents for Risco RISCO-LSP-KIT3
