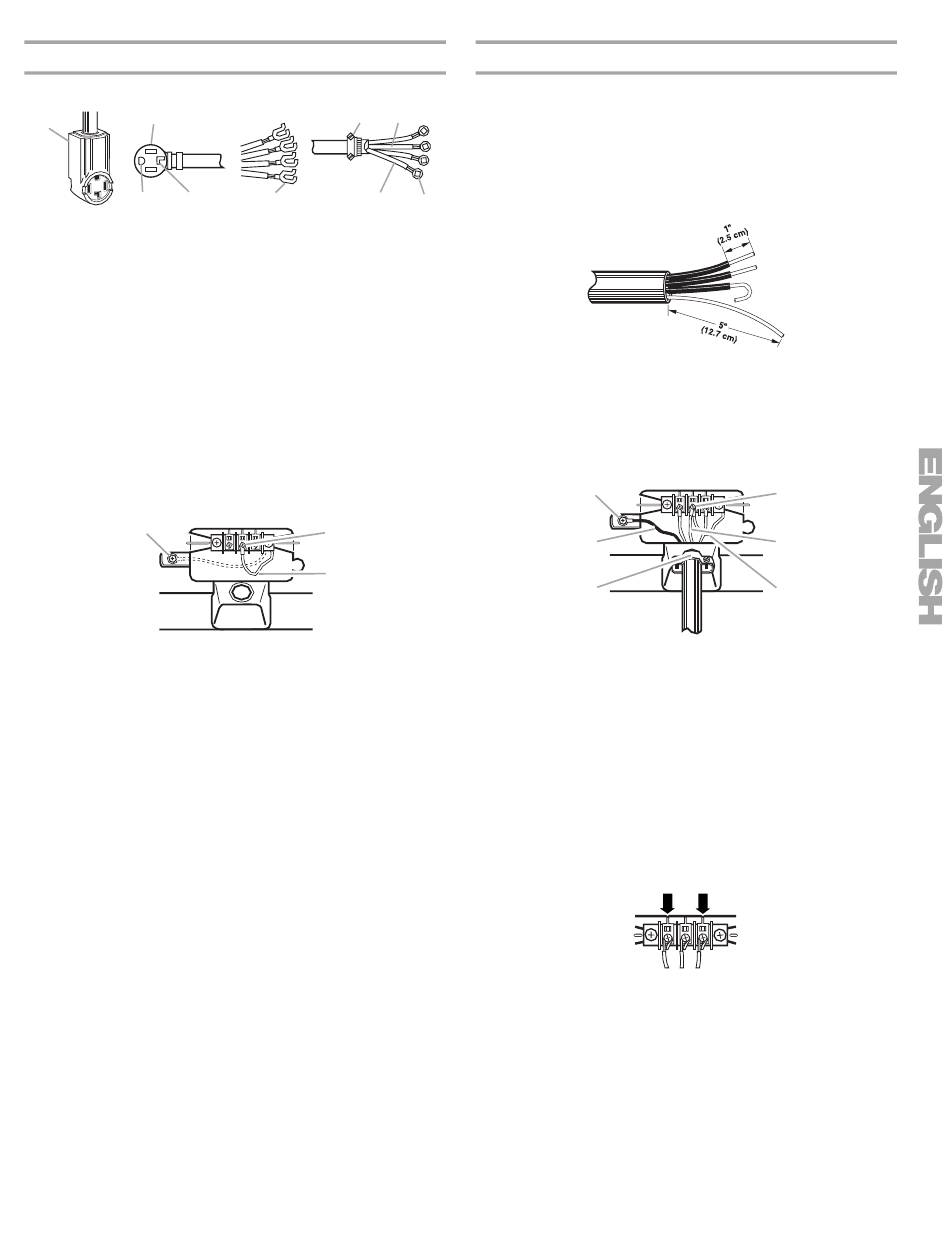

4-wire connection: Power supply cord
IMPORTANT: A 4-wire connection is required for mobile homes.
2
1
4
3
1. 4-wire receptacle (NEMA type 14-30R)
2. 4-prong plug
3. Ground prong
4. Neutral
5. Spade terminals with upturned ends
6. ³⁄₄ " (1.9 cm) UL approved strain relief
7. NEUTRAL wire (white)
8. Ground wire (green)
9. Ring terminals
The 4-wire power supply cord, at least 4 ft (122 cm) long, must
have 4, 10 gauge solid copper wires and match a 4-wire
receptacle of NEMA Type 14-30R. The fourth wire (ground
conductor) must be identified with a green cover and the neutral
conductor by a white cover.
1. Remove center terminal block screw.
2. Remove appliance ground wire (green with yellow stripes)
from external ground connector screw. Fasten it under center,
silver colored terminal block screw.
1
1. External ground connector - Dotted line shows
position of NEUTRAL ground wire before being
moved to center terminal block screw
2. Center silver-colored terminal block screw
3. Green/yellow wire of harness
3. Connect ground wire (green) of power supply cord to external
ground conductor screw. Tighten screw.
4. Connect neutral wire (white or center wire) of power supply
cord under center screw of the terminal block.
5. Connect the other wires to outer terminal block screws.
Tighten screws.
6. Tighten strain relief screws.
7. Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
6
7
5
8
9
2
3
4-wire connection: Direct Wire
IMPORTANT: A 4-wire connection is required for mobile homes.
Direct wire cable must have 4 ft (122 cm) of extra length so dryer
can be moved if needed.
Strip 5 in. (12.7 cm) of outer covering from end of cable, leaving
bare ground wire at 5 in. (12.7 cm). Cut 1 ¹⁄₂ in. (3.8 cm) from 3
remaining wires. Strip insulation back 1 in. (2.5 cm). Shape ends
of wires into a hook shape.
1. Remove center terminal block screw.
2. Remove appliance ground wire (green with yellow stripes)
from external ground connector screw. Fasten it under center,
silver colored terminal block screw.
3. Connect ground wire (bare) of power supply cable to external
ground conductor screw. Tighten screw.
1
2
3
1. External ground connector
2. Green wire of power supply cord or
bare copper wire
3. ³⁄₄ " (1.9 cm), U.L.-listed strain relief
4. Center silver-colored terminal block screw
5. Neutral wire (white)
6. Neutral grounding wire (green/yellow)
4. Place the hooked end of the neutral wire (white or center wire)
of power supply cable under the center screw of terminal
block (hook facing right). Squeeze hooked end together.
Tighten screw.
5. Place the hooked ends of the other power supply cable wires
under the outer terminal block screws (hooks facing right).
Squeeze hooked ends together. Tighten screws.
6. Tighten strain relief screws.
7. Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
4
5
6
9
