● REAR panel (1)
[DC 13.8 V]
[REMOTE]
• 3.5 mm (⅛ in) (d)
[DATA]
• 2.5 mm (d)
[REF IN 10MHz]
• SMA connector: 50 Ω
[KEY]
• 3.5 mm (⅛ in) (d)
[EXT-SP MAIN]/[EXT-SP SUB]
• 3.5 mm (⅛ in) (d)
[DC 13.8 V]
−

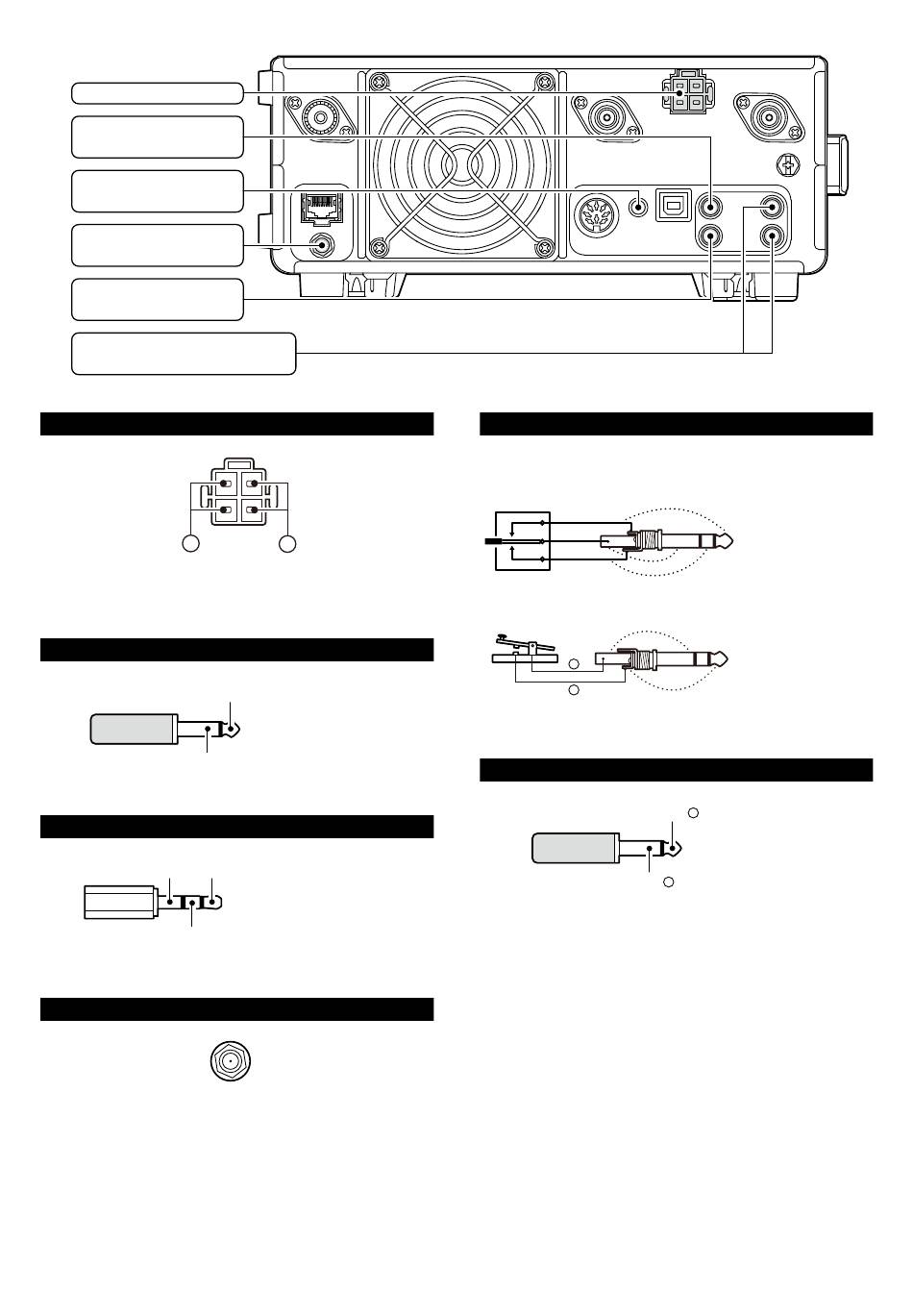

Rear panel view
• Input voltage: 13.8 V DC ±15%
[REMOTE]
GND
[DATA]
GND TxD
RxD
• Data communication: RS-232C compliant
[REF IN 10MHz]
SMA connector
• Input frequency:
• Impedance:
• Input level:
+
I/O
3.5 mm (⅛ in) (d)
2.5 mm (¹⁄10 in) (d)
10 MHz
50 Ω (unbalanced)
–10 dBm (approximate)
[KEY]
Connects to a Paddle key or Straight key.
• Paddle key
Dot
Com
Dash
• Straight key
−
+
[EXT-SP MAIN]/[EXT-SP SUB]
• Output impedance:
• Output level:
3-2
3.5 mm (⅛ in) (d)
3.5 mm (⅛ in) (d)
Audio +
3.5 mm (⅛ in) (d)
Audio −
4~8 Ω
More than 2.0 W at 10%
distortion into an 8 Ω load.
