Icom IC-9700 Service Manual page 9
Vhf/uhf all mode transceiver
Hide thumbs
Also See for IC-9700:
- Advanced manual (173 pages) ,
- Service manual addendum (163 pages) ,
- Basic manual (96 pages)
Table of Contents
Advertisement

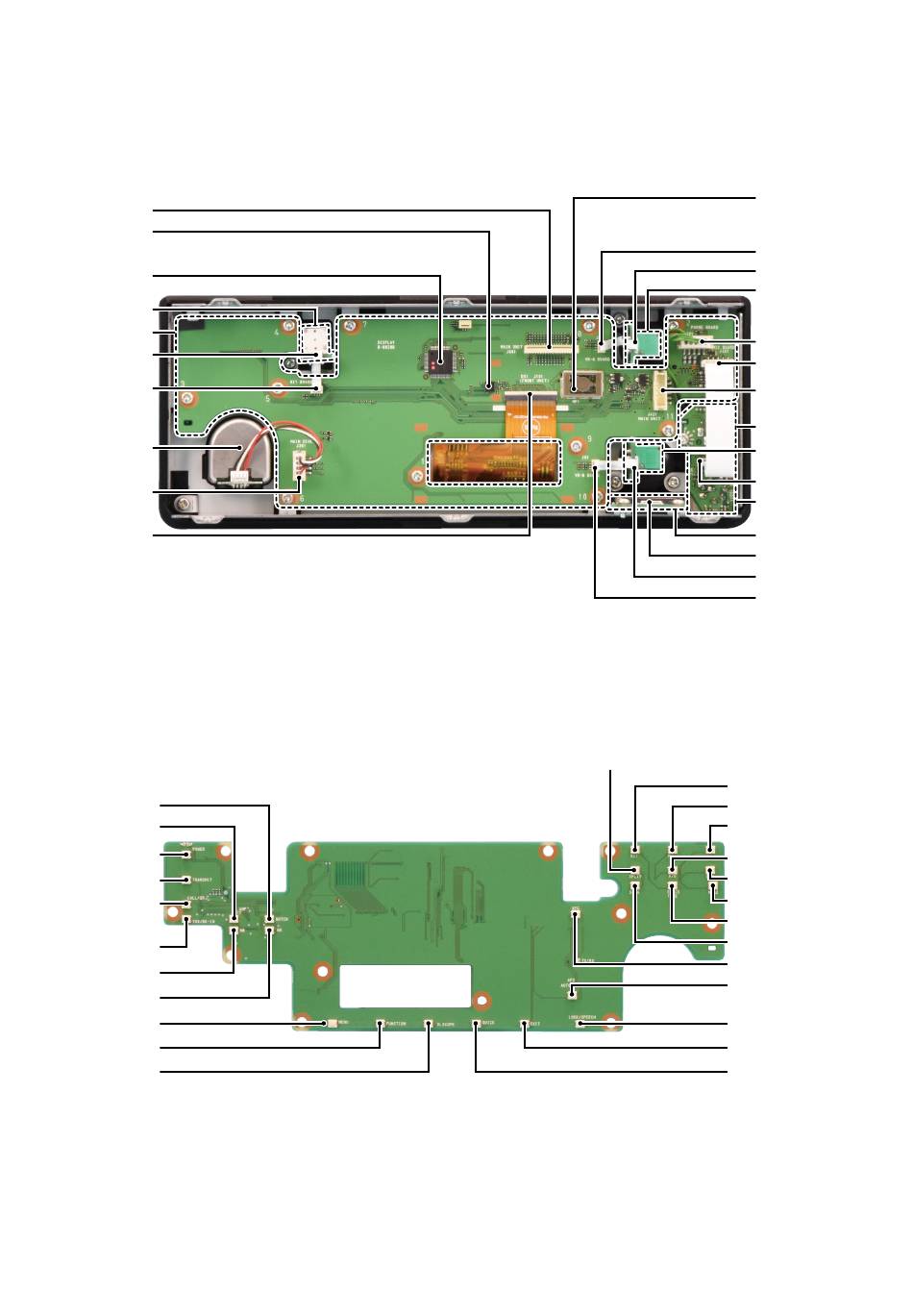

• FRONT UNIT (BOTTOM VIEW: DISPLAY/VR-A/VR-B/RIT/PHONE/MIC/SD UNIT)
J601
TOUCH SCREEN
CONTROLLER
(IC152)
FRONT CPU
(IC501)
RIT UNIT
DISPLAY UNIT
J1
J71
MAIN DIAL
(EP1)
J201
J101
• DISPLAY UNIT (TOP VIEW)
[NOTCH] (S6)
[P.AMP/ATT] (S5)
[POWER] (S1)
[TRANSMIT] (S2)
[CALL/DR] (S3)
[VOX/BK-IN] (S4)
[NB] (S7)
[NR] (S8)
[MENU] (S9)
[FUNCTION] (S10)
[M.SCOPE] (S11)
[SPLIT] (S20)
2-3
LCD DRIVER
(IC101)
Inside the
shielded case.
J51
J1
VR-A UNIT
J401
J451
J421
PHONE UNIT
VR-B UNIT
J2
MIC UNIT
SD UNIT
J2
J1
J61
[RIT] (S17)
[kHz/M-ch] (S18)
[PBT] (S19)
[A/B] (S21)
[V/M] (S22)
[MPAD] (S25)
[TONE/RX>CS] (S24)
[SCAN] (S23)
[XFC] (S14)
[AFC/AUTO TUNE]
(S15)
[SPEECH/LOCK] (S16)
[EXIT] (S13)
[QUICK] (S12)
