Icom IC-9700 Service Manual page 15

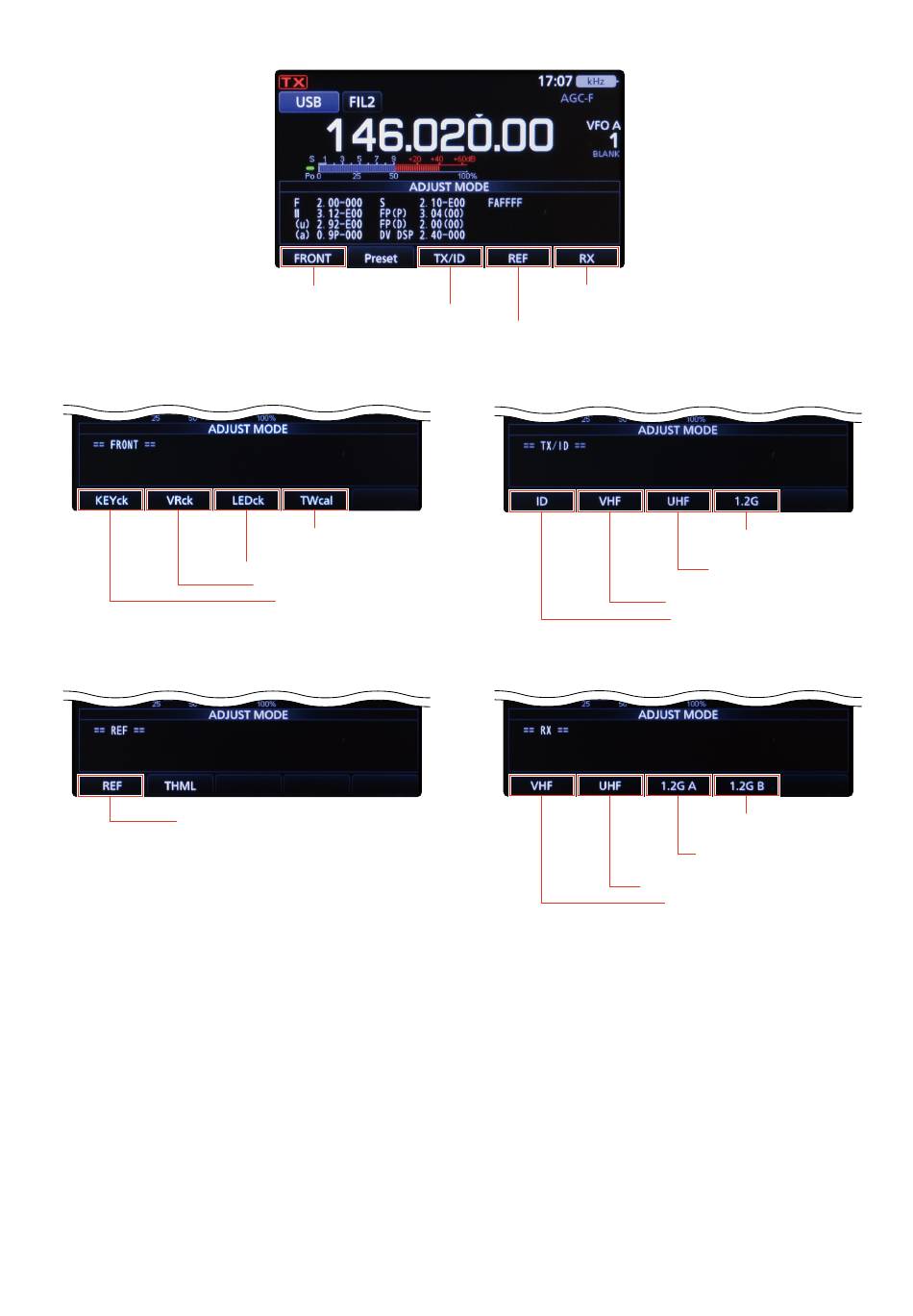

■ ENTERING THE ADJUST MODE
• MAIN MENU
Enter the FRONT panel operation verification menu.
• FRONT PANEL OPERATION VERIFICATION MENU
• REF ADJUST MENU
Starts the reference frequency adjustment.
Enter the TX/ID adjust menu.
Starts the touch screen
calibration.
Starts the LED and LCD verification.
Starts the volume verification.
Starts the key verification.
Enter the RX adjust menu.
Enter the REF adjust menu.
• TX/ID ADJUST MENU
• RX ADJUST MENU
4-3
Starts the 1.2 GHz band
adjustment.
Starts the 430 MHz band
adjustment.
Starts the VHF band adjustment.
Starts idling current adjustment.
Starts the 1.2 GHz B
band adjustment.
Starts the 1.2 GHz A band
adjustment.
Starts the 430 MHz band adjustment.
Starts the VHF band adjustment.
