Inside Views - Icom IC-9700 Service Manual

SECTION 2

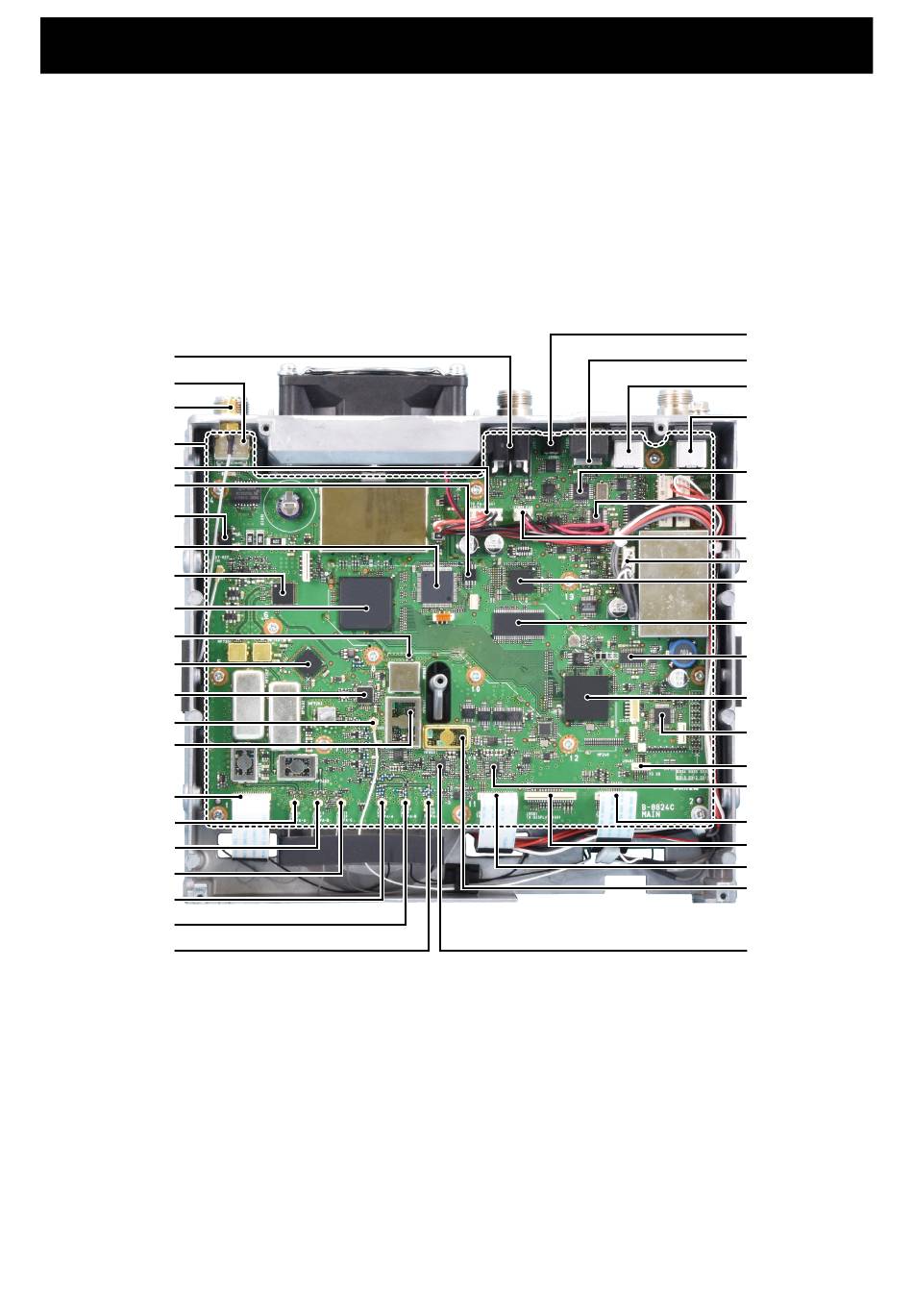

• MAIN UNIT (TOP VIEW)
[ACC] (J2911)
[LAN] (J1901)
[REF IN 10MHz]
(W131:CHASSIS)
MAIN UNIT
J9151
FLASH ROM
(IC331)
+5 V REGULATOR
(IC1221)
CPLD
(IC301)
ADC
(IC7501)
FPGA
(IC7601)
LVDS DRIVER
(IC8693)
DAC
(IC7201)
CLOCK GENERATOR
(IC8701)
J8661
CLOCK DIVISION IC
(IC8692)
Inside the shielded case.
J9001
J3101
J3111
J3021
J3071
J3081
J3091

INSIDE VIEWS

2-1
[DATA] (J2901)
[USB] (J1601)
[REMOTE]/[KEY]
(J2891)
[EX-SP MAIN]/
[EX-SP SUB]
(J2891)
USB HUB
(IC1601)
USB CODEC
(IC1531)
J2881
J9501
DV-DSP
(IC502)
SDRAM
(IC102)
DAC
(IC2001)
MAIN-CPU
(IC101)
SUB-CPU
(IC311)
J9401
ALC AMPLIFIER
(IC2501)
J9201
J9301
J9101
REFERENCE
OSCILLATOR
(X1)
Inside the shielded case.
APC AMPLIFIER
(IC2541)
