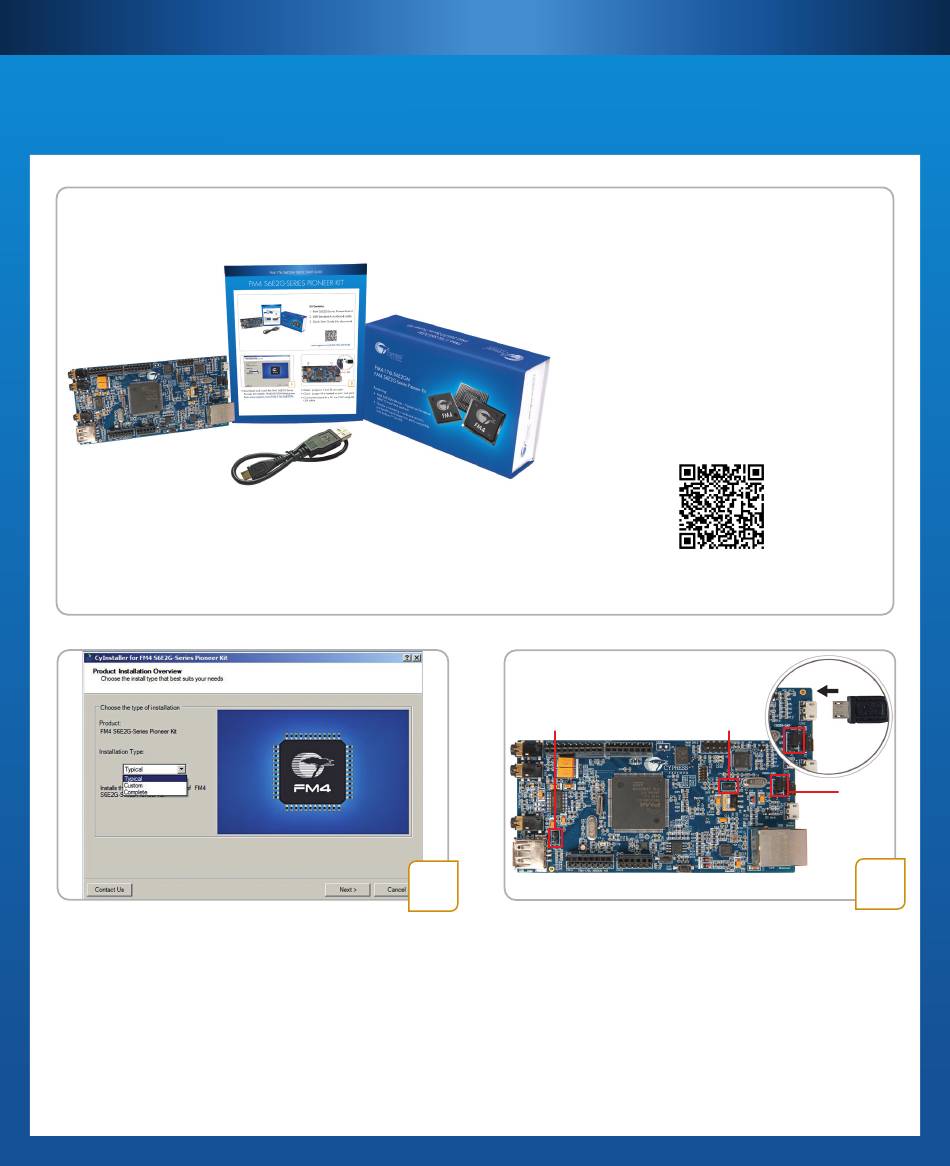

Cypress FM4 S6E2G PIONEER KIT Series Quick Start Manual

FM4 S6E2G-SERIES PIONEER KIT

• Download and install the FM4 S6E2G-Series

Pioneer Kit installer FM4S6E2GMKitSetup.exe

from

www.cypress.com/FM4-176L-S6E2GM

FM4-176L-S6E2GM QUICK START GUIDE

Kit Contents:

1 FM4 S6E2G-Series Pioneer board

2 USB Standard-A to Micro-B cable

3 Quick Start Guide (this document)

www.cypress.com/FM4-176L-S6E2GM

• Check jumpers J1 and J2 are open

• Check jumper J4 is loaded on pin1 and pin2

• Connect the board to a PC via CN2 using the

USB cable

Table of Contents

Do you have a question about the FM4 S6E2G PIONEER KIT Series and is the answer not in the manual?

Page 1 Kit Contents: 1 FM4 S6E2G-Series Pioneer board 2 USB Standard-A to Micro-B cable 3 Quick Start Guide (this document) www.cypress.com/FM4-176L-S6E2GM • Download and install the FM4 S6E2G-Series • Check jumpers J1 and J2 are open Pioneer Kit installer FM4S6E2GMKitSetup.exe • Check jumper J4 is loaded on pin1 and pin2 from www.cypress.com/FM4-176L-S6E2GM...
Page 2 FM4-176L-S6E2GM QUICK START GUIDE • Launch the Serial Port Viewer Tool from • Configure the baud rate as 115200 Start > All Programs > Cypress > • Click the Disconnected button to connect Serial Port Viewer Tool • Press Enter on your PC keyboard to run the •...
Page 3 FM4-176L-S6E2GM QUICK START GUIDE FM4 S6E2G-Series Pioneer Board Details 15 14 13 12 11 1. Cypress FM4 S6E2GM8J0A MCU 13. User button (SW2) 2. 4-Mb SRAM 14. Reset button (SW1) 3. 10-pin JTAG connector (CN1) 15. Accelerometer 4. Multicon Interface connector (CN12) 16.
Page 4 FM4 S6E2G-Series Pioneer board NC - Not Connected For the latest information about this kit, visit www.cypress.com/FM4-176L-S6E2GM © 2016 Cypress Semiconductor Corporation. All rights reserved. All trademarks or registered trademarks referenced herein are the property of their respective owners. 001-99193 Rev.*A...
