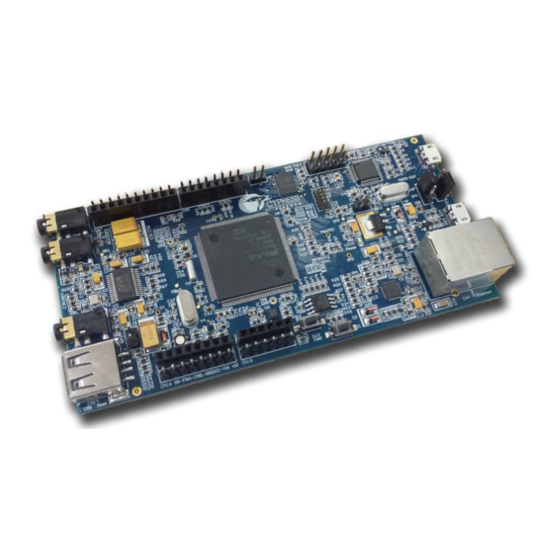

- Page 1 FM4 - 176LS6E2CC - ETH QUICK START GUIDE FM4 S6E2CC PIONEER KIT Kit Contents: 1 FM4 S6E2CC Pioneer Board 2 USB Standard -A to Micro -B cable 3 Quick Start Guide (this document...
- Page 2 FM4 - 176LS6E2CC - ETH QUICK START GUIDE FM4 S6E2CC PIONEER KIT • Download the port viewer • Download CMSIS - DAP rmware Terminal (page 3) and install it. Package and install the driver. • Connect the board with PC •...
- Page 3 Keil µVision IDE - http://www.Keil.com For the following documentations and software: User Manual Schematic Peripheral Driver Library (PDL) Port Viewer Terminal Software labs CMSIS - DAP rmware (on -board ICE) USB DIRECT ( ash programmer) Please Visit http://www.cypress.com/fm4 176Is6e2cceth...
- Page 4 22. Free-Pin headers (CN15~CN18) 23. J4 Power supply resource select 24. J3 Serial programming mode select © 2015 - 2017 Cypress Semiconductor Corporation. All rights reserved. All trademarks or registered trademarks referenced herein are the property of their respective owners. 002-09738 Rev*A...
