Quick Start for Hardware
Installation:

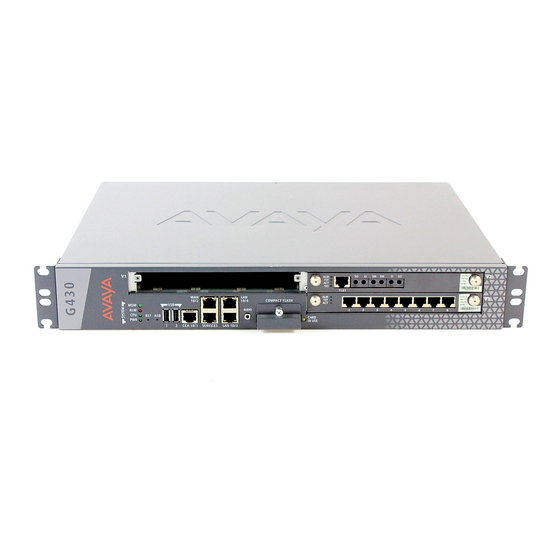

Avaya G430 Media Gateway
03-603236
Issue 1
May 2009
Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy.
DRAFT - January 25, 2009 - 1:38 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G430 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avaya G430

Summary of Contents for Avaya G430

  • Page 1 Quick Start for Hardware Installation: Avaya G430 Media Gateway 03-603236 Issue 1 May 2009 Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:38 PM...
  • Page 2 Avaya support Avaya provides a telephone number for you to use to report problems or to ask questions about your product. The support telephone number is 1-800-242-2121 in the United States. For additional support telephone numbers, see the Avaya Web site: http://www.avaya.com/support.

  • Page 3: Chapter 1: Before You Start

    Avaya Support Web site, at http://support.avaya.com. Preparing the G430 Serial Number In order to register the gateway to CM, you need the serial number of the G430. The serial number is printed on a sticker on the back of the G430 chassis.

  • Page 4: Downloading Cm License And Authentication Files To Your Laptop

    The INADS IP address is required in order to configure the S8300’s modem for alarming. If you are preparing a G430 with an S8300 for a remote installation, you must first obtain an INADS IP address. Use the Automatic Registration Tool (ART) to obtain an IP address for an INADS alarming modem.

  • Page 5: Preparing Tools Needed For Mounting

    Preparing Tools Needed for Mounting Modem – in order to set up a remote configuration of the G430, you must prepare a USB modem. ● Currently, the G430 supports the MultiTech USB modem, model MT5634ZBA-USB-V92. Preparing Tools Needed for Mounting To mount on a rack or wall, prepare a Phillips head screwdriver.
  • Page 6 Before you Start Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:38 PM 6 Quick Start for Hardware Installation: Avaya G430 Media Gateway...

  • Page 7: Chapter 2: Unpack The Device

    Table 1). The EM200 Accessory kit contains the same items as the G430 ● Accessory kit, as well as an expansion cable for connecting the EM200 to the G430. Table 1: G430 Accessory Kit Nine 4-40 Flat Head Screws One Grounding Cable Assembly Four Rubber Standoffs Avaya - Proprietary.

  • Page 8: Other Components

    If you ordered an upgrade memory kit or an add-on VoIP module, refer to Job Aid: Replacing the Field Replaceable Units (FRUs) for the Avaya G430 Media Gateway, 03-603237 for installation instructions. Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:37 PM...

  • Page 9: Chapter 3: Mount The Devices

    Chapter 3: Mount the Devices You can position the G430 – and EM200s, if ordered – on a suitable table, or mount them in a rack or on the wall.The EM200s enable you to optionally extend the G430 by attaching one or two EM200 expansion modules to the G430.

  • Page 10: Middle Mounting Bracket Placement

    2. Affix the bracket to the chassis with three flat head 4-40 screws. 3. Tighten the screws with the screwdriver. Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:38 PM...

  • Page 11: Mounting The G430

    To mount the G430 on a wall, use the two wall mounting brackets. If the wall is flat, you can screw the G430 directly to the wall. If the wall is not flat, screw a 415 x 465 mm (16.5 in. x 18.5 in.) plywood board, 20 mm (7/8 in.) thick, to the wall with wood screws. Affix a bracket to...
  • Page 12 Mount the Devices Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:38 PM 12 Quick Start for Hardware Installation: Avaya G430 Media Gateway...

  • Page 13: Chapter 4: Connect Em200 Expansion Modules To The G430

    2. If you mounted two EM200 modules, connect one EM200 to the CONNECTOR OUT 1 connector on the rear of the G430, and one EM200 to the CONNECTOR OUT 2 connector on the rear of the G430. Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy.
  • Page 14 Connect EM200 expansion modules to the G430 Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:38 PM 14 Quick Start for Hardware Installation: Avaya G430 Media Gateway...

  • Page 15: Chapter 5: Install Media Modules

    Chapter 5: Install Media Modules The required media modules may be pre-installed in the G430 chassis and EM200 device(s). If this is the case, skip this chapter. If the media modules are not pre-installed, or if you want to replace modules or add new media modules, install the necessary media modules and related components to support the configuration required for your site.
  • Page 16 2 ISDN BRI trunk ports S8300C or CM server S8300D Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:38 PM 16 Quick Start for Hardware Installation: Avaya G430 Media Gateway...

  • Page 17: Installing An S8300 Server Module

    Installing an S8300 Server Module Installing an S8300 Server Module The S8300 can only be inserted in slot V1 on the left side of the Avaya G430 Media Gateway. 1. Remove the blank plate from slot V1. 2. Position the media module before the V1 bay opening and engage both sides of the module in the interior guides.
  • Page 18 Install Media Modules Note: Although you can insert a total of seven MM710 media modules in the extended G430 (a Note: G430 with two EM200 expansion modules), the optimum number is four MM710 media modules, since the G430 can support up to 100 VoIP channels.

  • Page 19: Chapter 6: Power Up

    You must use two safety grounds to ensure safe operation of each G430 Media Gateway and EM200: The ground conductor that is part of the AC power cord.

  • Page 20: Connecting Power To The G430

    For each EM200 module you connected to the G430: 1. Connect the power cable to the power connector on the EM200 back panel. Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:38 PM...
  • Page 21 The V5-V6 LED on the EM200 front panel lights if the EM200 is connected to the CONNECTOR OUT 1 connector on the rear panel of the G430. This indicates that the two media module slots are considered slot 5 and slot 6 of the G430.
  • Page 22 Power Up Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:38 PM 22 Quick Start for Hardware Installation: Avaya G430 Media Gateway...

  • Page 23: Chapter 7: Prepare For Configuration

    Preparing a G430 with an S8300 Server Use the Avaya Installation Wizard (IW) to configure the G430 with an S8300. If a remote technician is configuring the G430, see Preparing the G430 with an S8300 for a remote configuration on page 25.
  • Page 24 Wizard (IW) opening screen appears. Configuring the G430 and S8300 using the Avaya IW Step through the screens of the Avaya IW to configure the S8300 and the G430. Take note of the following items: 1. On the initial IW screen, you can upgrade the wizard if you have a more current version of the AIW.rpm wizard file.
  • Page 25 25. On the Authentication File screen, load the CM authentication file that you prepared from your laptop. Preparing the G430 with an S8300 for a remote configuration If you need to prepare the G430 with an S8300 for a remote configuration, you must attach and enable a modem.
  • Page 26 1. Prepare a laptop with a CD-ROM drive, SSH client software, and a TFTP server on the network. This may be needed for installing software and firmware upgrades 2. Install the GIW software on your laptop. You can download the GIW software from the Avaya support Web site, at http://support.avaya.com/avayaiw...

  • Page 27: Configuring The G430 Using The Giw

    12. Click Finish to complete the G430 configuration. Preparing for a remote configuration of the G430 If you need to prepare the G430 for a remote configuration, you must attach a modem and enable it using the GIW. 1. From the Wizard Usage Options screen, select Enable the modem for remote installation, and click Continue.
  • Page 28 5. Connect the modem that you specified in Step 2. 6. Dial in to the modem to ensure that it is set up correctly. 7. A remote technician can now dial in to the G430 and complete the configuration using the CLI interface.

  • Page 29: Next Steps

    Using the Command Line Interface For information about configuring the G430 with the Command Line Interface: For instructions on how to connect to the CLI, review Chapter 4 of Administration for the Avaya G430 ● Media Gateway, 03-603228 - Accessing the Avaya G430 Media Gateway.
  • Page 30 Prepare for Configuration Avaya - Proprietary. Use pursuant to the terms of your signed agreement or Avaya policy. DRAFT - January 25, 2009 - 1:38 PM 30 Quick Start for Hardware Installation: Avaya G430 Media Gateway...
