SECTION 6—OPERATING INSTRUCTIONS
3. Insert a flathead screwdriver in the plate groove on the top
edge of the filter access door and gently pry the filter access
door off (FIGURE 6.2).
4. Pull up and remove the humidifier bottle adapter (FIGURE
6.2).
5. Replace the filter access door and install the air scoop onto the
filter access door by inserting the six tabs on the air scoop into
the six slots on the sides of the filter access door.

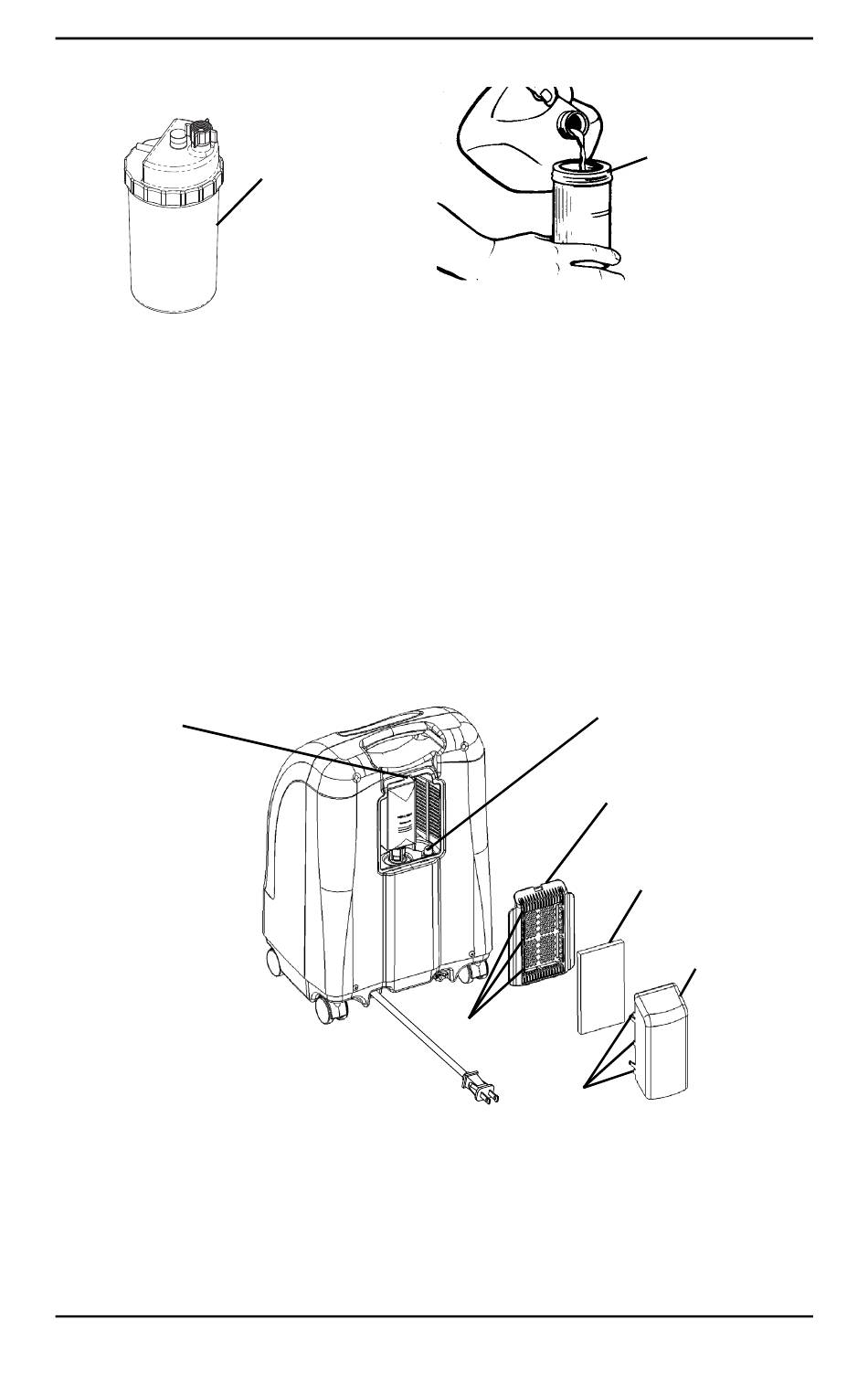

Insert Flat
Head
Screwdriver
Here
FIGURE 6.2
6. Attach the humidifier bottle adapter to the humidifier bottle
by turning the wing nut on the humidifier bottle
counterclockwise until it is securely fastened. See Detail "A"
in FIGURE 6.3.
Perfecto ™Series
2
Humidifier
Bottle with Cap
FIGURE 6.1
Humidifer Bottle Adapter
Filling the Humidifier
Slots
Tabs
18
Humidifier
Bottle w/o Cap
Humidifier Bottle
Adapter
Filter Access
Door
Cabinet Filter
Air
Scoop
Part No 1163147
