3. INSTALLATION

C A U T I O N C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
NOTE
The T400 housing requires an NEC Class 2 type
power supply rated 48 Vdc, maximum 240 VA
After unpacking the unit, inspect it for damage. If
damage is discovered, file a claim with the carrier,
then contact ADTRAN. See Warranty and Customer
Service. Components shipped with the unit include
the following:
• T400 chassis (including RJ-48C jack)
• RJ-48X jack (shipped loose)
• Four #8 screws
• Wall mounting template (if ordered)
The T400 chassis is designed to be wall-mounted
using the four #8 screws provided. Install the housing
using the following procedure:
1. Determine the housing location and orientation.
Ensure clearance so the cover fully opens and
wiring reaches termination points.
2. Remove the circuit board from the housing (if
installed).
61242034L3-5B
CAUTION
Risk of electrical shock.
Maximum voltages up to
-200 vdc may be present
on Telecom circuits

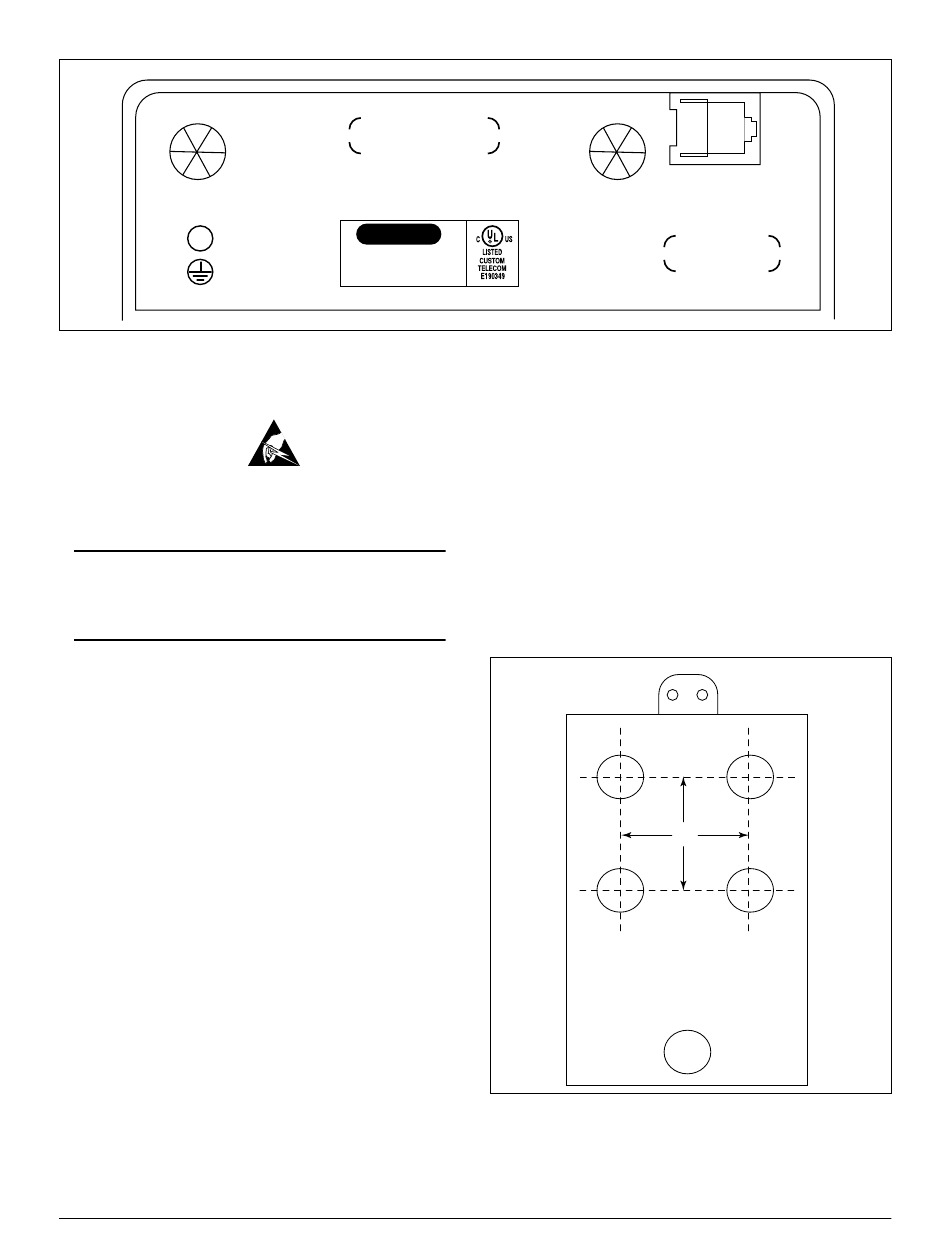

Figure 3. T400 Housing Rear Panel

61242034L3-5, Issue 2
POWER / CUSTOMER
3. Mark where the pilot holes will be drilled.
• Use dimensions in Figure 4 or,
• Use the bottom panel as a template or,
• Use the template (if ordered), remove after
use.
4. Using the appropriate bit, drill the four pilot
holes.
5. Position the housing in the desired orientation
and secure to the wall using the screws provided.
3"
Figure 4. Wall Mount Template
Measurements
