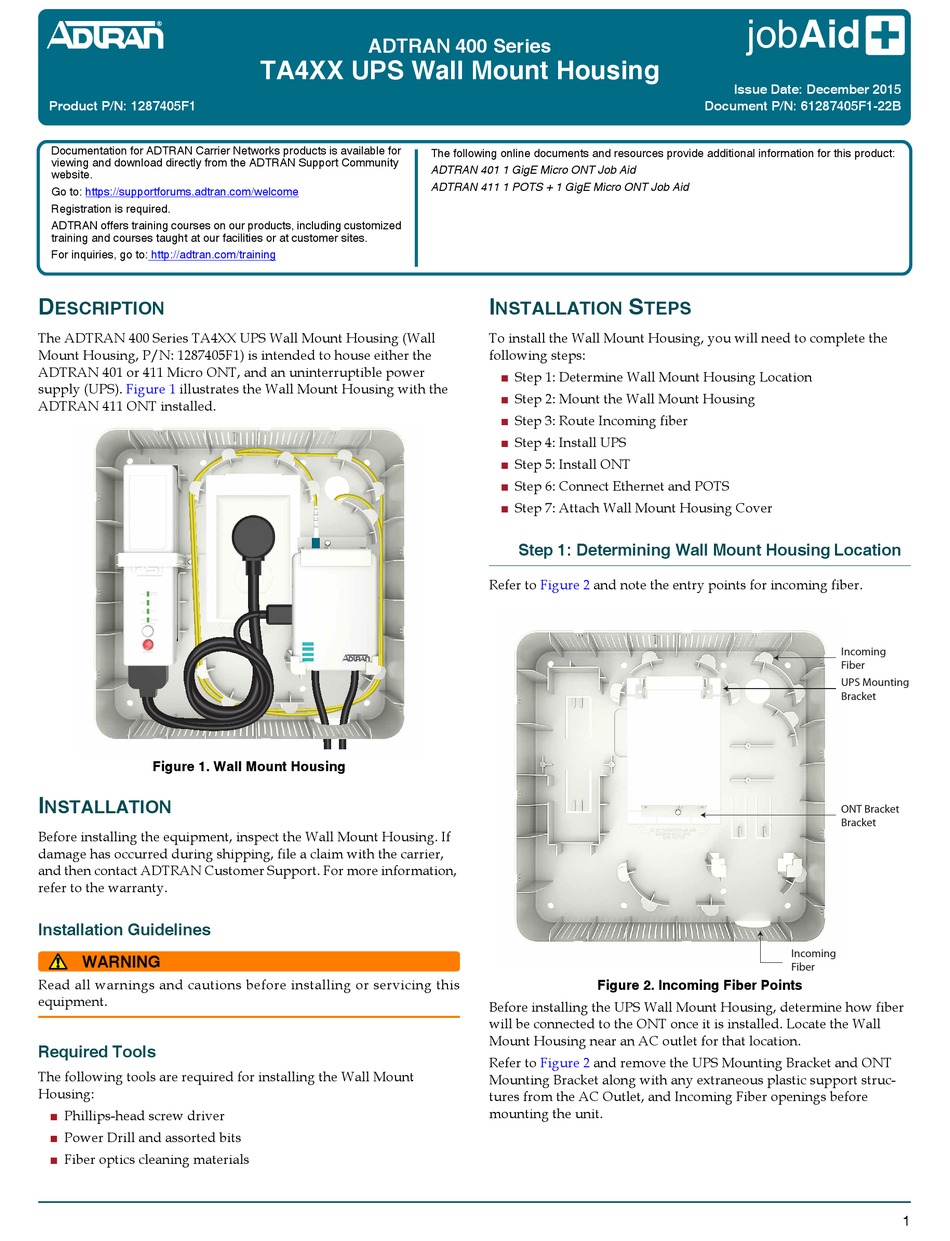

The ADTRAN 400 Series TA4XX UPS Wall Mount Housing (Wall
Mount Housing, P/N: 1287405F1) is intended to house either the
ADTRAN 401 or 411 Micro ONT, and an uninterruptible power

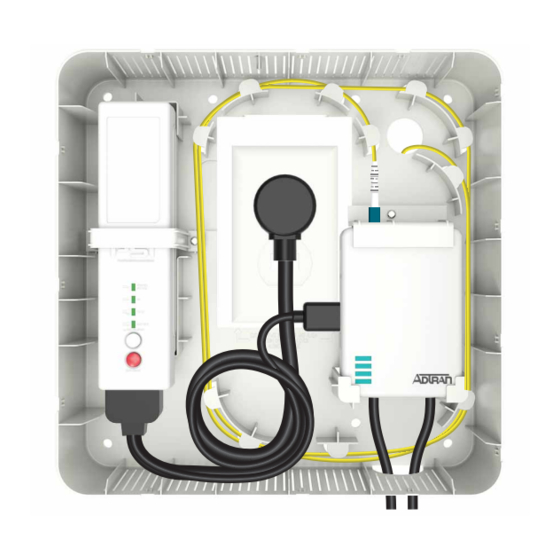

supply (UPS). Figure 1 illustrates the Wall Mount Housing with the
ADTRAN 411 ONT installed.
Figure 1. Wall Mount Housing
I
NSTALLATION
Before installing the equipment, inspect the Wall Mount Housing. If
damage has occurred during shipping, file a claim with the carrier,
and then contact ADTRAN Customer Support. For more information,
refer to the warranty.
Installation Guidelines
!
WARNING
Read all warnings and cautions before installing or servicing this
equipment.
Required Tools
The following tools are required for installing the Wall Mount
Housing:
■ Phillips-head screw driver
■ Power Drill and assorted bits
■ Fiber optics cleaning materials
ADTRAN 400 Series
TA4XX UPS Wall Mount Housing
The following online documents and resources provide additional information for this product:
ADTRAN 401 1 GigE Micro ONT Job Aid
ADTRAN 411 1 POTS + 1 GigE Micro ONT Job Aid
I S
NSTALLATION TEPS
To install the Wall Mount Housing, you will need to complete the
following steps:
■ Step 1: Determine Wall Mount Housing Location
■ Step 2: Mount the Wall Mount Housing
■ Step 3: Route Incoming fiber
■ Step 4: Install UPS
■ Step 5: Install ONT
■ Step 6: Connect Ethernet and POTS
■ Step 7: Attach Wall Mount Housing Cover
Step 1: Determining Wall Mount Housing Location
Refer to Figure 2 and note the entry points for incoming fiber.
Figure 2. Incoming Fiber Points
Before installing the UPS Wall Mount Housing, determine how fiber
will be connected to the ONT once it is installed. Locate the Wall
Mount Housing near an AC outlet for that location.
Refer to Figure 2 and remove the UPS Mounting Bracket and ONT
Mounting Bracket along with any extraneous plastic support struc-
tures from the AC Outlet, and Incoming Fiber openings before
mounting the unit.
jobAid
Issue Date: December 2015
Document P/N: 61287405F1-22B
Incoming
Fiber
UPS Mounting
Bracket
ONT Bracket
Bracket
Incoming
Fiber
