- Page 1 Stage TRI LED Bundle Extension LED lighting set user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 26.09.2018, ID: 279035 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................10 Features............................... 16 Installation..............................17 Starting up..............................21 Connections and operating elements................... 24 Operating..............................30 7.1 Starting up the device........................ - Page 4 Table of contents 7.6 Functions in 4-channel DMX mode (d.-P2)................45 7.7 Functions in 7-channel DMX mode (d.-P7)................45 7.8 Functions in 8-channel DMX mode (d.-P3) ................48 7.9 Functions in 14-channel DMX mode (d.-P4)................49 7.10 Functions in 15-channel DMX mode (d.-P6)................ 51 7.11 Remote control functions......................
-
Page 5: General Notes
General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 6: Further Information
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Notational Conventions
General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’... -
Page 8: Symbols And Signal Words
General notes 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. - Page 9 General notes Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – danger zone. Stage TRI LED Bundle Extension...
-
Page 10: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. - Page 11 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 12 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
- Page 13 Safety instructions WARNING! Risk of burns The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and after switching off wait for at least 15 minutes. NOTICE! Risk of fire Do not block areas of ventilation.
- Page 14 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
- Page 15 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
-
Page 16: Features
Features Features The LED lighting set is particularly suitable for professional lighting tasks, for example at events, on rock stages, in theatres and musicals. It's characterized by low power consumption and long service life. Special features of the device: 4 LED spots each with 7 tricolour LEDs pre-mounted on T-bar Control via DMX (7 different modes), via buttons and display on the unit, foot switch as well as infrared remote control 14 preprogrammed automatic shows... -
Page 17: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 18 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐...

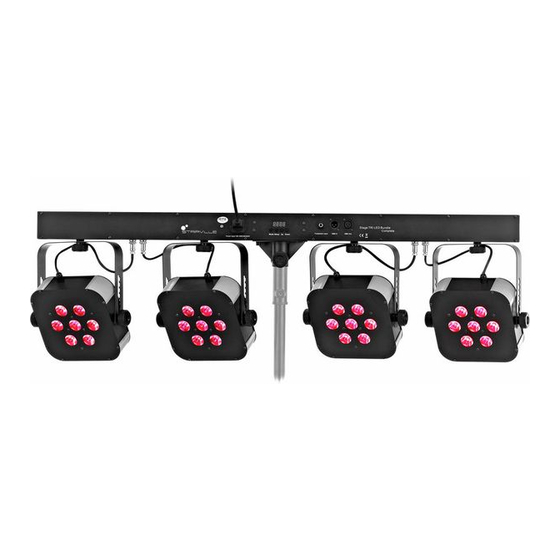

- Page 19 Installation Pre-mounted spots The four spots (1 … 4, left to right) are pre-mounted on the T-bar. Locking screws to fix the height and inclination angle. Locking screw for fixing the spots on the T-bar and the horizontal orientation (dispersion direction). Electrical connection of the spot at the T-bar (pre-mounted).
- Page 20 Installation 1/4" phone socket to connect the foot controller unit (option) Receptacle for tripod Please note that this device must not be connected to a dimmer. LED lighting set...
-
Page 21: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Stage TRI LED Bundle Extension... - Page 22 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
- Page 23 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.
-
Page 24: Connections And Operating Elements
Connections and operating elements Connections and operating elements Front panel LED lighting set... - Page 25 Connections and operating elements 1 IEC chassis plug for power supply with fuse holder 2 Display 3 Button [Mode] Activates the main menu and toggles between menu items. Closes an opened sub menu. 4 Button [Setup] Selects an option of the respective operating mode, confirms the set value. 5 Button [Up] Increases the displayed value by one.
- Page 26 Connections and operating elements 9 [DMX In] DMX input. 10 [DMX Out] DMX output 11 [Power Out] IEC chassis socket for the power supply cable to the next unit of the same type. LED lighting set...
- Page 27 Connections and operating elements Infrared remote (optionally available) Stage TRI LED Bundle Extension...
- Page 28 Connections and operating elements 16 [AUTO] Activates the ‘Automatic‘ mode. 17 [PRG] Activates the operating mode ‘Preprogrammed automatic show’. Select the desired programme with the buttons [+] and [–]. 18 [ON/OFF] Activates / deactivates the device. 19 [SPEED] Activates the setting mode for the programme speed. Adjust the speed using the buttons [+] and [–].
- Page 29 Connections and operating elements 22 [+] Increases the set value. 23 [–] Decreases the set value. 24 [Dimming] Activates the dimming function for basic colours. Set the value for each basic colour using the buttons [+] and [–]. 25 [0 … 9] Numeric buttons for direct selection of a basic colour.
-
Page 30: Operating
Operating Operating 7.1 Starting up the device Connect the unit to the power grid to start the operation. After a few seconds the display shows a running reset. Then the unit is ready for use. 7.2 Main menu Press [Mode] to activate the main menu and select an operating mode. Use [Setup] to select further options. - Page 31 Operating Operating mode ‘Built-in auto‐ A built-in automatic show can only be activated if the unit is working in stand-alone mode or matic show’ as master device in a master / slave combination. This setting is only relevant if the unit is not controlled via DMX.
- Page 32 Operating Programme Description Pr.09 Chase 4 Pr.10 Chase 5 Pr.11 Chase 6 Pr.12 Colour change 2 Pr.13 Chase 7 Pr.14 Chase 8 Settings for programme 01: For ‘Pr.01’ , you can choose from 7 colours or blackout. Press [Setup]. Now use [Up] and [Down] to select one of the colours.
- Page 33 Operating To set the fade speed of the selected automatic show, repeatedly press [Setup] until the display shows ‘Fdxx’ . Now use [Up] and [Down] to select a value between ‘Fd00’ and ‘Fd99’ . To set the strobe frequency, repeatedly press [Setup] until the display shows ‘FSxx’ . Now use [Up] and [Down] to select a value between ‘FS00’...
- Page 34 Operating Operating mode ‘Automatic’ Automatic operation can only be activated if the unit is working in stand-alone mode or as master device in a master / slave combination. This setting is only relevant if the unit is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘AUTO’...
- Page 35 Operating DMX mode This setting is only relevant if the unit is controlled via DMX. Press [Mode] repeatedly until the display shows ‘d.xxx’ . Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (the display shows ‘d.001’...
- Page 36 Operating Press [Setup]. Use [Up] and [Down] to select one of the following DMX operating modes: ‘d.-P1’ (3 channels) ‘d.-P2’ (4 channels) ‘d.-P3’ (8 channels) ‘d.-P4’ (14 channels) ‘d.-P5’ (2 channels) ‘d.-P6’ (15 channels) ‘d.-P7’ (7 channels) Operating mode ‘Slave’ This setting is only relevant if the unit is operated as slave device in a master / slave configura‐...
- Page 37 Operating Sound-control A sound-controlled automatic show can only be activated if the unit is working in stand-alone mode or as master device in a master / slave combination. This setting is only relevant if the unit is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘SU.xx’...
- Page 38 Operating Constant unicoloured pattern A constant unicoloured pattern can only be activated if the unit is working in stand-alone mode or as master device in a master / slave combination. This setting is only relevant if the unit is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘Colr’...
-
Page 39: Menu Overview
Operating 7.3 Menu overview Stage TRI LED Bundle Extension... - Page 40 Operating LED lighting set...
- Page 41 Operating Stage TRI LED Bundle Extension...
-
Page 42: Functions In 2-Channel Dmx Mode (D.-P5)
Operating 7.4 Functions in 2-channel DMX mode (d.-P5) Channel Value Function 0…9 LEDs off 10…19 Constant unicoloured pattern in red for all LEDs 20…29 Constant unicoloured pattern in yellow for all LEDs 30…39 Constant unicoloured pattern in green for all LEDs 40…49 Constant unicoloured pattern in cyan for all LEDs 50…59... - Page 43 Operating Channel Value Function 180…189 Preprogrammed automatic show no. 11 190…199 LEDs off 200…209 Constant unicoloured pattern in red for all LEDs 210…219 Preprogrammed automatic show no. 12 220…229 Preprogrammed automatic show no. 13 230…239 Preprogrammed automatic show no. 14 240…255 Sound-controlled show Function depends on channel 1 setting...
-
Page 44: Functions In 3-Channel Dmx Mode (D.-P1)
Operating Channel Value Function Channel 1 = 240…225 0…255 Increasing sensitivity 7.5 Functions in 3-channel DMX mode (d.-P1) Channel Value Function 0…255 Intensity red (0 % to 100 %) for all LEDs 0…255 Intensity green (0 % to 100 %) for all LEDs 0…255 Intensity blue (0 % to 100 %) for all LEDs LED lighting set... -
Page 45: Functions In 4-Channel Dmx Mode (D.-P2)
Operating 7.6 Functions in 4-channel DMX mode (d.-P2) Channel Value Function 0…255 Intensity red (0 % to 100 %) for all LEDs 0…255 Intensity green (0 % to 100 %) for all LEDs 0…255 Intensity blue (0 % to 100 %) for all LEDs 0…255 Dimmer (0 % to 100 %) 7.7 Functions in 7-channel DMX mode (d.-P7) - Page 46 Operating Channel Value Function 0…9 LEDs off 10…19 Constant unicoloured pattern in red for all LEDs 20…29 Constant unicoloured pattern in yellow for all LEDs 30…39 Constant unicoloured pattern in green for all LEDs 40…49 Constant unicoloured pattern in cyan for all LEDs 50…59 Constant unicoloured pattern in blue for all LEDs 60…69...
- Page 47 Operating Channel Value Function 200…209 Constant unicoloured pattern in red for all LEDs 210…219 Preprogrammed automatic show no. 12 220…229 Preprogrammed automatic show no. 13 230…239 Preprogrammed automatic show no. 14 240…255 Sound-controlled show Function depends on channel 4 setting Channel 4 = 0…79 No function Channel 4 = 80…239...
-
Page 48: Functions In 8-Channel Dmx Mode (D.-P3)
Operating Channel Value Function Channel 4 = 0…9 No function Channel 4 = 10…255 0…255 Strobe effect, increasing speed 0…255 Dimmer (0 % to 100 %) 7.8 Functions in 8-channel DMX mode (d.-P3) Channel Value Function 0…255 Intensity red (0 % to 100 %) for all LEDs of spots 1 and 2 0…255 Intensity green (0 % to 100 %) for all LEDs of spots 1 and 2 0…255... -
Page 49: Functions In 14-Channel Dmx Mode (D.-P4)
Operating Channel Value Function 0…255 Intensity red (0 % to 100 %) for all LEDs of spots 3 and 4 0…255 Intensity green (0 % to 100 %) for all LEDs of spots 3 and 4 0…255 Intensity blue (0 % to 100 %) for all LEDs of spots 3 and 4 0…255 Strobe effect, increasing speed 0…255... - Page 50 Operating Channel Value Function 0…255 Intensity red (0 % to 100 %) for all LEDs of spot 2 0…255 Intensity green (0 % to 100 %) for all LEDs of spot 2 0…255 Intensity blue (0 % to 100 %) for all LEDs of spot 2 0…255 Intensity red (0 % to 100 %) for all LEDs of spot 3 0…255...
-
Page 51: Functions In 15-Channel Dmx Mode (D.-P6)
Operating 7.10 Functions in 15-channel DMX mode (d.-P6) Channel Value Function 0…9 RGB mode for channels 2 to 15 10…249 Preprogrammed automatic shows 250…255 Sound-controlled show Functions of channels 2 to 15 depend on the setting of channel 1, 0…9 0…255 Dimmer (0 % to 100 %) 0…9... -
Page 52: Remote Control Functions
Operating Channel Value Function 0…255 Intensity green (0 % to 100 %) for all LEDs of spot 2 0…255 Intensity blue (0 % to 100 %) for all LEDs of spot 2 0…255 Intensity red (0 % to 100 %) for all LEDs of spot 3 0…255 Intensity green (0 % to 100 %) for all LEDs of spot 3 0…255... - Page 53 Operating Direct selection of a static colour Use the numeric keys of the remote control to select a static colour directly. This setting is only relevant if the device is not controlled via DMX. Value Static colour Cyan Purple Pink Orange Cool white Light red...
-
Page 54: Reset To Factory Defaults
Operating Value Static colour Green Blue Amber 7.12 Reset to factory defaults Proceed as follows to restore the factory default settings: Switch off the device. Simultaneously press [Mode] and [Setup] and switch on the device, holding the two but‐ tons for approx. 2 seconds. LED lighting set... -
Page 55: Technical Specifications
Technical specifications Technical specifications Number of DMX channels 2, 3, 4, 7, 8, 14 or 15 channels, depending on operating mode Illuminant 28 × 3 W tricolour LEDs (7 × per spot) Beam angle ca. 40° Operating supply voltage 100 ... 240 V , 50 … 60 Hz Power consumption 90 W Fuse... -
Page 56: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 57: Cleaning
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. -
Page 58: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery. - Page 59 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose this device through an approved waste disposal firm or through your local waste facility.
- Page 60 Notes LED lighting set...
- Page 61 Notes Stage TRI LED Bundle Extension...
- Page 62 Notes LED lighting set...
- Page 64 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
