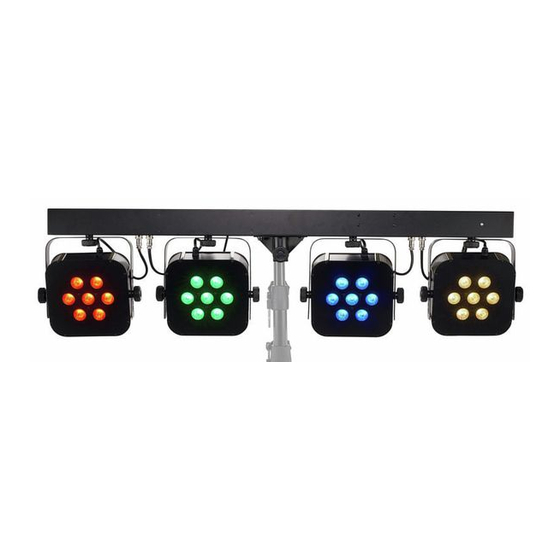

thomann STAIRVILLE Stage Quad LED Bundle RGBW User Manual

Led lighting set
Hide thumbs Also See for STAIRVILLE Stage Quad LED Bundle RGBW:
Table of Contents

Advertisement

Quick Links

Download this manual
Stage Quad LED Bundle
RGBW / RGBWW
LED lighting set
user manual

Advertisement

Table of Contents
loading

Related Manuals for thomann STAIRVILLE Stage Quad LED Bundle RGBW

Summary of Contents for thomann STAIRVILLE Stage Quad LED Bundle RGBW

  • Page 1 Stage Quad LED Bundle RGBW / RGBWW LED lighting set user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 30.03.2021, ID: 406030, 404465 (V4)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................11 Features............................... 15 Installation..............................16 Starting up..............................22 Connections and controls........................25 Operating..............................33 7.1 Starting the device........................... 33 7.2 Main menu............................
  • Page 4 Table of contents 7.6 Functions in 5-channel DMX mode................... 46 7.7 Functions in 8-channel DMX mode................... 47 7.8 Functions in 10-channel DMX mode..................50 7.9 Functions in 18-channel DMX mode..................51 7.10 Reset to factory defaults......................53 Technical specifications........................54 Plug and connection assignments....................

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Stage Quad LED Bundle RGBW / RGBWW...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...

  • Page 8: Symbols And Signal Words

    General information Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 9 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 10 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. LED lighting set...

  • Page 11: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 12 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices.
  • Page 13 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only.
  • Page 14 Safety instructions NOTICE! Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. NOTICE! Risk of short-circuits Short-circuits may cause irreparable damages of the device.

  • Page 15: Features

    Features Features The LED light set offers an ideal combination of white and coloured light for parallel illumina‐ tion of stage and dance floor in various shades. four LED spots with each seven 4-in-1 LEDs, 4 W each, pre-mounted on T-bar –...

  • Page 16: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 17 Installation NOTICE! Damages due to disconnection during operation Only operate the unit when all spotlights are connected. The disconnection of LED spotlights during operation may damage the unit. Dis‐ connect the unit from the power supply before disconnecting LED spotlights. NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more...
  • Page 18 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐...
  • Page 19 Installation Pre-mounted spots The four spots are pre-mounted on the T-bar. Locking screws to fix the height and inclination angle. Threads for attaching additional effects units or for hanging using the C-hooks. Stage Quad LED Bundle RGBW / RGBWW...
  • Page 20 Installation Electrical connection of the spot at the T-bar (pre-mounted). Locking screw for fixing the spots on the T-bar and the horizontal orientation (dispersion direction). LED lighting set...
  • Page 21 Installation Inserting the battery into the Press the lock of the battery holder to the centre of the housing and pull out the battery holder remote control like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing base of the remote control.

  • Page 22: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED lighting set...
  • Page 23 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 24 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 25: Connections And Controls

    Connections and controls Connections and controls Stage Quad LED Bundle RGBW / RGBWW...
  • Page 26 Connections and controls 1 [Power In] IEC chassis plug for power supply with fuse holder. 2 Display and function buttons. [Mode] Activates the main menu and toggles between menu items. Closes an opened submenu. [Setup] Selects an option of the respective operating mode, confirms the set value. [Up] Increases the displayed value by one.
  • Page 27 Connections and controls 4 [DMX In] DMX input 5 [DMX Out] DMX output 6 [IR] Infrared receiver for the remote control signals. Make sure that the IR sensor is not obstructed. 7 [Power Out] IEC chassis socket for the power supply cable to the next unit of the same type. Stage Quad LED Bundle RGBW / RGBWW...
  • Page 28 Connections and controls Foot switch unit (optionally available) LED lighting set...
  • Page 29 Connections and controls 8 [Auto Run] Activates the automatic mode (playback of preprogrammed automatic shows). 9 [Sound Active] Activates the sound-controlled mode (playback of sound-controlled automatic shows). 10 [Freeze] Pauses the running show and resumes it after a break. 11 [Blackout] Blackouts all LEDs and turns them back on again.
  • Page 30 Connections and controls Infrared remote (optionally available) LED lighting set...
  • Page 31 Connections and controls 12 [AUTO] Activates the Automatic mode. 13 [PRG] Activates the operating mode ‘Preprogrammed automatic show’. Select the desired programme with [+] and [–]. 14 [ON/OFF] Activates / deactivates the device. 15 [SPEED] Activates the setting mode for the programme speed. Adjust the speed using [+] and [–]. 16 [SOUND] Activates the Sound-controlled mode.
  • Page 32 Connections and controls 19 [–] Decreases the set value. 20 [Dimming] Activates the dimming function for basic colours. Set the value for each basic colour using [+] and [–]. 21 [0 … 9] Numeric buttons for direct selection of a basic colour. 22 [R], [G], [B], [A], [W] Buttons to select the colour shade in dimmer mode.

  • Page 33: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. 7.2 Main menu Press [Mode] to activate the main menu and select an operating mode. Use [Setup] to select further options.
  • Page 34 Operating Operating mode ‘Automatic’ Automatic operation can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not con‐ trolled via DMX. Press [Mode] repeatedly until the display shows ‘AUTO’...
  • Page 35 Operating Operating mode ‘Preprog‐ A preprogrammed automatic show can only be activated when the unit is operating in stand- rammed automatic show’ alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX.
  • Page 36 Operating Operating mode ‘Slave’ This setting is only relevant if the device is serving as Slave in a Master / Slave configuration and is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘SLAv’ and confirm with [Setup]. LED lighting set...
  • Page 37 Operating DMX mode This setting is only relevant when the device is controlled via DMX. Press [Mode] until the display shows ‘d.xxx’ . Press [Setup]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (display shows ‘d.001’...
  • Page 38 Operating ‘2-ch’ (two channels) ‘4-ch’ (four channels) ‘5-ch’ (five channels) ‘8-ch’ (eight channels) ‘10ch’ (ten channels) ‘18ch’ (eighteen channels) Sound control A sound-controlled show can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX.
  • Page 39 Operating Constant unicoloured pattern A constant unicoloured pattern can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX. Press [Mode] until the display shows ‘Colr’...

  • Page 40: Menu Overview

    Operating 7.3 Menu overview LED lighting set...
  • Page 41 Operating Stage Quad LED Bundle RGBW / RGBWW...

  • Page 42: Functions In 2-Channel Dmx Mode

    Operating 7.4 Functions in 2-channel DMX mode Channel Value Function 0…10 Preprogrammed automatic show Pr.01 11…21 Preprogrammed automatic show Pr.02 231…241 Preprogrammed automatic show no. 22 242…255 Sound-controlled show Function depending on setting of channel 1 Channel 1 = 0…10 0…16 17…33 Basic colour cyan...
  • Page 43 Operating Channel Value Function 68…84 Basic colour orange 85…101 Basic colour cold white 102…118 Basic colour pompadour 119…135 Basic colour light green 136…152 Basic colour light blue 153…169 Basic colour yellow 168…186 Basic colour warm white 187…203 Basic colour red 202…220 Basic colour green 221…237...
  • Page 44 Operating Channel Value Function 0…255 Programme speed Pr.02…Pr.22 Channel 1 = 242…255 0…255 Sound-controlled operation SO.01…SO.15 LED lighting set...

  • Page 45: Functions In 4-Channel Dmx Mode

    Operating 7.5 Functions in 4-channel DMX mode Channel Value Function 0…255 Intensity red (0 % to 100 %), for all LEDs together 0…255 Intensity green (0 % to 100 %), for all LEDs together 0…255 Intensity blue (0 % to 100 %), for all LEDs together 0…255 Intensity white (0 % to 100 %), for all LEDs Stage Quad LED Bundle RGBW / RGBWW...

  • Page 46: Functions In 5-Channel Dmx Mode

    Operating 7.6 Functions in 5-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity red (0 % to 100 %), for all LEDs together 0…255 Intensity green (0 % to 100 %), for all LEDs together 0…255 Intensity blue (0 % to 100 %), for all LEDs together 0…255...

  • Page 47: Functions In 8-Channel Dmx Mode

    Operating 7.7 Functions in 8-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity red (0 % to 100 %), for all LEDs together 0…255 Intensity green (0 % to 100 %), for all LEDs together 0…255 Intensity blue (0 % to 100 %), for all LEDs together 0…255...
  • Page 48 Operating Channel Value Function Function depending on setting of channel 6 Channel 6 = 0…10 1…16 17…33 Basic colour cyan 34…50 Basic colour pink 51…67 Basic colour magenta 68…84 Basic colour orange 85…101 Basic colour cold white 102…118 Basic colour pompadour 119…135 Basic colour light green 136…152...
  • Page 49 Operating Channel Value Function 187…203 Basic colour red 202…220 Basic colour green 221…237 Basic colour blue 238…254 Basic colour amber maximum brightness Channel 6 = 11…241 0…255 Programme speed Pr.02…Pr.22 Channel 6 = 242…255 0…255 Sound-controlled operation SO.01…SO.15 0…255 Stroboscope effect (0 % to 100 %) Stage Quad LED Bundle RGBW / RGBWW...

  • Page 50: Functions In 10-Channel Dmx Mode

    Operating 7.8 Functions in 10-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity red (0 % to 100 %) for all LEDs spot 1 and 2 0…255 Intensity green (0 % to 100 %) for all LEDs spot 1 and 2 0…255 Intensity blue (0 % to 100 %) for all LEDs spot 1 and 2 0…255...

  • Page 51: Functions In 18-Channel Dmx Mode

    Operating 7.9 Functions in 18-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity red (0 % to 100 %) for all LEDs spot 1 0…255 Intensity green (0 % to 100 %) for all LEDs spot 1 0…255 Intensity blue (0 % to 100 %) for all LEDs spot 1 0…255...
  • Page 52 Operating Channel Value Function 0…255 Intensity blue (0 % to 100 %) for all LEDs spot 3 0…255 Intensity white (0 % to 100 %) for all LEDs spot 3 0…255 Intensity red (0 % to 100 %) for all LEDs spot 4 0…255 Intensity green (0 % to 100 %) for all LEDs spot 4 0…255...

  • Page 53: Reset To Factory Defaults

    Operating 7.10 Reset to factory defaults Proceed as follows to reset the device to factory defaults: Switch off the device. Switch the device on again and hold the buttons [Mode] and [Setup] pressed for about 2 seconds. Stage Quad LED Bundle RGBW / RGBWW...

  • Page 54: Technical Specifications

    Technical specifications Technical specifications Stage Quad LED Stage Quad LED Bundle RGBW Bundle RGBWW Item no. 406030 Item no. 404465 Light source 28 × RGBW LED, 28 × RGBWW LED, 4 W each 4 W each Optical properties Beam angle 40°...
  • Page 55 Technical specifications Stage Quad LED Stage Quad LED Bundle RGBW Bundle RGBWW Item no. 406030 Item no. 404465 Output connections Power supply 2 × IEC chassis plug C13 DMX control XLR chassis socket, 3-pin Power consumption 110 W Supply voltage 100 –...
  • Page 56 Technical specifications Stage Quad LED Stage Quad LED Bundle RGBW Bundle RGBWW Item no. 406030 Item no. 404465 Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) LED lighting set...
  • Page 57 Technical specifications Further information Stage Quad Stage Quad LED Bundle RGBW LED Bundle RGBWW Item no. 406030 Item no. 404465 Spotlight included Effect devices included LED bars included Control included Stand included Case / bag included Stage Quad LED Bundle RGBW / RGBWW...

  • Page 58: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 59: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 60: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery.
  • Page 61 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose this device through an approved waste disposal firm or through your local waste facility.
  • Page 62 Notes LED lighting set...
  • Page 64 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
