Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 7 Safety instructions..........................10 Features............................... 15 Installation..............................16 Starting up..............................22 Connections and operating elements................... 25 Operating..............................33 7.1 Operating on the unit........................
Page 4
Table of contents 7.6 Functions in DMX mode 4, 14-channel mode............... 44 7.7 Functions in DMX mode 5, 2-channel mode................46 7.8 Functions in DMX mode 6, 7-channel mode................49 Technical specifications........................51 Plug and connection assignments....................54 Troubleshooting............................55 Cleaning...............................
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. CLB2.4 Compact LED PAR System...
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...
Page 8
General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
Page 9
General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. CLB2.4 Compact LED PAR System...
Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
Page 11
Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices.
Page 12
Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only.
Page 13
Safety instructions NOTICE! Fire hazard due to exceedance of the maximum current The device can power other devices of identical construction. The current consumption of all other devices connected in series must not exceed the values indicated in the technical specifications. Otherwise you risk injuries and irreparable damages to the device. Only connect so many identical devices that the maximum current consumption is not exceeded.
Page 14
Safety instructions NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐ teries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period.

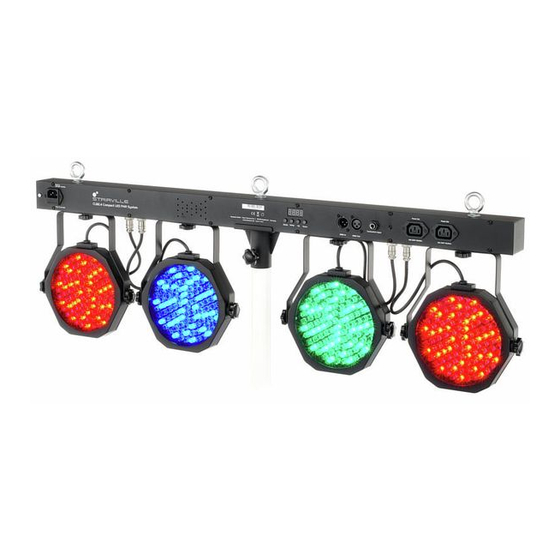

Features Features The LED lighting set is particularly suitable for professional lighting tasks, for example at events, on rock stages, in theatres and musicals. It's characterized by an extraordinary light output and a variety of control options. 432 × 10 mm LEDs on four flat PARs Control via DMX (6 different modes), buttons and display on the unit, foot switch (item no.
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
Page 17
Installation NOTICE! Damages due to disconnection during operation Only operate the unit when all spotlights are connected. The disconnection of LED spotlights during operation may damage the unit. Dis‐ connect the unit from the power supply before disconnecting LED spotlights. NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more...
Page 18
Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐...
Page 19
Installation Pre-mounted spots The four spots are pre-mounted on the T-bar. Attach the T Bar on a stand and connect the foot switch unit (stand and foot switch not included). Locking screws to fix the height and inclination angle. Threads for attaching additional effects units or for hanging using the C-hooks. CLB2.4 Compact LED PAR System...
Page 20
Installation Locking screw for fixing the spots on the T bar and the horizontal alignment (beam direction). Electrical connection of the spots on the T bar (pre-assembled). Safety cable eyelet Please note that this device must not be connected to a dimmer. LED lighting set...
Page 21
Installation Inserting the battery into the Press the lock of the battery holder to the centre of the housing and pull out the battery holder remote control like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing base of the remote control.
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED lighting set...
Page 23
Starting up Connections in ‘DMX’ mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one and so on, to form a series connection.
Page 24
Starting up DMX indicator If the unit is in DMX mode and a DMX controller is connected and turned on, the ‘d’ is flashing in the first digit of the display. Connections in ‘Master / When you configure a group of devices in ‘Master / Slave’ mode, the first device controls the Slave‘...
Connections and operating elements Connections and operating elements Front panel CLB2.4 Compact LED PAR System...
Page 26
Connections and operating elements 1 IEC chassis plug for power supply with fuse holder 2 Display 3 [Mode] Activates the main menu and toggles between menu items. Closes an opened submenu. 4 [Setup] Selects an option of the respective operating mode, confirms the set value. 5 [Up] Increases the displayed value by one 6 [Down]...
Page 27
Connections and operating elements 9 [Foot switch Input] 1/4" phone socket to connect the foot switch unit 10 IEC chassis sockets for the power supply cable to the next unit. CLB2.4 Compact LED PAR System...
Page 28
Connections and operating elements Infrared remote control (item no. 354223, optionally avail‐ Since the universal remote control can be used for several device types, some buttons able) may not be assigned and therefore have no function. & ö LED lighting set...
Page 29
Connections and operating elements 1 [ON/OFF] Turns the device on and off. 2 [AUTO] Activates the ‘Automatic‘ mode. 3 [PRG] Activates the operating mode ‘Preprogrammed automatic show’. Select the desired programme with [+] and [–]. 4 [SOUND] Activates the Sound-controlled mode. Set the sensitivity of the built-in microphone with [+] and [–]. 5 [SPEED] Activates the setting mode for the programme speed.
Page 30
Connections and operating elements 8 [–] Decreases the set value. 9 [Dimming] Activates the dimming function for basic colours. Set the value for each basic colour using [+] and [–]. 10 [0 … 9] Numeric buttons for direct selection of a basic colour. 11 [R], [G], [B], [A], [W] Buttons to select the colour shade in dimmer mode.
Page 31
Connections and operating elements Foot switch unit (item no. 279058, optionally available) ö CLB2.4 Compact LED PAR System...
Page 32
Connections and operating elements 1 [Auto Run/Program] Activates the ‘Automatic’ mode (playback of preprogrammed automatic shows). 2 [Sound Active] Activates the ‘Sound-control’ mode (playback of sound-controlled automatic shows). 3 [Freeze] Pauses the running show (’freeze’) and resumes it after a break. 4 [Blackout] Blackouts all LEDs or turns them back on again.
Operating Operating Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. 7.1 Operating on the unit Press [Mode] to activate the main menu and select an operating mode. Use [Up] and [Down] to change the respectively displayed value.
Page 34
Operating Operating mode ‘Preprog‐ A preprogrammed automatic show can only be activated when the unit is operating in stand- rammed automatic show’ alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX.
Page 35
Operating Colour Display White ‘rb’ Light red ‘rb’ Light green ‘r9’ Light blue ‘rb’ Yellow ‘rb’ Warm white ‘1Y’ ‘–r’ Green ‘–9’ Blue ‘–b’ Amber ‘r9’ CLB2.4 Compact LED PAR System...
Page 36
Operating Settings for programmes 02 to 14: To adjust the programme speed, press again [Setup]. The display shows ‘SP.xx’ . Now use [Up] and [Down] to select a value between ‘SP.01’ (slow) and ‘SP.FL’ (fast). To adjust the strobe frequency, press [Setup] again. The display shows ‘FS.xx’ . Now use [Up] and [Down] to select a value between ‘FS.00’...
Page 37
Operating DMX address This setting is only relevant when the device is controlled via DMX. Press [Mode] repeatedly until the display shows ‘dxxx’ . Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (display shows ‘d001’...
Page 38
Operating Operating mode ‘DMX’ This setting is only relevant when the device is controlled via DMX. Press [Mode] repeatedly until the display shows ‘dxxx’ . Press [Setup]. Now use [Up] and [Down] to select one of the following DMX operating modes: ‘2-ch’...
Page 39
Operating Operating mode ‘Dimmer’ A constant colour can only be activated when the unit is operating in stand-alone mode or as master in a master / slave combination. This setting is only relevant if the device is not con‐ trolled via DMX. Press [Mode] until the display shows ‘Colr’...
Page 40
Operating Operating mode ‘Sound control’ The sound controlled automatic show can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘Soud’...
Operating Channel Value Function 0 … 255 Intensity green (0 % … 100 %) all PARs 0 … 255 Intensity blue (0 % … 100 %) all PARs 7.5 Functions in DMX mode 3, 8-channel mode Channel Value Function 0 … 255 Dimmer (0 % …...
Technical specifications Technical specifications Light source 4 × 108-10 mm RGB LED Light source properties Light output Red: 234 Lux / 2 m Green: 951 Lux / 2 m Blue: 224 Lux / 2 m In total: 1364 Lux / 2 m Optical properties Beam angle 30 °...
Page 52
Technical specifications Output connections Power supply 2 × IEC chassis plug C13 DMX control XLR chassis socket, 3-pin Power consumption 50 W Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 1,5 A, 250 V, slow-blow Battery of the remote control Lithium-ions button cell CR2025, 3 V Degree of protection...
Page 53
Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Spotlight included Effect devices included LED bars included Control included Stand included Case / bag included CLB2.4 Compact LED PAR System...
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
Page 56
DMX interface circuits. 2. Try using another DMX controller. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED lighting set...
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
Page 59
Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose of this device through an approved waste disposal firm or through your local waste facility.
