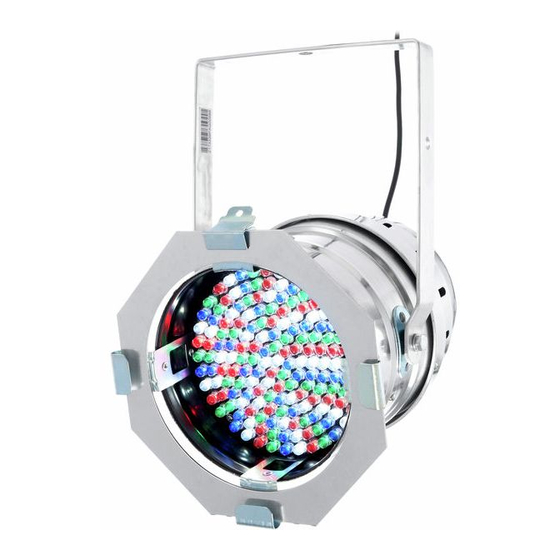

thomann STAIRVILLE PAR64 MKII RGBW User Manual
thomann STAIRVILLE PAR64 MKII RGBW User Manual

thomann STAIRVILLE PAR64 MKII RGBW User Manual

Led par

Advertisement

Quick Links

PAR64 MKII RGBW
LED PAR
user manual

Advertisement

Table of Contents
loading

Summary of Contents for thomann STAIRVILLE PAR64 MKII RGBW

  • Page 1 PAR64 MKII RGBW LED PAR user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 27.05.2020, ID: 274650, 274652 (V2)
  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 5 Safety instructions............................. 8 Features............................... 14 Installation..............................15 Starting up..............................19 Connections and operating elements................... 22 Operating..............................24 7.1 Starting up the device........................24 7.2 Main menu............................24 7.3 Menu overview..........................31 7.4 Functions in 4-channel DMX mode...................
  • Page 4 Table of contents Troubleshooting............................38 Cleaning............................... 40 Protecting the environment......................41 LED PAR...
  • Page 5: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner.
  • Page 6 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 7 General notes Warning signs Type of danger Warning – suspended load. Warning – danger zone. PAR64 MKII RGBW...
  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 9 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 10 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
  • Page 11 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. PAR64 MKII RGBW...
  • Page 12 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
  • Page 13 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
  • Page 14: Features

    Features Features The LED-PAR is ideal for professional lighting applications, for example, at events, on rock stages, in theatres and musicals or for TV productions. It's characterized by low power con‐ sumption and long service life. Special features of the device: 168 10 mm LEDs (42 ×...
  • Page 15: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 16 Installation NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
  • Page 17 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Mounting options You can install the unit in hanging or standing position.
  • Page 18 Installation Please note that this device must not be connected to a dimmer. LED PAR...
  • Page 19: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. PAR64 MKII RGBW...
  • Page 20 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 21 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.
  • Page 22: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Rear panel LED PAR...
  • Page 23 Connections and operating elements 1 Power cord 2 Display 3 [OK] Confirms a selected value 4, 5 Increases or decreases the displayed value by one 6 [M] Calls up the main menu or a submenu 7 Bracket for floor placement or hanging 8 Locking screws for the bracket 9 [DMX IN] DMX input...
  • Page 24: Operating

    Operating Operating 7.1 Starting up the device Connect the unit to the power grid to start the operation. After a few seconds the display shows a running reset. The unit is then ready for use. 7.2 Main menu Press [M] to call the main menu and select an operating mode. Use the arrow keys to change the respectively shown value.
  • Page 25 Operating DMX mode Press [M]. Press one of the arrow keys repeatedly until the display shows ‘SET’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MODE’ . Press [OK]. Now use the arrow keys to select one of the following DMX operating modes: ‘4CH’...
  • Page 26 Operating DMX address Press [M]. Press one of the arrow keys repeatedly until the display shows ‘DMX’ . Press [OK]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Use the arrow keys to select a value between 1 and 512 (the display shows ‘A001’ … ‘A512’ ). When the display shows the desired value, press [OK] to confirm the selection and then [M] to return to the superordinate menu.
  • Page 27 Operating Operating mode ‘Show/Master’ Press [M]. Press one of the arrow keys repeatedly until the display shows ‘LINE’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MA’ . Press [OK]. Now you can select one of the 41 pre-programmed shows. Use the arrow keys to select a value between 1 and 42 (the display shows ‘P-01’...
  • Page 28 Operating Programme speed Press [M]. Press one of the arrow keys repeatedly until the display shows ‘SET’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘SPEE’ . Press [OK]. Now you can set the programme speed for the pre-programmed automatic shows. Use the arrow keys to select a value between 1 and 255 (the display shows ‘T001’...
  • Page 29 Operating Manual test Press [M]. Press one of the arrow keys repeatedly until the display shows ‘TEST’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘RED’ , ‘GREE’ , ‘BLUE’ , ‘WHIT’ or ‘STRO’ . Press [OK]. Now you can adjust the brightness of the red, green, blue or white LEDs in a range from 0 to 255, or select the flash rate in a range from 0 to 24.
  • Page 30 Operating Colour selection Press [M]. Press one of the arrow keys repeatedly until the display shows ‘COLO’ . Press [OK]. Now you can set a base colour for the pre-programmed automatic shows. Use the arrow keys to select a value between 1 and 4 (the display shows ‘C-01’ … ‘C-04’ ). This setting is only relevant if the device is not controlled via DMX.
  • Page 31: Menu Overview

    Operating 7.3 Menu overview PAR64 MKII RGBW...
  • Page 32: Functions In 4-Channel Dmx Mode

    Operating 7.4 Functions in 4-channel DMX mode Channel Value Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 7.5 Functions in 6-channel DMX mode Channel Value...
  • Page 33 Operating Channel Value Function 128…191 Automatic colour change with 12 colours, channels 2 to 5 have no function 192…255 Automatic colour change with 4 colours, channels 2 to 5 have no function 0…255 Intensity red (0 % to 100 %), if channel 1 = 0…63 0…255 Intensity green (0 % to 100 %), if channel 1 = 0…63 0…255...
  • Page 34: Functions In 8-Channel Dmx Mode

    Operating 7.6 Functions in 8-channel DMX mode Channel Value Function 0…255 Intensity red (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31 0…255 Intensity green (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31 0…255 Intensity blue (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31 0…255...
  • Page 35 Operating Channel Value Function 0…31 Constant colour, colouring is determined by channels 1 to 4 32…63 Fade-out effect, speed controlled by channel 6, channels 1 to 5 without function 64…95 Fade-in effect, speed controlled by channel 6, channels 1 to 5 without function 96…127 Fade-in-out effect, speed controlled by channel 6, channels 1 to 5 without function 128…159...
  • Page 36: Technical Specifications

    Technical specifications Technical specifications Light source 168 10 mm LEDs (42 × white, 42 × red, 42 × green, 42 × blue) Optical properties Beam angle 45° Control DMX, buttons and display on the unit Number of DMX channels 4, 6 or 8 Input connections DMX control XLR chassis socket, 3-pin...
  • Page 37 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing Further information Construction PAR64 Colour mixture RGBW LED type Unicoloured LEDs Base housing Fanless Remote control Not possible Wireless DMX Housing colour Black (item no. 274650) Silver (item no.
  • Page 38 Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 39 4. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interfer‐ ence to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. PAR64 MKII RGBW...
  • Page 40 Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
  • Page 41 Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 42 Notes LED PAR...
  • Page 44 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
