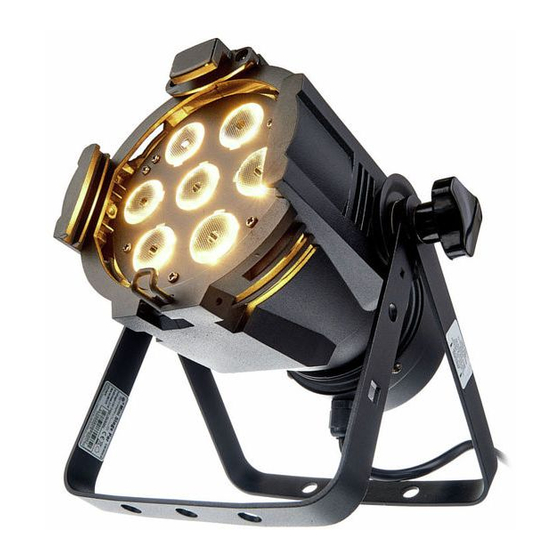

- Page 1 Mini Stage Par CW/WW/A LED PAR user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 27.04.2018, ID: 402319 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 7 Safety instructions..........................10 Features............................... 15 Installation..............................16 Starting up..............................20 Connections and controls........................23 Operating..............................26 7.1 Starting the device........................... 26 7.2 Main menu............................ - Page 4 Table of contents Technical specifications........................35 Plug and connection assignments....................37 Troubleshooting............................38 Cleaning............................... 40 Protecting the environment......................41 LED PAR...
-
Page 5: General Notes
General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 6: Further Information
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Notational Conventions
General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’... - Page 8 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 9 General notes Warning signs Type of danger Warning – danger zone. Mini Stage Par CW/WW/A...
-
Page 10: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con- ditions is considered to be improper and may result in personal injury or property damage. - Page 11 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 12 Safety instructions DANGER! Electric shock caused by short-circuit Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. WARNING! Eye damage caused by high light intensity Never look directly into the light source.
- Page 13 Safety instructions WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. Secure the barn door with a safety cable on the spotlight after installation.
- Page 14 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
-
Page 15: Features
Features Features Special features of the device: 7 × CW / WW / A LEDs (warm white, cold white, amber, each 6 W) Colour temperature range 2800 K … 6000 K Stand-alone, master / slave or DMX mode operation Operating via buttons and display on the unit Robust space-saving housing with mounting bracket Suitable for use in clubs, bars, stages, exhibitions, etc. -
Page 16: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 17 Installation NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
- Page 18 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi- nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. Mounting options You can install the unit in hanging or standing position.
- Page 19 Installation Please note that this device must not be connected to a dimmer. Mini Stage Par CW/WW/A...
-
Page 20: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED PAR... - Page 21 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
- Page 22 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.
-
Page 23: Connections And Controls
Connections and controls Connections and controls Mini Stage Par CW/WW/A... - Page 24 Connections and controls 1 Bracket for floor placement or hanging. 2 Locking screws for the mounting bracket. 3 LED configuration: 7 × CW / WW / A (warm white, cold white, amber). 4 Power cord 5 Display with function buttons. [OK] Confirms a selected value.
- Page 25 Connections and controls 6 [DMX OUT] DMX output 7 [DMX IN] DMX input. Mini Stage Par CW/WW/A...
-
Page 26: Operating
Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. The device is immediately opera- tional and operates in the last mode with the settings last selected. 7.2 Main menu Menu control Press [M] to open the main menu. Use the arrow buttons to select the desired parameter or to change the respectively displayed value. - Page 27 Operating DMX address Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘DMX’ . Press [OK]. Use the arrow keys to select the submenu ‘ADDR’ and confirm with [OK]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Use the arrow keys to select a value between 1 and 512.
- Page 28 Operating DMX mode Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘DMX’ . Press [OK]. Use the arrow keys to select the submenu ‘MODE’ and confirm with [OK]. Now you can select the desired DMX mode: ‘4CH’...
- Page 29 Operating Strobe effect Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘STOR’ . Press [OK]. Use the arrow buttons to select the desired submenu: ‘MODE’ : Selecting colour programmes ‘SPEE’ : Strobe speed ‘MIC’ : Sound control ‘MAST’...
- Page 30 Operating Auto mode (automatic colour Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘STEP’ . Press [OK]. change) Use the arrow buttons to select the desired submenu: ‘MODE’ : Selection auto mode ‘SPEE’ : Speed of colour change ‘MIC’...
- Page 31 Operating Fade setting Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘FADE’ . Press [OK]. Use the arrow buttons to select the desired submenu: ‘MODE’ : Fade mode ‘SPEE’ : Fade speed ‘MAST’ : Master Use the arrow buttons to select the desired setting and confirm with [OK].
-
Page 32: Menu Overview
Operating 7.3 Menu overview LED PAR... -
Page 33: Functions In 4-Channel Dmx Mode
Operating 7.4 Functions in 4-channel DMX mode Channel Value Function 0 … 255 Intensity cold white (0 % to 100 %) 0 … 255 Intensity warm white (0 % to 100 %) 0 … 255 Intensity amber (0 % to 100 %) 0 …... - Page 34 Operating Channel Value Function 0 … 255 Dimmer (0 % to 100 %) 0 … 255 Stroboscope effect (0 % to 100 %) LED PAR...
-
Page 35: Technical Specifications
Technical specifications Technical specifications Illuminant 7 × CW / WW / A LEDs, each 6 W (cold white, warm white, amber) Beam angle 30 ° Number of DMX channels 4 or 5 channels, depending on operating mode Operating supply voltage AC 100 –... - Page 36 Technical specifications Environmental conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing LED PAR...
-
Page 37: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip- ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 38: Troubleshooting
Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi- nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. In the following we list a few common problems that may occur during operation. - Page 39 4. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interfer- ence to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Mini Stage Par CW/WW/A...
-
Page 40: Cleaning
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. -
Page 41: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate- rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 42 Notes LED PAR...
- Page 44 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
