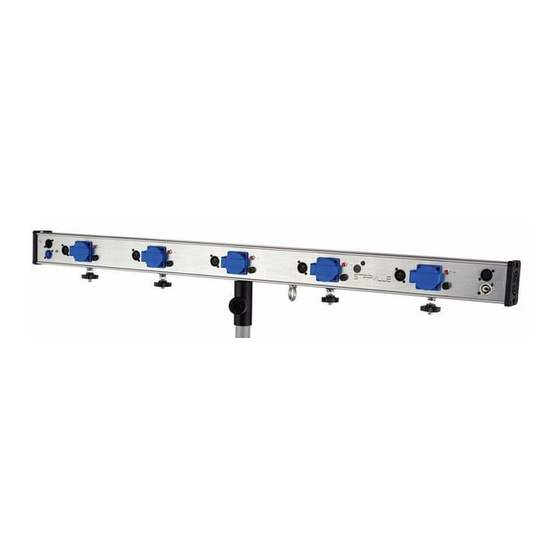

LED Power & DMX Bar

DMX Splitter with Power Distribution

Table of Contents

Need help?

Do you have a question about the STAIRVILLE LED Power & DMX Bar and is the answer not in the manual?

Questions and answers

Summary of Contents for thomann STAIRVILLE LED Power & DMX Bar

Page 1 LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 08.01.2024, ID: 114791, 470232 (V4)
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 8 Features............................... 11 Installation and starting up........................ 12 Connections and controls........................18 Technical specifications........................20 Protecting the environment......................22 LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 4 LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
Page 7 General information Warning signs Type of danger Warning – danger zone. LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is used to distribute electrical power and DMX signals to several connected loads. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damage resulting from improper use.
Page 9 Safety instructions DANGER! Risk of death from electrical current! A short circuit can cause fires and loss of life. Always use properly insulated, tripe-core mains cable. Do not modify the mains cable. If the insulation is damaged, immediately switch off the power supply and have it repaired. If in doubt, contact a qualified electrician. NOTICE! Risk of fire due to covered vents and neighbouring heat sources! If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐...
Page 10 Safety instructions NOTICE! Risk of fire by exceeding the maximum current The device can supply power to other devices of identical design and connected in series. If too many devices are connected, the power consumption can exceed the maximum permitted power consumption, which can cause the device to overheat and burst into flames.
Page 11: Features
Features Features Truss beam for the distribution of electrical power and DMX signals to up to five spotlights All inputs and outputs on the front Inputs: – Lockable input socket (Power Twist) for the power supply – DMX input socket Outputs: –...
Page 12: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
Page 13 Installation and starting up CAUTION! Risk of injury due to tipping of the stand during loaded transport! If the stand is moved without having removed the installed devices, the stand may tip over and cause injuries and property damage. Remove the installed devices before transporting the stand. CAUTION! Risk of injury due to tipping of the stand from excessive loading! In case of excessive loading, the stand might tip over, causing injury and property...
Page 14 Installation and starting up NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers.
Page 15 Installation and starting up Setting up the device ö & LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 16 Installation and starting up 1 Nut 2 Washer 3 Snap ring 4 Spacer for star grip nut 5 Stand adapter 6 Locking screw for stand adapter 7 Safety cable eyelet 8 Screw 9 Star handle nut 10 Attaching the spotlight mount 11 Attach the safety cable eyelet 12 Attaching the stand adapter Attaching the stand adapter...
Page 17 Installation and starting up Attach the safety cable eyelet Push the snap ring onto the thread of the safety cable eyelet. Push the washer onto the thread of the safety cable eyelet. Screw the nut onto the top end of the thread of the safety cable eyelet. Push the safety cable eyelet into the centre of the groove of the bar by the nut.
Page 18: Connections And Controls
Connections and controls Connections and controls ö # $ % & LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 19 Connections and controls 1 DMX input 2 DMX output 3 Outlet 4 Indicator LED | Lights up on open circuit 5 DMX output for further devices 6 Lockable output socket (Power Twist) for the power supply of further devices 7 Safety cable eyelet 8 Stand adapter for fastening the device to a stand 9 Fuse 10 Threaded screw for attaching one spotlight...
Page 20: Technical Specifications
Technical specifications Technical specifications Input connections Power supply 1 × lockable input socket (Power Twist) DMX control 1 × XLR chassis plug, 3-pin Output connections Power supply for further devices 1 × lockable output socket (Power Twist) DMX control 5 × XLR panel socket, 3-pin DMX control of other devices 1 ×...
Page 21 Technical specifications Further information Colour Silver (item no. 114791) Black (item no. 470232) LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 22: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
Page 23 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
Page 24 Notes LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 25 Notes LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 26 Notes LED Power & DMX Bar DMX Splitter with Power Distribution...
Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
