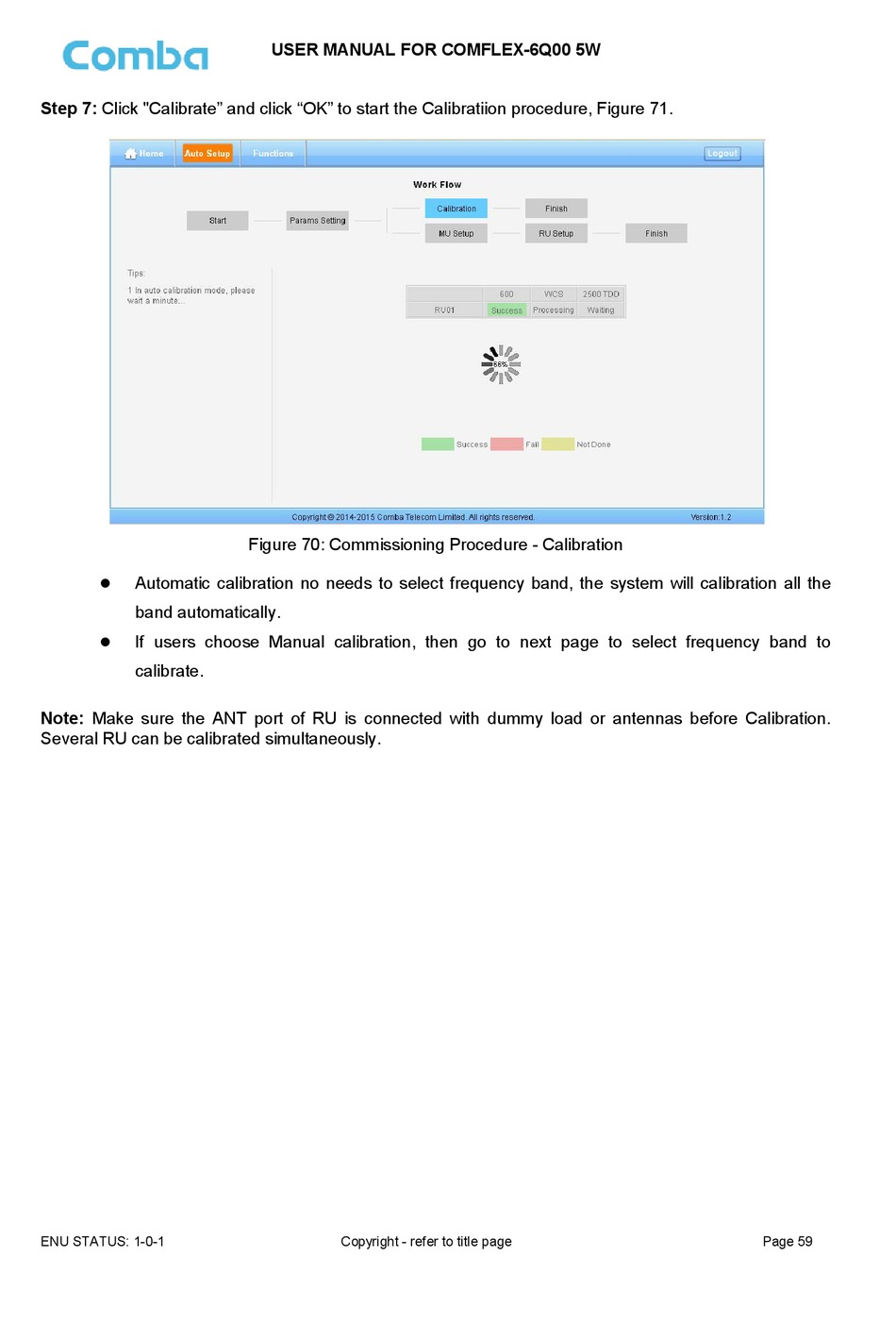

Step 7: Click "Calibrate" and click "OK" to start the Calibratiion procedure, Figure 71.
Automatic calibration no needs to select frequency band, the system will calibration all the
band automatically.
If users choose Manual calibration, then go to next page to select frequency band to
calibrate.
Note: Make sure the ANT port of RU is connected with dummy load or antennas before Calibration.
Several RU can be calibrated simultaneously.
ENU STATUS: 1-0-1
USER MANUAL FOR COMFLEX-6Q00 5W
Figure 70: Commissioning Procedure - Calibration
Copyright - refer to title page
Page 59
