4.3.2 DIGITAL DISPLAY ON FOU

The digital display tube on optical module has two digits.
The first digit will display A, b, C and d which presents the No. of optical port. Refer to below figure for the
relationship.
The second digit will display the optical loss of each port. See the following table for the relationship of
figure and optical loss.
Figure
ENU STATUS: 1-0-1
USER MANUAL FOR COMFLEX-6Q00 5W
Table 11: RFU Digital Display
L
H

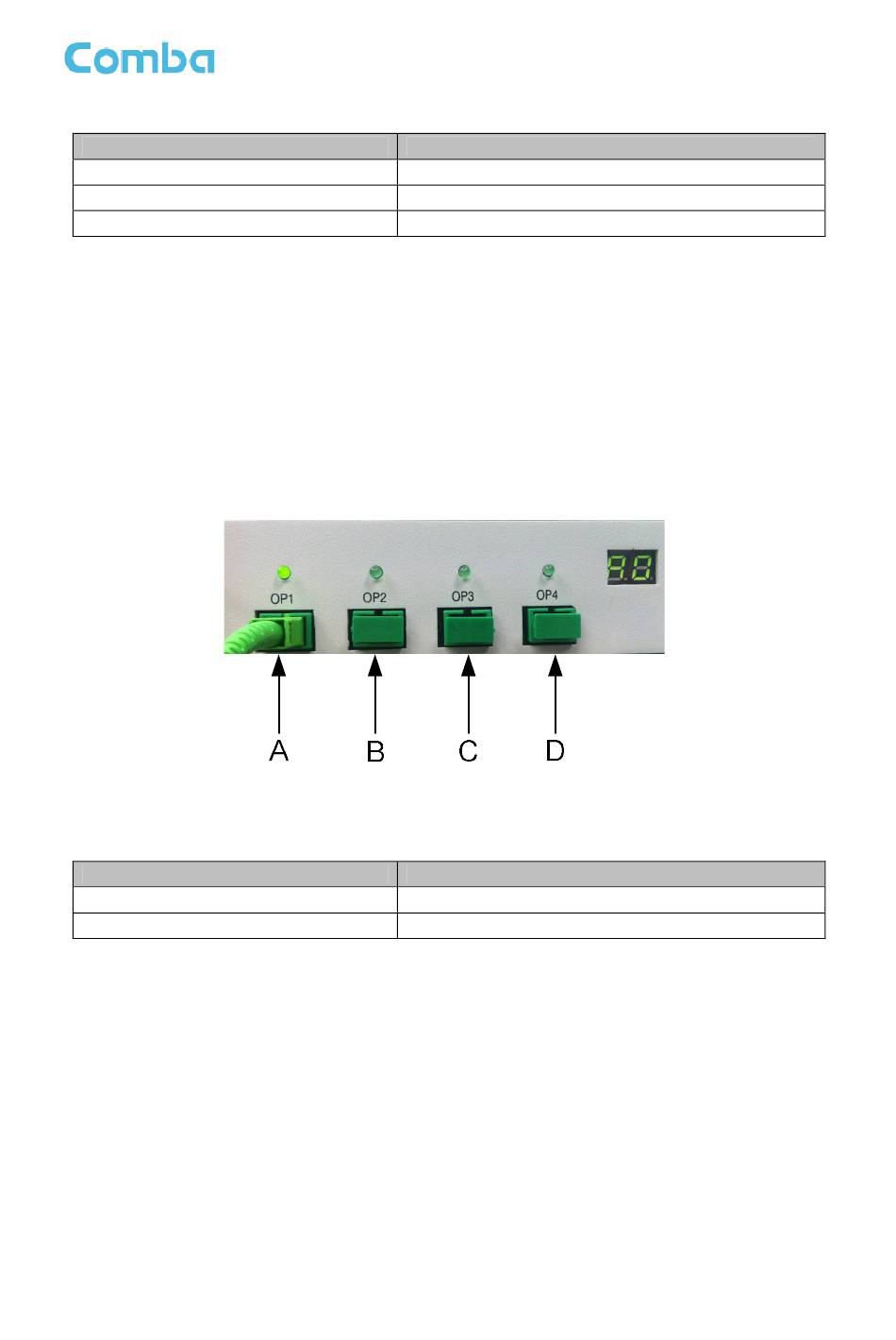

Figure 36: Optical Port No. and Digital Display
Table 12: FOU Digital Display
0~9
H
Copyright - refer to title page
DL Input Power Level
Optical Loss
End of Section
< -19dBm
-19~33dBm
> 33dBm
0~9dBo
> 9dBo
