Step 3: Attach the mounting rack on a wall. If a concrete wall, use the 2 M8×80 masonry bolts. (Bolts are
provided; lag bolts or screws are not provided for plywood mounting)
ENU STATUS: 1-0-1
USER MANUAL FOR COMFLEX-6Q00 5W
6.65 in.
(169mm)

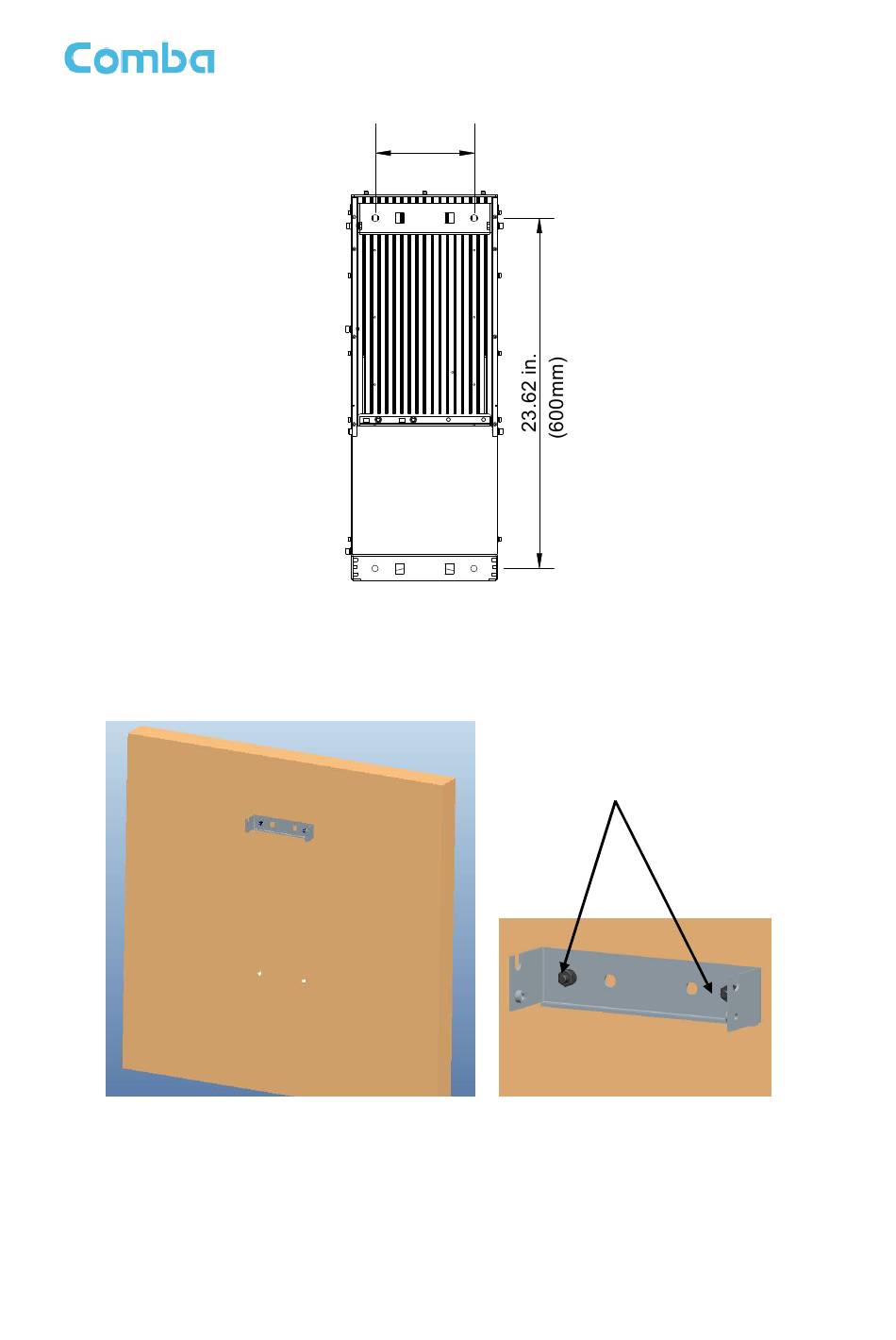

Figure 15: Wall Drilling Dimensions of MRU
Figure 16: Install Mounting Rack on the Wall
Copyright - refer to title page
Two M8×80
masonry bolt
