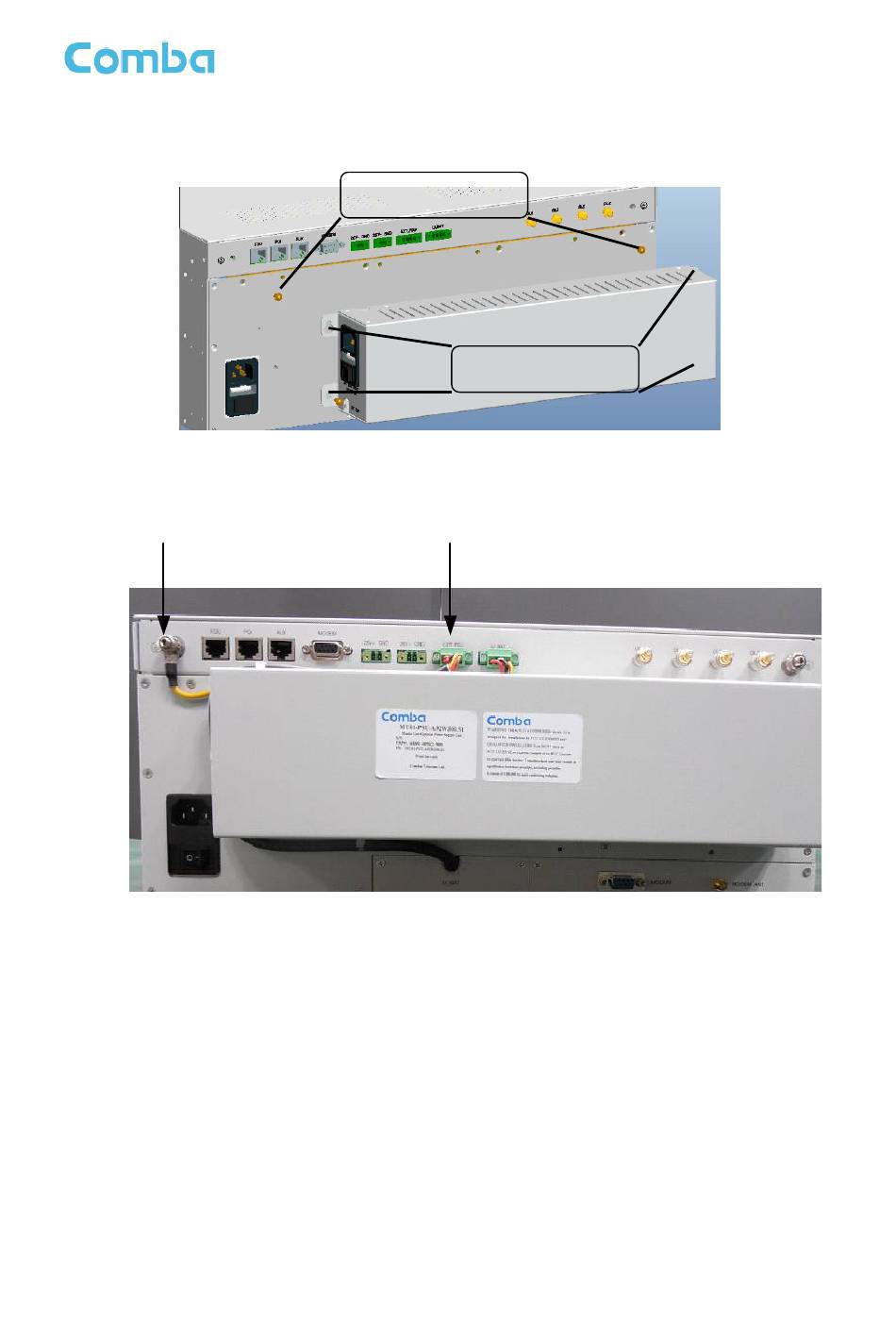

Step4: Backup PSU installation (Optional): 1) install 2 M4 x 10 bolt kits in the back of MU; 2) hang the
backup PSU on the bolts, then use another 4 M4 x 10 bolts kits to fasten the PSU; 3) .Fix cable clip,
connect output cable and ground cable to MU.
备份电源与
Ground Cable
机箱地连接
3.3.5 MU IN 19" RACK MOUNTING
MU is an indoor type device; the installation procedures are shown as below:
Step 1: Install right angle bracket and left angle bracket on back of the mounting rack. (Rack nuts and
screws are not provided.) Use rack nuts and screws as recommended by rack manufacturer.
ENU STATUS: 1-0-1
USER MANUAL FOR COMFLEX-6Q00 5W
2 M4 x 10 Bolts
Figure 9: Backup PSU Installation 1
备份电源输
PSU Output
出与MU连接
Figure 10: Backup PSU Installation 2
Copyright - refer to title page
4 M4 x 10 Bolts
