PSU mounted on wall
Step 1: Measure and mark the locations of 2 holes on the wall close to RU. Use Φ10 drill head.
(NOTE: DC cable is 1 foot 9 inches; AC cable is 13 feet 1 inch)
Step 2: Attach the PSU on the wall with two M8×80 hexagon screws (Screws are provided)
3.3.8 DRIP-LOOP
Comba recommends that every horizontal cable entry to the equipment forms a 'U' before it's entry to the
equipment. Any accumulated water on the cable will drip down at the bottom of the loop and will not climb
up to the equipment.
ENU STATUS: 1-0-1
USER MANUAL FOR COMFLEX-6Q00 5W

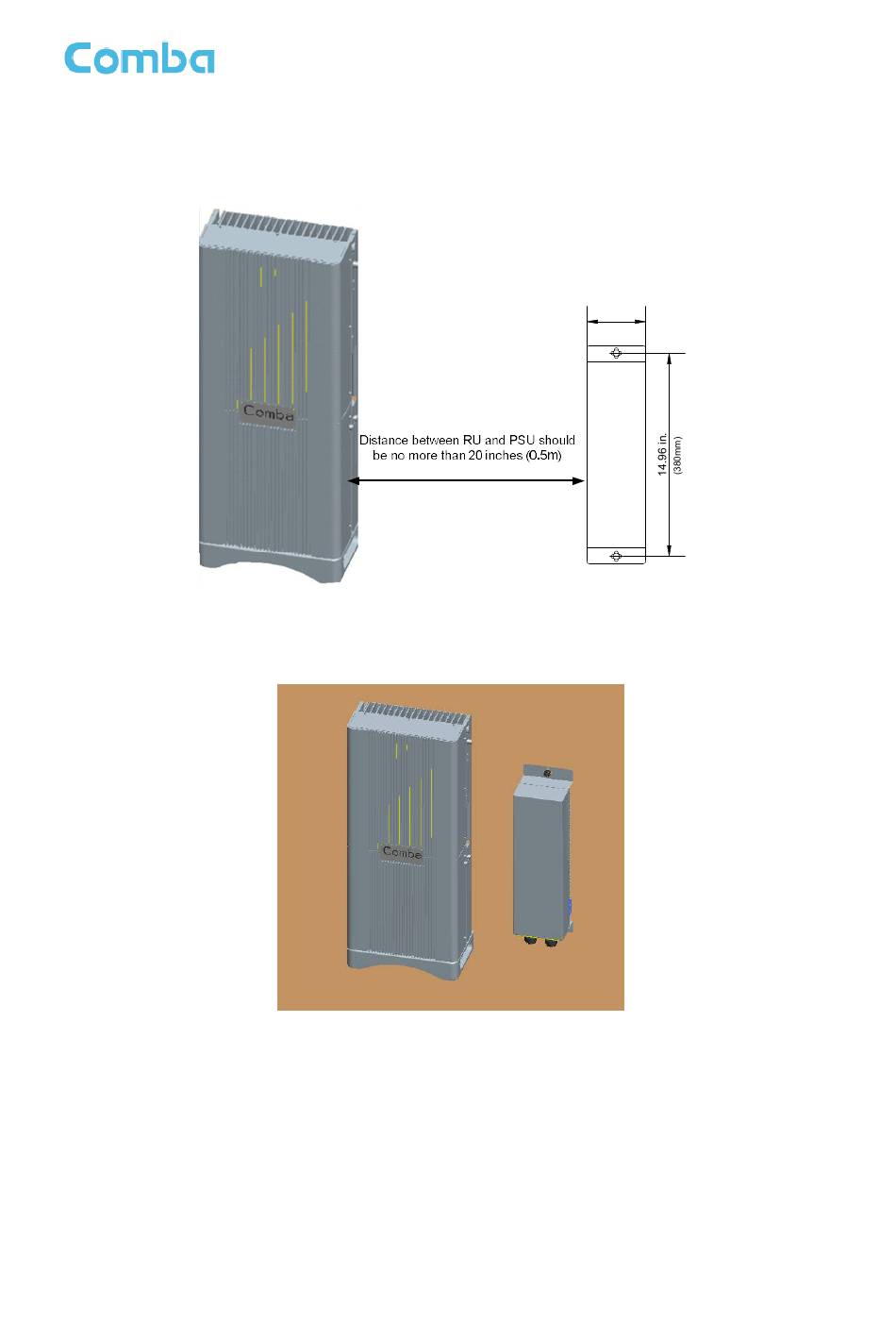

Figure 21: Wall Drilling Dimensions of PSU
Figure 22: Install PSU on the Wall
Copyright - refer to title page
4.37 in.
(111mm)
